Week - 4

Aim:

Implement control logic of a “washing machine” using Stateflow as per given sequence:

• If the power supply is available, the system gets activated
• If the Water supply is not available, stop the process & indicate through LED
• Soaking time should be 200s followed by Washing time of 100s.
• Then rinsing happens for next 20s & dryer runs for 50s

After all the processes have completed turn on the finished LED

Model:

The file which contains the model is attached with the report.

Implement control logic of a “washing machine” using Stateflow

parameter: Condititon:

value1 = mean there is input when lamp shown Green, the task In progress

value0 = mean there is no input when lamp shown Red, the task ends.

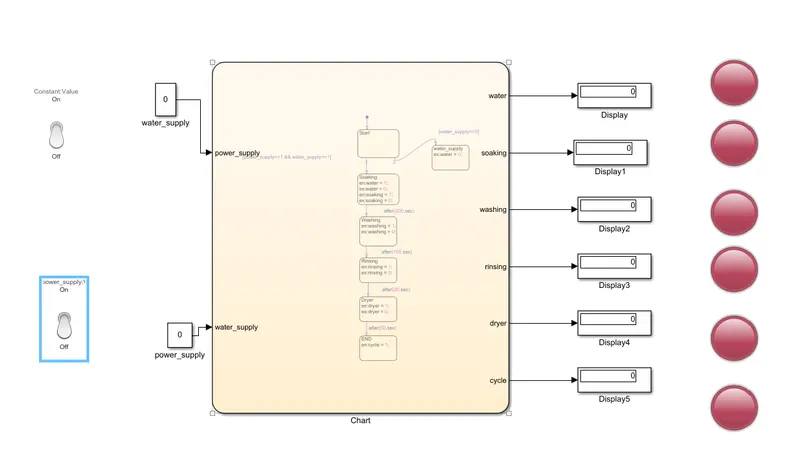

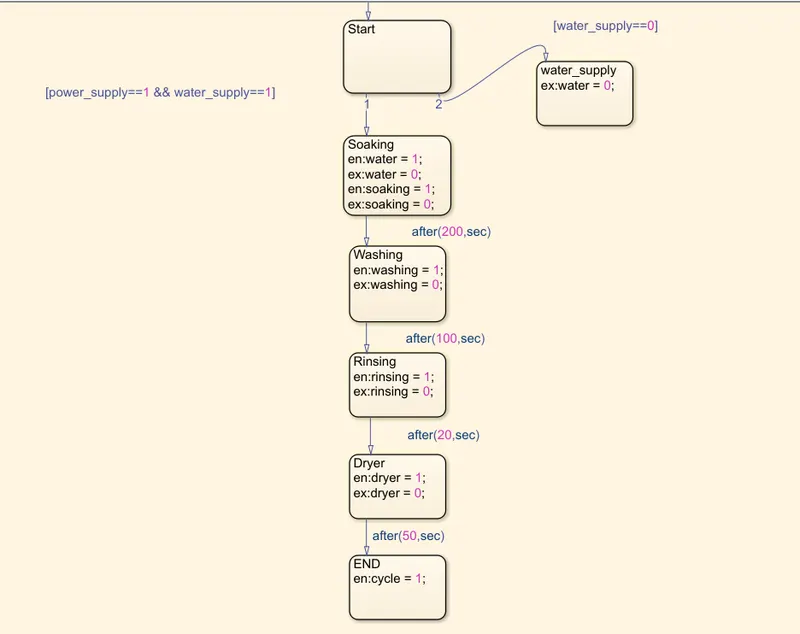

Chart diagram:

parameters:

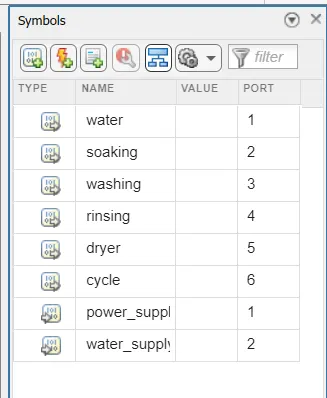

When have given water,soak,washing,rinsing,dryer,cycle as output as chart

when have given power_supply, water_supply as input as chart

Simulation time set as 430sec

Output:

there is two condition

Condition 1:

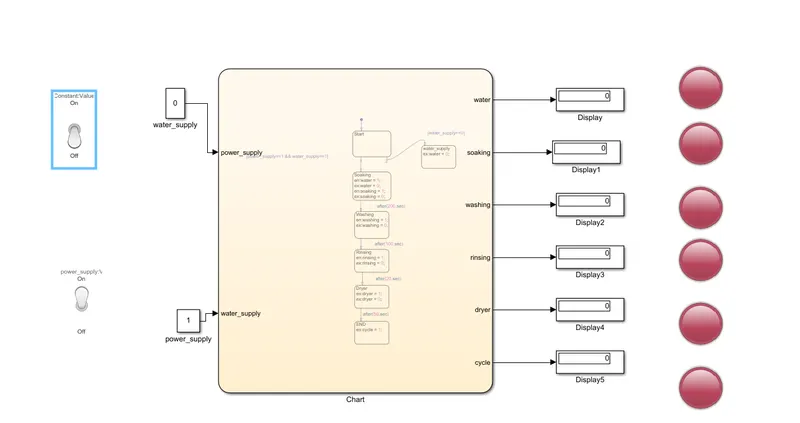

when water supply is off

From above diagram, we can see that indicator of water is showing Red, when there is no water supply the process is terminated and LED indicator is used to indicate that state

condition 2:

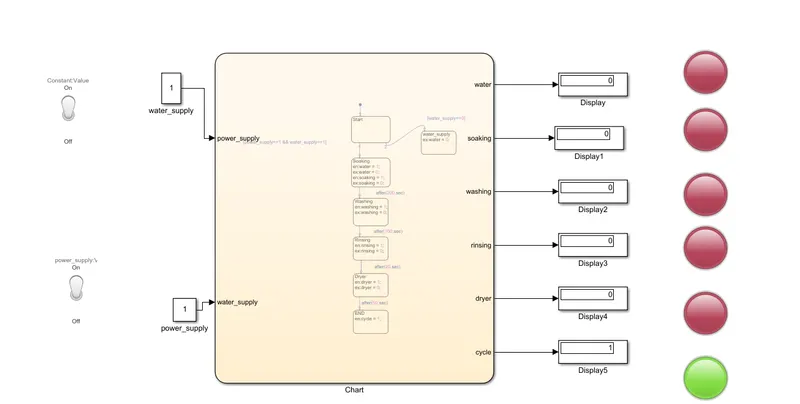

when water supply is on

From above diagram, when there is water supply the process is terminated and the cycle process comoplete indicator shown in green

Question 2:

2. Make a Simulink chart for the “Gear shift” logic as per below conditions:

Speed Range(kmph) Gear

0 to 15 1

16 to 25 2

26 to 40 3

41 to 60 4

Above 61 5

Give speed input while the simulation is running & display the gear number

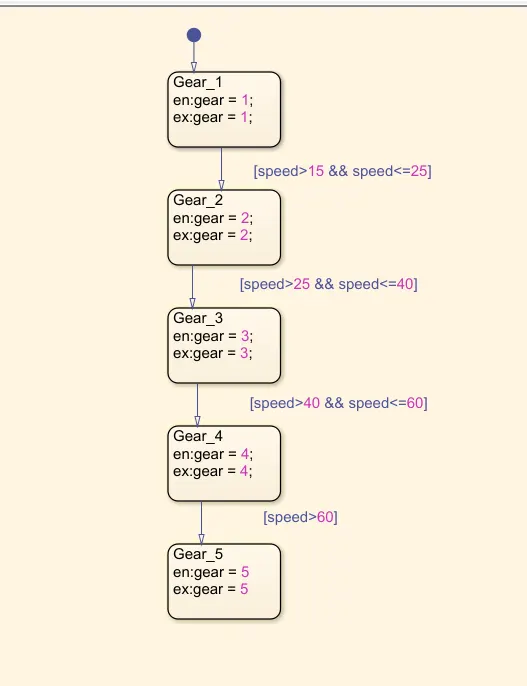

Model with block diagram:

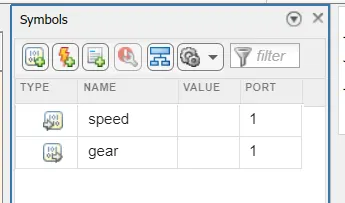

Symbol parameter

In this speed is input, and gear is output

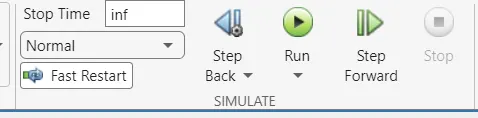

Time change as inf

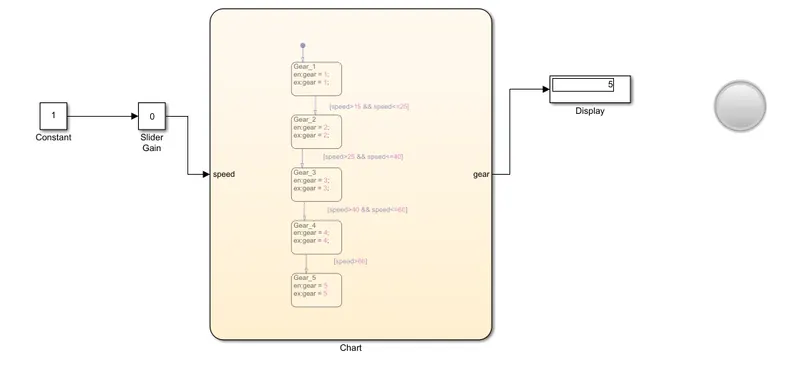

Above diagram appears that slider gain parameter to set in 0, while running the program we should change the speed that result will acquires in lamp as a different color

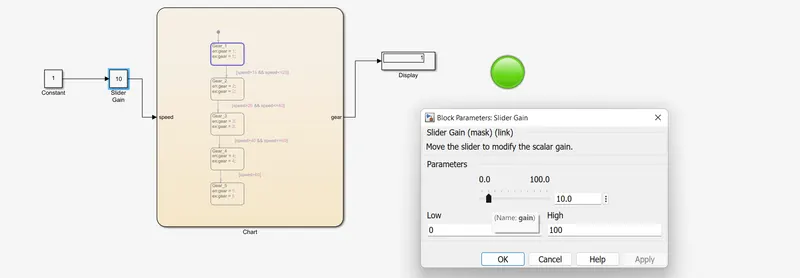

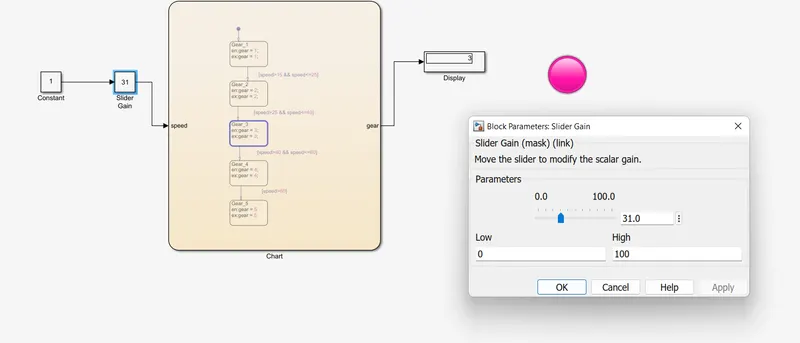

Output: when gear at 1 and the increase a speed using slider gain ,the colcor shown in green

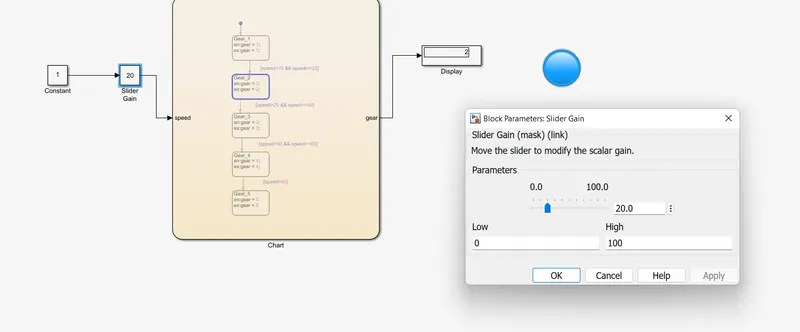

Output: when gear at 2 and the increase a speed using slider gain ,the colcor shown in light blue

Output: when gear at 3 and the increase a speed using slider gain ,the colcor shown in pink

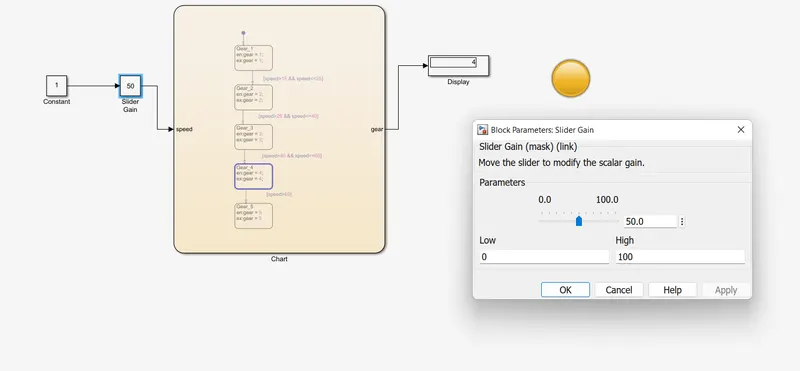

Output: when gear at 1 and the increase a speed using slider gain ,the colcor shown in yellow

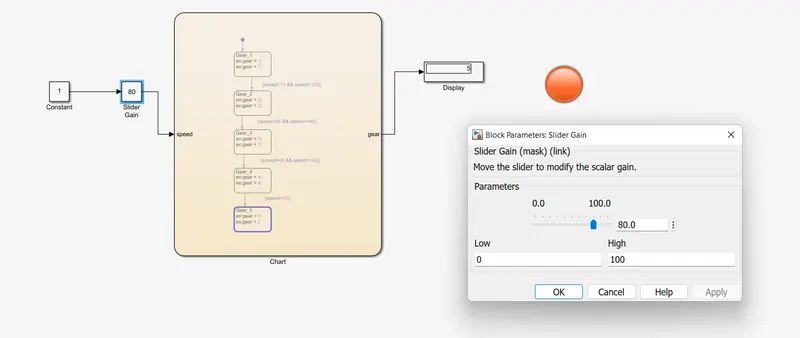

Output: when gear at 1 and the increase the speed using slider gain ,the colcor shown in orange

Conclusion :

Created the state flow of gear shift using simulink and the result satisfactory.
