Week - 4
QUESTION... N0.. 1

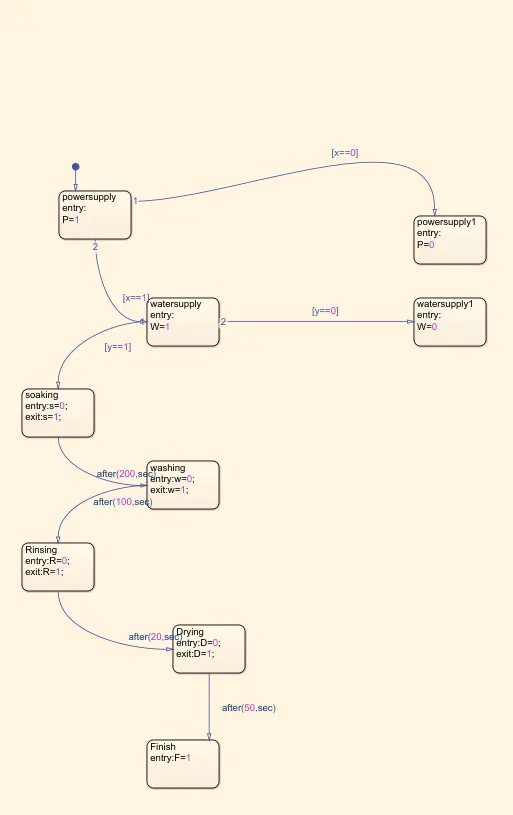

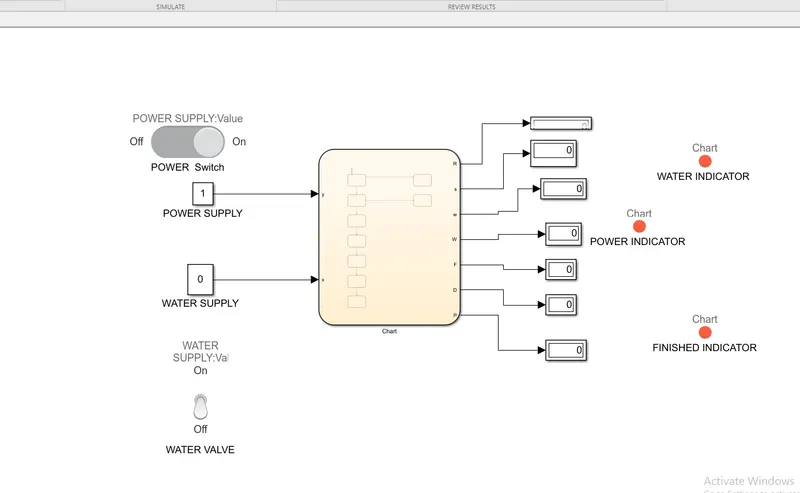

- Implement control logic of a “washing machine” using Stateflow as per the given sequence:

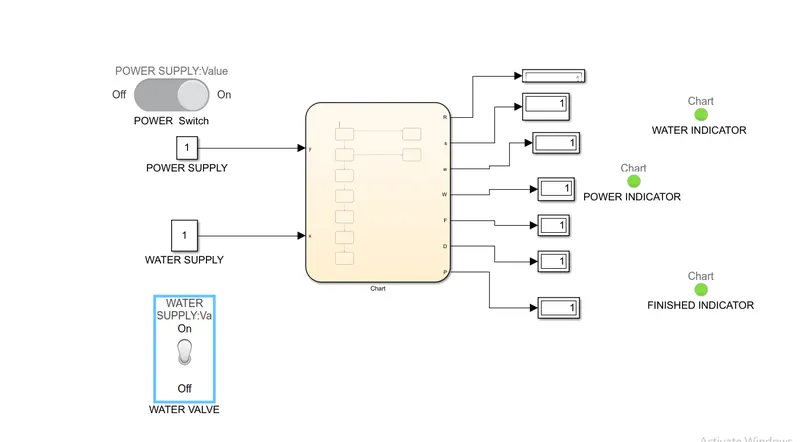

CASE 1 WHEN WATER AND POWER SUPPLY ARE PROVIDED
CASE 2
- If the Water supply is not available, stop the process & indicate through LED
.

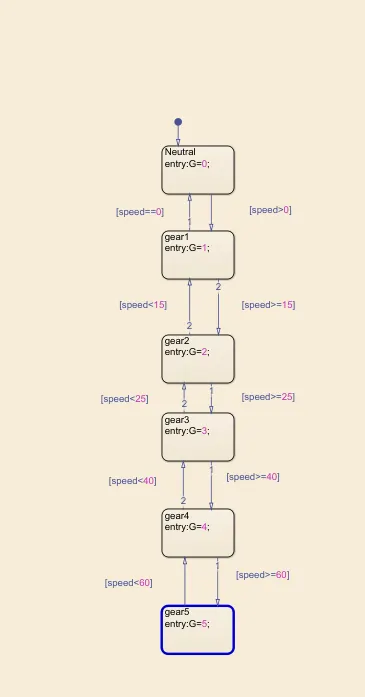

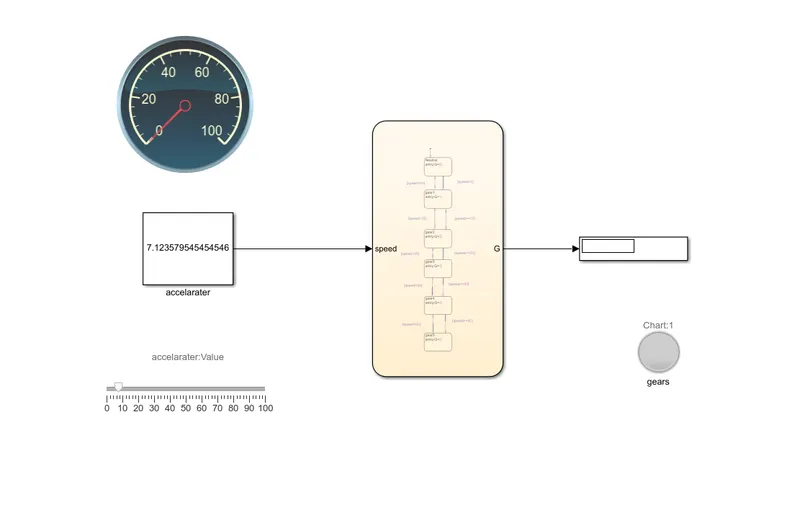

2. FIrst Make a Simulink chart for “ Gear shift ” logic as per the below conditions:
Speed Range(km) Gear
0 to 15 1
16 to 25 2
26 to 40 3
41 to 60 4

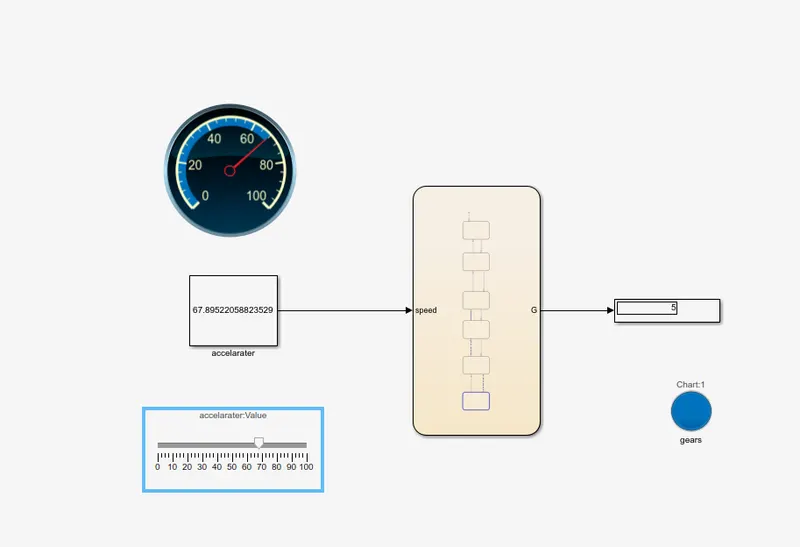

Above 61 5

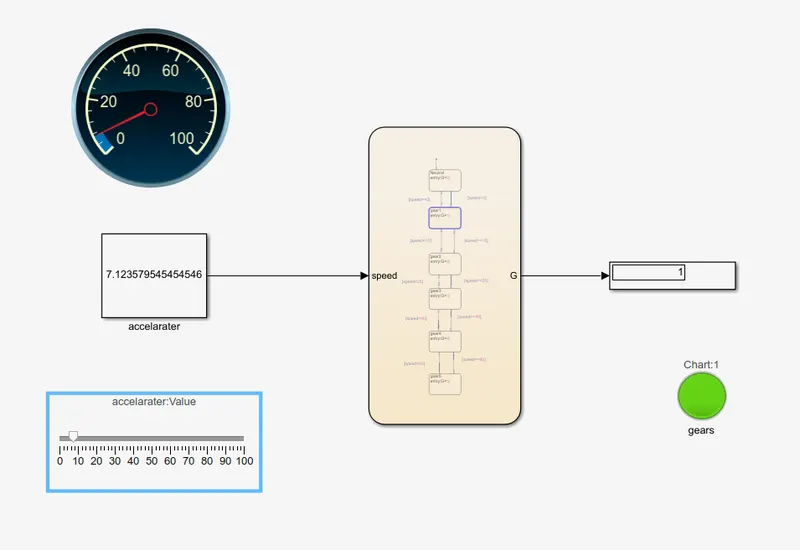

FIRST GEAR IS INDICATED AS GRAY
THE SECOND 2 GEAR IS INDICATED AS GREEN

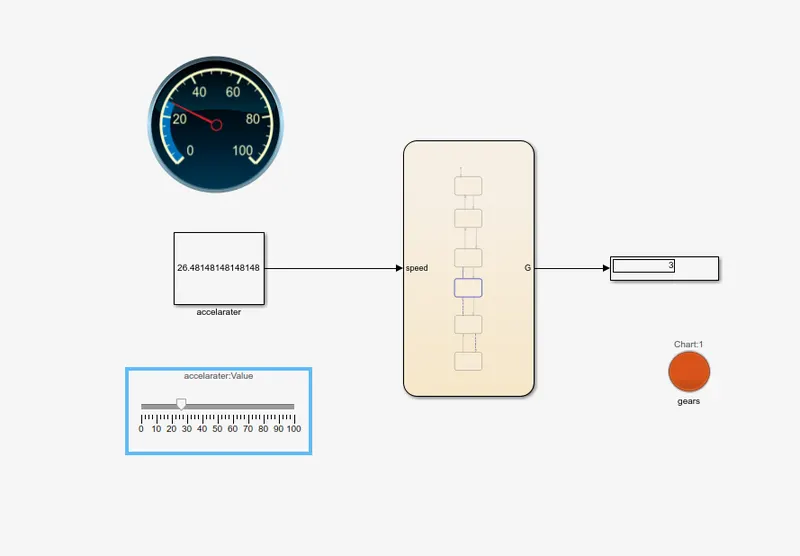

THE THIRD 3 GEAR IS INDICATED AS ORANGE
THE FOURTH 4 GEAR IS INDICATED AS YELLO
THE FIFTH 5 GEAR IS INDICATED AS BLUE
