Challenge

Week - 4

Process of washing machine :-

1.Soaking

2.Washing

3.Rinsing

4.Drying

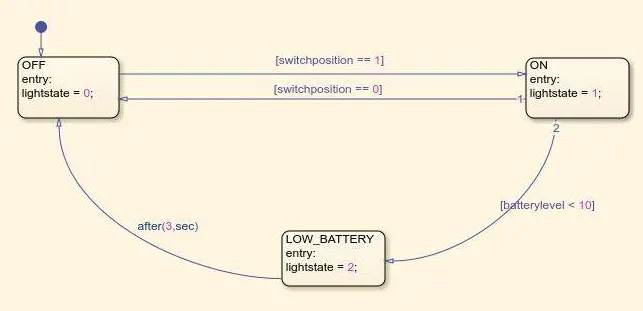

State Flow

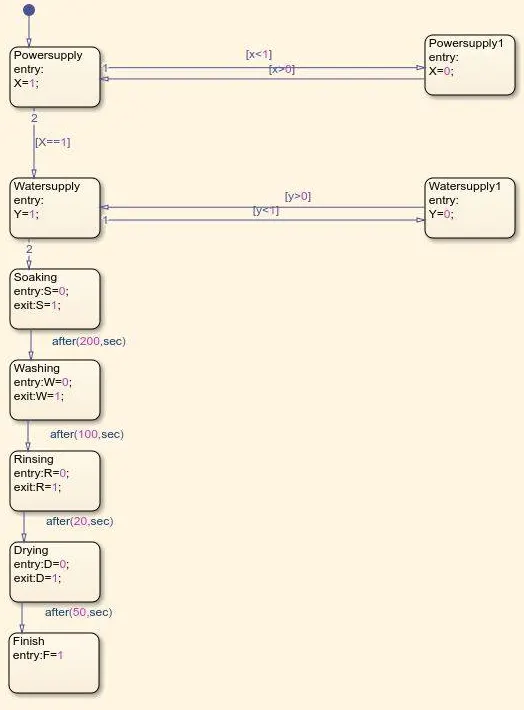

Control logic of washing machine :-

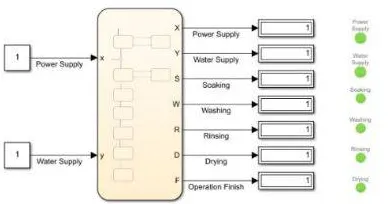

Power & Water supply inputs are given.Once the inputs are given outputs are displayed by the flow chart as per the given sequence.

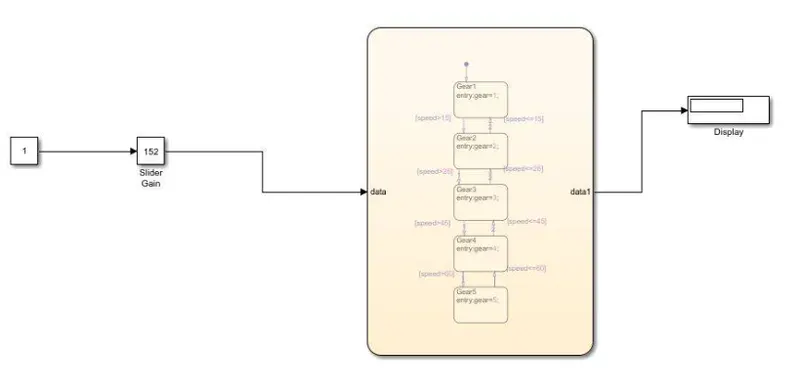

Gear Shift Logic

Conclusion:-

Control logic of washing machine using state flow is completed.

Simulink model is created for gear shift logic & using slider gain the values are obtained.
