Week - 4

>Model 1 'Washing Machine'

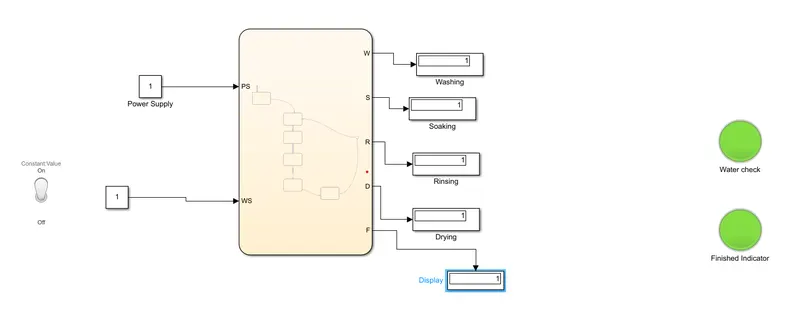

>Image of model workspace

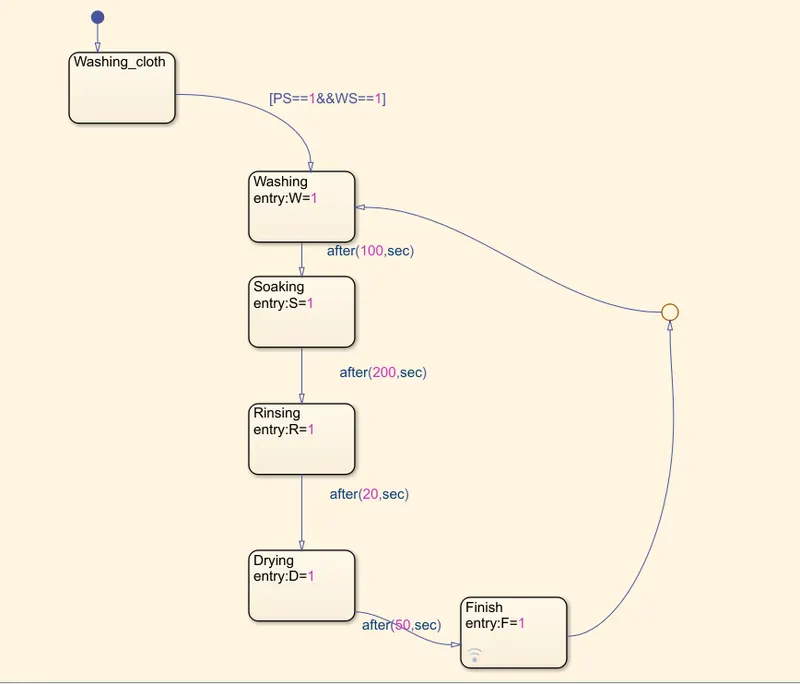

>Chart Image

>Explanation

-Here, we have given the logic with the Stateflow method to operate an automatic washing machine.

-As input, power, water supply is been provided.

-For water supply, one indicator is used.

-Total of 4 operations is performed during cleaning.

-Washing for 100 sec, Soaking for 200 sec, Rinsing for 20 sec, Drying for 50 sec is performed.

-After completing the individual process, in the end, it will give a finished indicator.

>Model 2 for the Gear selector using chart block:

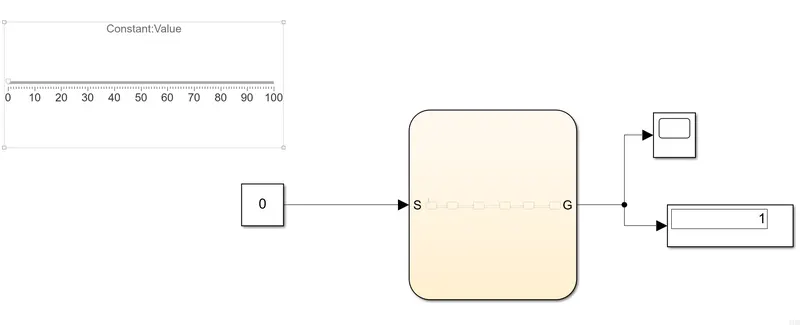

>Model workspace look in Simulink

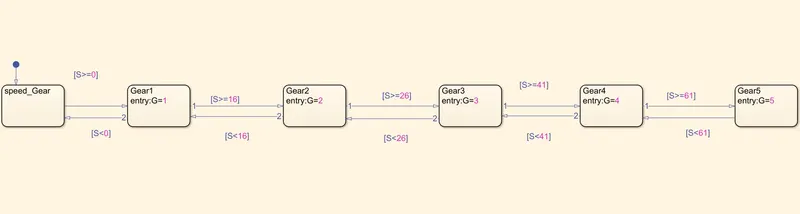

>Chart image

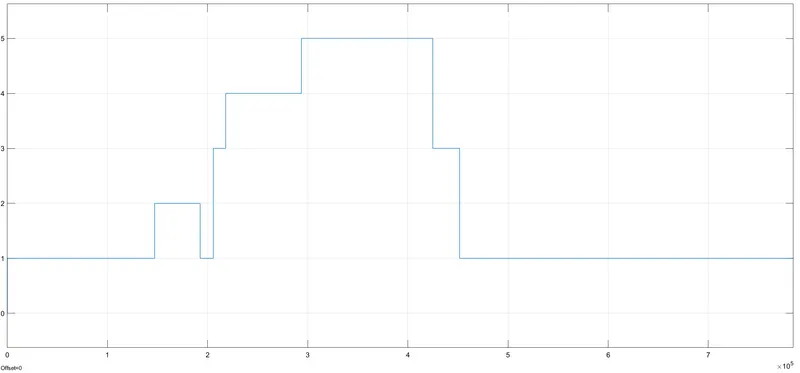

>Scope

>Explanation

- In this model, we have made a gear indicator according to a defined speed.

-Here, the slider is been used to give variable speed.

-For 0-15km/hr Gear 1, 16-25km/hr Gear 2, 26-40km/hr Gear 3, 41-60Km/hr Gear 4, >60km/hr Gear 5 logic is been used.

-Also the speed can reduce so we have given conditions to enter and exit in a block as shown in the chart.

Google drive link for Model

1)https://drive.google.com/file/d/1NcT6RBDGcz7eSMNngbrNbUSMyv6T1mR1/view?usp=sharing

2)https://drive.google.com/file/d/1OgYHuecX6tjwGFDAVihyF21S0266O80Q/view?usp=sharing
