Week - 4

Problem Statement 1

Aim : To devise the control logic of washing machine in Simulink.

Objective :

• If the power supply is available, the system gets activated.
• If the Water supply is not available, stop the process & indicate through LED.
• Soaking time should be 200s followed by Washing time of 100s.
• Then rinsing happens for next 20s & dryer runs for 50s.

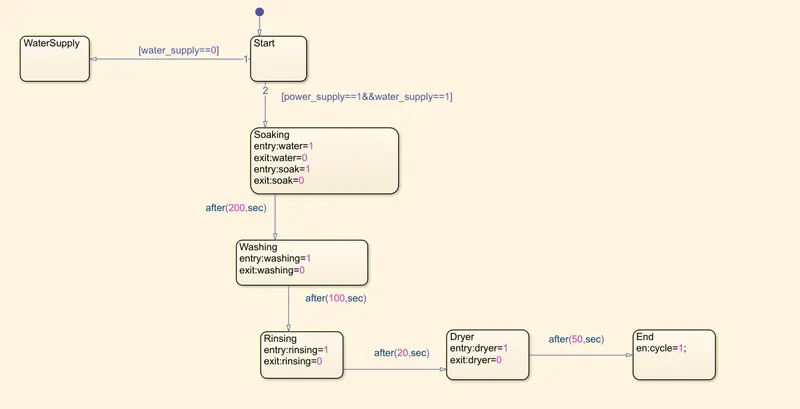

Stateflow Diagram

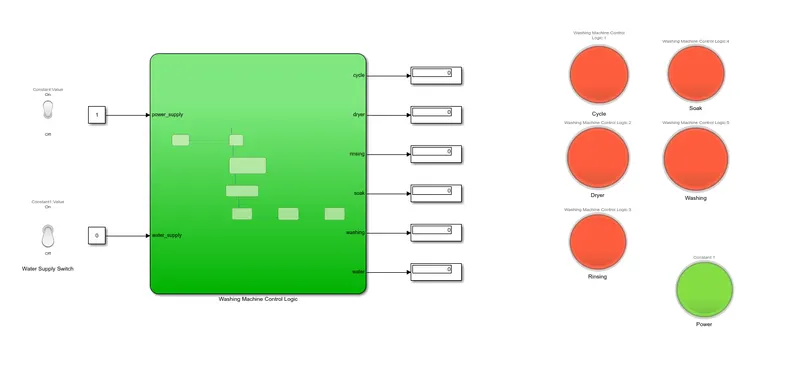

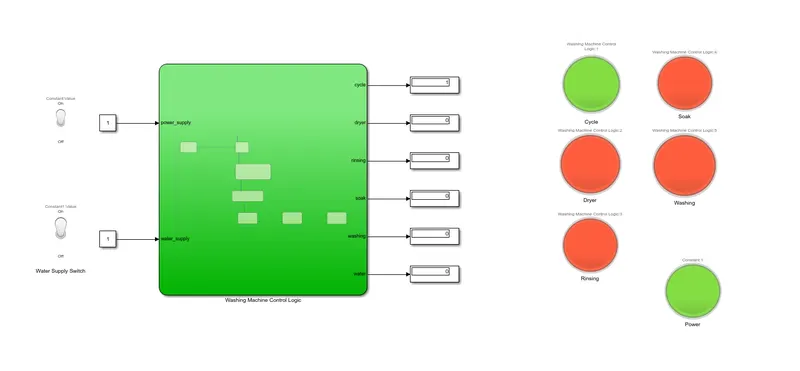

When Power is 'ON' and Water Supply is 'OFF'

When Both Power and Water Supply is 'ON'

Problem Statement 2

Aim : To make the gear shift logic with varying speed in Simulink

Objective :

Make a Simulink chart for the “Gear shift” logic as per below conditions:

        Speed Range(kmph)        Gear

              0 to 15                         1

             16 to 25                        2

             26 to 40                        3

             41 to 60                        4

             Above 61                       5

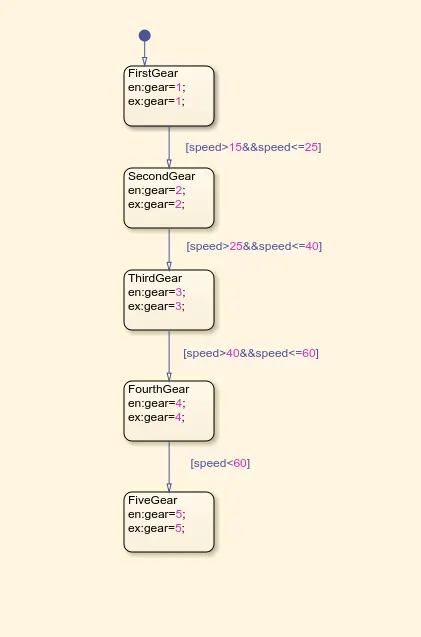

Stateflow Diagram

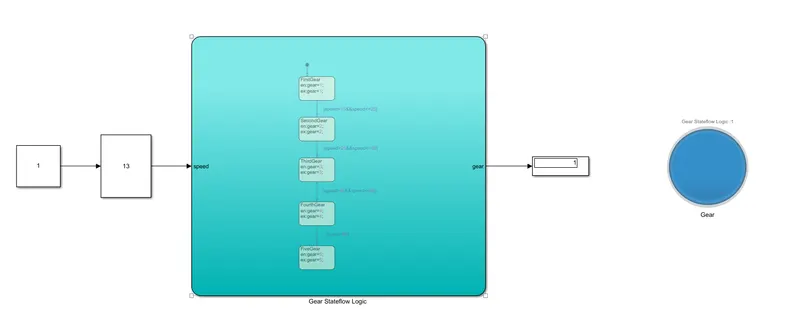

Simulink Model

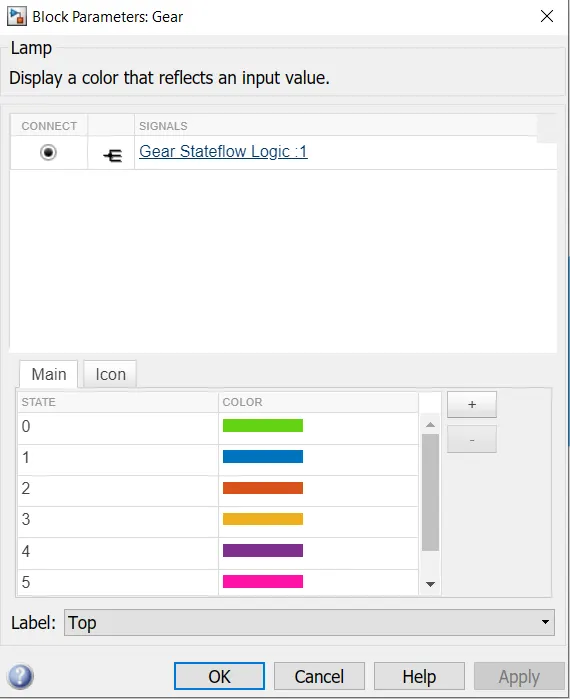

Colour Coding Used for Gears

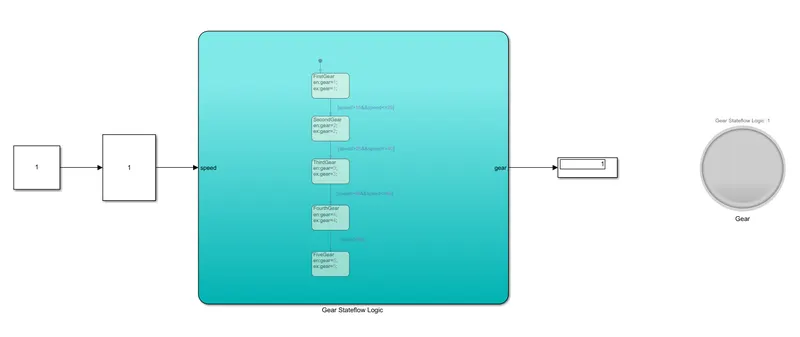

First Gear

Input Speed - 13 kmph

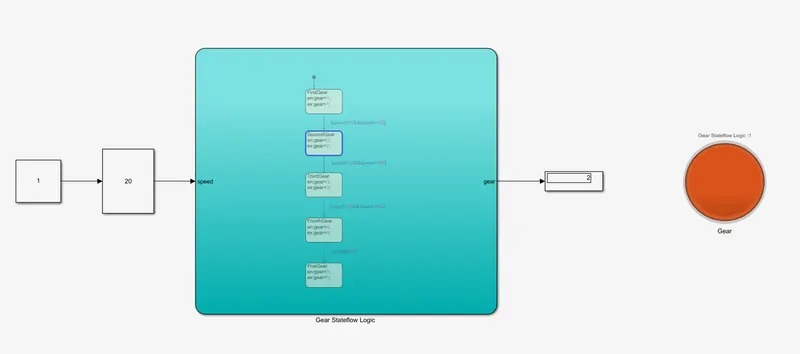

Second Gear

Input Speed - 20 kmph

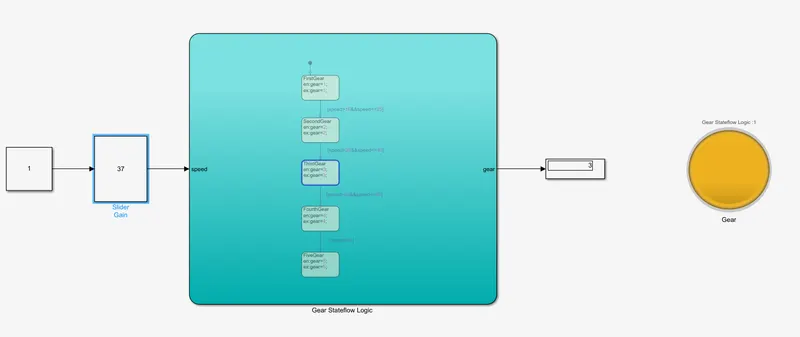

Third Gear

Input Speed - 37 kmph

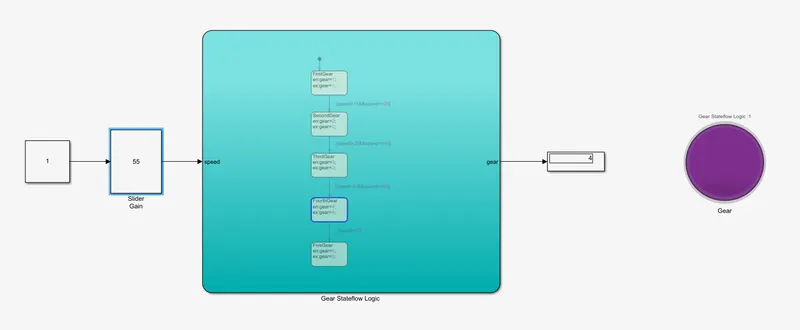

Fourth Gear

Input Speed - 55 kmph

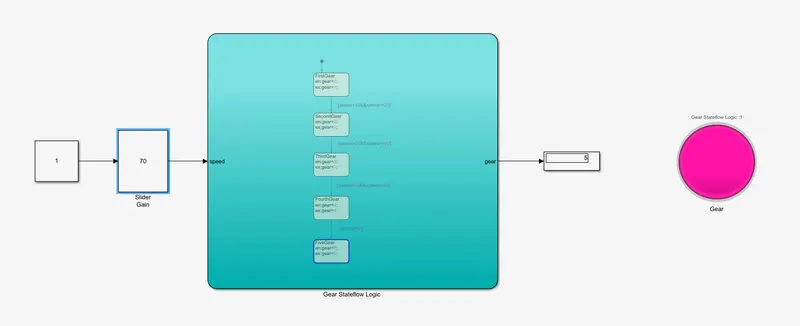

Fifth Gear

Input Speed - 70 kmph

Conclusion

The Stateflow logic of simulation for Washing Machine and Gear Shift has been created and simulated successfully.
