Week - 4

1.ans

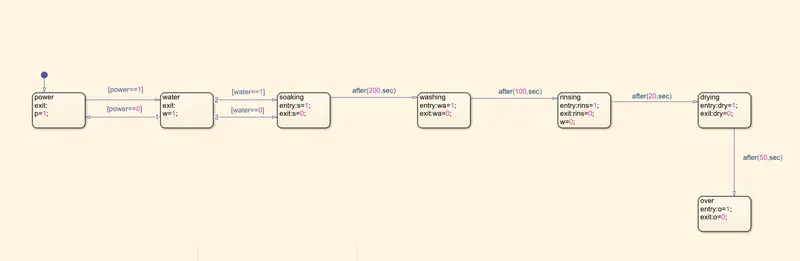

the power and water available the process is start .if any one that means water and power are absent porocess the could not move further step.

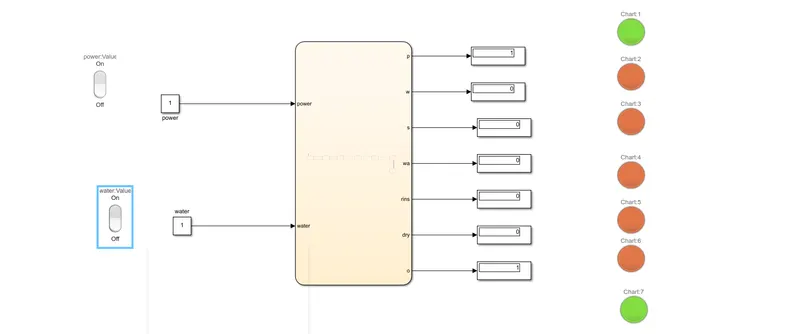

when switch (both power and water) turned on the process start if those are not available they come to initial state. after completion of two condition(provided in chart) of power and water it goes to next condition like soaking is running for 200sec.if water is not available it stop the process it self.when it condition it true it goes to furthur step like washing is running for 100 sec .if water is not avialable it gives the indication to soaking condition if it also false the process is stop.if it is true furthur step rinsing is activated it runnig for 20 it goes to drying condition and then is running for 50sec goes to over condition the process is finished.

2.ans

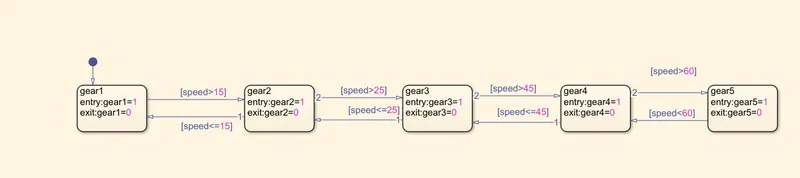

if the speed is greater than 15 it goes to 2nd gear other wise it is in 1st gear.

if the speed is >26 it goes to it 3rd gear other wise it is in 2nd gear as per the condtions given in the process

similorly >40 it goes to 4rt gear other wise it is in 3rd, speed>60 it is goes to 5th gear

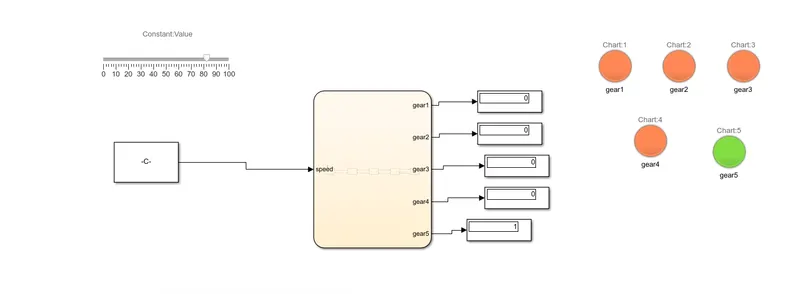

if the speed is decrease gear is decrease is decrease and shows w.r.t lamp indications
