Challenge

Week - 4

AIM:

To implement control logic of a "washing machine" using stateflow as per given sequence.

Objective:

In simulink ,implement the control logic of a washing machine using state flow as per given input condition create a model and operation the model logic system and display the output of the results by using lamp indicator.

EXPLANATION:

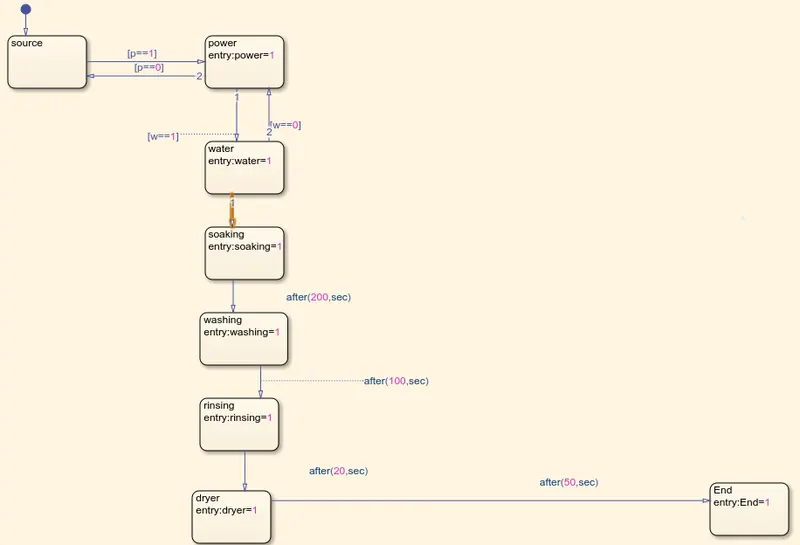

state flow is a simulink tool to implement the state machine.here model sysytem logic of a washing machine using state flow chart has been done.

step1:

Given Input condition :

  • If the power supply is available ,the system get activated
  • If the water supply is not available,stop the process and indicate through LED.
  • soaking time should be 200sec followed by washing time of 100sec.
  • Then rinsing happens for next 20sec and dryer runs for 50sec

After all the processes have completed turn on the finshed LED

step2:After entering the input conditions in the chart ,go to symbols pane and assigh the given variable( EXample: input,output date,etc.....,)

step3:Given the input values for turning on or off for the power supply and water supply.

condition

if value=1,power and water supply will turn on

if value=0,power supply and water supply will turn off

step4:use 'display' block and 'lamp' indicator to display the results

OUTPUTS:

CASE-1:

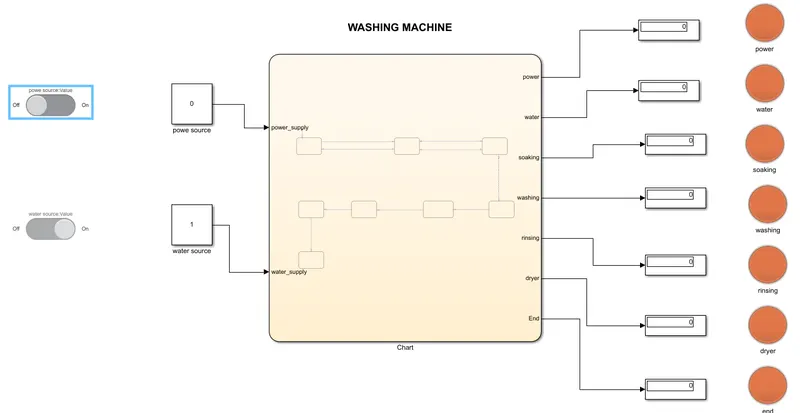

If the power source =0 ,power supply is not available and system will not active.

CASE-2:

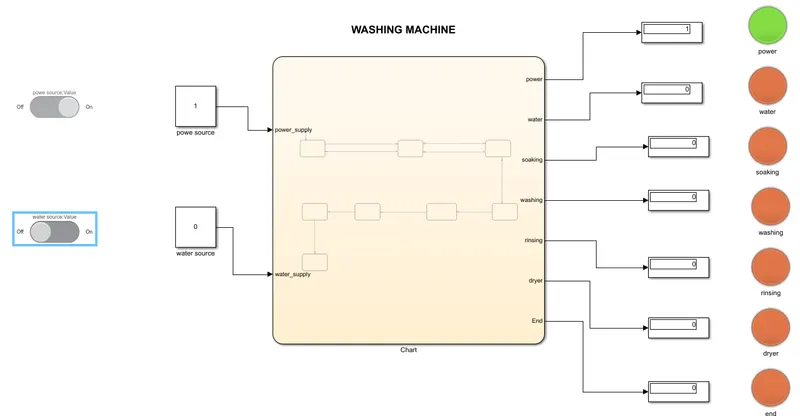

If the power source =1 and water supply =0,then power supply will be turn on and water supply will be turn off.so system will not activate.

CASE-3:

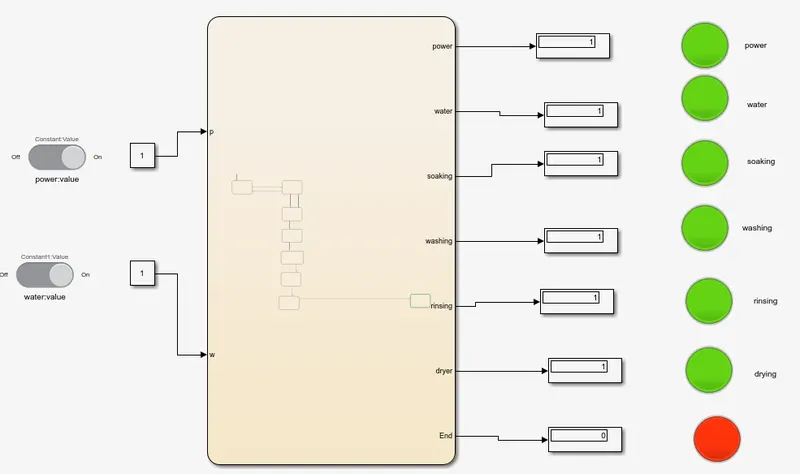

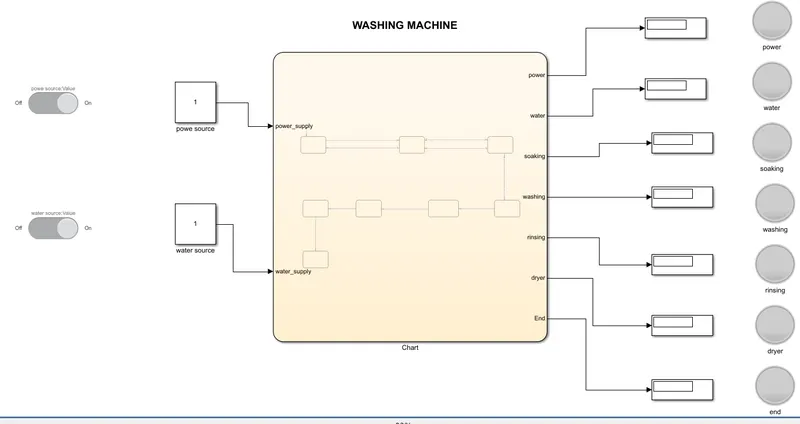

If the power source=1 and water supply =1 ,then power supply will be on and water supply will be on and so system will activate and after all process completed end lamp will turn on.

AIM:

Make a simulink chart for the"Gear shift" logic as per given conditions.

OBJECTIVE:

EXPLANATION:

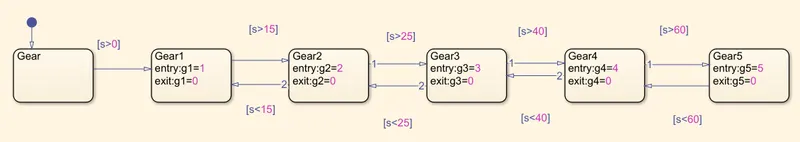

Step1: Create a chart and enter the given condition for gear shifting.

Given condition

speed Range(kmph) gear

0 to 15 1

16 to 25 2

26 to 40 3

41 to 60 4

above 61 5

step2:After entering the input condition in the chart, Go to symbols pane and assign the given variable.

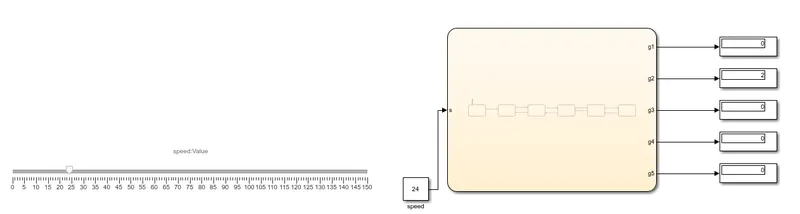

step3: connect the 'silder gain' to vary the speed while simulink is running.

step4: create constant and giving value 1 and 0 for turning on and off.

step5: use 'Display' block to display the gear postion.

OUTPUTS:

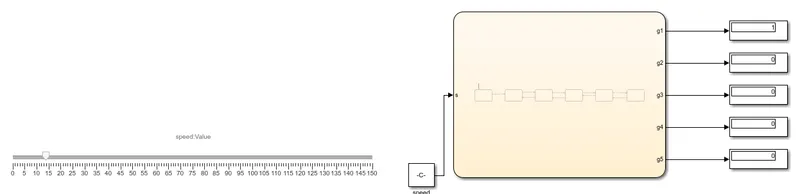

case-1: 0 to 15

CASE-2: 16 to 25

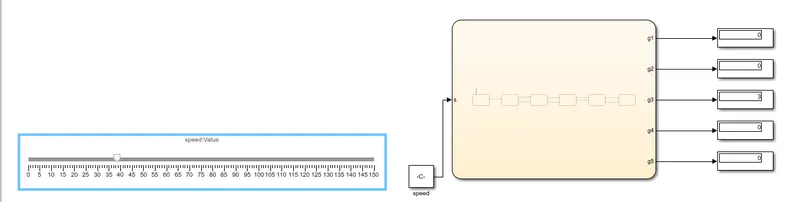

CASE-3: 26 to 40

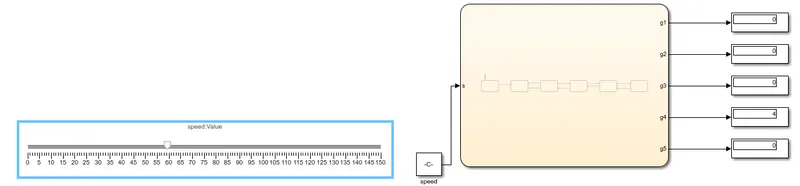

CASE-4: 41 to 60

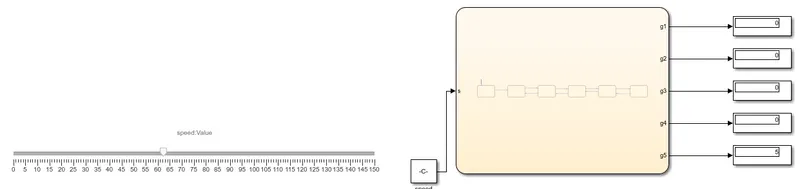

CASE-5: ABOVE 61
