Challenge

Week 4 - 2D Meshing for Sheet Metal

1. Import the model in ANSA

2. Go to mesh deck and set premeter length to 1

3. Perform geometry checks and resolve all geometry errors

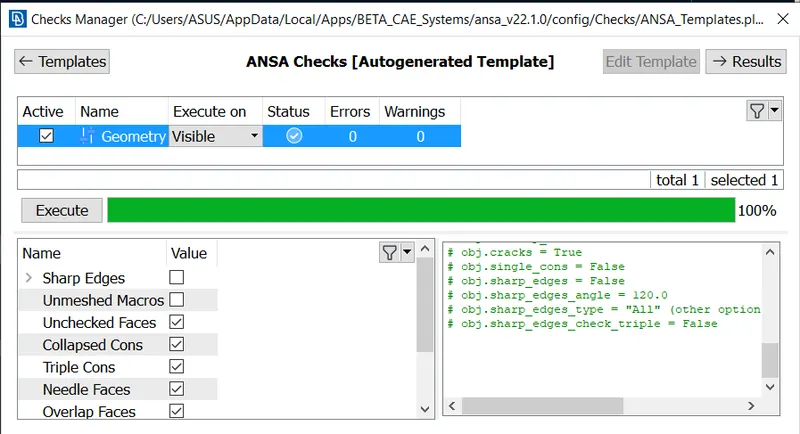

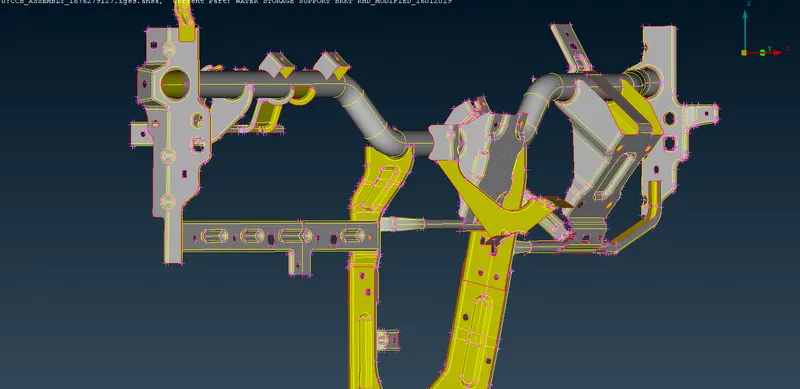

4. Give topo for complete model

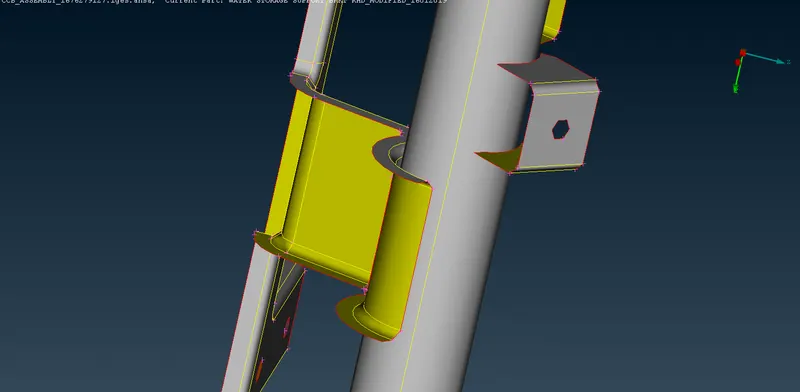

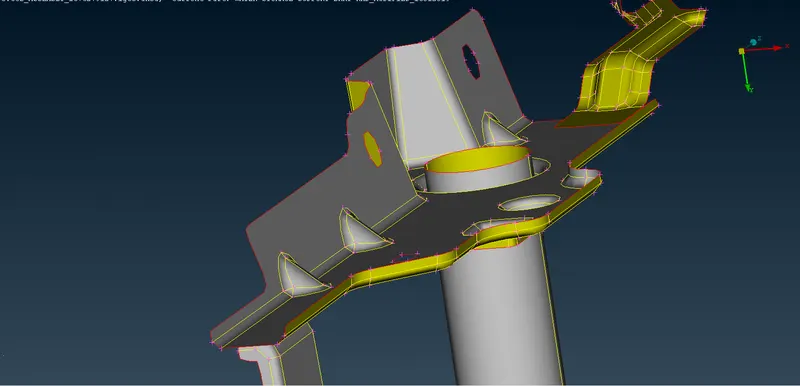

5. Perform manual midsurface separately for each component

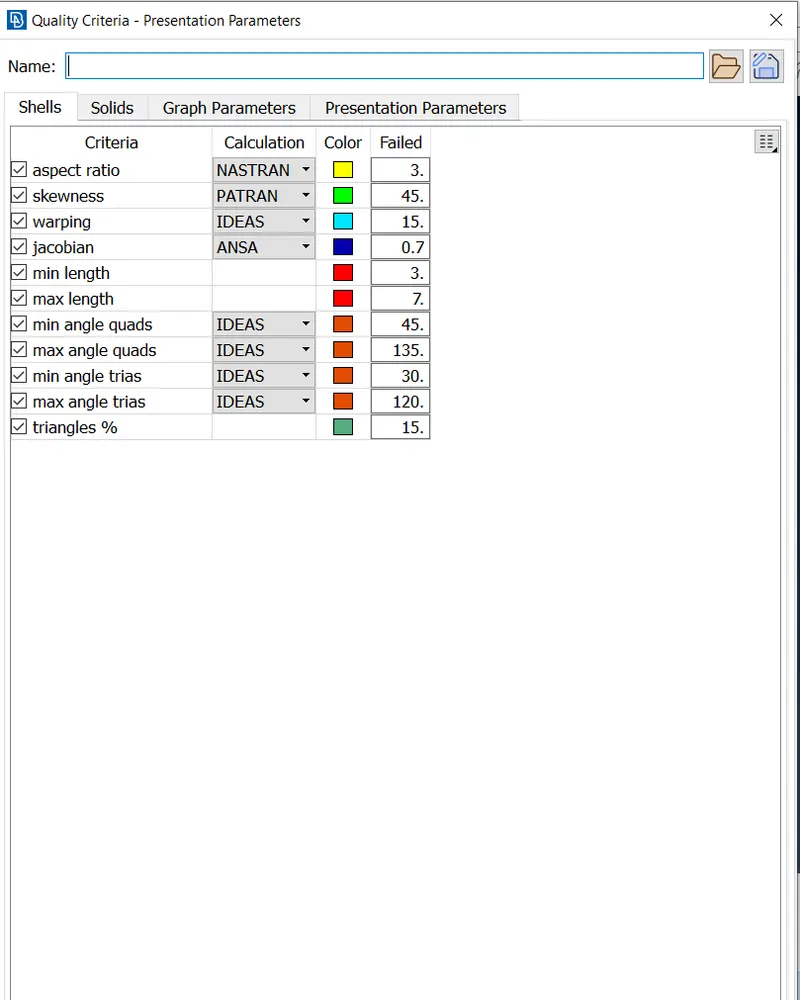

6. De/fine mesh parameters

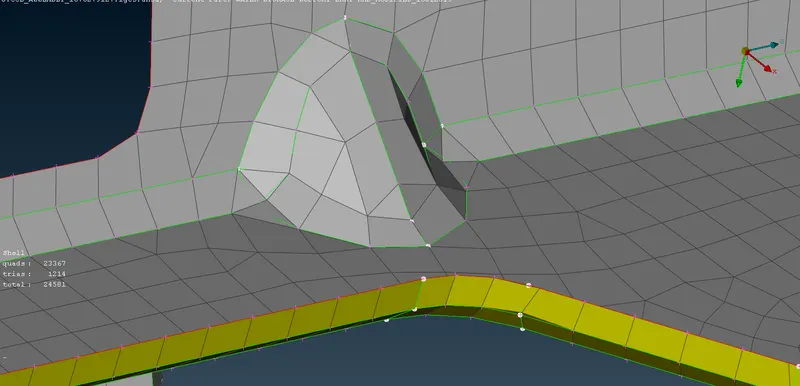

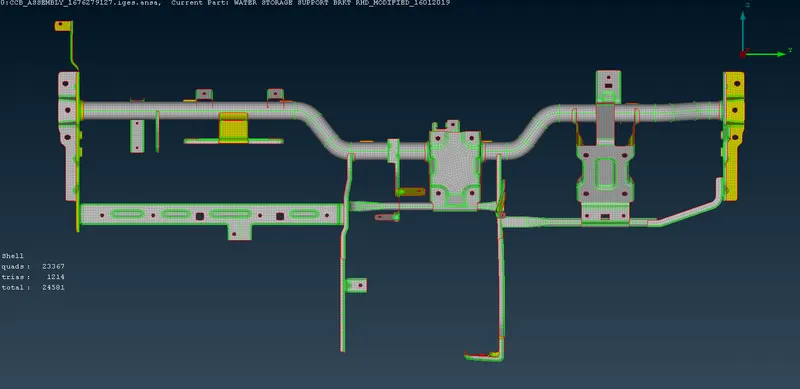

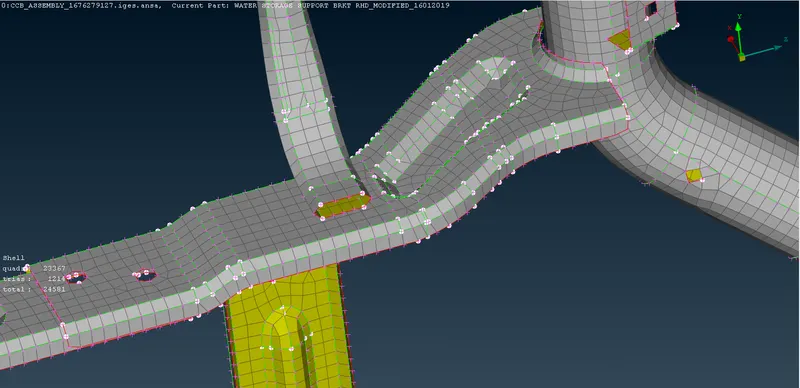

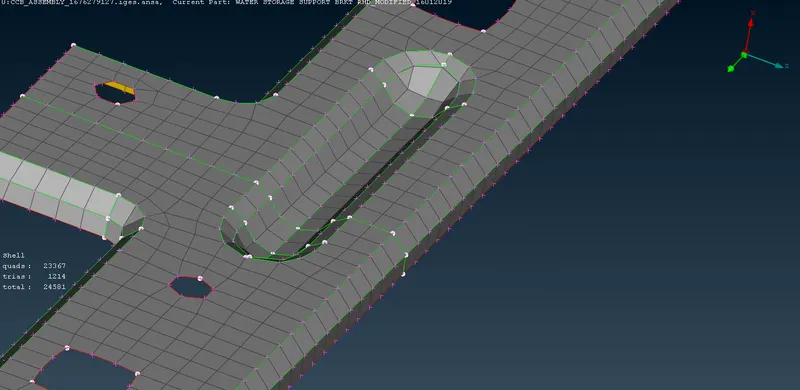

7. First start meshing the critical components using best mesh option

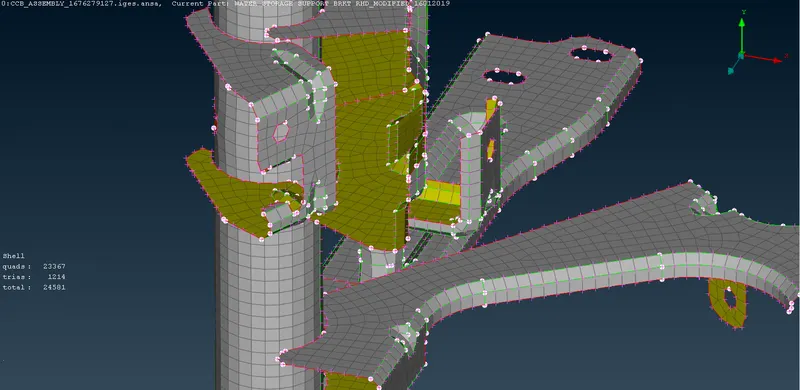

7. Mesh the remaining areas
