Week - 4
1st:
Aim: To Implement control logic of a “washing machine” using Stateflow as per given sequence:
- If the power supply is available, the system gets activated
- If the Water supply is not available, stop the process & indicate through LED
- Soaking time should be 200s followed by Washing time of 100s.
- Then rinsing happens for next 20s & dryer runs for 50s
State flow schematic Diagram:

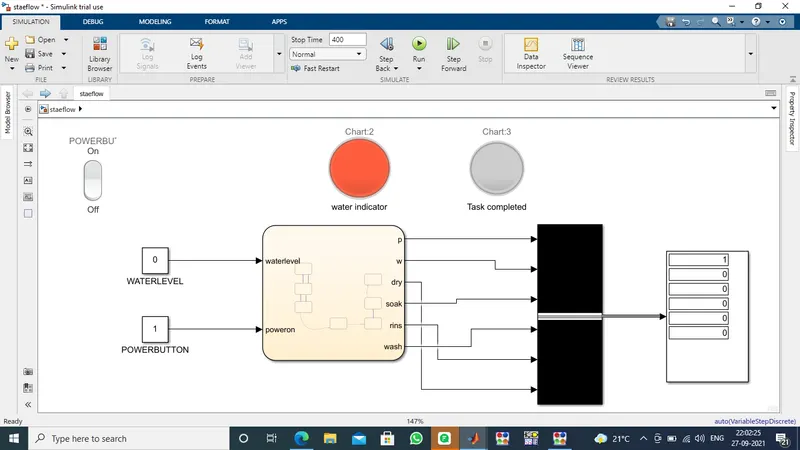

when the input of water level indicatior is low (0),and power input is high(1)

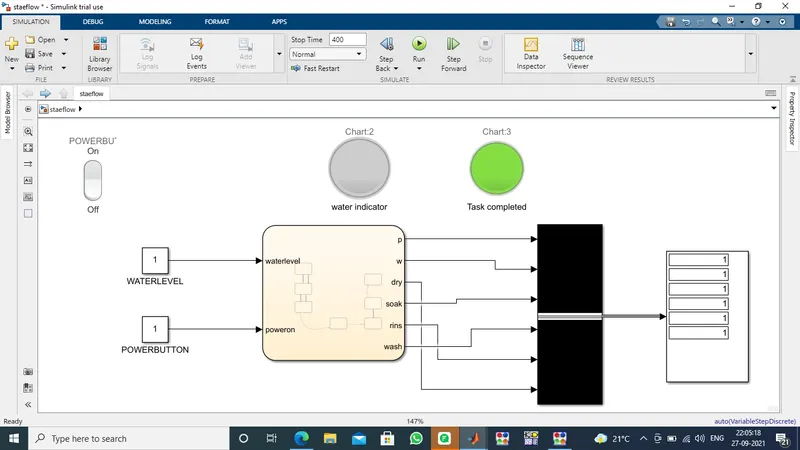

when the input of water level indicatior is low (1),and power input is high(1)

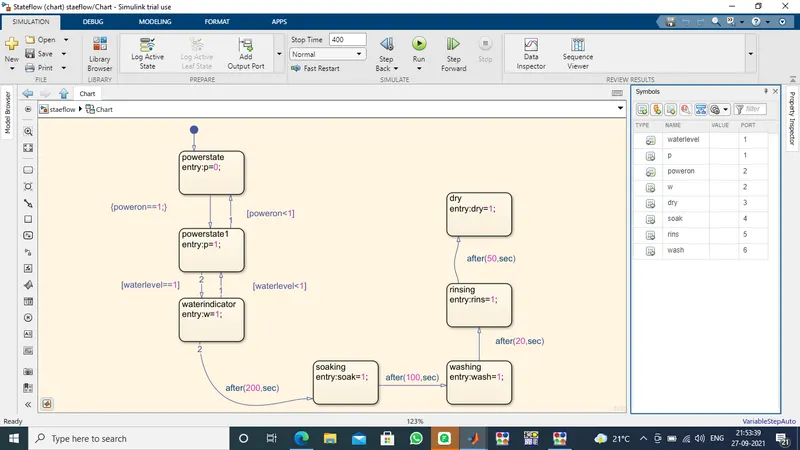

Inside state flow diagarm:
here the inputs are power ,water ,if both power and water are in on state than remainging trasition will exeucte
,the simulation time should be more than the 370 seconds.
2 Ans:
Aim: To Make a Simulink chart for the “Gear shift” logic as per below conditions:
Speed Range(kmph) Gear
0 to 15 1
16 to 25 2
26 to 40 3
41 to 60 4
Above 61 5
Give speed input while the simulation is running & display the gear number.

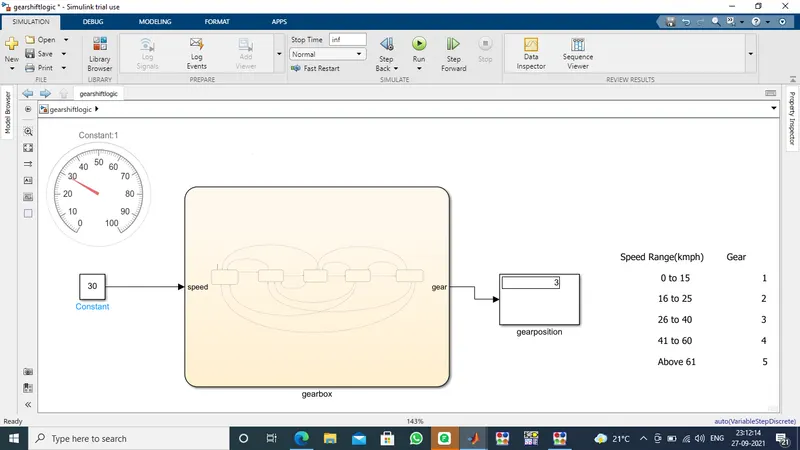

Schematic Diagram of gear shift:

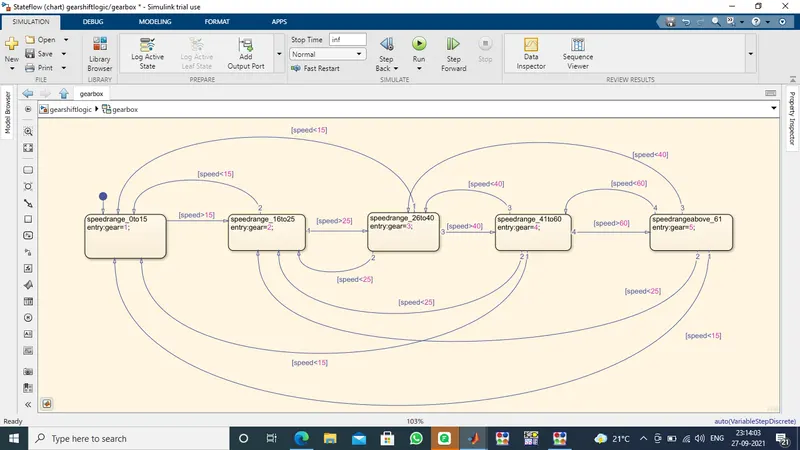

stateflow diagram:
from above can set the speed and we will get the gear position accourding to the given chat.

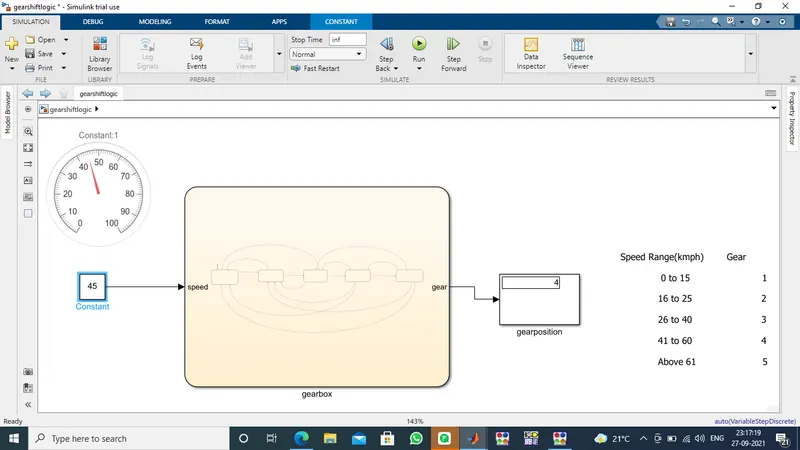

for example: speed 45 RPM than gear position will be 4
