Week - 4

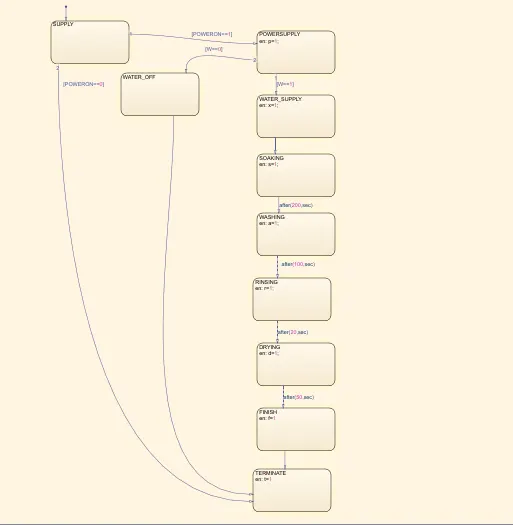

1. SIMULINK MODEL:

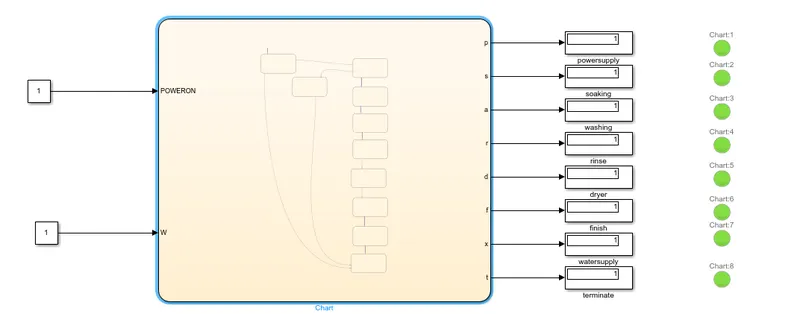

When the Power supply is ON and the watersupply is ON.

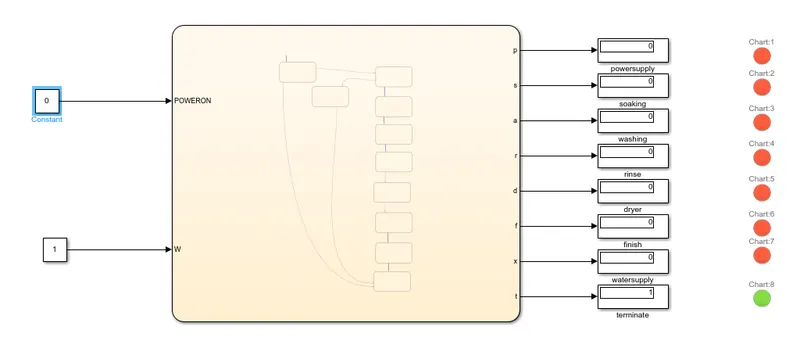

When the powersupply is OFF and the water supply is On, the machine terminates.

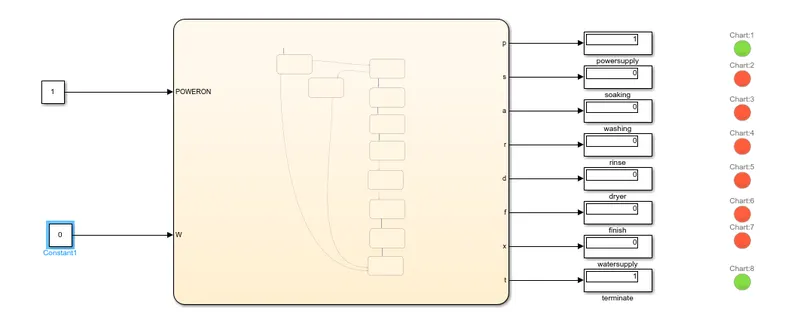

When the powersupply is ON but the watersupply is OFF, the machine terimantes.

RESULT:

Thus the stateflow is created and the logic is executed.

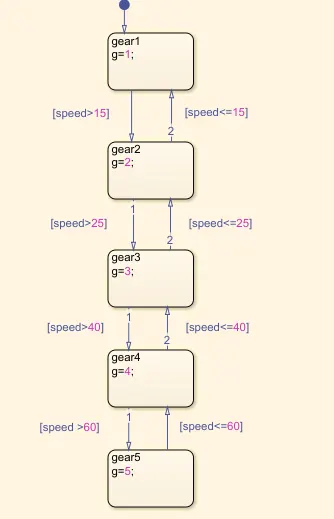

2.

SIMULINK MODEL:

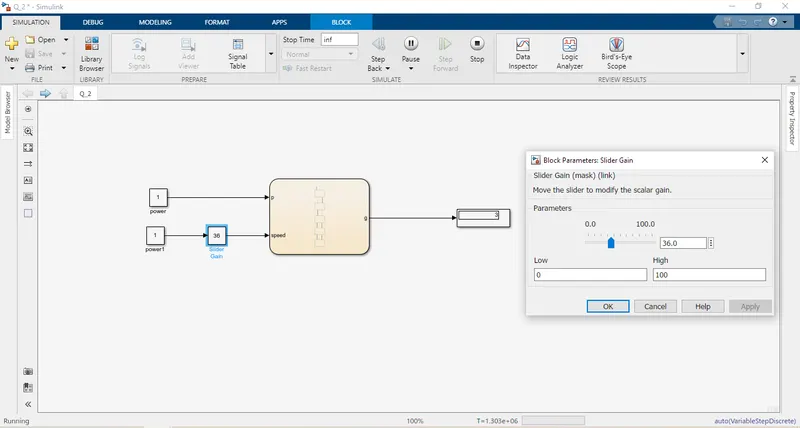

The slider is varied during the simulation and the respective gear is displayed in the display box.

RESULT:

Thus the stateflow is created and the respected gearshift is displayed in the displaybox.
