Week 4-1D Element Creation Challenge

1D Element Creation Challenge

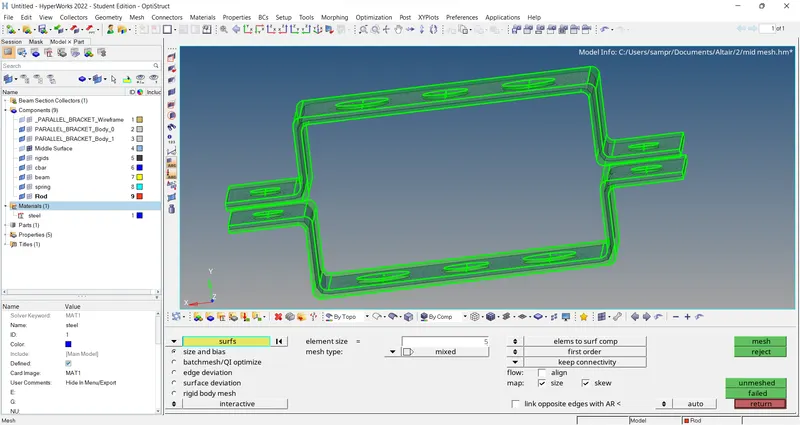

AIM: Mesh the Given component with the Size of 5 Units. Create 1D elements on the following component with given cross-section and DOF

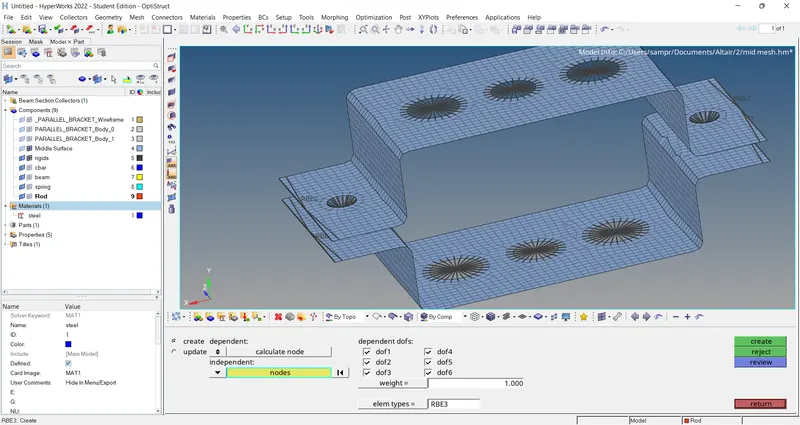

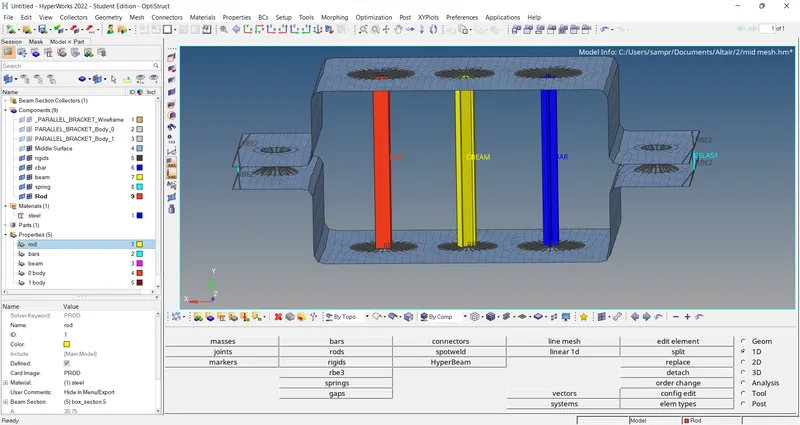

RBE2 AND RBE3 ARE CREATED AS PER GIVEN USING PATH

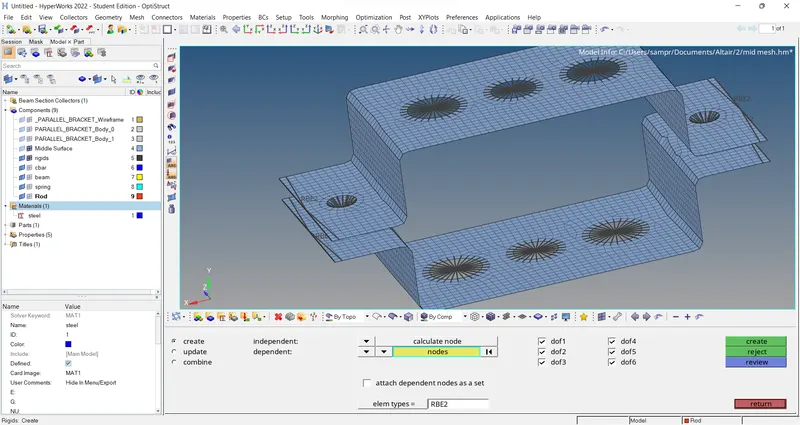

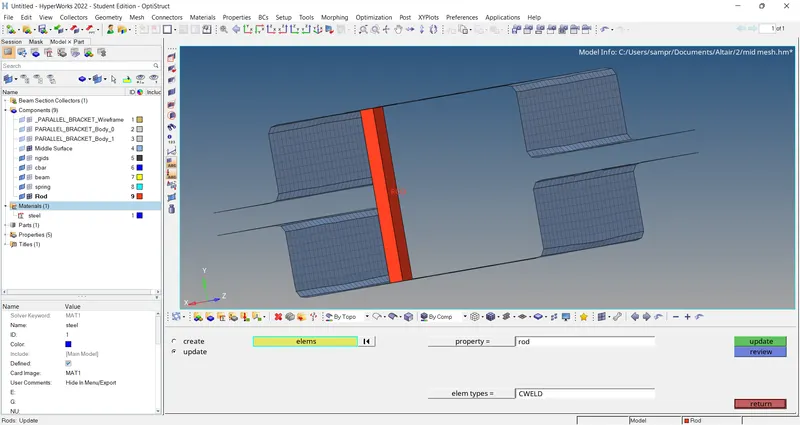

a. Rod element:- Translational DOF should be Constrained with RBE2 link

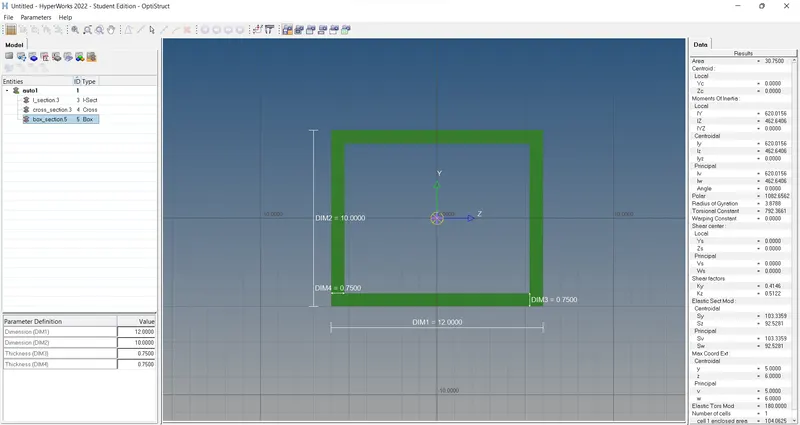

Cross-Section: BOX- Dimension a= 12 mm

dimension b=10 mm

Thickness t= 0.75 mm

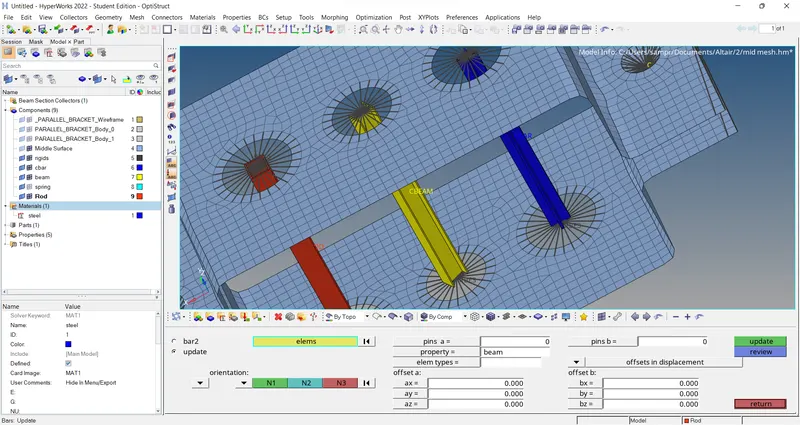

b. Beam element:- All DOF should be constrained with RBE3 link

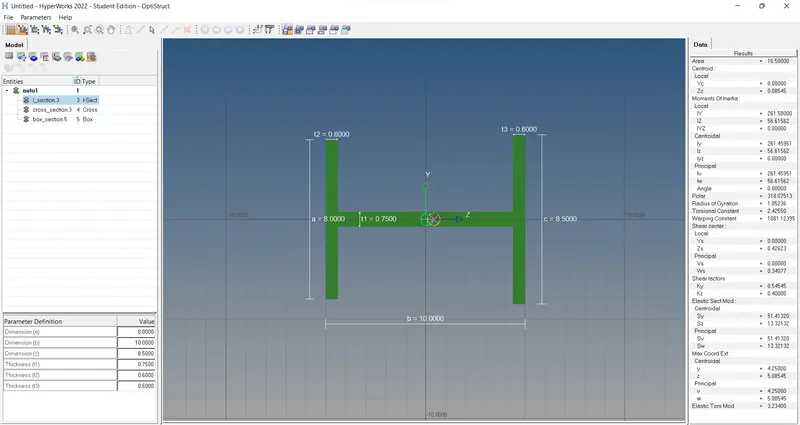

Cross-Section: I Section- Dimension a= 8 mm

Dimension b= 10 mm

Dimension c= 8.5 mm

Thickness t1= 0.75 mm

Thickness t2= .6 mm

Thickness t3= .6 mm

c. Bar element:- Constrain only x and y DOFs With RBE3 link

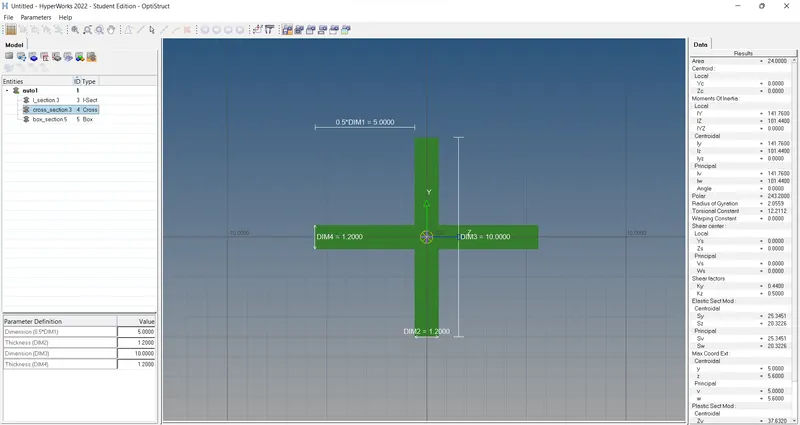

Cross-section: X section- Dimension DIM1= 5 mm

Thickness DIM2= 1.2 mm

Dimension DIM3= 10 mm

Thickness DIM4= 1.2mm

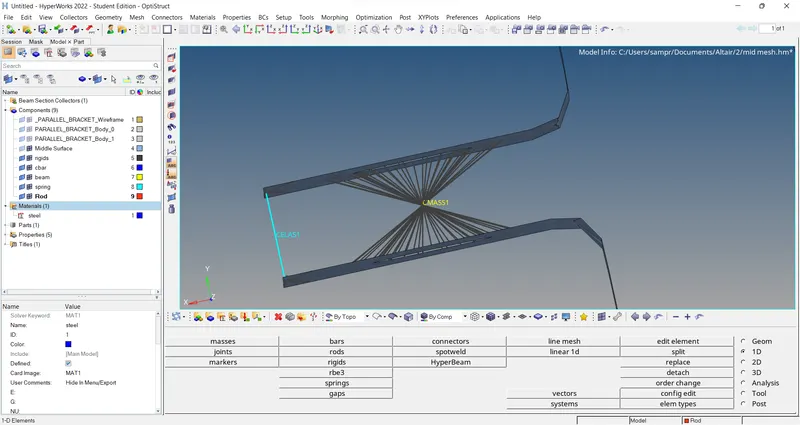

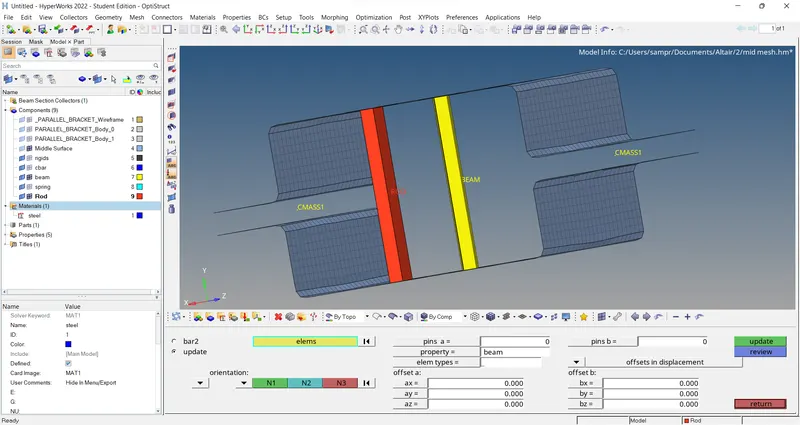

d. & e. Apply the mass of magnitude 10 with the RBE2 link

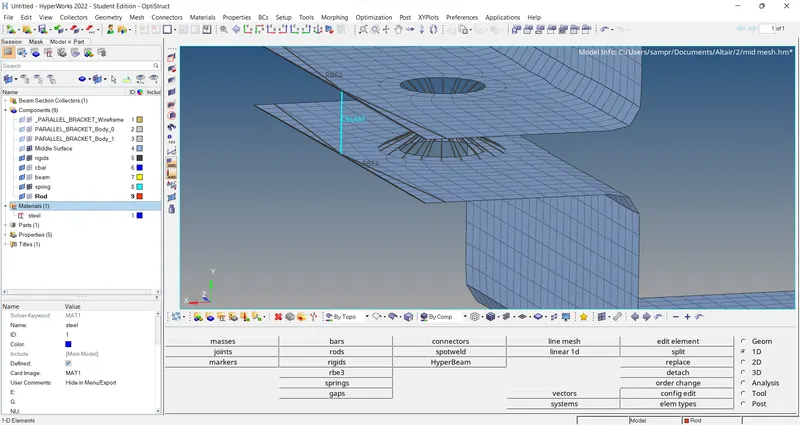

f. Join the two components with Spring elements

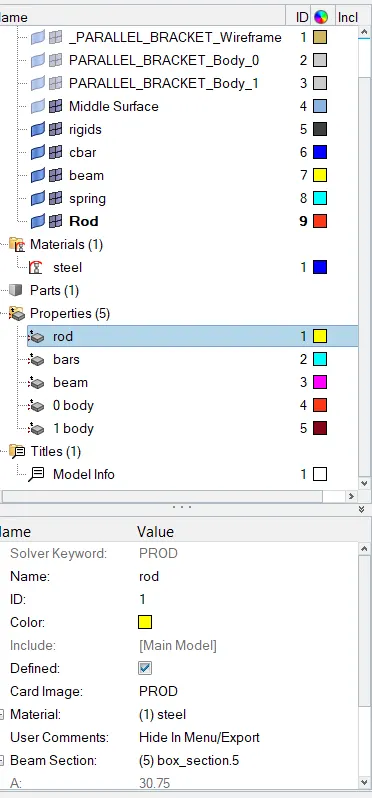

THE PROPERTY AND MATERIAL IS CREATED AND ASSIGNED TO RESPECTIVE THING

FINAL
