AIM:

To Implement control logic of a “washing machine” using Stateflow and to Make a Simulink chart for the “Gear shift” logic.

THEORY:

WASHING MACHINE:

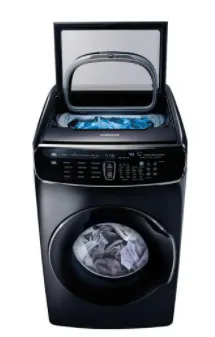

A washing machine (laundry machine, clothes washer, or washer) is a home appliance used to wash laundry. The term is mostly applied to machines that use water as opposed to dry cleaning or ultrasonic cleaners. The user adds laundry detergent, which is sold in liquid or powder form, to the wash water.

CAR GEAR SHIFTS:

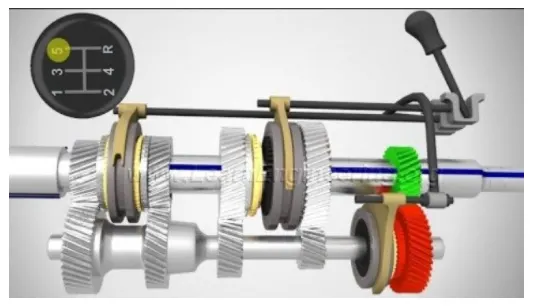

A manual transmission (also known as a manual gearbox; abbreviated as MT) is a multi-speed transmission where gear changes require the driver to select the gears by manually operating a gear stick and clutch (which is usually a foot pedal for cars, or a hand lever for motorcycles).

Early automobiles used sliding mesh manual transmissions with up to three forward gear ratios. Since the 1950s, constant mesh manual transmissions have become increasingly commonplace and the number of forward ratios has increased to 5-speed and 6-speed manual transmissions for current vehicles.

The alternative to a manual transmission is the automatic transmissions; common types of automatic transmissions are the hydraulic automatic transmission (AT), automated manual transmission (AMT), dual-clutch transmission (DCT), and the continuously variable transmission (CVT).

OBJECTIVE:

1. Implement control logic of a “washing machine” using Stateflow as per given sequence:
2. If the power supply is available, the system gets activated
3. If the Water supply is not available, stop the process & indicate through LED
4. Soaking time should be 200s followed by Washing time of 100s.
5. Then rinsing happens for next 20s & dryer runs for 50s
6. After all the processes have completed turn on the finished LED

Make a Simulink chart for the “Gear shift” logic as per below conditions:

Speed Range(kmph) Gear

0 to 15 1

16 to 25 2

26 to 40 3

41 to 60 4

Above 61 5

Give speed input while the simulation is running & display the gear number.

SIMULINK MODEL:

MODEL 1:

BLOCK DIAGRAM:

CHART:

EXPLANATION:

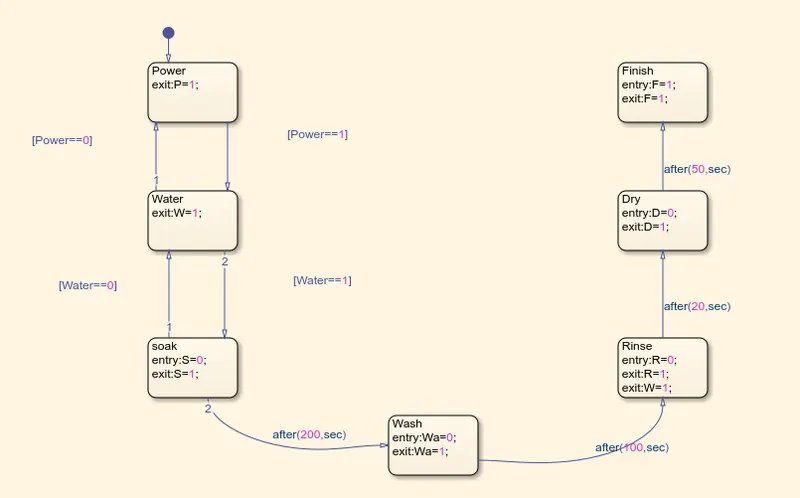

1. First, we have created a chart using ‘CHART BLOCK’ to define the logic of the washing machine.
2. The first state is the ‘Power’ state, this is where the program checks whether the power is ON/OFF. If the power is ON the process will go to next state or else it will not go further. Here we have defined a variable ‘P’ as it will help us to indicate whether this particular state is going On or not.
3. Next, we have ‘Water’ state where water will be filled, and similar to that of power state we have defined variable ‘W’ which will help us to see whether is being filled or not. The process between ‘Power State’ and ‘Water State’ is defined as if power is equal to one which means if power is on then only it water state will start, and power equal to zero refers as power is OFF then it will remain in power state only.
4. Now the next state is ‘Soak State’, this is where the cloths are soaked once the water is filled. Here we have defined inside this state that when it enters the state the value of variable ‘S’ will 1 which means that this state in going on. Once this state is over the process exits by a value ‘S=0’ which means now this state is not going on.
5. Now next is the ‘Wash State’, this is where the cloths are washed, here as per the conditions mentioned above after 200s of soaking the wash state takes place. This condition is mentioned from between ‘Soak State’ and ‘Wash State’.
6. Then, ‘Rinse State’ takes place where the all the water is drained out, here when the state is in this state it will indicate ‘R=1’ once this state is over it will indicate ‘R=0’ and it will move next state. Process between ‘Wash State’ and ‘Rinse State’ id defined as per the condition mentioned above.
7. Next state is the ‘Dry State’ where the clothes are dried inside the machine. Similar conditions are defined in this state as like previous states, and the process is defined as it is mentioned above.
8. The final state is the ‘Finish state’, this where the process ends and the power need to be switched off manually. Here also similar conditions are mentioned.

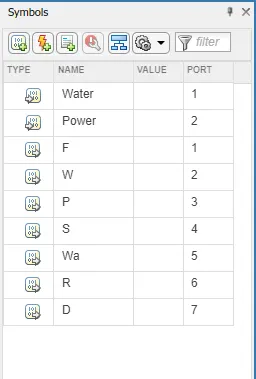

9. Now once the machine logic is created we have defined the variables entered as output variables and power and water as inputs as these has to be provided to the machine in real time.

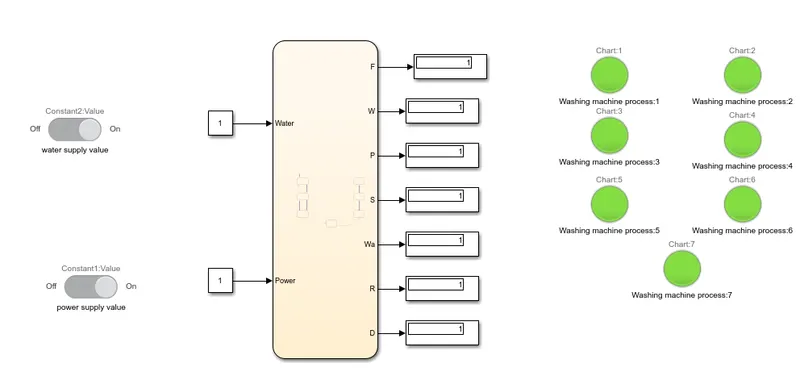

10. To give power and water as input we have used a ‘Slider Switch Block’ and ‘Constant Block’ is used. Each slider switch is connected to each constant block. When the slider switch is ON the value in constant block will be ‘1’ and this constant block is connected to the chart block where the washing machine program is defined.
11. If the slider switch is OFF the value in constant block is ‘0’ which indicated there will no water or power supply. By this way we have defined the inputs. And for the outputs we have connected each one with each ‘Display Block’.
12. These display blocks are then connected to ‘Lamp Block’ which will turn green when particular state is going and it will be red if that particular state is not going on.

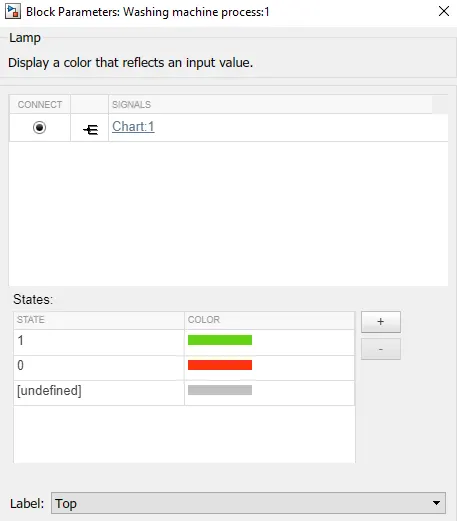

13. To set conditions for the lamp block, double click on it set the conditions as shown.

14. Now if u run the model we will lamps turning into green and red when the that particular state is going on, thus showing the process of a washing machine.

MODEL 2:

State Flow Chart: Case -2

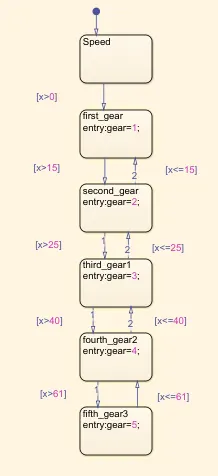

Here as per the question, the gears are arranged with the condition on the speed range. For example, Speed above 0 till 15 will fall under first gear and the chart is also designated in such a way to satisfy the condition.

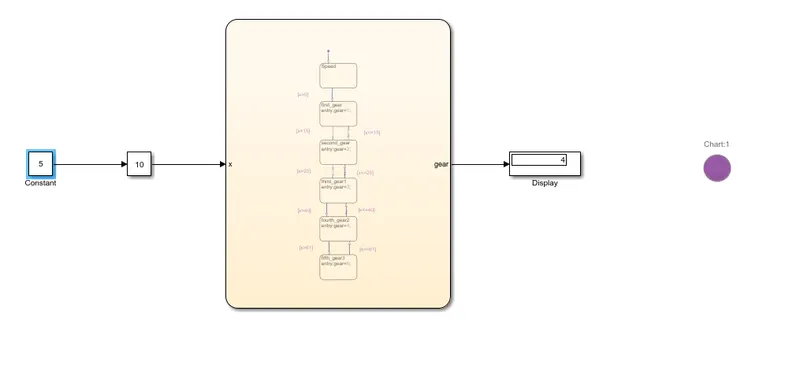

Simulink Model: Case-1

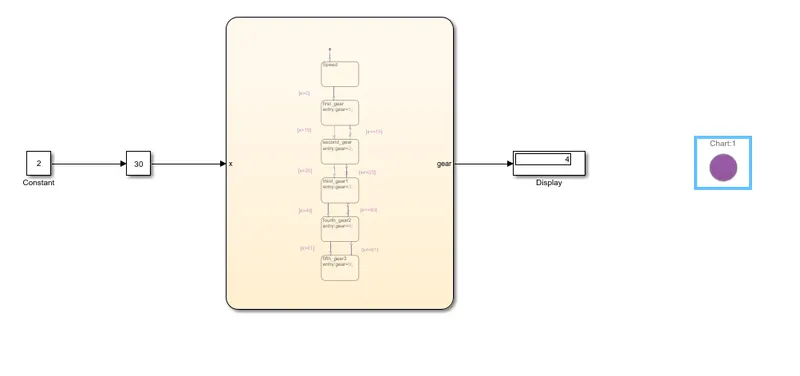

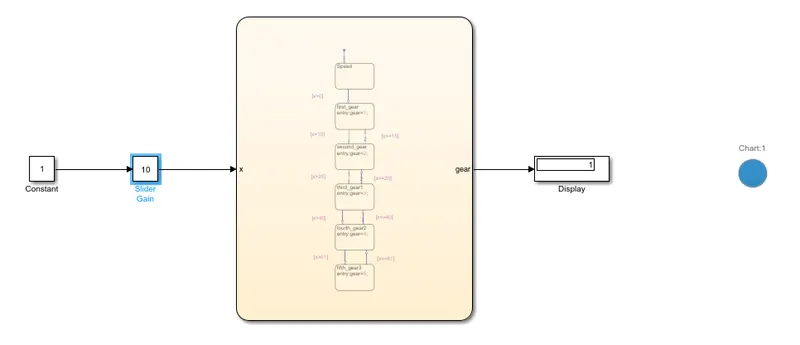

Here 2 input blocks are kept, one is the constant and the other is the "Slider Gain" Block. The Slider Gain block performs a scalar gain that you can modify during the simulation. The block supports fixed-point data types. The value given in the constant block get's multiplied with the Slider gain value during the simulation.

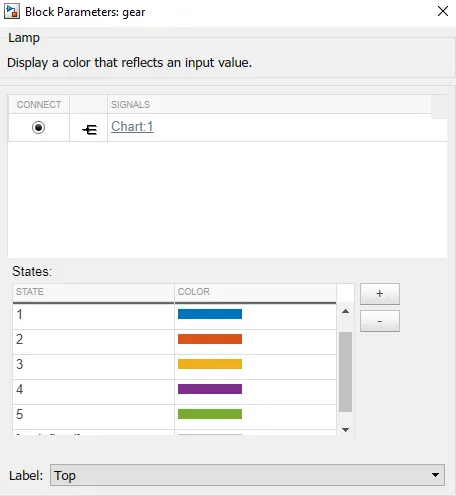

To determine the gear value required for the particular speed, a "Display" block is placed. The lamp is also placed whose parameters are set in a way that for each gear it will produce individual colors. The color inputs are shown below,

Results: Case 2

a) for the first gear, Speed is 10 kmph

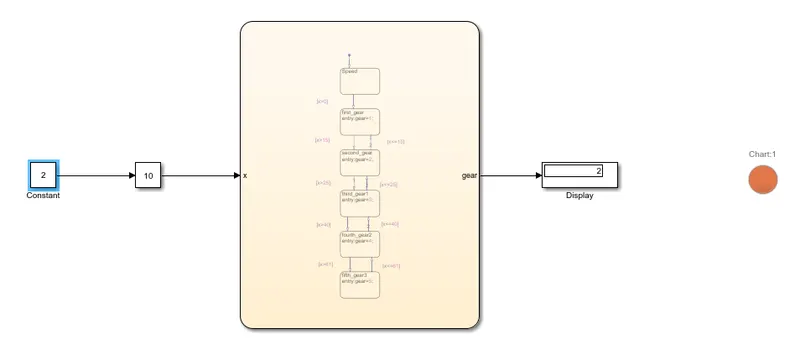

b) for the second gear, Speed is 20kmph

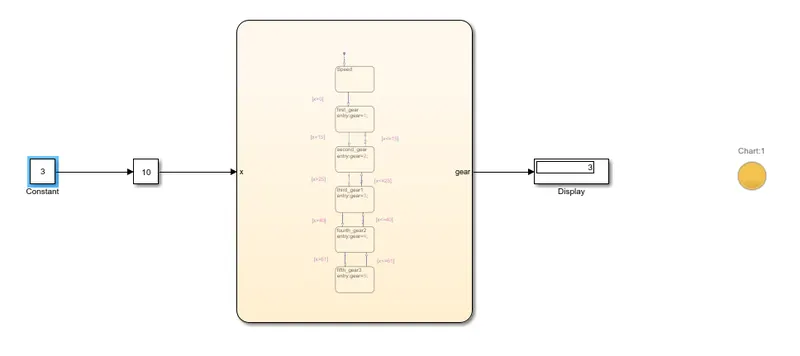

c) for the third gear, Speed is 30kmph

d) for the fourth gear, Speed is 50kmph

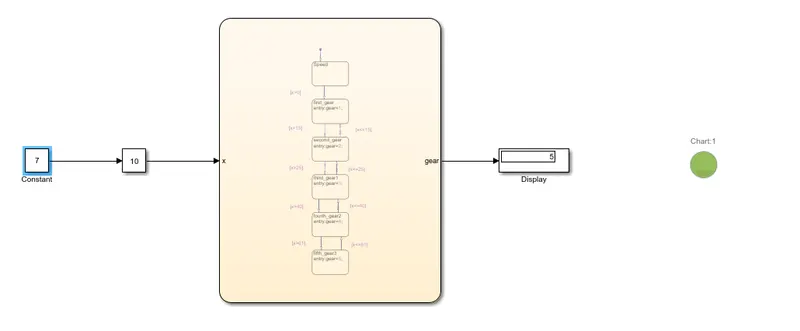

e) for the fifth gear, Speed is 70kmph

CONCLUSIONS:

1. Thus, all the objectives were achieved successfully.
2. Similar concepts and approach can be used to create stateflow for other systems.
3. Links for simulink models:- https://drive.google.com/drive/folders/1fnxIw0AuglXq4uURChwKkjGCwPNV64Fp?usp=sharing
