Week 4.1: Project - Steady state simulation of flow over a throttle body

AIM: To setup and run transient state simulation for flow over a throttle body.

Procedure:

A CAD model is imported to converge studio.

Check for diagnosis abd assign the boundaries to the region.

Case Setup:

• Pressure based transient simulation.
• Inlet pressure = 150000Pa
• Outlet Pressure = 100000Pa
• Outlet Temperature = 300K
• Turbulence model = RNG-E
• Base grid size = 0.002m
• Fixed Embedding
•

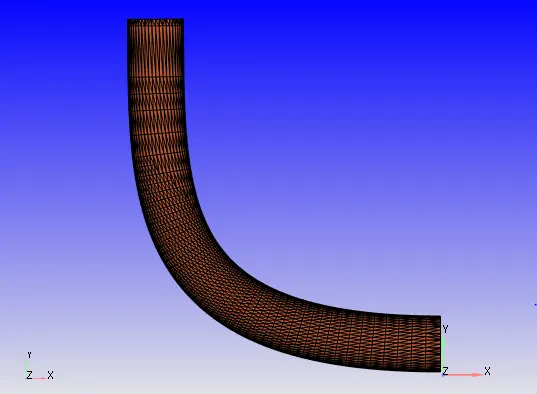

Geometry:

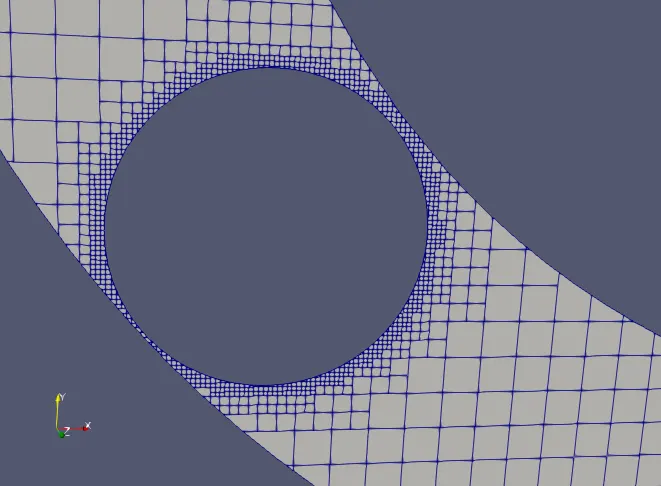

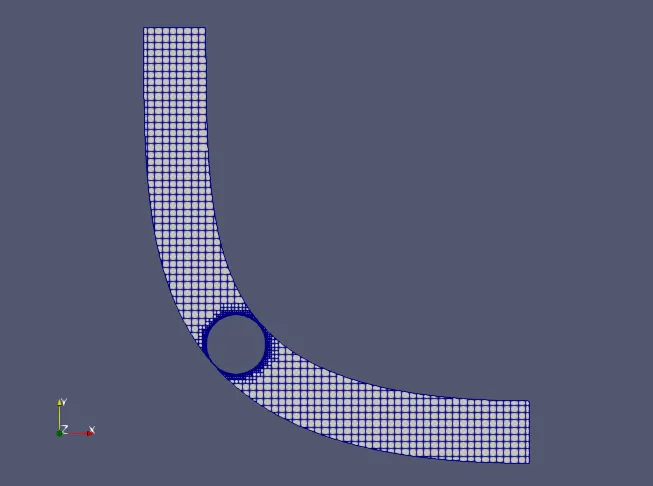

Mesh:

The mesh size is 0.002m.

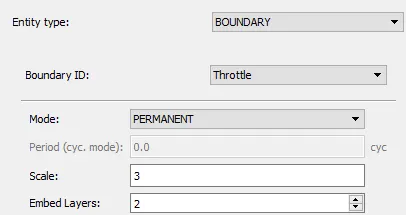

The embedded details are shown above.

Results:

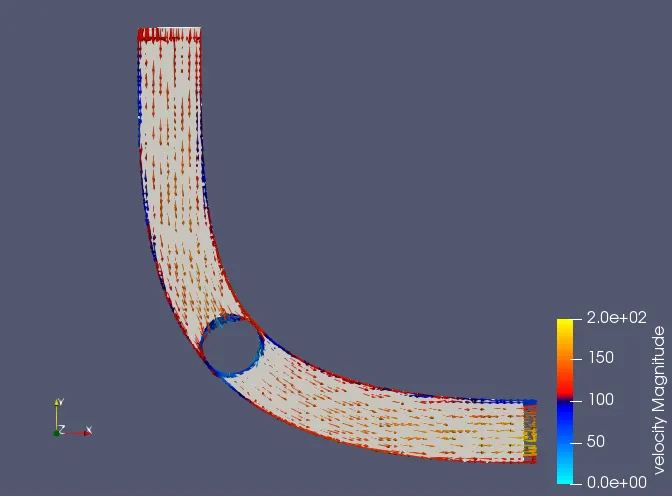

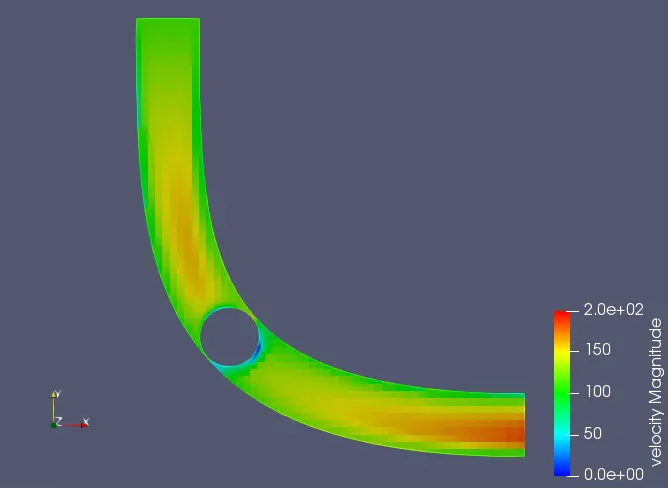

Velocity Contour:

https://drive.google.com/file/d/1T3iI33iWNZlO0QNPnbs3ggvGdXoy_jq2/view?usp=sharing

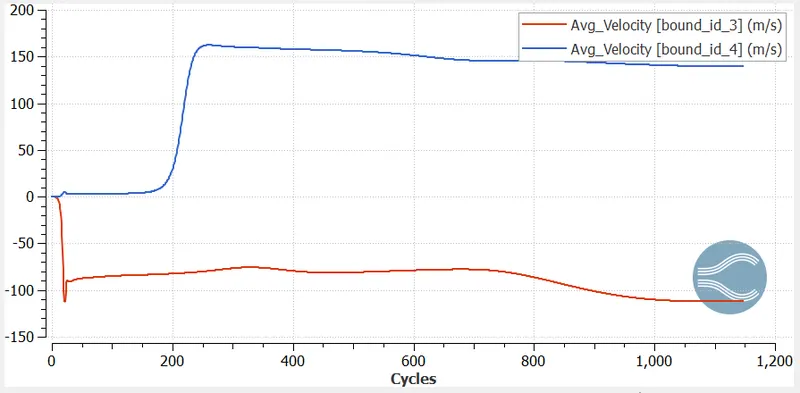

Velocity plot:

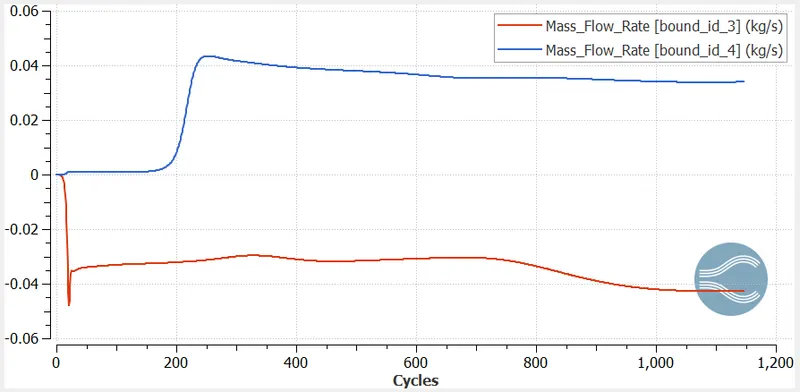

Mass flow rate:

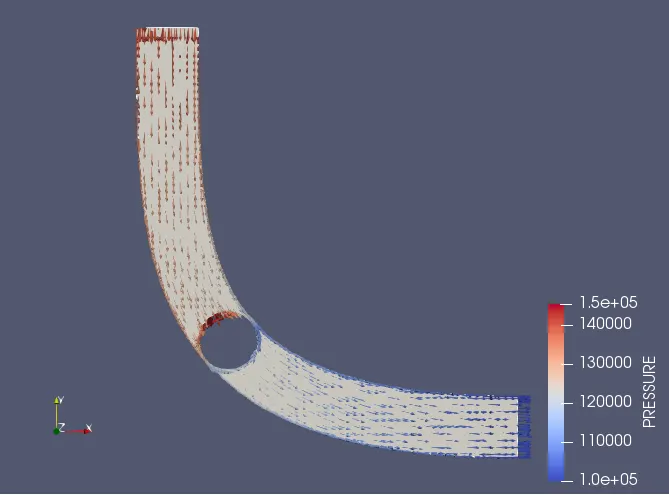

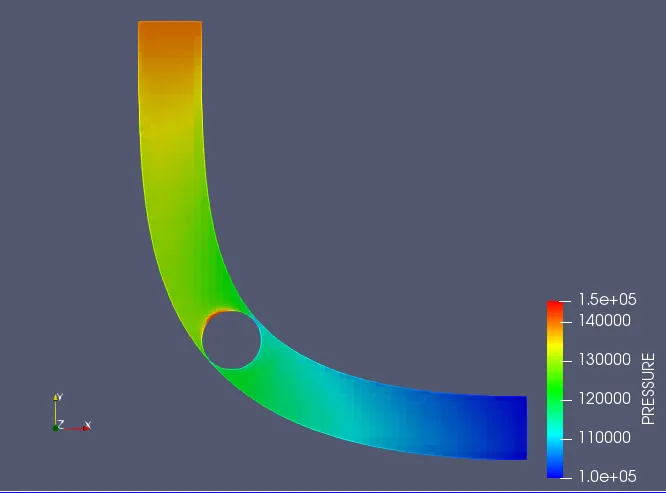

Pressure contour:

We can see that the pressure is reduced in the end.

Discussions:

The velocity near thethrottle varies when the flow encounters near the throttle.

The velocity at the outlet decreases and the pressure increases before the valve.
