Week 4.1: Project - Steady state simulation of flow over a throttle body

AIM

The aim of this challenge is to simulate the flow over a throttle body inside an elbow

OBJECTIVES

• Simulation of flow over a throttle body
• Post processing of the results for flow variables

THROTTLE BODY

In fuel injected engines, the throttle body is the part of the air intake system that controls the amount of air flowing into the engine, in response to driver accelerator pedal input in the main. The throttle body is usually located between the air filter box and the intake manifold, and it is usually attached to, or near, the mass airflow sensor. Often, an engine coolant line also runs through it in order for the engine to draw intake air at a certain temperature (the engine's current coolant temperature, which the ECU senses through the relevant sensor) and therefore with a known density.

The largest piece inside the throttle body is the throttle plate, which is a butterfly valve that regulates the airflow.A throttle is the mechanism by which fluid flow is managed by constriction or obstruction. An engine's power can be increased or decreased by the restriction of inlet gases (by the use of a throttle), but usually decreased. The term throttle has come to refer, informally, to any mechanism by which the power or speed of an engine is regulated, such as a car's accelerator pedal. What is often termed a throttle (in an aviation context) is also called a thrust lever, particularly for jet engine powered aircraft. For a steam locomotive, the valve which controls the steam is known as the regulator.

STEADY STATE SIMULATION OF THROTTLE BODY

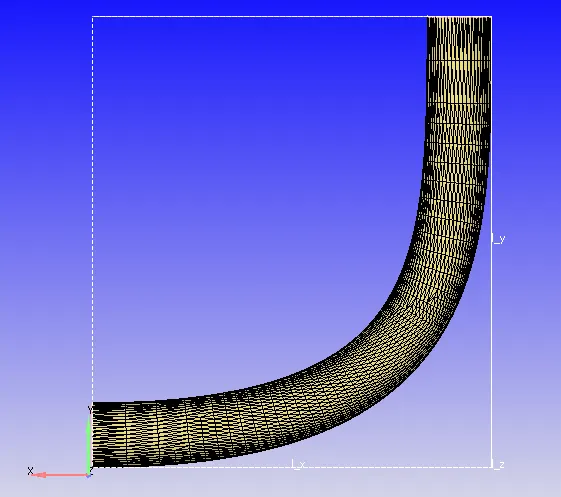

Geometry

Elbow joint contains the throttle body over which we are interested to see the flow over the body.

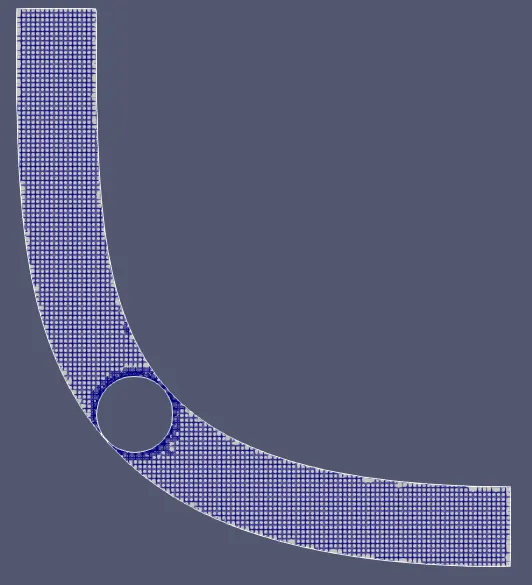

Mesh

Figure shows the mesh structure developed by the cut cell cartesian method. Base size of 0.001m base grid was formed. As we can see near the holes, adaptive mesh refining was employed to create a fine mesh around the body to study the flow parameters.

BOUNDARY CONDITIONS

Inlet boundary

1. Inflow Boundary
2. Pressure = 1e5 bar
3. Mixture - air
4. Temperature = 300 K

Outlet Boundary

1. Outflow Boundary
2. Pressure = 1 bar
3. Mixture - Air
4. Temperature = 300 K

Throttle

1. Wall Boundary
2. Wall Motion - Stationary
3. Temperature = 300 K
4. Turbulent Kinetic Energy - zero normal gradient
5. Turbulent Dissipation - Wall Motion
6. Turbulent Model - RNG K-Epsilon

Elbow Wall

1. Wall Boundary
2. Wall Motion - Stationary
3. Temperature = 300 K
4. Turbulent Kinetic Energy - zero normal gradient
5. Turbulent Dissipation - Wall Motion
6. Turbulent Model - RNG K-Epsilon

Results

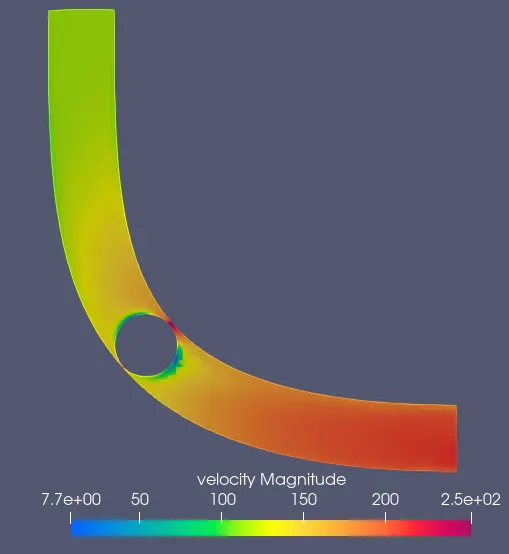

Velocity contour

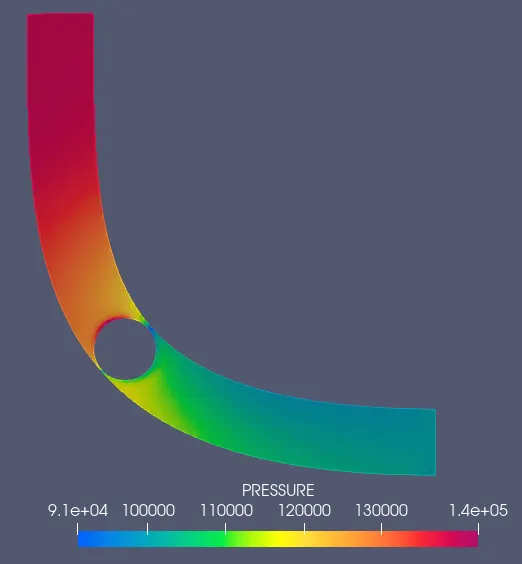

Pressure Contour

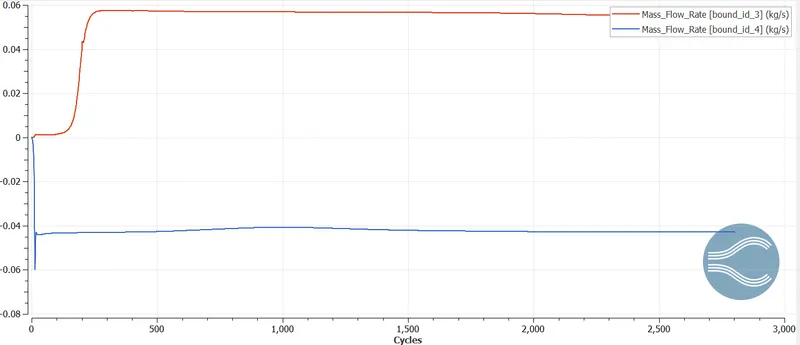

Mass Flow rate versus Cycles

Now the mass flow rate says a value of 0.065 kg/s, which is the steady state value. Opposite signs in the inlet and the outlet plot means the mass is conserved which means the amount of air flowing through the inlet is almost same as the mass of air flowing through the outlet boundary.

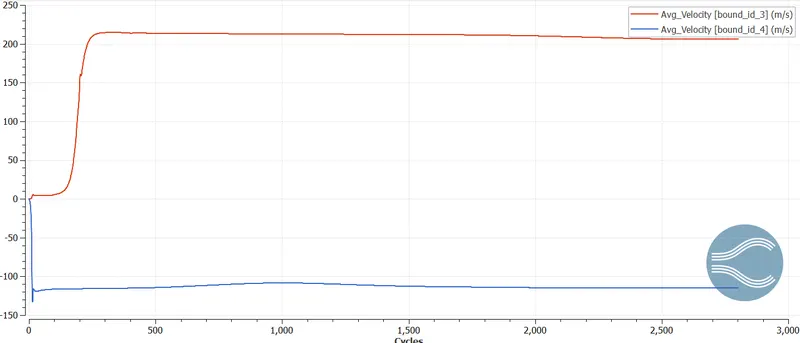

Velocity Versus Cycles

Inlet velocity has a value of 120 m/s but the outlet velocity has increases to somewhere around 220 m/s. This increase in the velocity is due to change in the pressure when the air flows over the throttle body keeping the area of cross section constant.

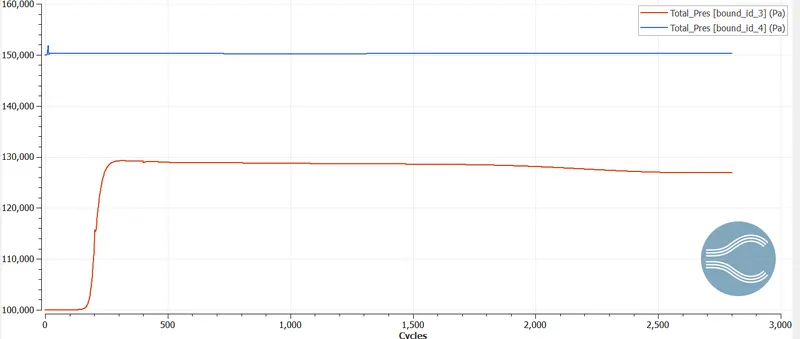

Pressure versus cycles

From the pressure plots we can see there is loss of pressure energy as the air flows over the throttle body. The inlet pressure is 1.5 bar and the outlet pressure is reduced to 1.3 bar showing pressure drop which occurs due to the flow.

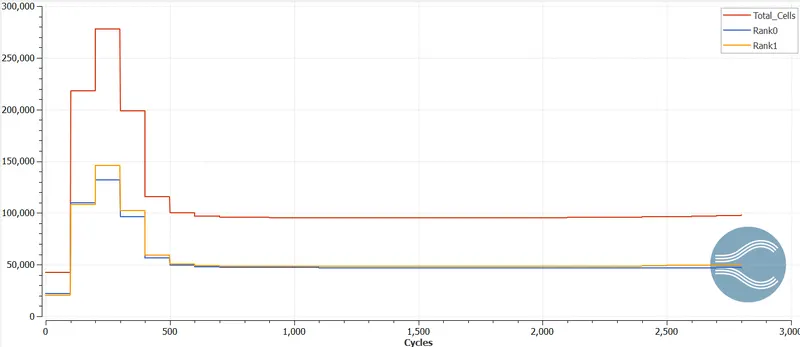

Cell Count

There are approximately 275000 cells that was generated during this simulation. This simulation was run in parallel with 2 processors with one having 40000 cells and the other processor takes 20000 cells to solve the governing equations of fluid flow.

CONCLUSION

1. The simulation of flow over a throttle plate was run
2. Flow variables were analysed using paraview and converge line plot modules
3. The fundamental laws of fluid flow are conserved.
