Week 3 Verification of Weld Joints

OBJECTIVE:

To check whether the welded joints can sustain the designed load and to compare the deformation,equivalent stress and strain results for the different materials assaigned.

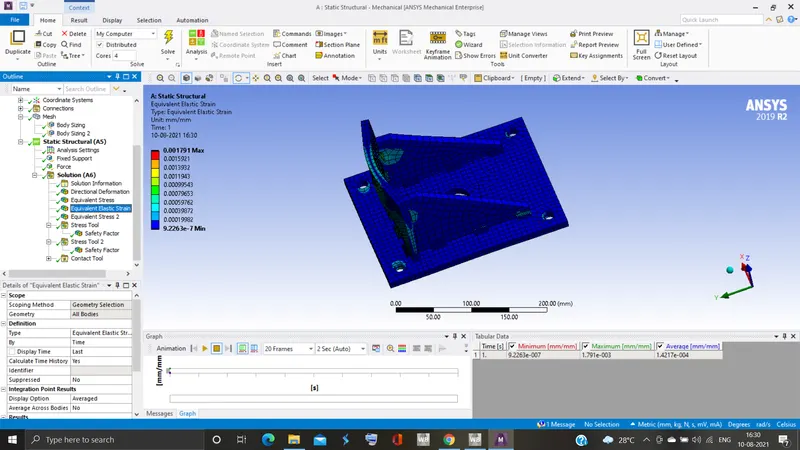

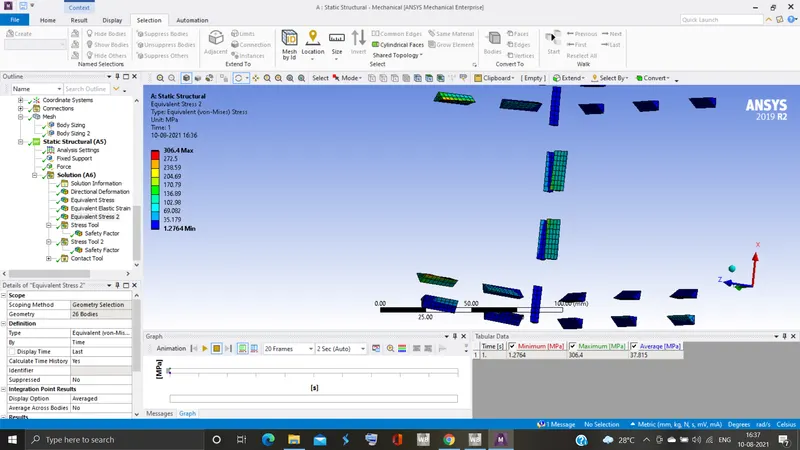

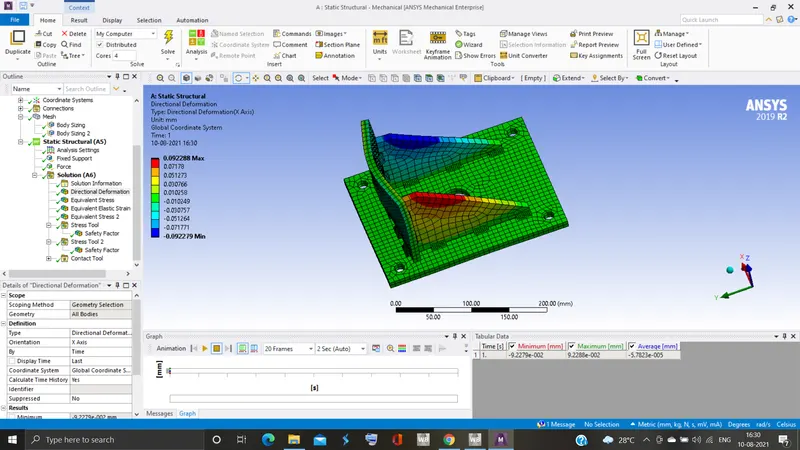

CASE 1

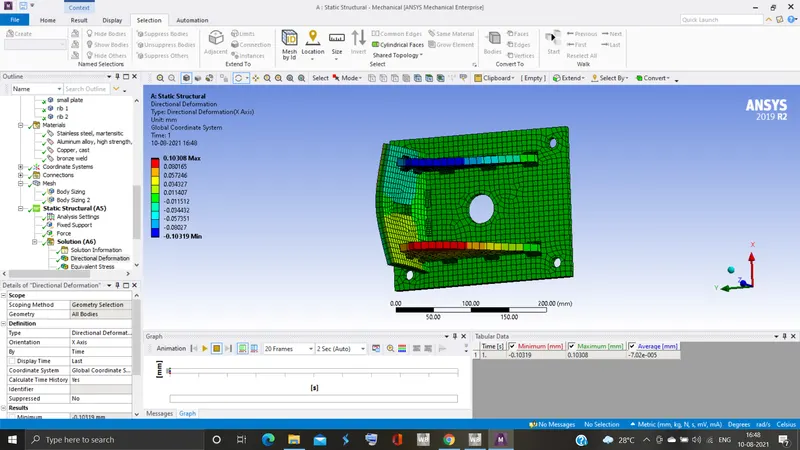

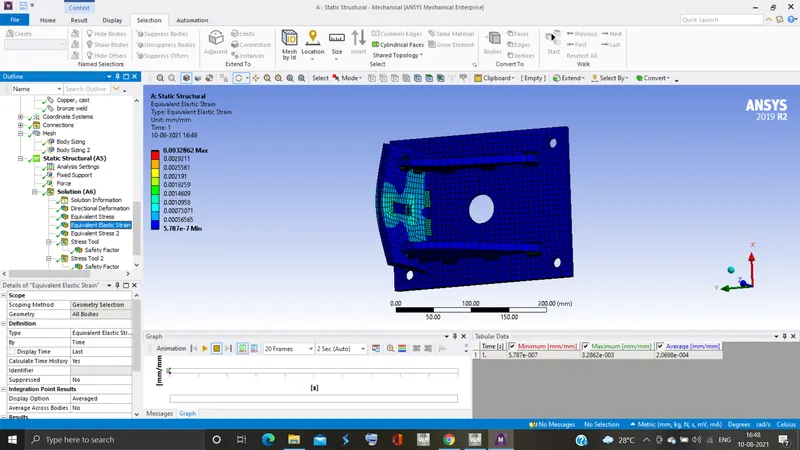

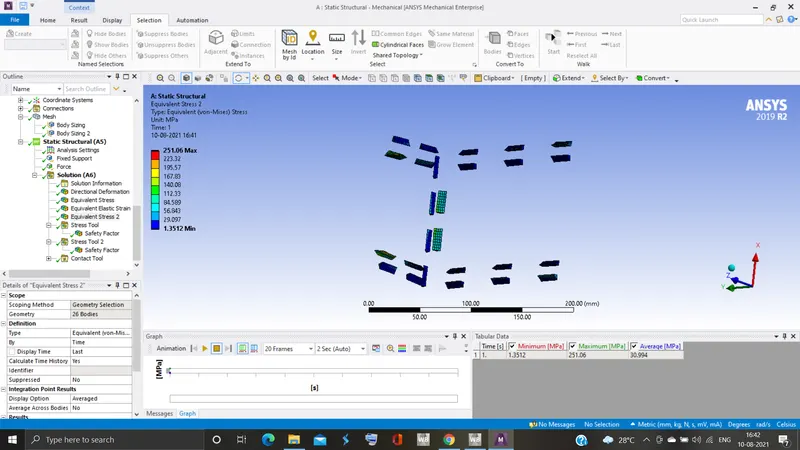

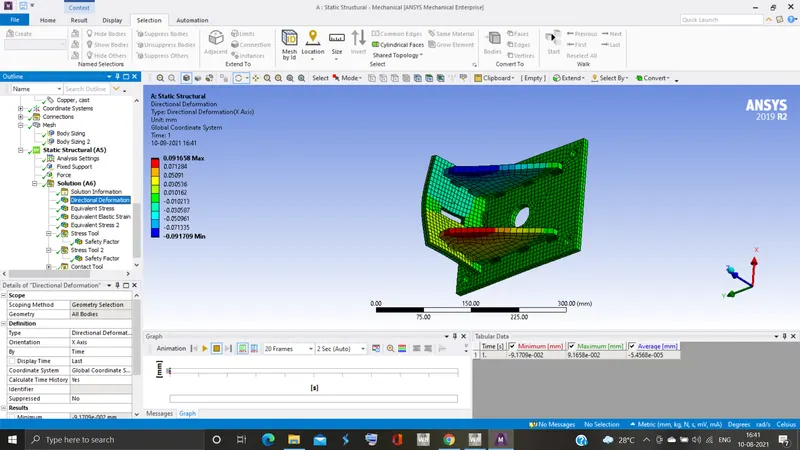

CASE 2

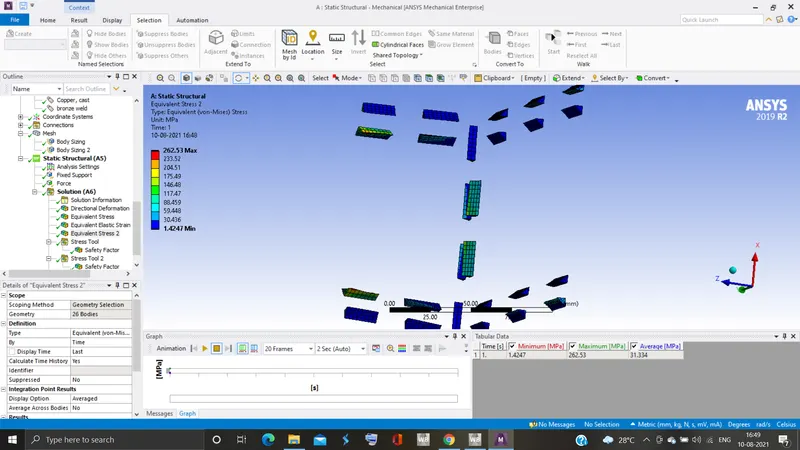

CASE 3

case	directional deformation	equivalent elastic strain	equivalent stress in welds
1	0.092288mm	0.00179	306.4Mpa
2	0.091658	0.00340	251.06Mpa
3	0.10308mm	0.003286	262.53Mpa

CONCLUSION:

From the results we can conclude that stainless steel can be used for plates and ribs for less deformation and aluminium alloy can be used as weld material as it can sustain at higher loads compared to other two marterials
