Week 3 Verification of Weld Joints
Objective: Verification of joints by using three different materials.
Case-1: By using Strainless steel.
Case-2: By using Aluminium alloy for weld spots and ribs where, using strainless steel for plates.
Case-3: By using Bronze for welds and using strainless steel for ribs and plates.
The given load to the plate is 15000N
Solution:

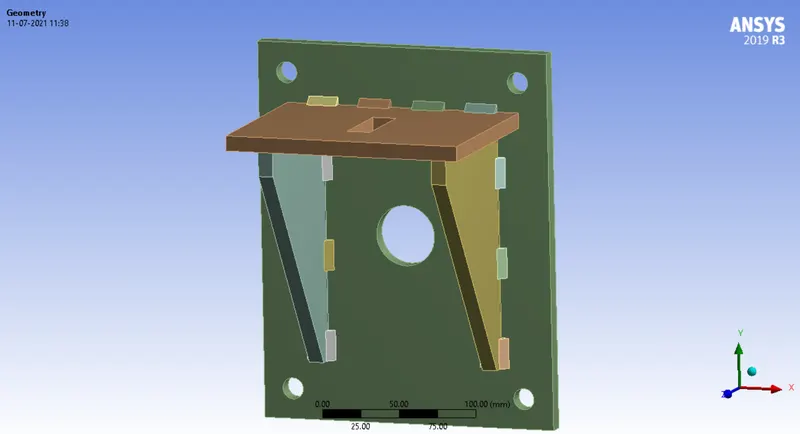

-Firstly, import the geometry to spaceclaim and see if there are any abnormalities in the geometry. Later open the geometry in mechanical module.
-Now, change the names of the components from geometry tree.
-Change the plate component and rib component from bonded to frictional and assigning the frictional coefficient to 0.2

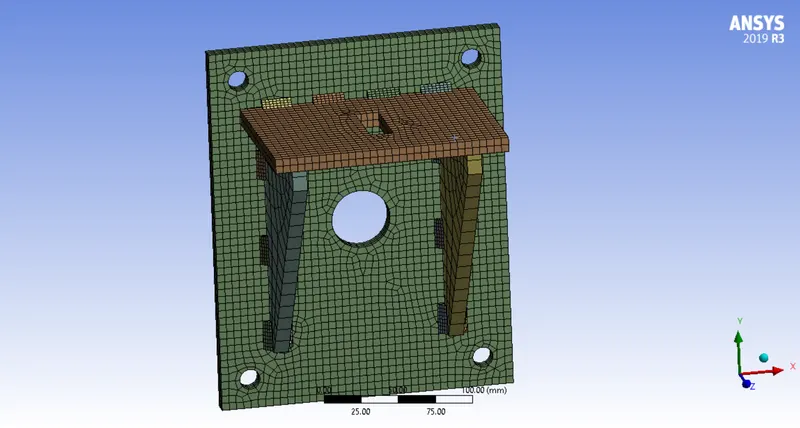

-Now, assign mesh for the geometry. Assign 5mm element size for the plates and default size for the ribs and weld spots.

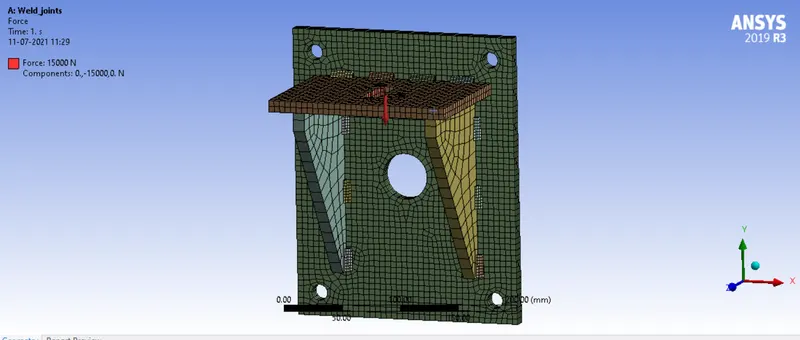

-Assign fixed loads at the holes which are present in the larger plate and assign force of 15000N on the hole present in small plate.
-Now, give the output paraments for which you want to solve this simulation i.e Deformation, Equivalent stress, Equyivalent elastic strain and Weld stress(Stress induced on the weld spots).
Case-1: Strainless steel

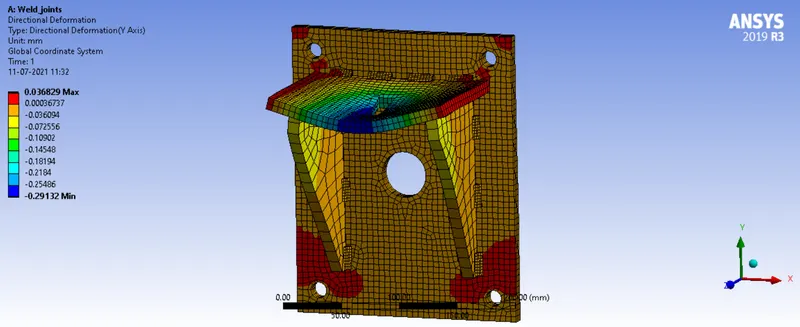

Deformation

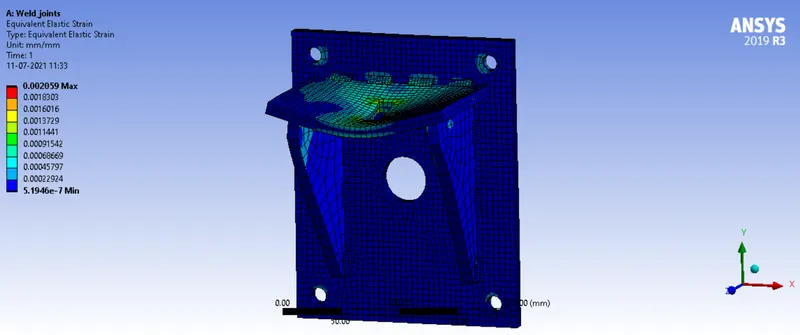

Equivalent Elastic Strain

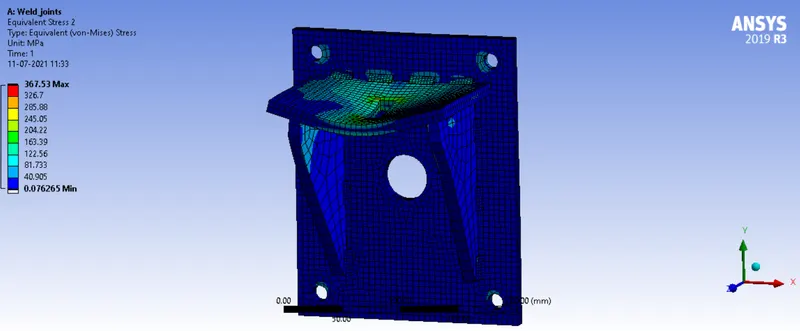

Equivalent Stress

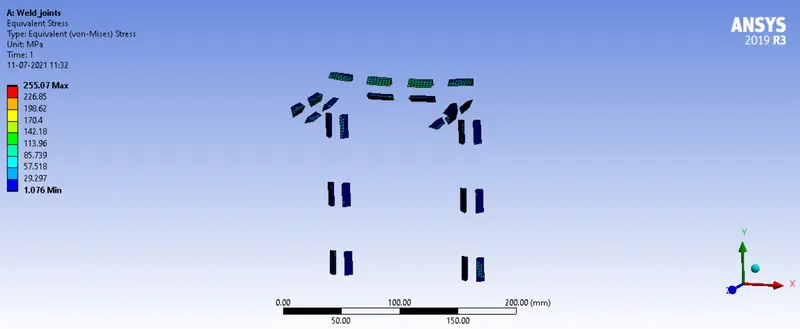

Weld Stress
Case-2: Aluminium alloy for weld spots and ribs Structural steel for Plates

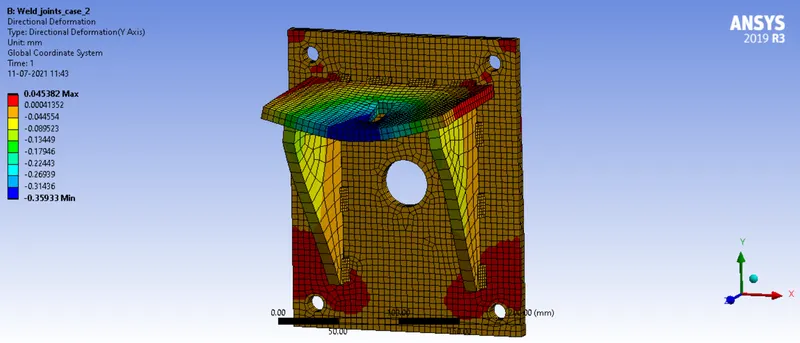

Deformation

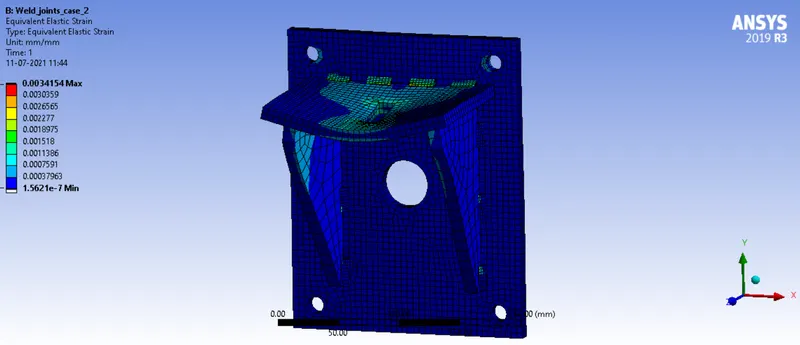

Equivalent Elastic Strain

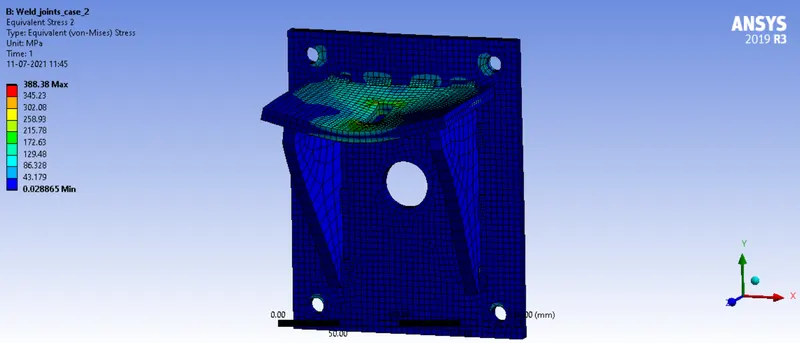

Equivalent Stress

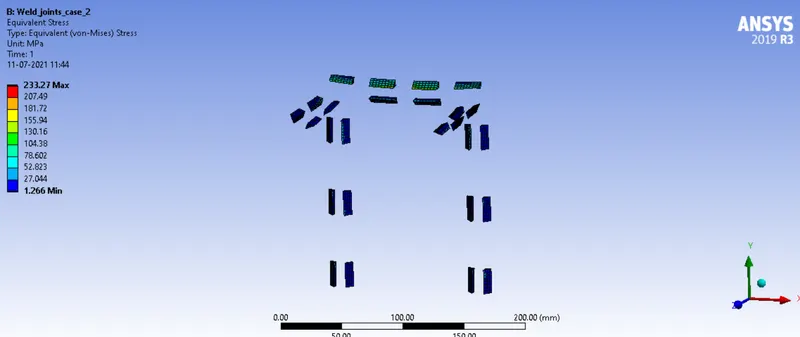

Weld Stress
Case-3: Copper alloy for weld spots and Strainless steel for Plates and Ribs

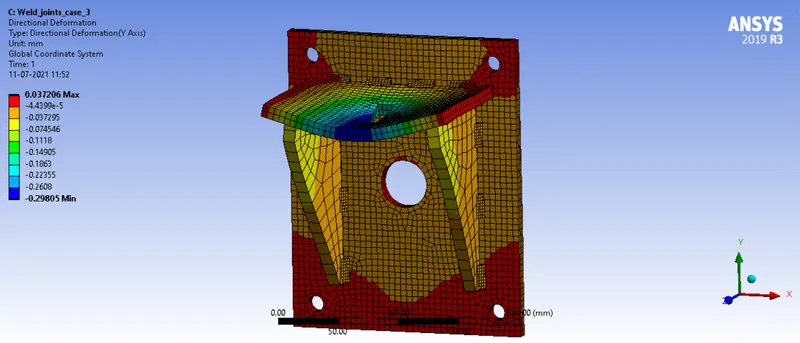

Deformation

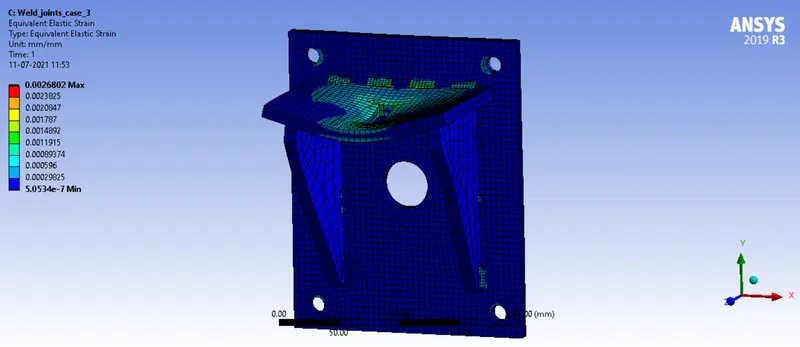

Equivalent Elastic Strain

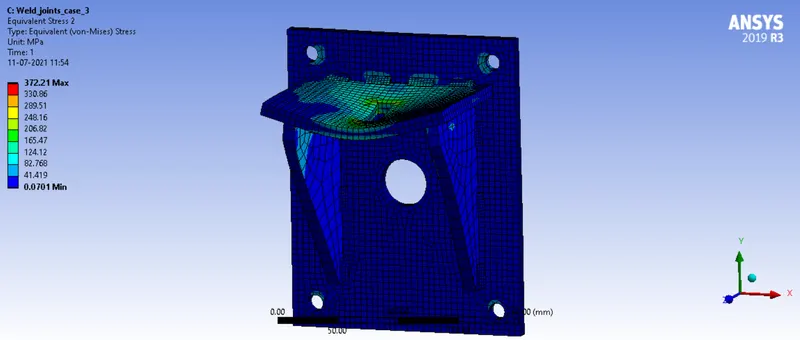

Equivalent Stress

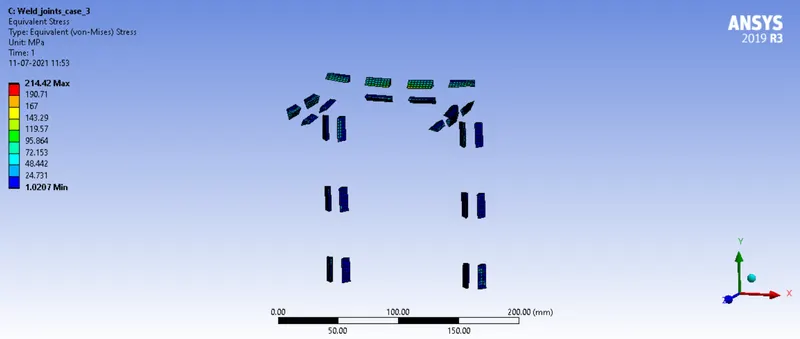

Weld Stress
Comparision Table:
Case-1 Case-2 Case-3
Deformation(mm) 0.036829 0.045382 0.037206
Equivalent Elastic Strain(mm/mm) 0.002059 0.0034154 0.0026802
Equivalent Stress(MPa) 367.53 388.38 372.21
Weld Stress(MPa) 255.07 233.27 214.42
Simulation Animation:
https://youtu.be/WhlC8KZQYds
Conclusion:
-As, we can see from the above table Deformation is high in case-2 i.e in aluminium alloy and it is almost equal in case-1 and case-3.
-As well as for Equivalent Elastic strain case-2>case-3>case-1.
-For Equivalent Stress Case-2> Case-3>Case-1.
-For weld stress Case-1>Case-2>Case-3.
