Week 3 Verification of Weld Joints

Aim :

        To vaildate the weld joint and compare the material used .

Software used

Ansys work bench 2021 R1

Procedure :

Import the model from the portal and open in workbench

Open in static structural .

Assign the material for the bracket and weld joints

As per the cases we run given in the questions  assign the material .

Open in mechanical and check the model and rename as the convinences

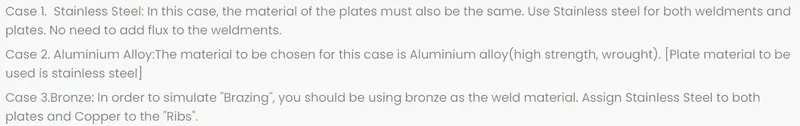

MATERIALS USED :

The boundry conditions are given as holes given in the brakets are fixed and force is given on the plate which is welded on the plate with ribs  on y axsis 12000 Nm .

The results are got as per the material and load used .

Load reamains same for all cases

CASE 1

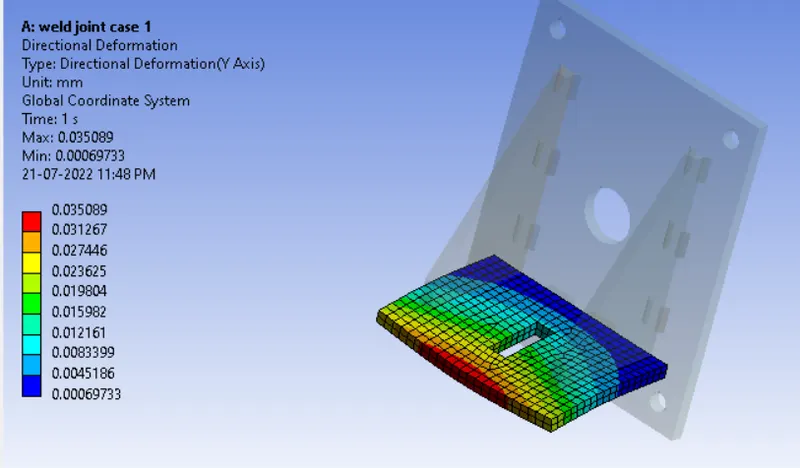

 Directonal deformation

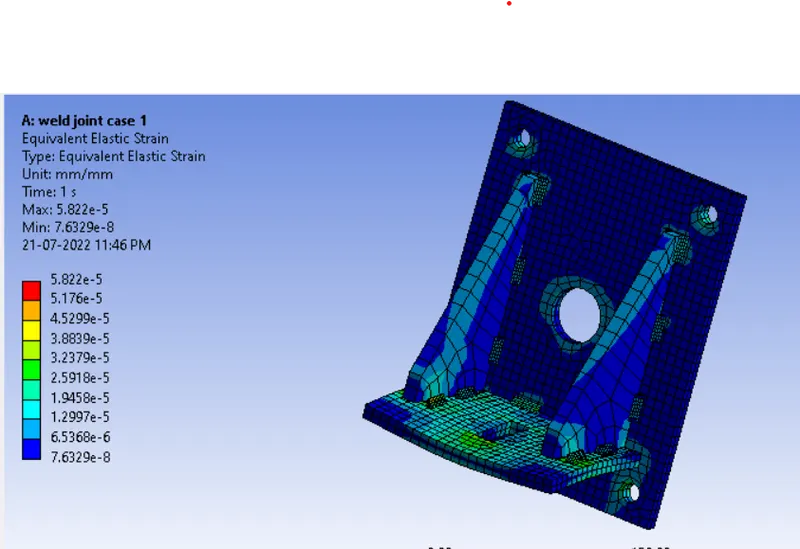

Equvalent Elastic stain

CASE 2

 Directonal deformation

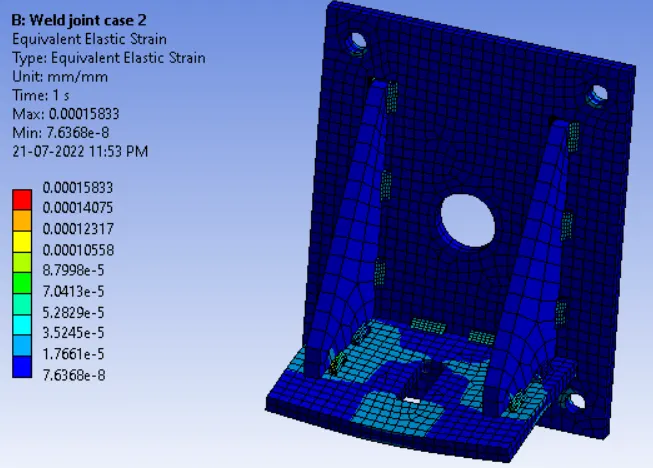

Equvalent Elastic stain

CASE 3

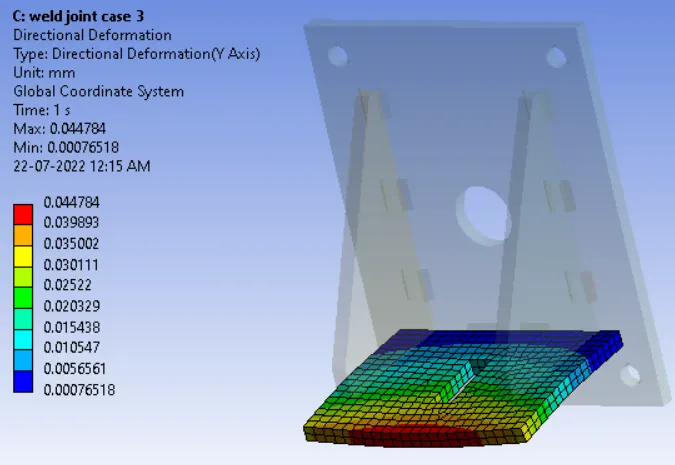

 Directonal deformation

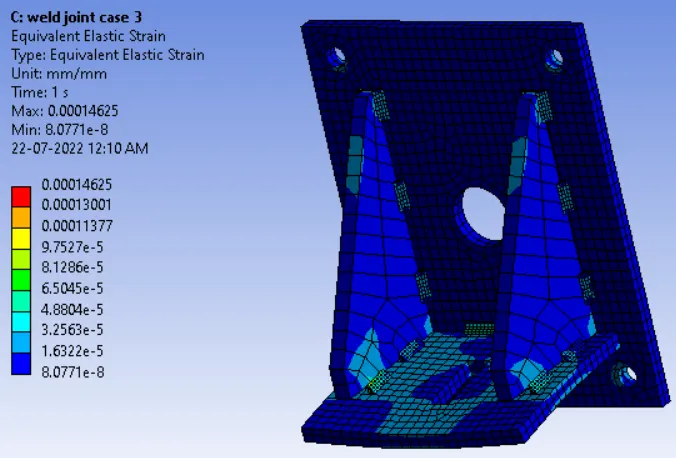

 Equvalent Elastic stain

Result

As per the given model simulation is done .
