Week 3 - Solving second order ODEs

% 2nd order ode
clear all
close all
clc

%inputs
%damping coefficeint
b=0.05;

%gravity in m/s2
g=9.81;

%length of pendulum in m
l=1;

%mass of the ball
m=1;

%initial condition
theta_0=[0;3];

% time points
t_span=linspace(0,50,500);

%solve ode
[t,results]=ode45(@(t,theta)ode_func(t,theta,b,g,l,m),t_span,theta_0);

%plotting
plot(t,results(:,1));
hold on
plot(t,results(:,2));
xlabel('time');
ylabel('plot');
grid on;

%simulation of pendulum

ct=1;
for i=1:length(results(:,1))
    x0=0;
    y0=0;
    x1=1*sin(results(i,1));
    y1=-1*cos(results(i,1));

    plot([-0.5,0.5],[0,0],'linewidth',3,'color','r');
    line([x0 x1],[y0 y1],'linewidth',2,'color','b');
    hold on;

   grid on;
    axis([ -1.5 1.5 -1.5 0.5]);
    pause(0.01);
   hold off;
    M(ct)=getframe(gcf)
    ct=ct+1;
end

%creating movie
movie(M)
Videofile=VideoWriter('pendulum_animation.AVI','uncompressed AVI')
open(Videofile)
writeVideo(Videofile,M)
close(Videofile)




function[dtheta_dt]=ode_func(t,theta,b,g,l,m)
theta1=theta(1)
theta2=theta(2)
dtheta1_dt=theta2;
dtheta2_dt=-(b/m)*theta2-(g/l)*sin(theta1);
dtheta_dt=[dtheta1_dt ; dtheta2_dt];

end

Report writing for 2order of a simple pendulum

We are going to use second order differential equation to solve simple pendulum

d^2/dt^2+b/m*dtheta/dt+g/lsin(theta)=0

By this equation, we have to split it into two ode

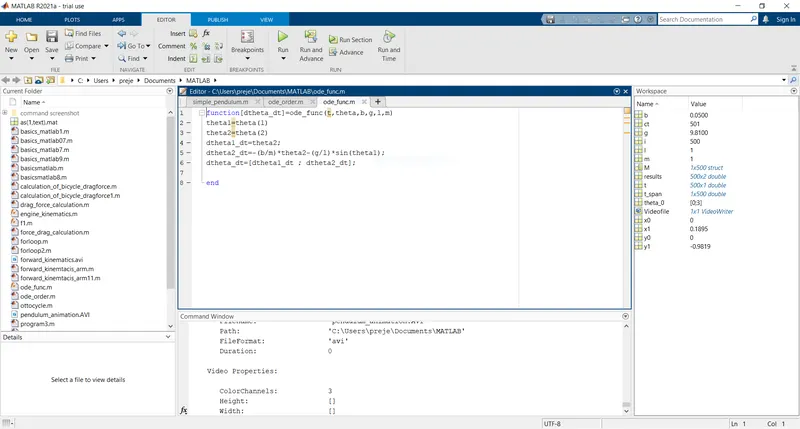

Code for calling function:

Where in function[dtheta_dt] is given with required input values

For gravity=9.81

B=0.05

L=1

M=1

T=0

By splitting the equation for two ode then given inputs are run and values are provided

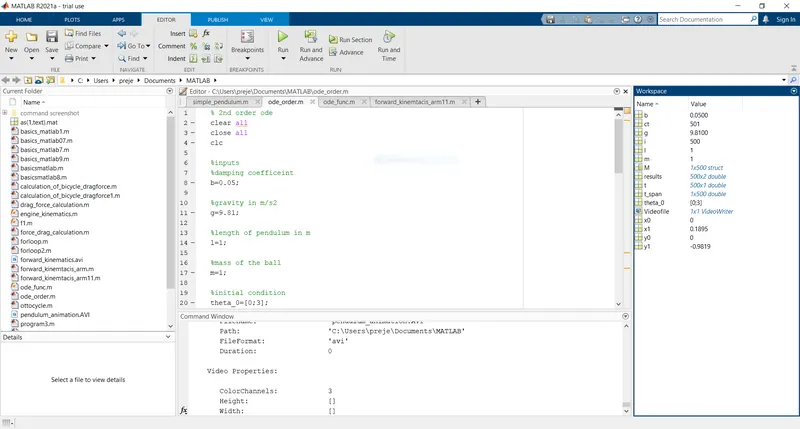

Codes for simple pendulum:

By giving clear all ,close all,clc

And inputs for g,b,l,m

Initial condition is [0;3]

Time point is [linspace 0,50,500]

Now to solve ode

T and results are given by calling function

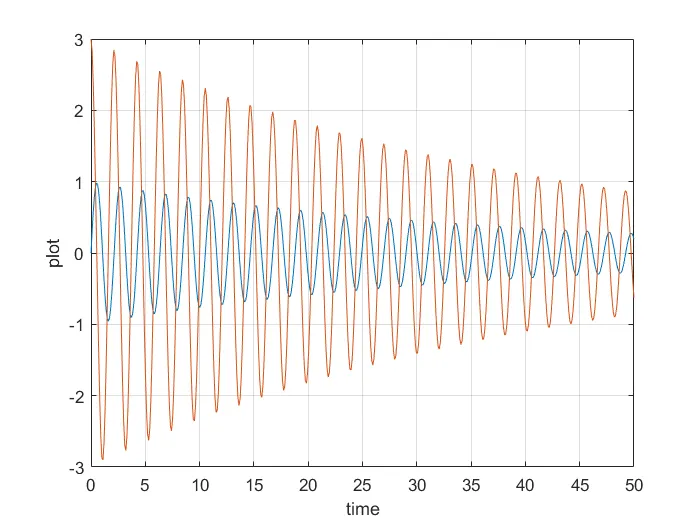

Then plotting the values

Plotfot (t results 1 and t results 2)

To make the pendulum

Counter is given as=1

For

i=1:length(results(:,1))

x0=0;

y0=0;

x1=1*sin(results(i,1));

y1=-1*cos(results(i,1));

As given

And for axis plot axis([ -1.5 1.5 -1.5 0.5]

plot([-0.5,0.5],[0,0] and for lin line([x0 x1],[y0 y1],

Frame is given to get

Creating a movie for the pendulum animation

Movie[m]

Creating a file for the movie

To open the file and to play the file

And close the file

youtube link:

pendulum animation - YouTube

https://www.youtube.com/watch?v=TlEN6_gLNjU
