Project 1 - Parsing NASA thermodynamic data

Project-prasing NASA thermodynamic data

Aim:

To write a program to extarct 14 coefficients and calculate entropy,enthalapy,specific heats of the data in the file

Governing equations If any:

CP=(a1+a2*T+a3*T.^2+a4*T.^3+a5*T.^4)*R;

H=(a1+a2*T./2+a3*T.^2./3+a4*T.^3./4+a5*T.^4./5+a6./T)*R.*T;

S=(a1*log(T)+a2*T+a3*T.^2./2+a4*T.^3./3+a5*T.^4./4+a7)*R;

Objectives of the project:

To find the enthalapy,entropy

Specic heats and molecular weights of the given data

clear all
close all
clc

%universal gas constant
R=8.314;

%loading nasa thermodynamic data intlo file
file=fopen('thermo.dat','r');

%reading the first header line
fgetl(file);

%collecting global temperatures
%getting second line
tline=fgetl(file);

%splitting when there is space
global_temp=strsplit(tline,' ');
%global low temp
global_low_temp=str2num(global_temp{2});
%global mid temp
global_mid_temp=str2num(global_temp{3});
%global high temp
global_high_temp=str2num(global_temp{4});

%skipping the next three lines
fgetl(file);
fgetl(file);
fgetl(file);

for i=1:53
tline1=fgetl(file);
x=strsplit(tline1,' ');
y=length(x);
species_name=x{1};
low_temp=str2num(x{y-3});
mid_temp=str2num(x{y-2});
high_temp=str2num(x{y-1});

% mkdir(species_name);
% cd(species_name);

tline2=fgetl(file);
a=findstr(tline2,'E');
a1=str2num(tline2(1:a(1)+3));
a2=str2num(tline2(a(1)+4:a(2)+3));
a3=str2num(tline2(a(2)+4:a(3)+3));
a4=str2num(tline2(a(3)+4:a(4)+3));
a5=str2num(tline2(a(4)+4:a(5)+3));

tline3=fgetl(file);
a=findstr(tline3,'E');
a6=str2num(tline3(1:a(1)+3));
a7=str2num(tline3(a(1)+4:a(2)+3));
a8=str2num(tline3(a(2)+4:a(3)+3));
a9=str2num(tline3(a(3)+4:a(4)+3));
a10=str2num(tline3(a(4)+4:a(5)+3));

tline4=fgetl(file);
a=findstr(tline4,'E');
a11=str2num(tline4(1:a(1)+3));
a12=str2num(tline4(a(1)+4:a(2)+3));
a13=str2num(tline4(a(2)+4:a(3)+3));
a14=str2num(tline4(a(3)+4:a(4)+3));

T=linspace(low_temp,high_temp,100);
for j=1:length(T)
    if (T<1000)
    CP=(a8+a9*T+a10*T.^2+a11*T.^3+a12*T.^4)*R;
    H=(a8+a9*T./2+a10*T.^2./3+a11*T.^3./4+a12*T.^4./5+a13./T)*R.*T;
    S=(a8*log(T)+a9*T+a10*T.^2./2+a11*T.^3./3+a12*T.^4./4+a14)*R;
    else
    CP=(a1+a2*T+a3*T.^2+a4*T.^3+a5*T.^4)*R;
    H=(a1+a2*T./2+a3*T.^2./3+a4*T.^3./4+a5*T.^4./5+a6./T)*R.*T;
    S=(a1*log(T)+a2*T+a3*T.^2./2+a4*T.^3./3+a5*T.^4./4+a7)*R;
    end

end

%plotting
figure(1)
plot(T,CP);
xlabel('temperature');
ylabel('cp')
title('cp vs temperaure')

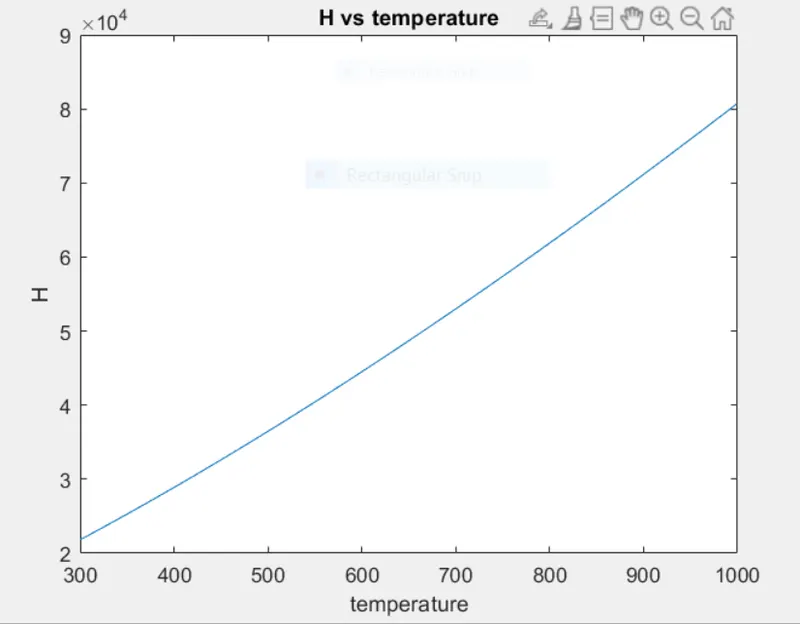

figure(2)
plot(T,H)
xlabel('temperature');
ylabel('H');
title('H vs temperature')

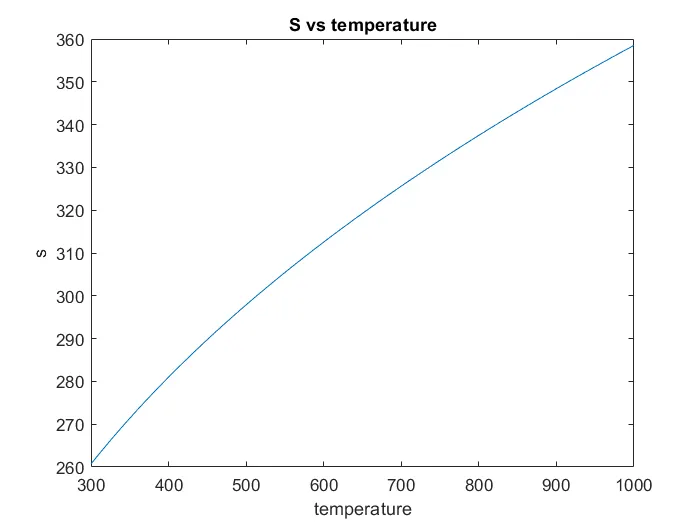

figure(3)
plot(T,S)
xlabel('temperature')
ylabel('s')
title('S vs temperature')

% saveas(1,'cp.png')
% saveas(2,'enthalpy.png')
% saveas(3,'entropy.png')
% cd ..

%calculating molecular weight
elements=['O' 'H' 'N' 'A' 'C'];
mass=[16 1 14 40 12];
molwt=0;
for i=1:length(species_name)
   for j=1:length(elements)
       if strcmp(species_name(i),elements(j))
           molwt=molwt+mass(j);
           p=j;
       end
   end
   n=str2double(species_name(i));
   if (n>1)
       molwt=molwt+mass(p)*(n-1);
   end
end
mol=sprintf('molecular weight for species name %s =%d',species_name,molwt)

end

Code explanation:

Open the thermo.dat file and read the read files

Second is for global,high,mid,low,temperatures are given

File is given as for open the command

Next three lines are skipped

From on wards we have to read the species name and local tempertaures

Using loop command we have to get 1:53 species

For the three lines we have to use fgetl command and add those 5 coeffiecients

By adding three times so 14 coefficients are taken

provide temperature low,high using linspace command we have to use local temperature instead of global temperature

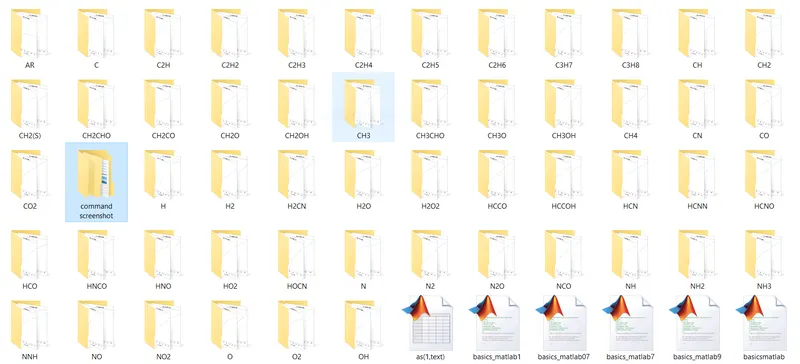

create a directory using mkdir

And we have to calcultae enthalpy,entropy,heat ny using the given equation

And plotting the figures for the three images

using cd to comeback to original position

We have to find the molecular weights for the main[0,h,n,a,s]

By the forloop given for species and mass using I and j

Strcmp is given to read them

Str2num converts string to number given and multiplied with (n-1)

End

species:

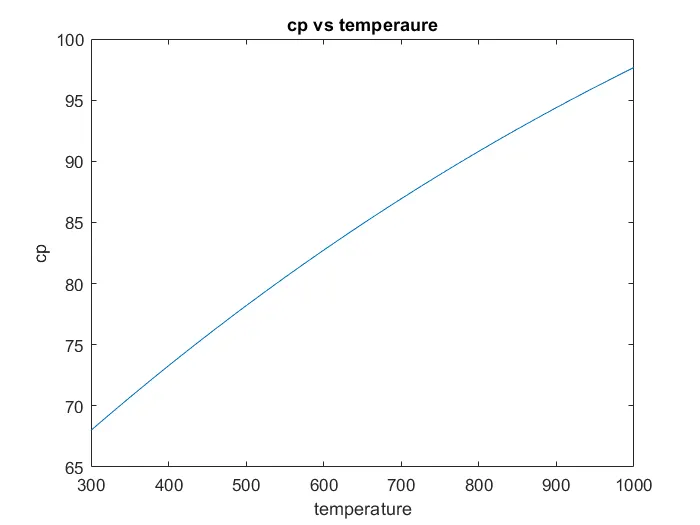

plot fig1:

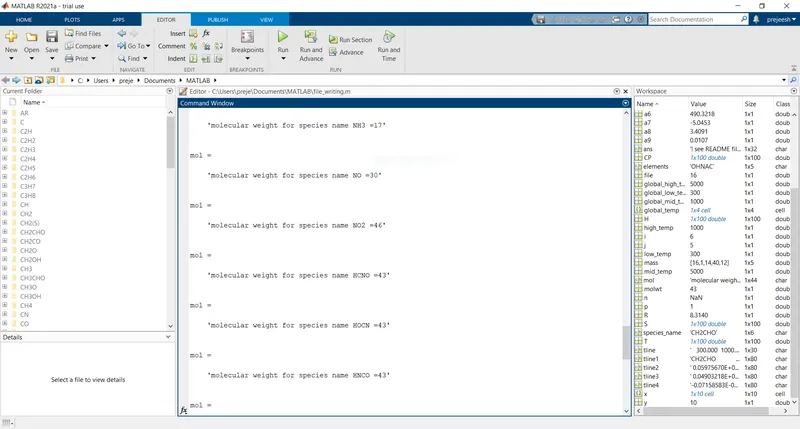

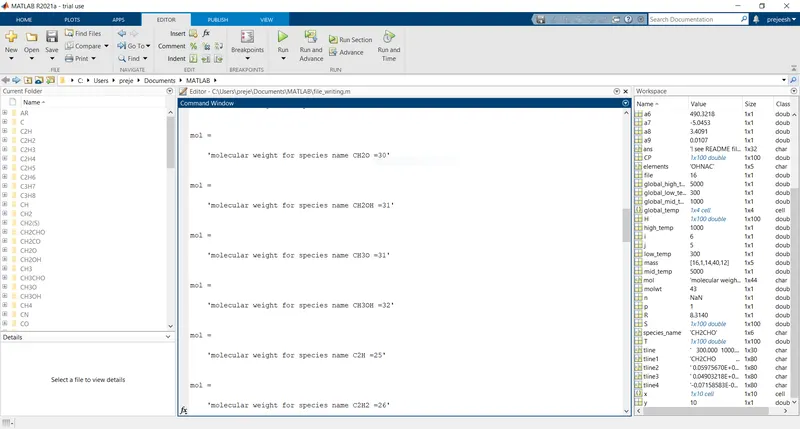

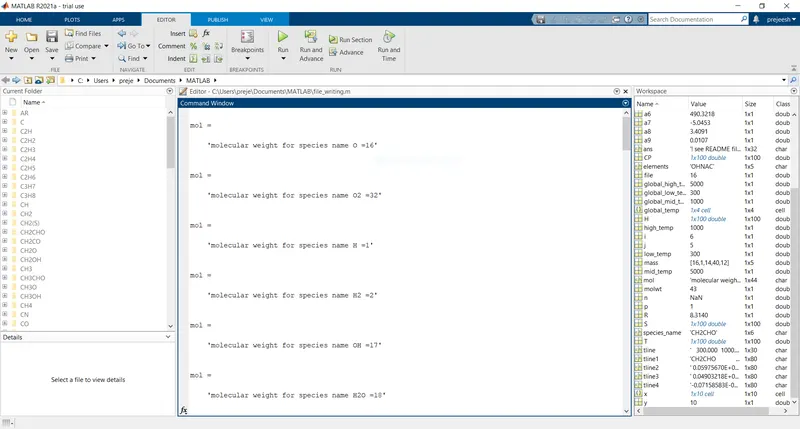

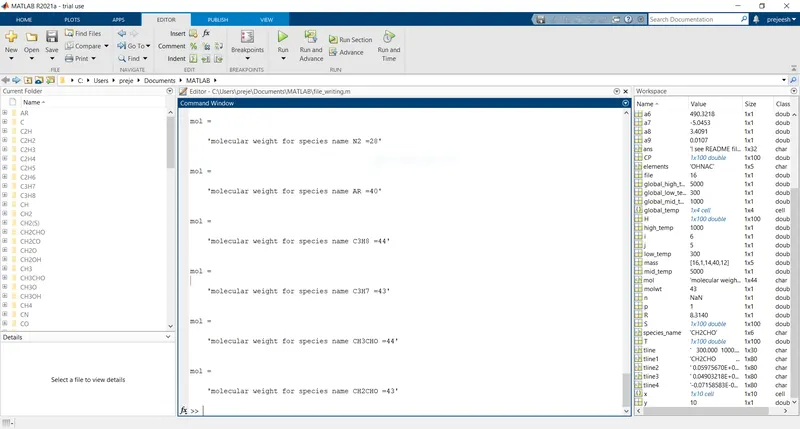

molecular weights:
