MATLAB program to simulate the Motion Of a Simple Pendulum using 2nd order ODEs.
AIM:- Write a program in Matlab that will simulate the pendulum motion.
THEORY:-
1)Pendulum:-A pendulum is a weight suspended from a pivot so that it can swing freely. When a pendulum is displaced sideways from its resting, equilibrium position, it is subject to a restoring force due to gravity that will accelerate it back toward the equilibrium position.
2)Differential Equation:-In mathematics, a differential equation is an equation that relates one or more functions and their derivatives. In applications, the functions generally represent physical quantities, the derivatives represent their rates of change, and the differential equation defines a relationship between the two. For example,
(d^2x/dy^2)+(dx/dy)3−3x+2y=8
3) Simple harmonic motion:-Oscillatory motion under a retarding force proportional to the amount of displacement from an equilibrium position.
Pendulum Equation:-
a) b=It is a dimensionless measure describing how oscillations in a system decay after a disturbance.
b)θ= It is the angular displacement .Angular displacement of a body is the angle in radians through which a point revolves around a centre or line has been rotated in a specified sense about a specified axis.
c)g=It is the acceleration due to gravity. SI unit is m/s^2.
d)L=Length of string of a pendulum. Its measured in m.
e)m= Mass of bob. Measured in kg.
CODE INPUT:-
a) CODE 1 :-
Before we solve our differential equation, it is important to define it. As MATLAB cannot solve a 2nd order ODE, we have to absolve the ODE into two 1st order ODEs. We need to do this as we have to call this function to solve the ODE. The function is defined as follows:
function [dtheta_dt]=odes(t,theta,b,g,L,m)
theta1=theta(1)
theta2=theta(2)
dtheta1_dt=theta2;
dtheta2_dt= - (b/m)*theta2 - (g/L)*sin(theta1);
dtheta_dt=[dtheta1_dt;dtheta2_dt];
endExplanation:
1)Function command is used to define the fucntion odes.
2)[dtheta_dt] is the output variable and (t,theta,b,g,L,m) are in input arguments.
3)dtheta1_dt=theta2 is the first 1st order ODE.
4)dtheta2_dt= - (b/m)*theta2 - (g/L)*sin(theta1) is the second 1st order ODE.
CODE OUTPUT 1:-
>> odes
Not enough input arguments.It gives an error of 'Not enough input arguments'. It is so because you have to use it in a different program that contain the input values.
b) CODE 2:-
clear all
close all
clc
%Input Data
%Damping Coefficient:-
b=0.05
%Acceleration due to gravity
g=9.81
%Length of String
L=1
%Mass of Bob
m=0.1
%Inital Condition
Initial_cond=[0;3];
%Time Range
t_span=linspace(0,20,100);
%Solution for ODE
[t,results]=ode45(@(t,theta) odes(t,theta,b,g,L,m), t_span,Initial_cond);
plot(t,results(:,1));
hold on
plot(t,results(:,2));
xlabel('time')
ylabel('Plot')
grid on
%Animation
figure
ct=1;
for i=1:length(t)
%Starting point of string
x0=0;
y0=0;
%Coordinates of Bob or endpoint of string
x1=L*sin(results(i,1));
y1=-L*cos(results(i,1));
%Plotting of bob, string and beam
plot([x0 x1],[y0 y1],'color','r');
line([-1 1],[0 0],'linewidth',3,'color','g')
hold on
plot(x1,y1,'marker','o','markersize',25)
axis([-2 2 -1.5 1.5])
grid on
pause(0.03)
N(ct)=getframe(gcf)
ct=ct+1;
hold off
end
movie(N)
videofile=VideoWriter('odes.avi','Uncompressed AVI')
open(videofile)
writeVideo(videofile,N)
close(videofile)
Explantion:-
1)% fucntion creates comments to help signify the important parameter.
2)Value of g,L,b,m are given. Intial condition is an array in which the first row shows the inital angular displacement and second row shows the intital angular velocity. A new row is created using the ';' operator.
3)linspace command is used to denote the time range. It gives the specified no. of vales between a starting and ending value.
4)ode45 is the ODE solver used in this program.
5)plot command is used to to draw a line or graph with the help of coordinates.
6)xlabel and ylabel are used to represent the x axis and y axis respectively.
7)color fucntion is used to assign color to a particular plot or line.
8)linewidth is used to assign the width of the line or plot.
9)hold on command is used to merge the previous plot with the next plot.
10)hold off command is used to terminate the merging of plots.
11)grid on command enables the grid.
12)marker operator is used to generate a marker figure in plot.
13)axis command is used to assign the coordinate system.
14)ct is the counter command.
15)for loop is used to calculate all the value of the time range to determine the position of the bob with repsect to time.
16)getframe captures the current axes as it appears on the screen as a movie frame.
17)gcf creates a figure and returns its handle.
18)movie plays the movie.
19)VideoWriter is used to create a video file from an array or MATLAB movie.
20)writeVideo( v , img ) writes data from an array to the video file associated with v.

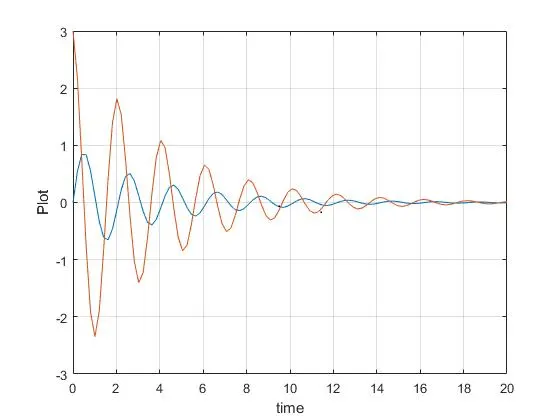

CODE OUTPUT 2:-
