Week 3 - Solving second order ODEs

The period of a pendulum does not depend on the mass of the ball, but only on the length of the string. Two pendula with different masses but the same length will have the same period. Two pendula with different lengths will different periods; the pendulum with the longer string will have the longer period.

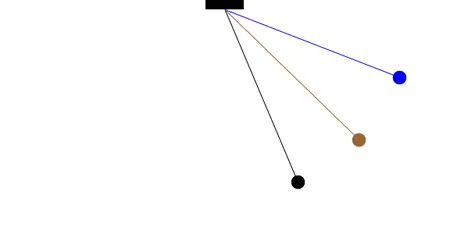

How many complete oscillations do the blue and brown pendula complete in the time for one complete oscillation of the longer (black) pendulum?

From this information and the definition of the period for a simple pendulum, what is the ratio of lengths for the three pendula?

With the assumption of small angles, the frequency and period of the pendulum are independent of the initial angular displacement amplitude. A pendulum will have the same period regardless of its initial angle. This simple approximation is illustrated in the animation at left. All three pendulums cycle through one complete oscillation in the same amount of time, regardless of the initial angle.

`d(theta2)/dt = [-b/m . (theta2)-g/lsintheta1]`

simulation the motion 15 sec

m = 1kg

b = 0.05 damping cofficient

g = 9.81 m/s

l in meter

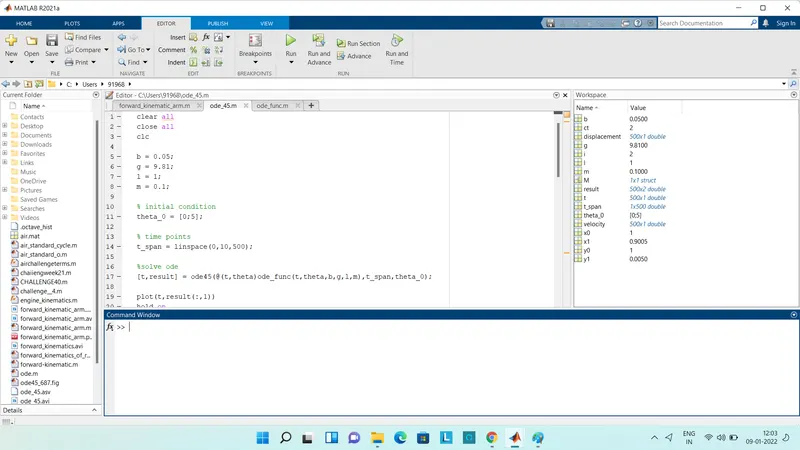

clear all
close all
clc

b = 0.05;
g = 9.81;
l = 1;
m = 0.1;

% initial condition
theta_0 = [0;5];

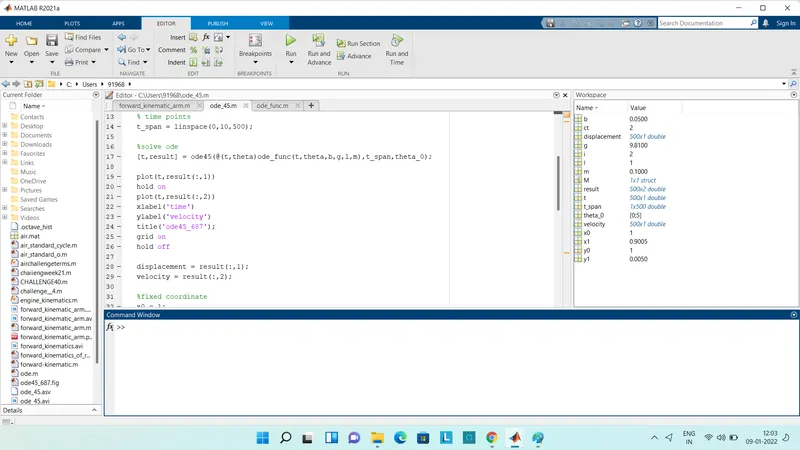

% time points
t_span = linspace(0,10,500);

%solve ode
[t,result] = ode45(@(t,theta)ode_func(t,theta,b,g,l,m),t_span,theta_0);

plot(t,result(:,1))
hold on
plot(t,result(:,2))
xlabel('time')
ylabel('velocity')
title('ode45_687');
grid on
hold off

displacement = result(:,1);
velocity = result(:,2);

%fixed coordinate
x0 = 1;
y0 = 1;
ct = 1;

for i = 1:length(displacement)
% coordinate
x1 = 1-l*sin(displacement(i));
y1 = 1-l*cos(displacement(i));

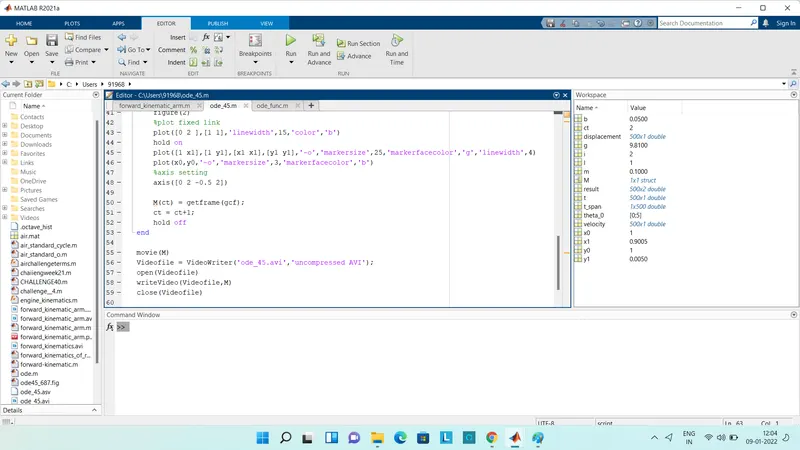

figure(2)
%plot fixed link
plot([0 2 ],[1 1],'linewidth',15,'color','b')
hold on
plot([1 x1],[1 y1],[x1 x1],[y1 y1],'-o','markersize',25,'markerfacecolor','g','linewidth',4)
plot(x0,y0,'-o','markersize',3,'markerfacecolor','b')
%axis setting
axis([0 2 -0.5 2])

M(ct) = getframe(gcf);
ct = ct+1;
hold off
end

movie(M)
Videofile = VideoWriter('ode_45.avi','uncompressed AVI');
open(Videofile)
writeVideo(Videofile,M)
close(Videofile)

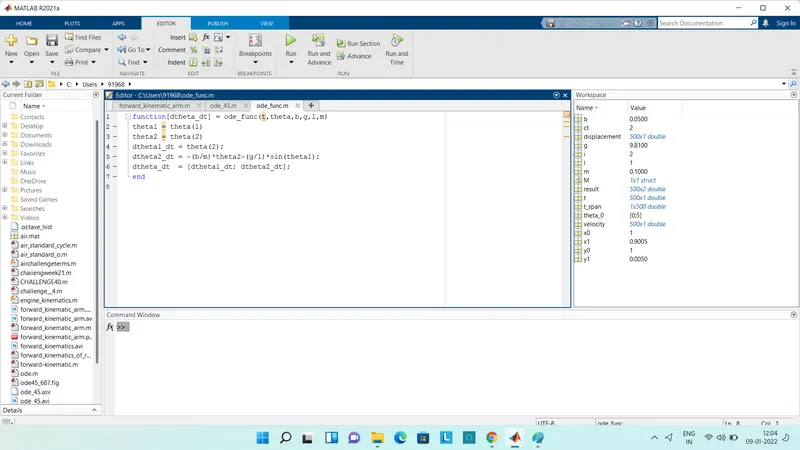

function code of ode45

function[dtheta_dt] = ode_func(t,theta,b,g,l,m)
theta1 = theta(1)
theta2 = theta(2)
dtheta1_dt = theta(2);
dtheta2_dt = -(b/m)*theta2-(g/l)*sin(theta1);
dtheta_dt = [dtheta1_dt; dtheta2_dt];
end

explanation code:

• Basic steps in any starting matlab ,clear all ,close all,cla.
• firstly ,need analysis data given and variables need to be uncode .then time span of the simple pendulum is set 15sec using the linspace command then theta value need to be set .after assinging the value use code ode_func it is function code for the main function program
• then used plotcommand to plot the graph corresponding to time and velocity,lengend command is used for identify each value in graph
• a second figure is also made capture the animation pf pendulum.the coordinate at on end of pendulum is fixed coordinates
• this process is carried out using the loop and it is plotted using plot command
• using frame captured during looping ,movies in matlab

Result:

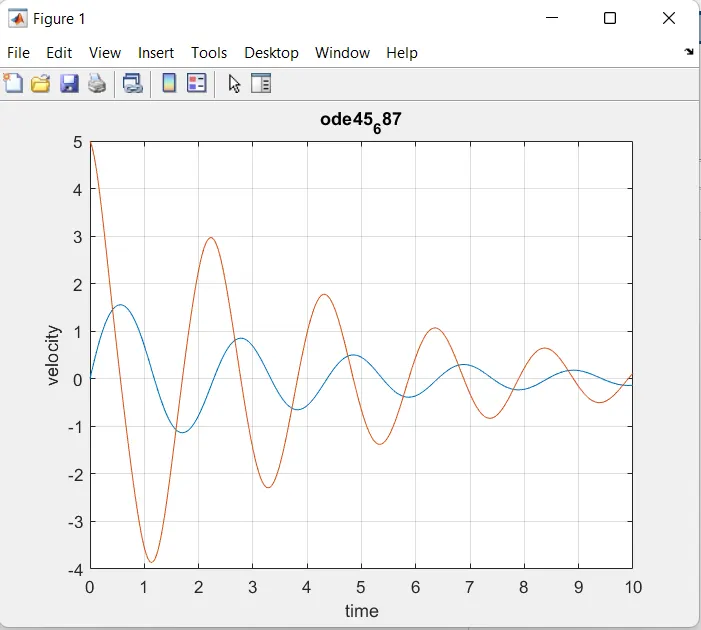

• graph for velocity vs displacemant
• animation of simple pendulum

• animation video link
• https://youtu.be/Qw3IMZZWnRc

https://youtu.be/Qw3IMZZWnRc
