Week - 3 Drop test Challenge

AIM:

        To create a complete simulation file for the drop test of the cell phone and provide the results of the challenge.

PROCEDURE:

1. Open the model in the lsdyna.

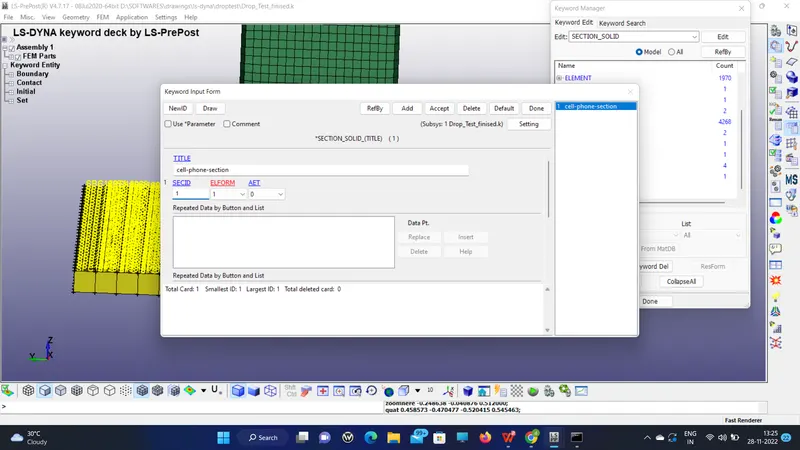

2. Initially check for the keywords in the initial file and add the parts, section, and material.

3. Next I checked for the intersection and define the contact for the phone and wall.

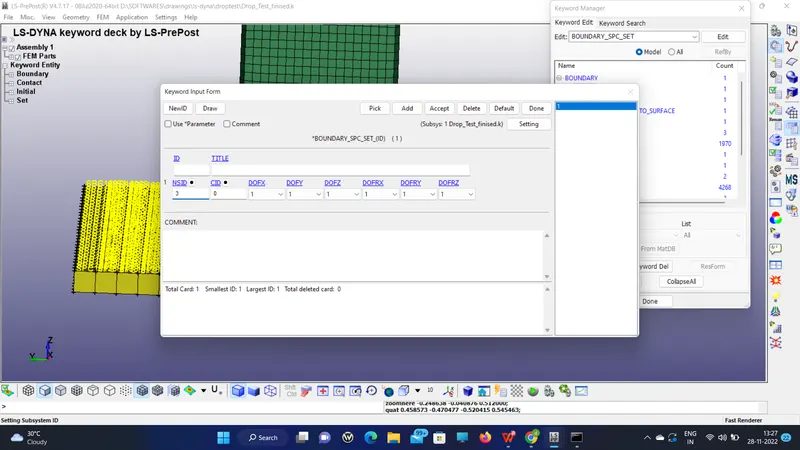

4. Boundary condition for the rigid wall SPC,  constrain in all directions.

5. Initial velocities are provided as per the instruction given in the challenge.

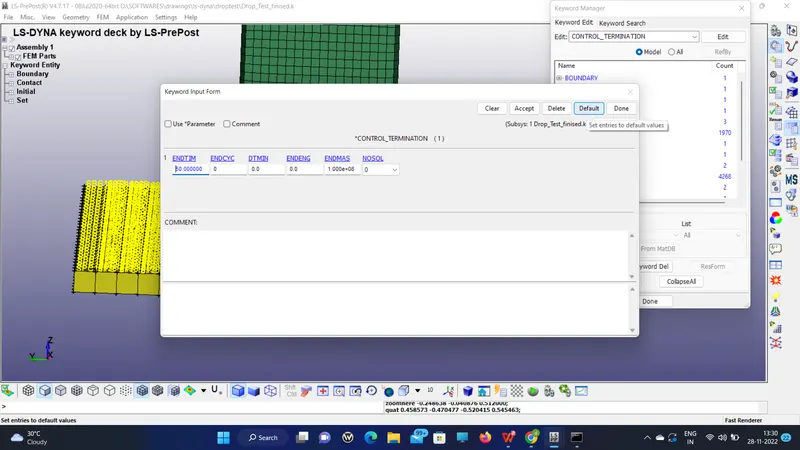

6. Control termination to tell lsdyna to how much time to run 50ms.

and taking the output in 0.1ms.

RESULT:

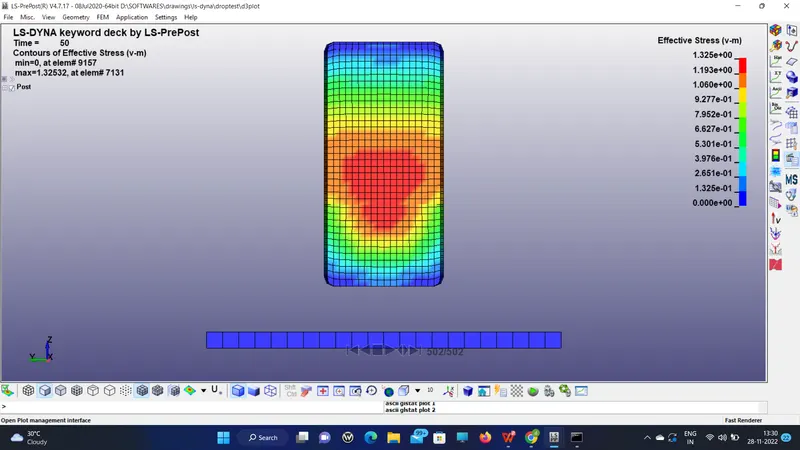

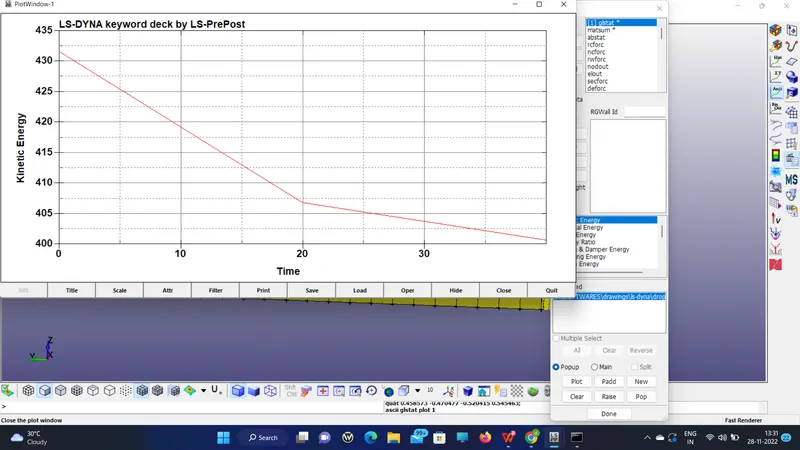

graph plot:

Thus the learning outcomes are

                         1. how to create a complete simulation model with no error in the model.

                         2. Understand the keyword purpose and usage techniques.
