Week 3 Challenge : CFD meshing on Turbocharger

• Objective
  • To check geometrical errors to make appropriate volume.
  • To create and assign PID's as shown in video.
  • To perform surface meshing with given target length.
    1. Blade stage-1 =1mm
    2. Blade stage-2 =1mm
    3. Impeller = 2mm
    4. Shaft rotor = 1mm
    5. Turbo casing = 5mm
    6. Compressor casing = 5mm
    7. Inlet casing cover = 5mm
  • To perform volumetric meshing for the required volume.

• Procedure

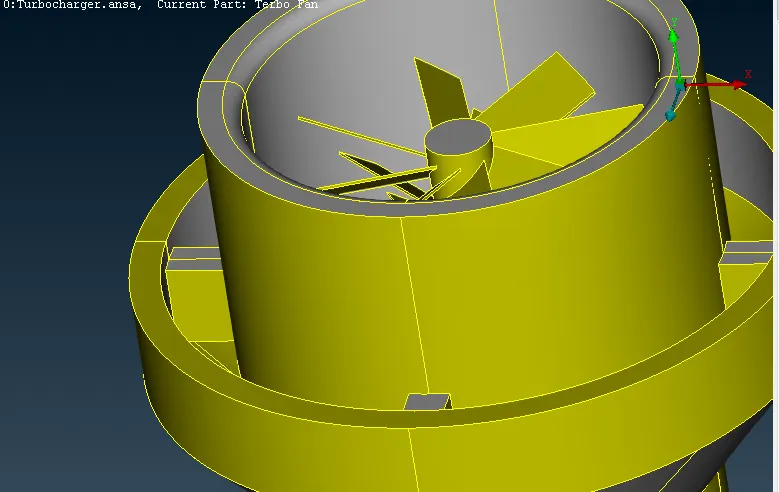

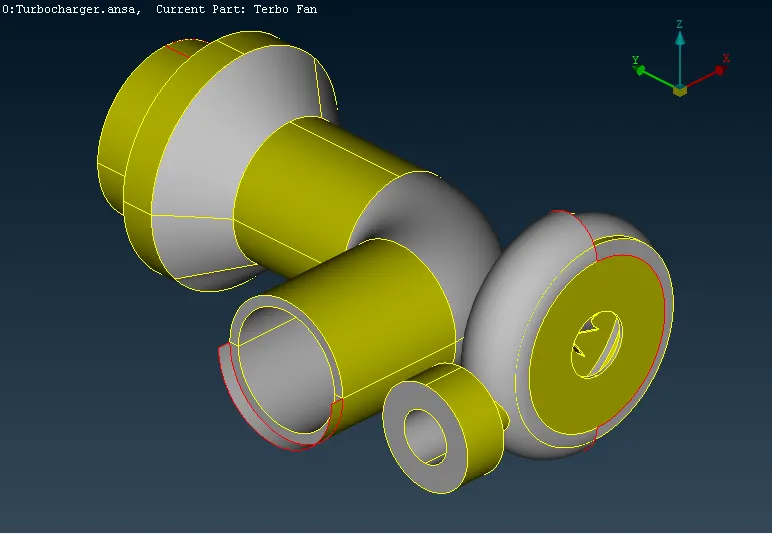

  • Import geometry

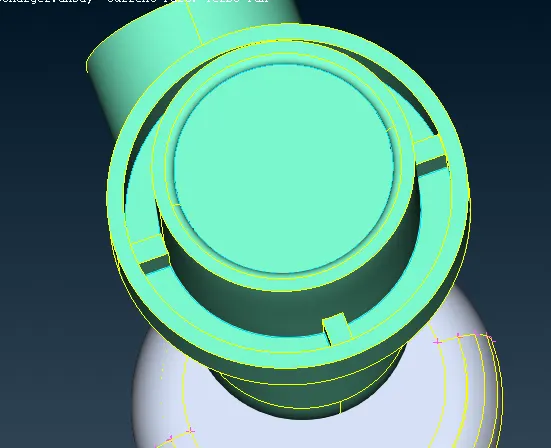

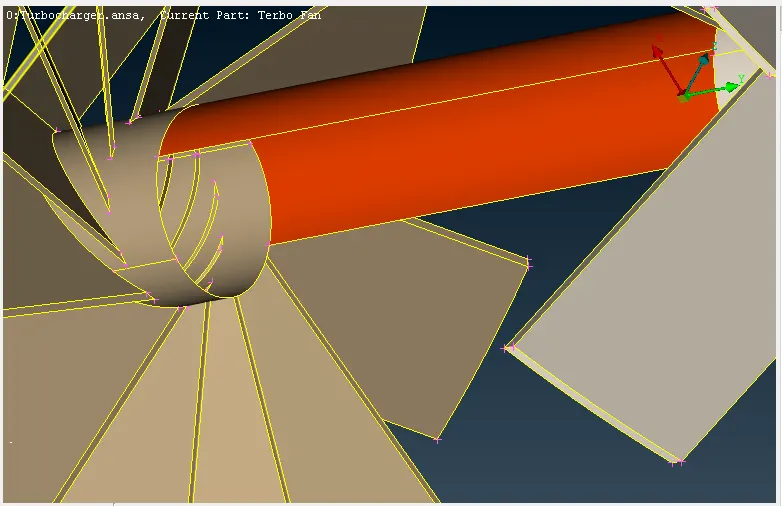

  • Topo cleanup
    Clear Single Cons






  • Perform geometry checkup

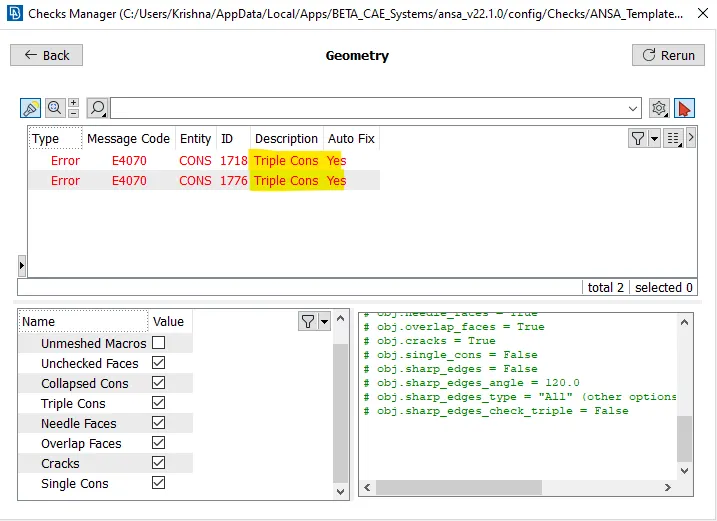

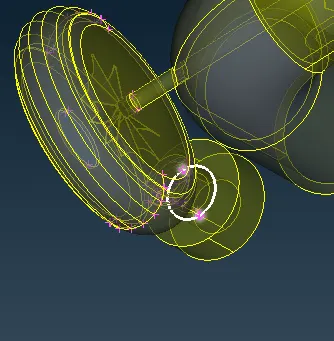

    There are 2 triple cons present.

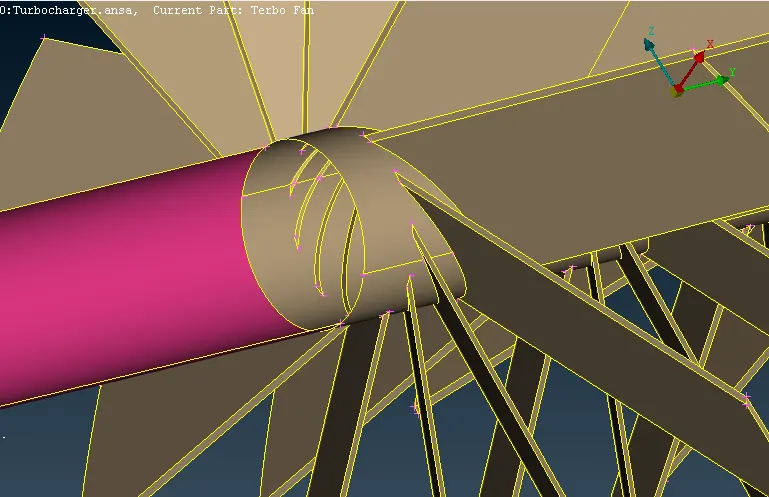

  • Release triple cons

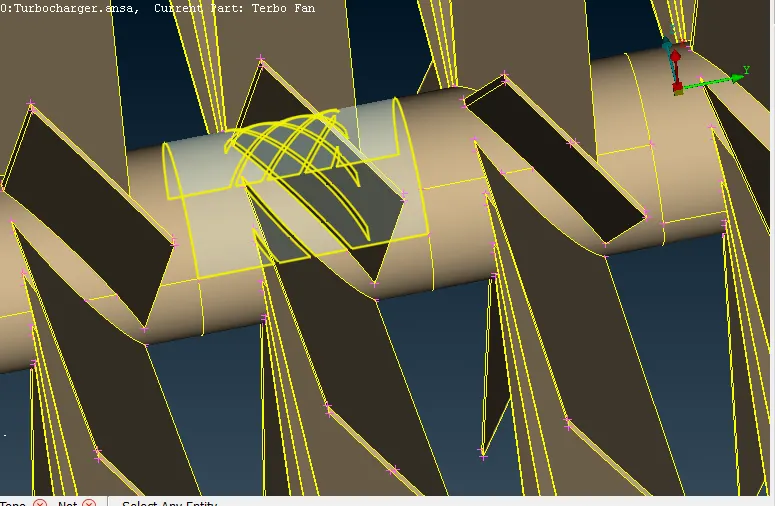

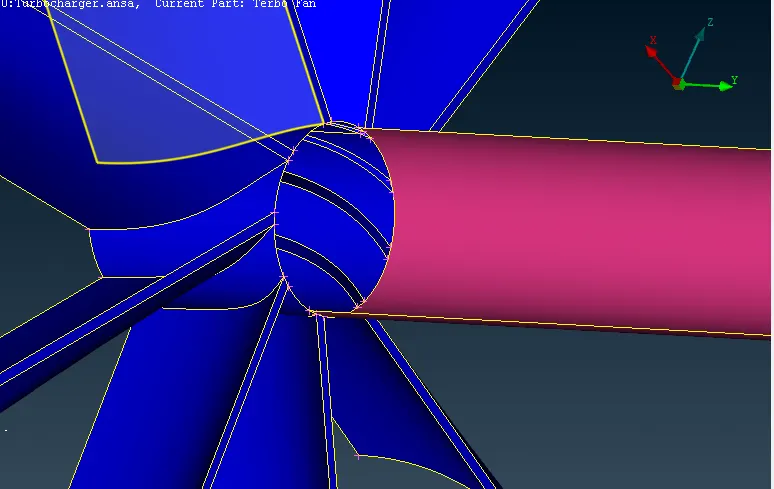

    Overlapped surface deleted and triple con also released.





  • Now we are done with topo cleanup.
  • Now we will Check for the PID's whether surfaces are closed or not? and rename each PID's.

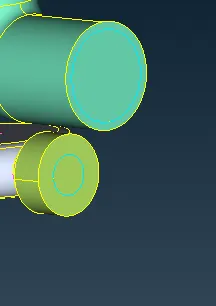

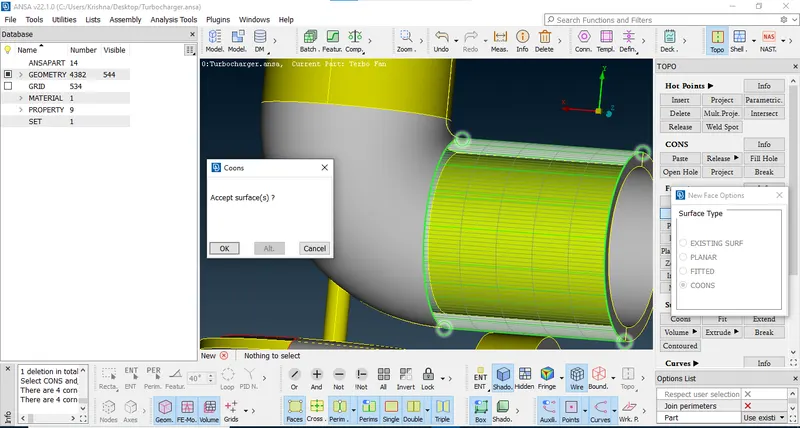

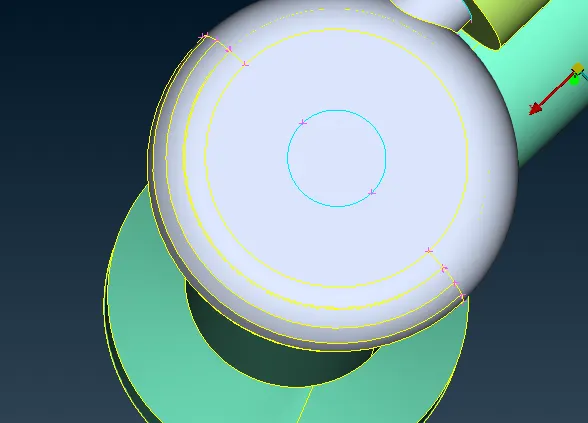

    close all the surface openings

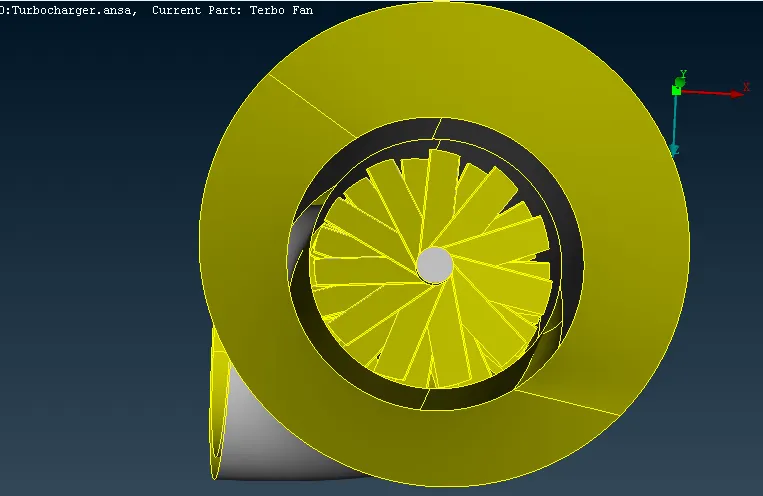

    Top blade

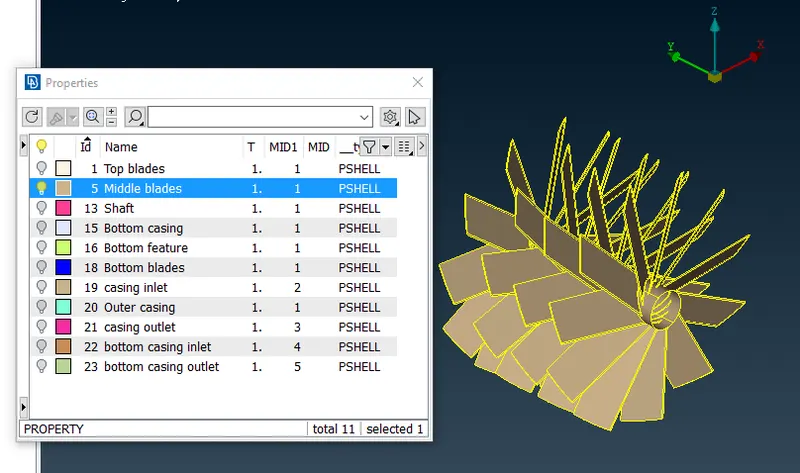

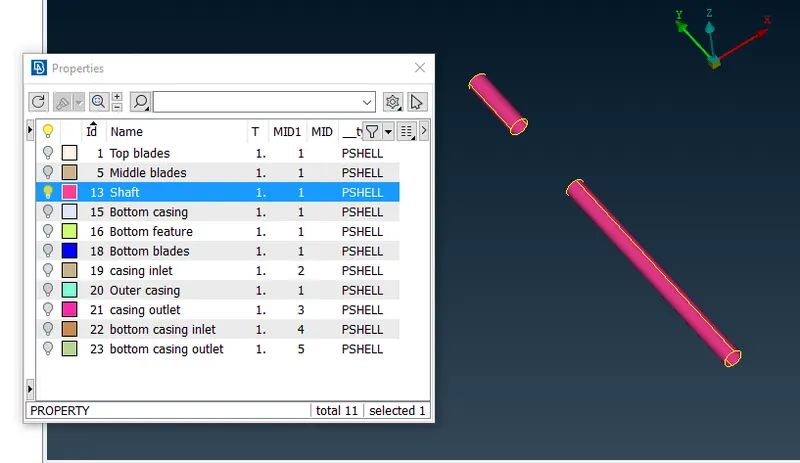

    Middle blades

    Shaft

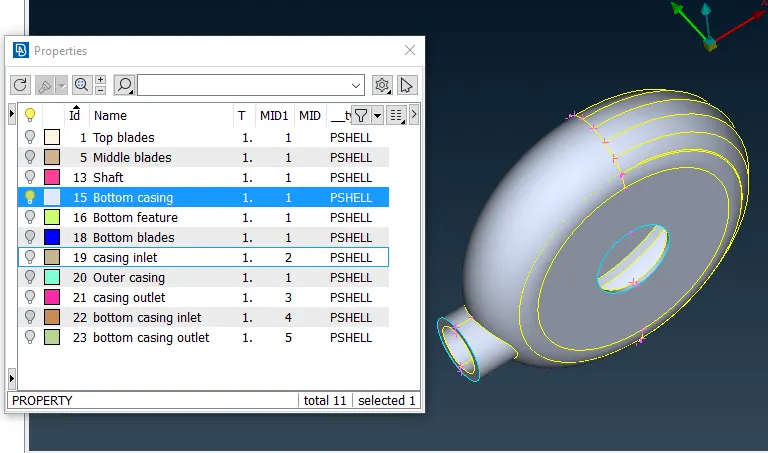

    Bottom casing

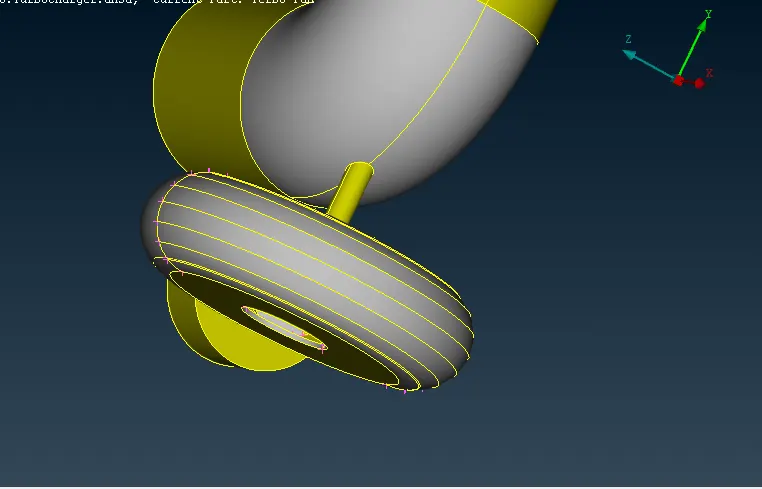

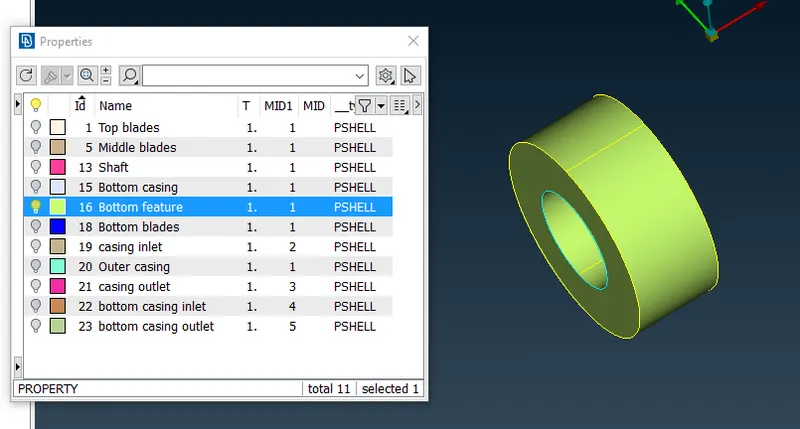

    Bottom feature

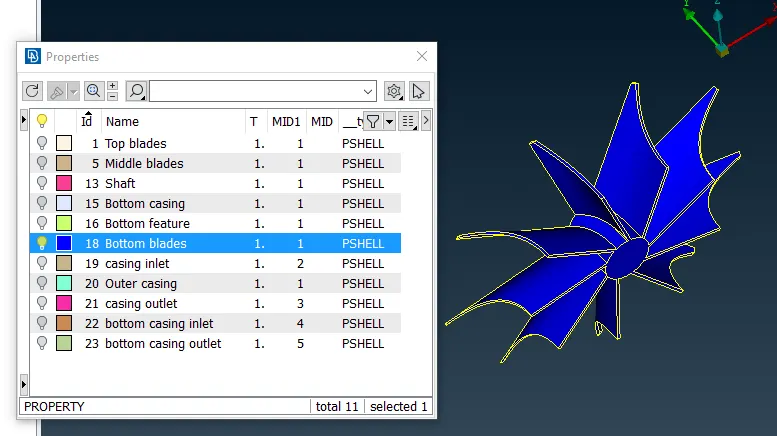

    Bottom blades

    Casing inlet

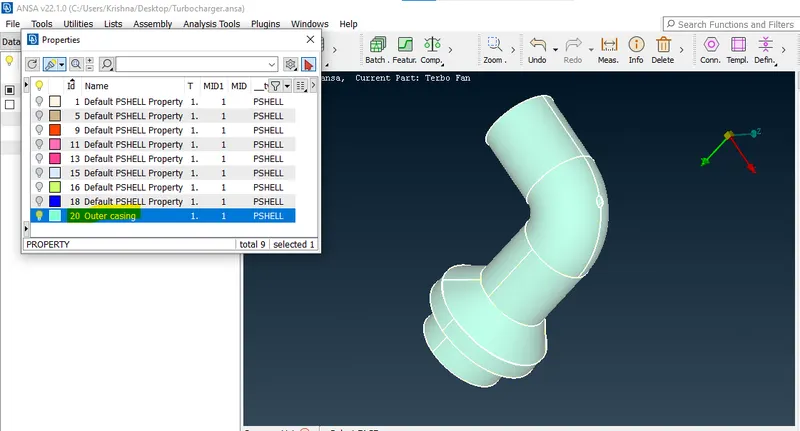

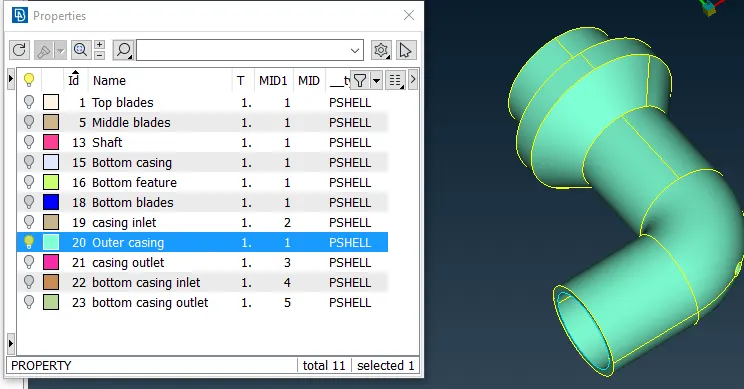

    Outer casing

    Casing outlet

    Bottom casing inlet


    Bottom casing outlet

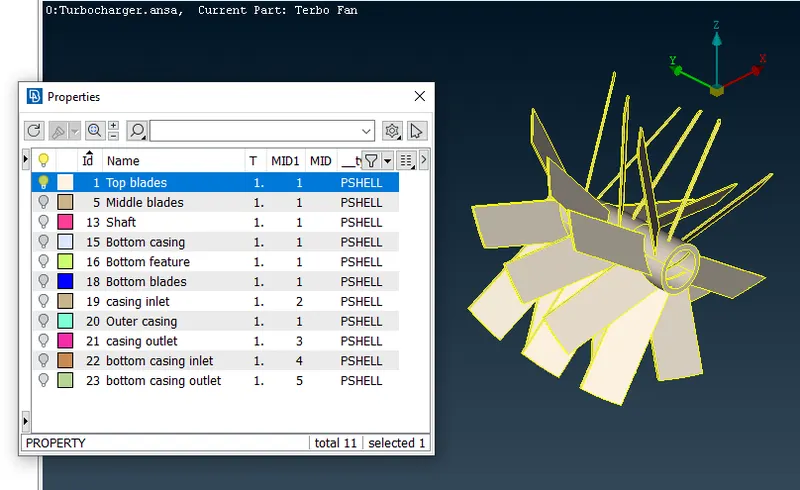

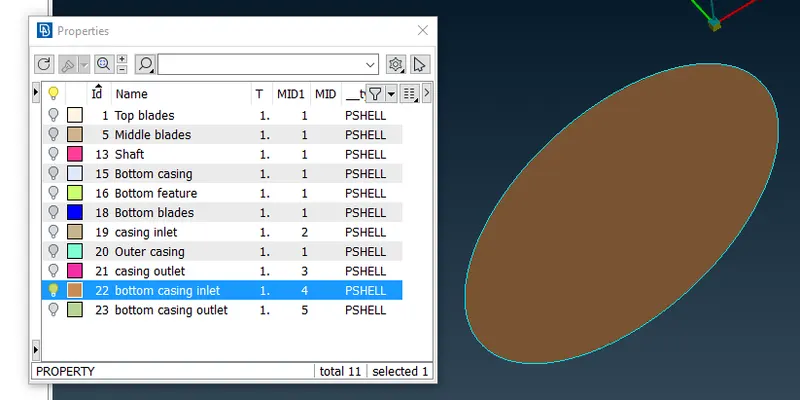

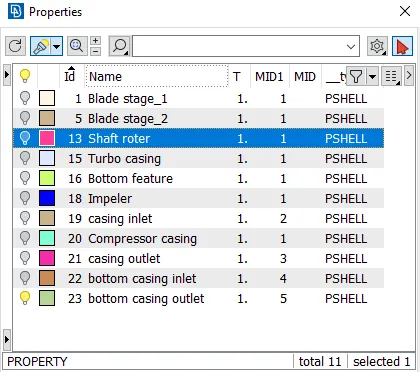

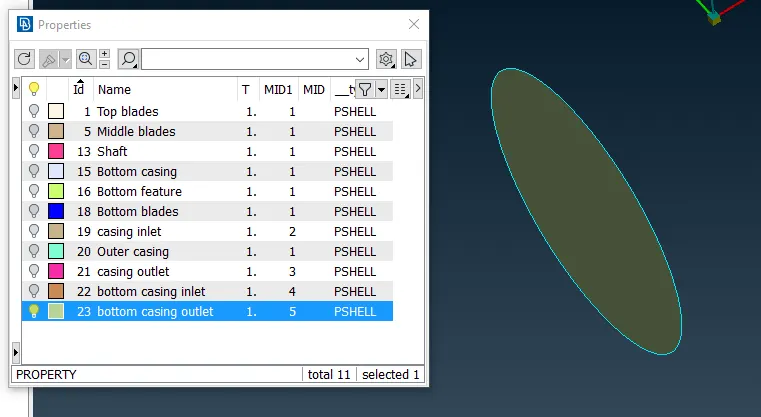

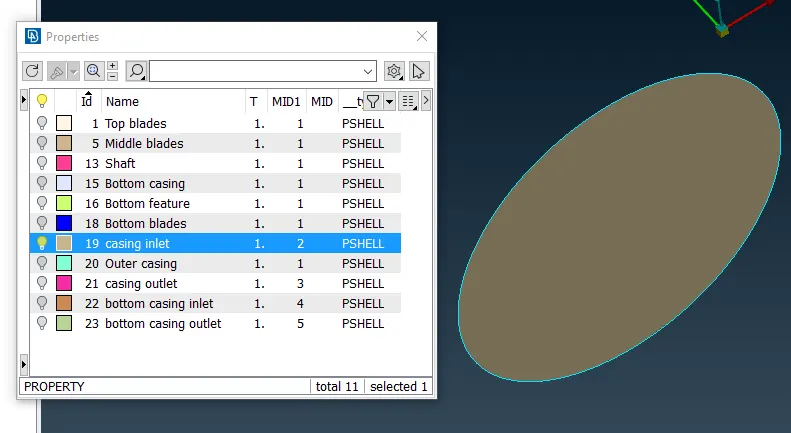

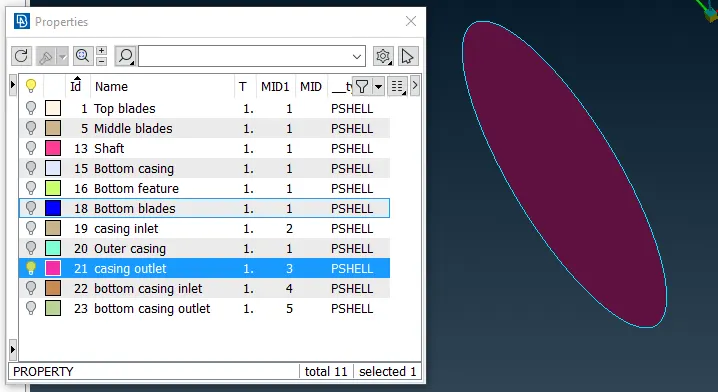

    edited names of PID's



  • Surface Meshing
    Set quality parameter, mesh parameter and length for each PID as per given data.
    For Compressor casing.

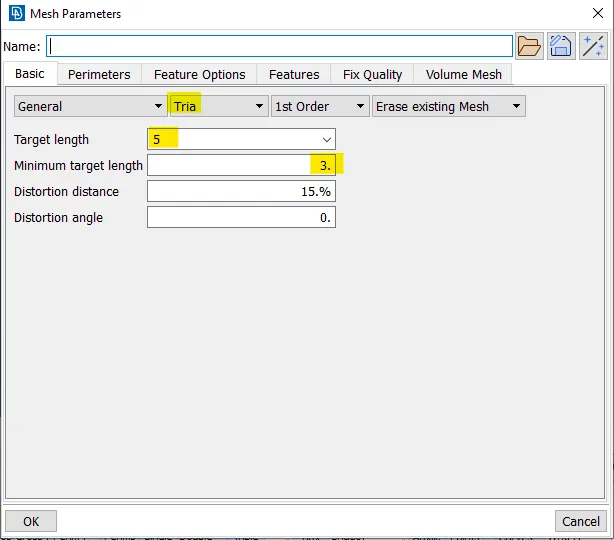

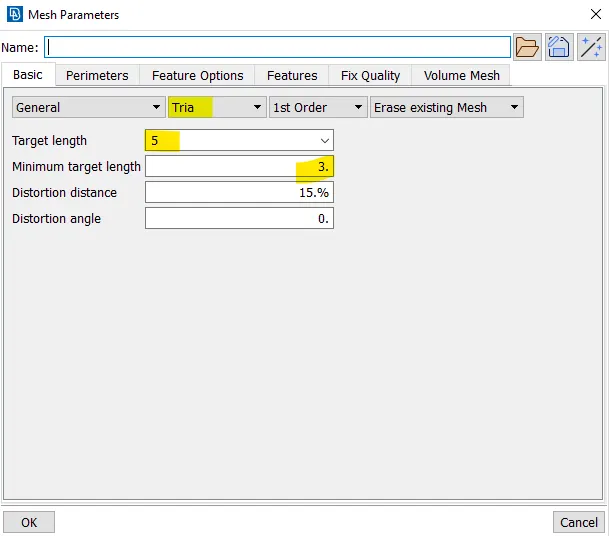

    Mesh parameter

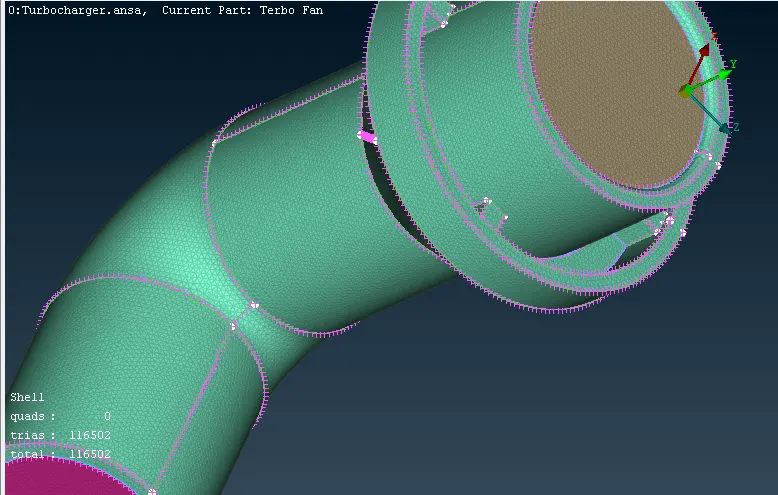

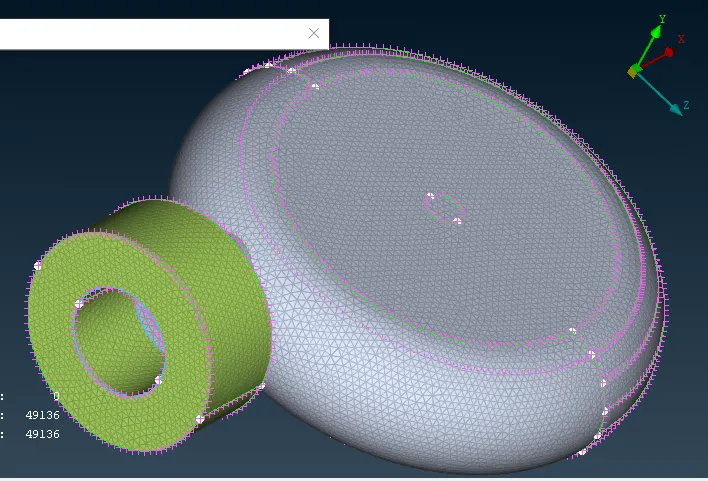

    spot mesh of compressor casing

    Inlet casing cover and turbo casing

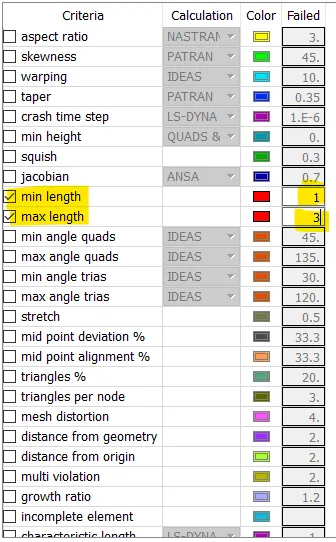

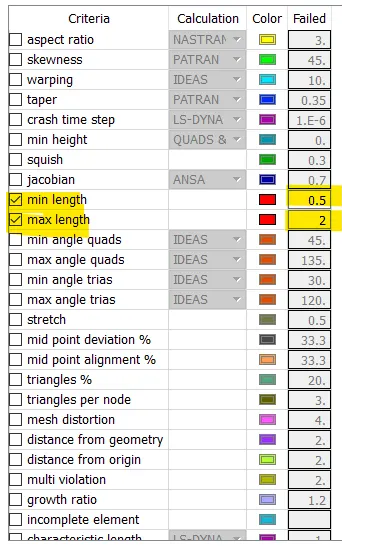

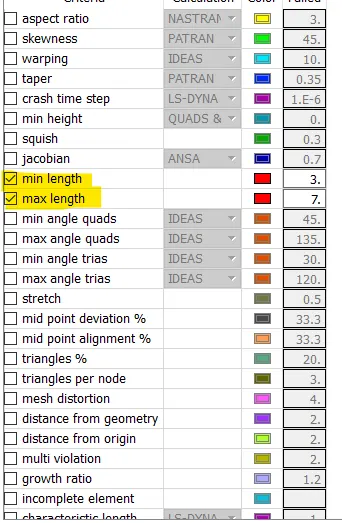

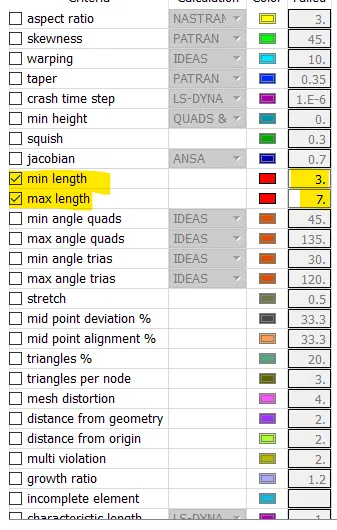

    Quality parameter

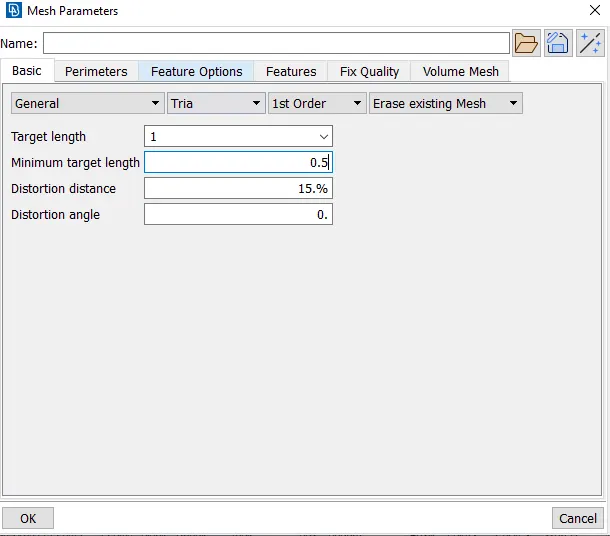

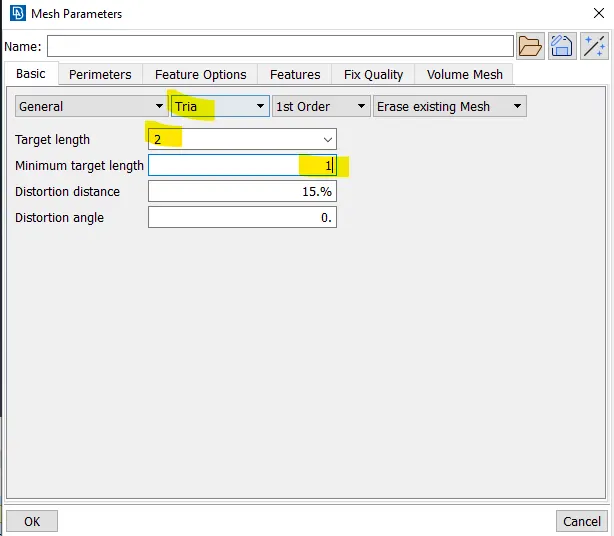

    Mesh parameter

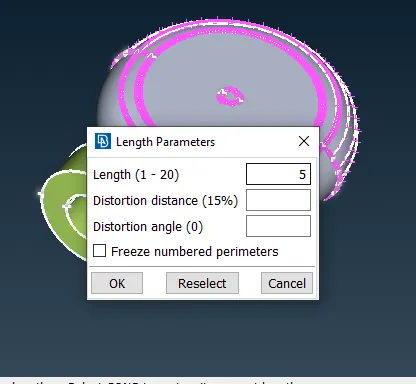

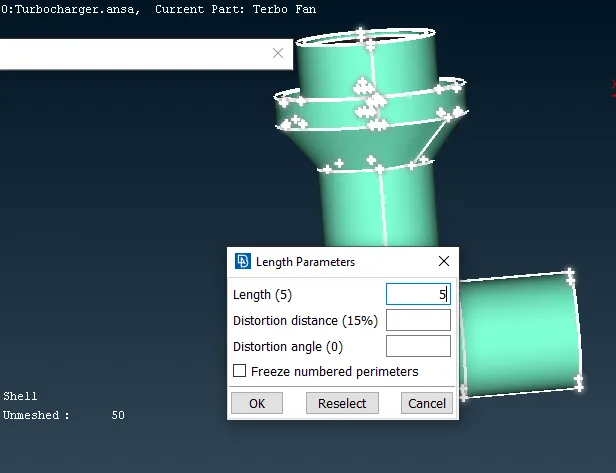

    Length parameter

    Spot mesh

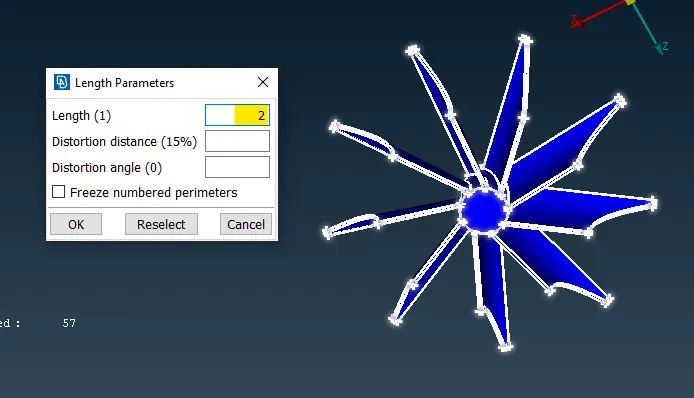

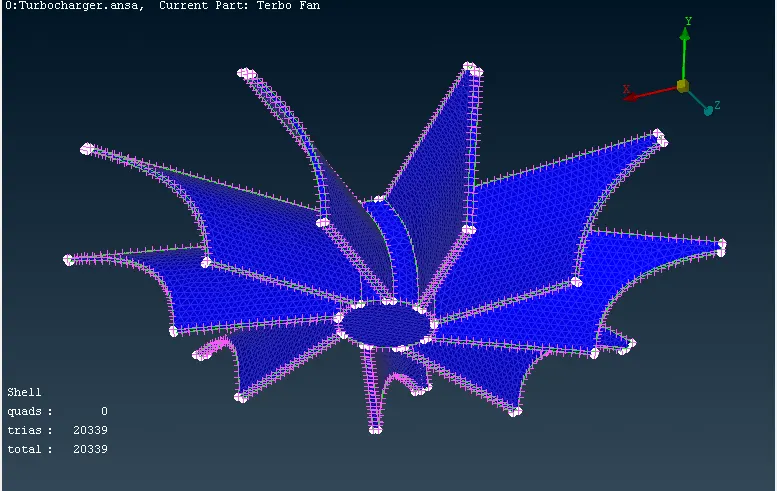

    Impeller

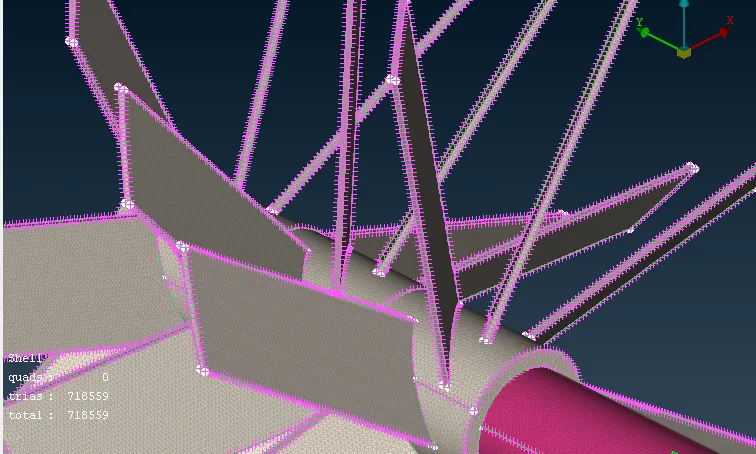

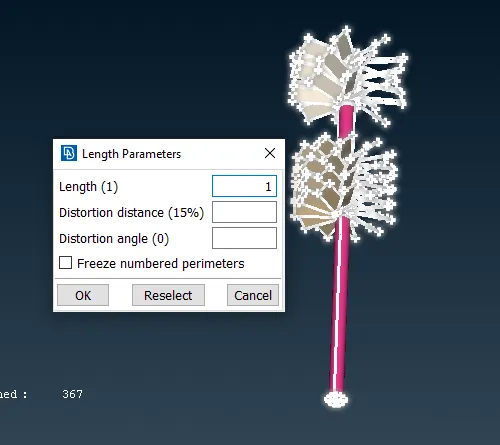

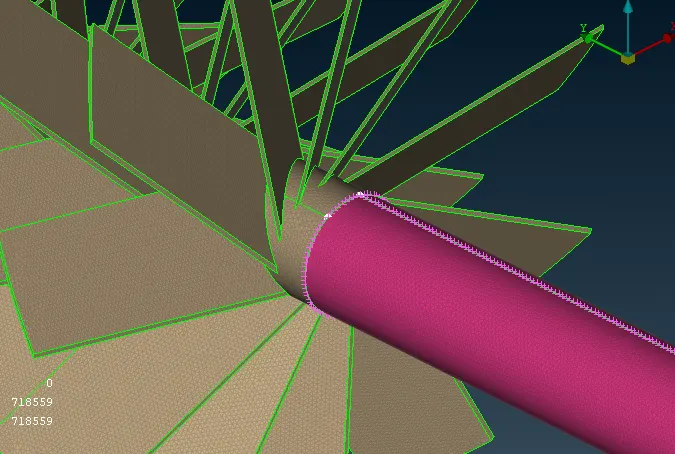

    Blade stage_1, stage_2 and shaft Roter

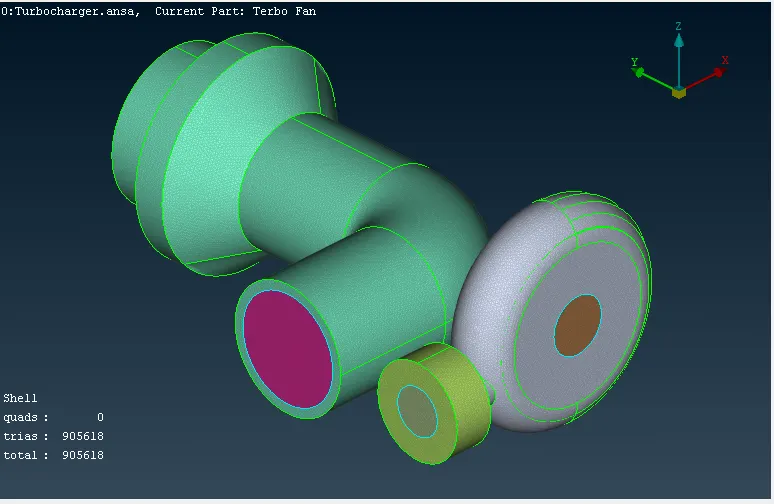

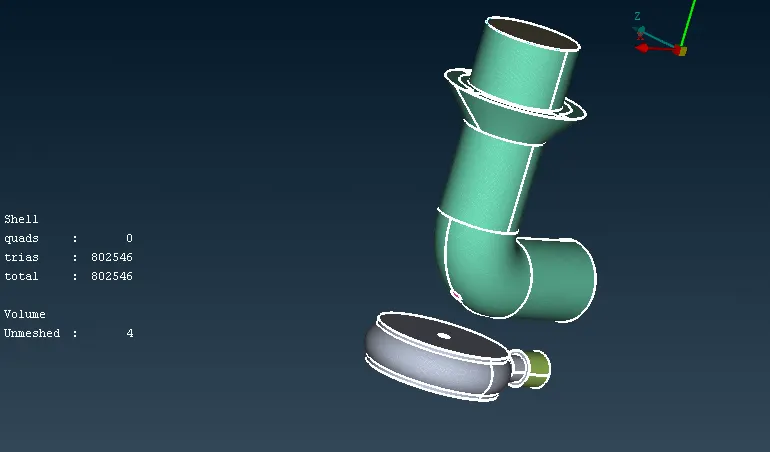

    Overall meshed surfaces


  • Volumetric mesh

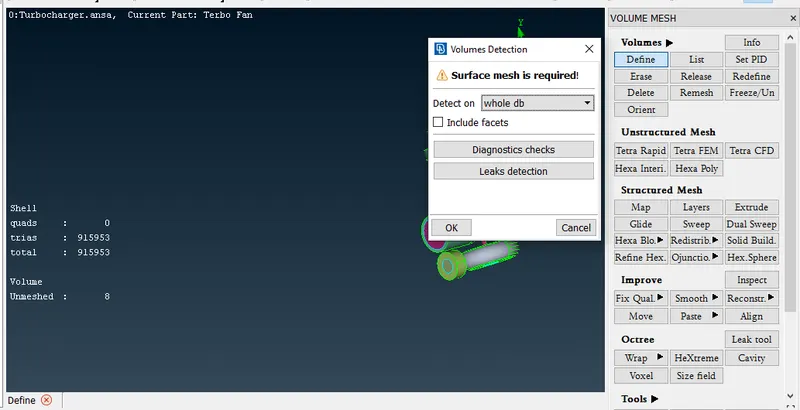

    Volume mesh> Volume>Define>Whole Db.

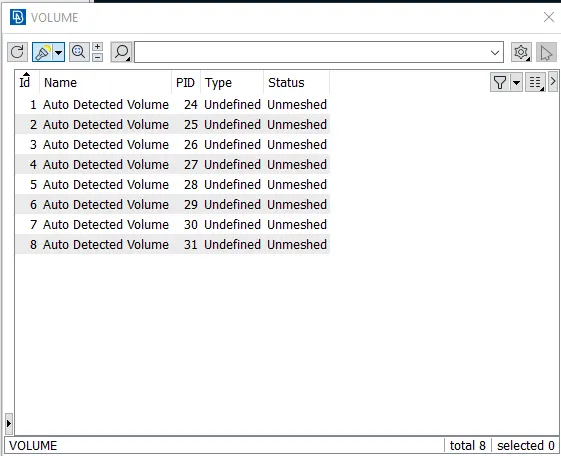

    Detected volume

    Now we need to delete unwanted volume
    After deleting unwanted volumes we are left with four volumes.

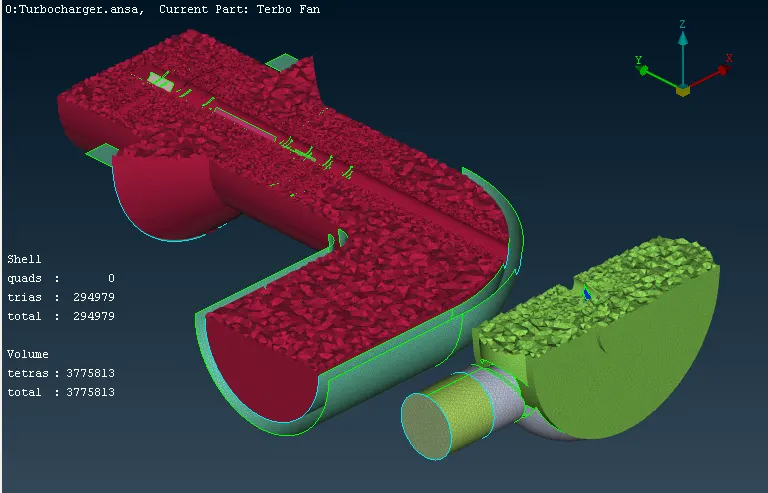

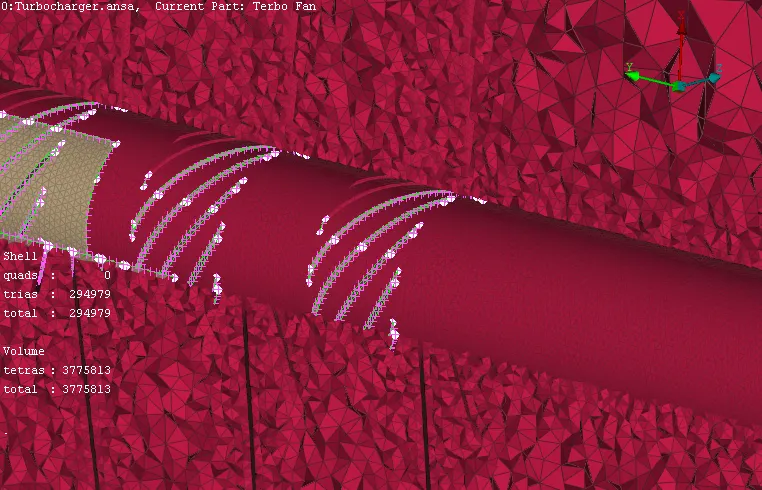

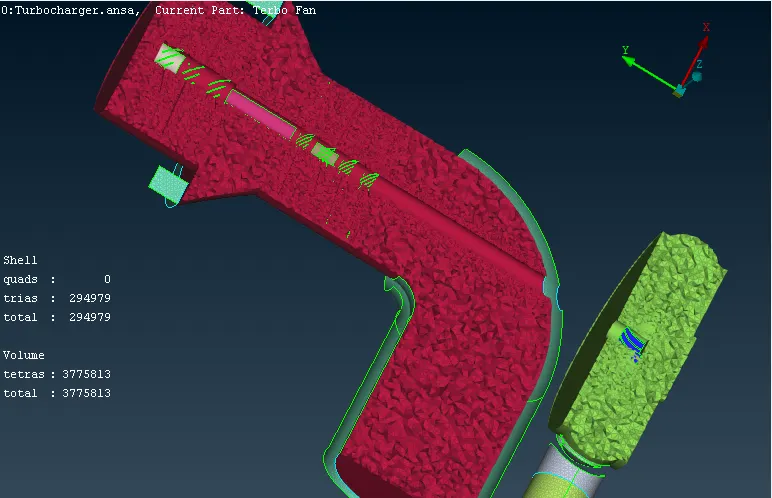

    Generated Volumetric Mesh in cut plane

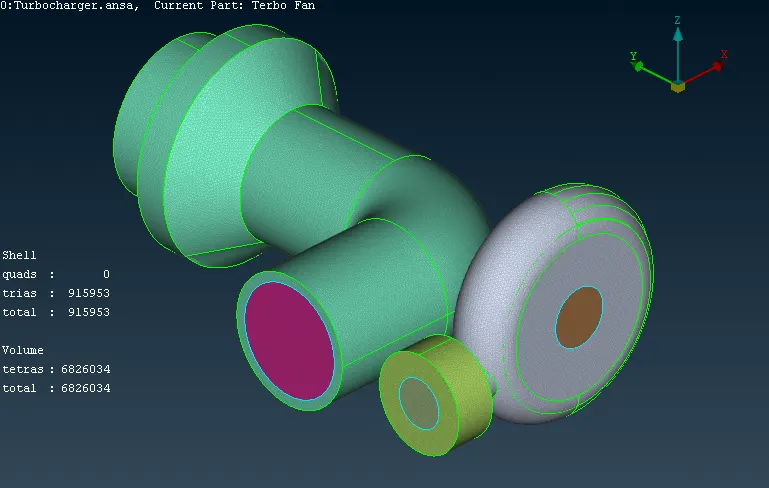

    Overall volumetric mesh

    Learning outcomes
    • I learned about creating a complex face surface by creating new hot points.
    • I learned about solving surface intersection errors.
    • I learned about solving surface mesh errors.
    • I learned about volumetric meshing.


• Conclusion

  • The Number of Total Trias in surface meshing is 91595.
  • The number of Total Tetras in Volumetric meshing is 6826034.

Model link

https://drive.google.com/file/d/1zY7noWuNNC7rval0fYHaUcp9nA_teaVp/view?usp=sharing
