Week-3 Challenge: ADVISOR Tool

Q1.

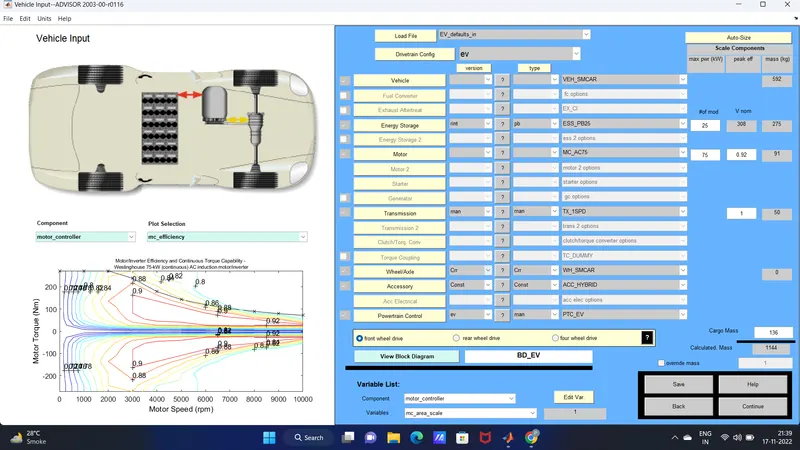

In the Advisor Vehical input Gui select the load file EV_defaults_in

Enter the Weight of mass Cargo 500 kg.

Input Advisor window

.

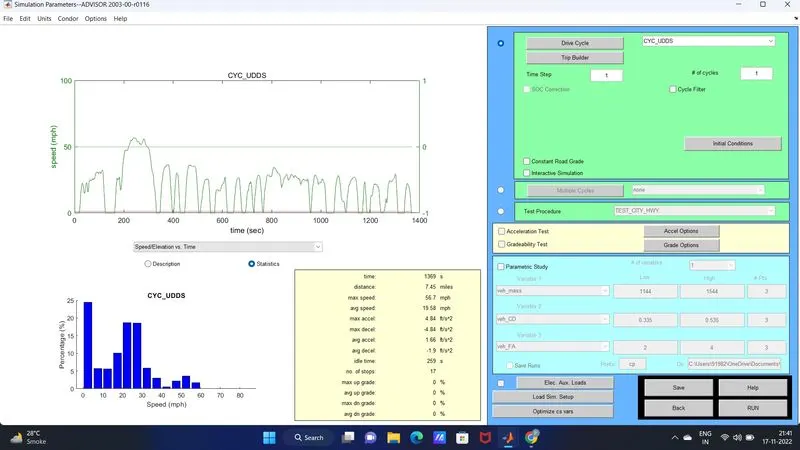

Parameter of simulation

Seclect the Drive cycle 'CYC-FTF'

Keep all the paramete set as default

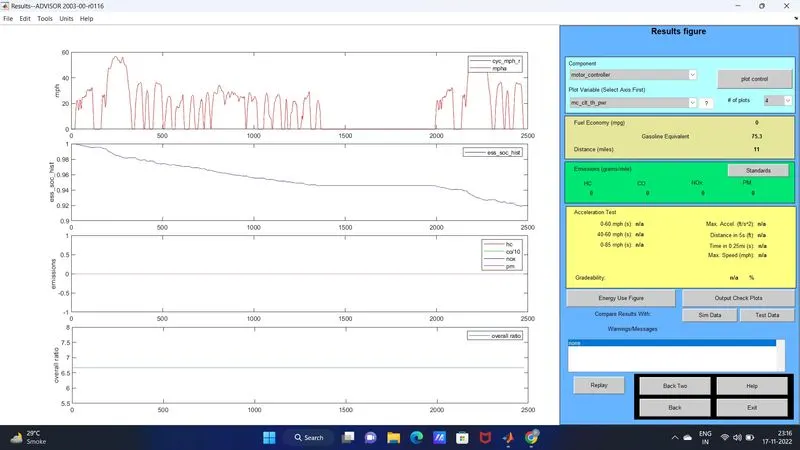

Output Window

we can see that Distance in(miles) 7.5

1 miles = 1.60 KM

11 miles =17.6km

Distance (km) is 17.6 km. So, the vehicle can't travel a distance of 45 km in a single recharge. Also, it can be seen that, SOC (second plot) has fallen to zero after nearly 2500 seconds.

Q2.

we change the battery capacity E_SS_PB85

default all values

In Q2 No changes in result distance 17.6 km.

Q3.

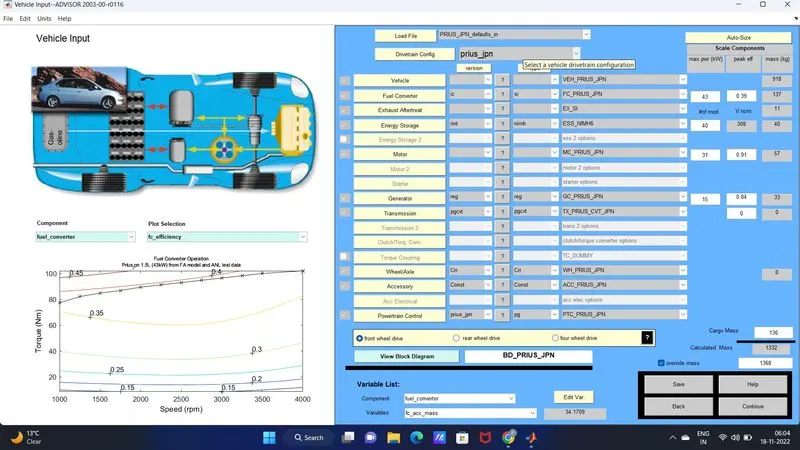

input window of adivisor

Parameter window

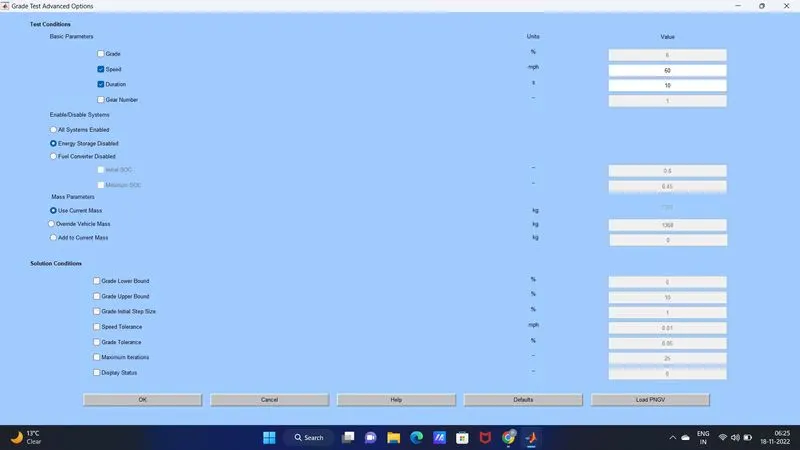

Grade trade advance option

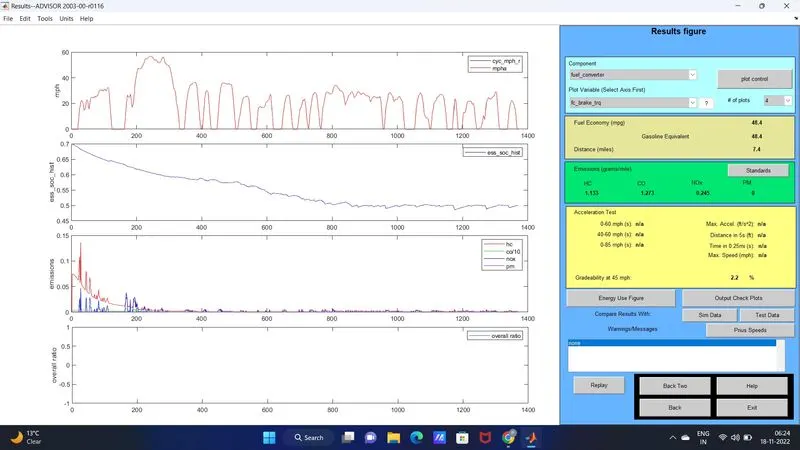

Result 1 The speed kept as 60 mph

Then Gradeability is 1.5 %

when speed is changed 45 mph

Then the Gradebility 2.2 %

When the speed is 30mph

Then The Gradbility is 2.5 %

Parameter Case1 Case 2 Case3

Speed (mph) 60 45 30

Grade % 1.5% 2.2% 2.5%
