Week-3 Challenge: ADVISOR Tool
1 ans
a-Download Advisor tool from given link.
b- Open the matlab and select file loaction to save advisor file save .
c- Open the advisor script file.
d-After script file is open the file is run Vechicle tool advisor is open.
After that -

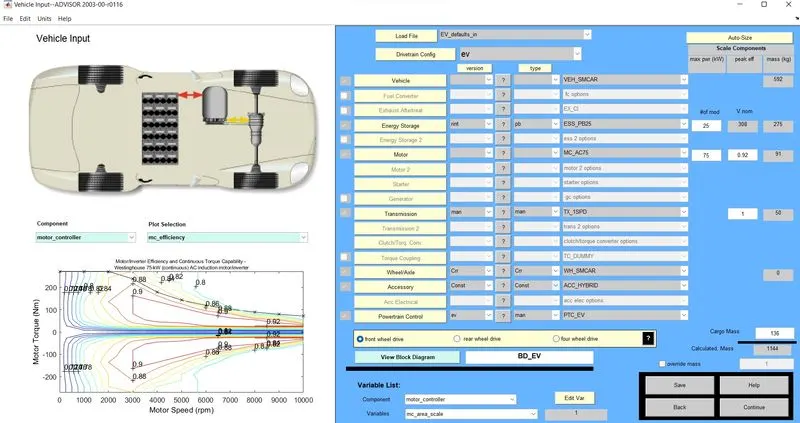

1- Open EV_defaults_in file in file load drop list.
2- Change cargo mass is 500 kg .
3- Click on continue than new windows open

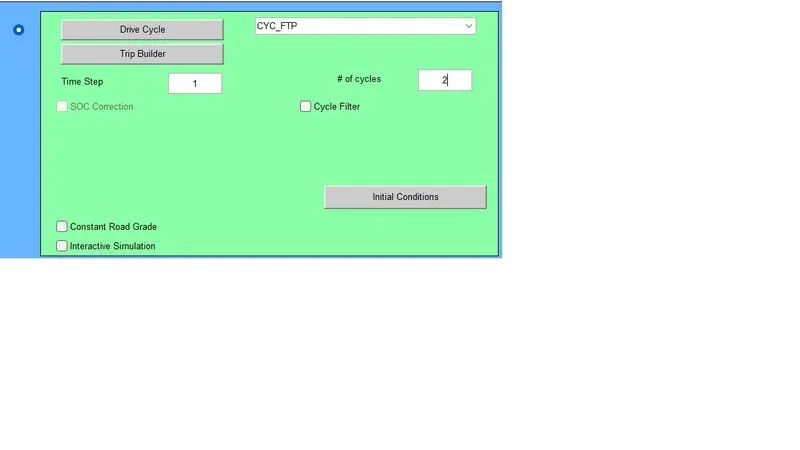

4- Change drive cycle in drop down list select ftp drive cycle.

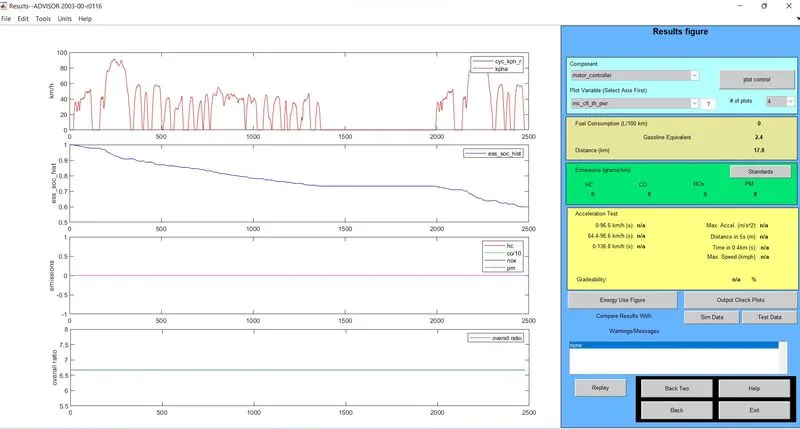

5- frist select the drive 1 and run it
the distance is travel in 17.8km.

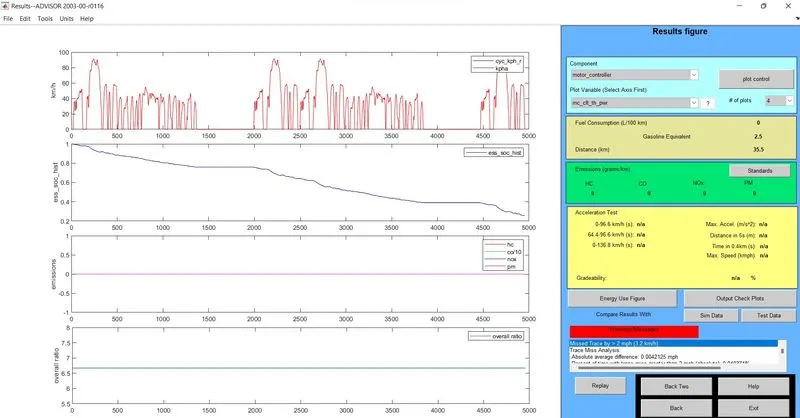

than change drive 2 again run -
Distance travel in 35.5km
Change the drive -3 and run
after the 3 drive the using the vechicle 100% soce and its travel distance in 41.4km.
so the vechicle is not travel in 45km.
2 ans
The same
EV_defaults_in file model its change the battery capacity to find how much power is required for 45km distance travel.
so frist change the battery mod in given data also select the drive 2,3 respectively and find the how much mode and drive required to travel the distance in 45km so
1- change in the mode
mode volt weight drive distance
26 321 286 2 35.5

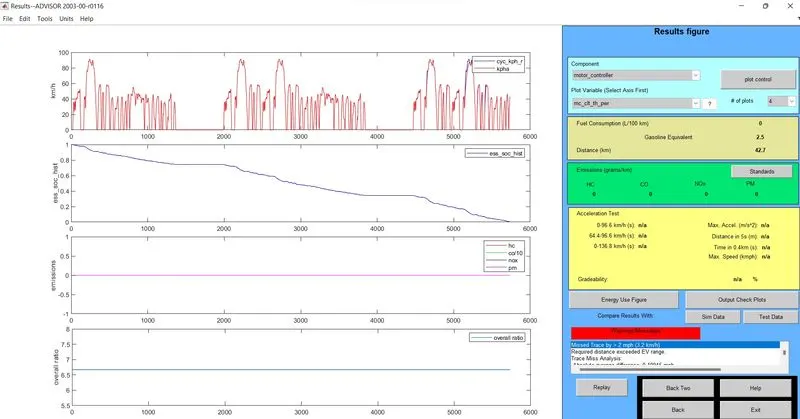

26 321 286 3 42.7
27 333 297 2 35.5

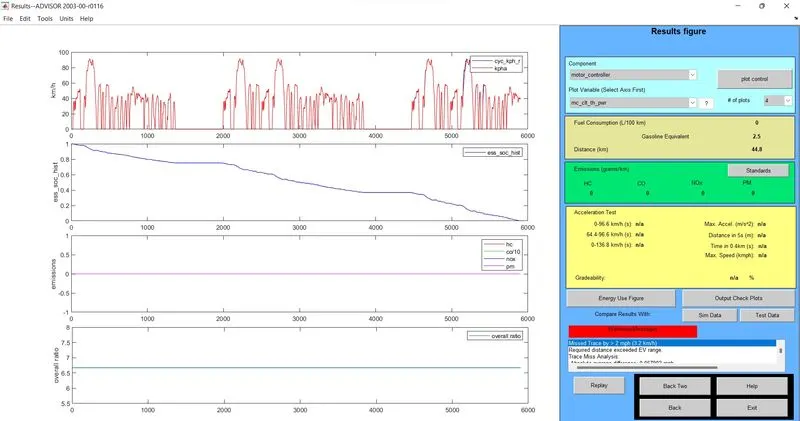

27 333 297 3 44.8
28 345 308 2 35.5

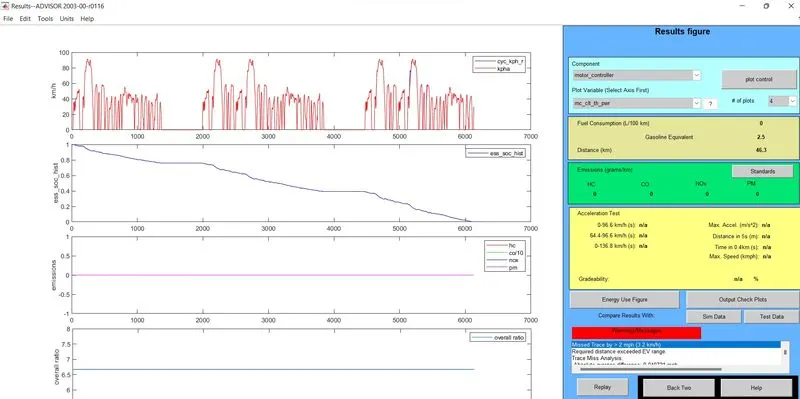

28 345 308 3 46.3
Hence the 28 mod and 3 drive is achive the distance travel 46.3.
so its needs to 28 mode and 3drive ftp cylcle to achive the 45 distance travel.
3 ans

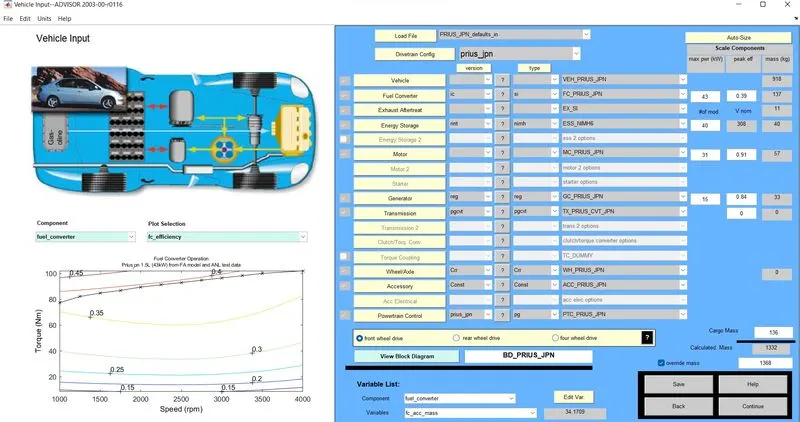

To load the file PRIUS_Jpn_defaults_in

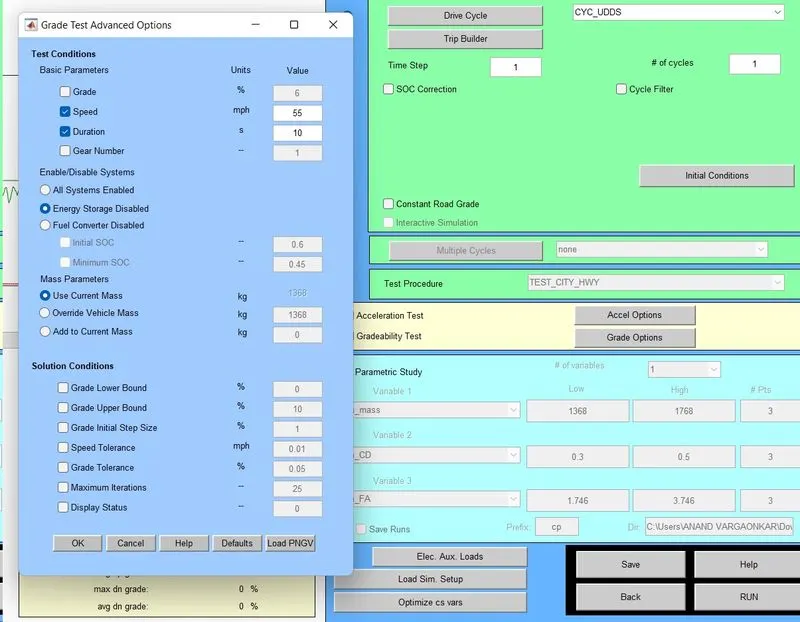

the after loading the fille click on continue new windows open select the gradeability test and open grade option the windows
to perform thr gradeability select the constant time 10sec and change the speed respectively.
time constant - 10 sec

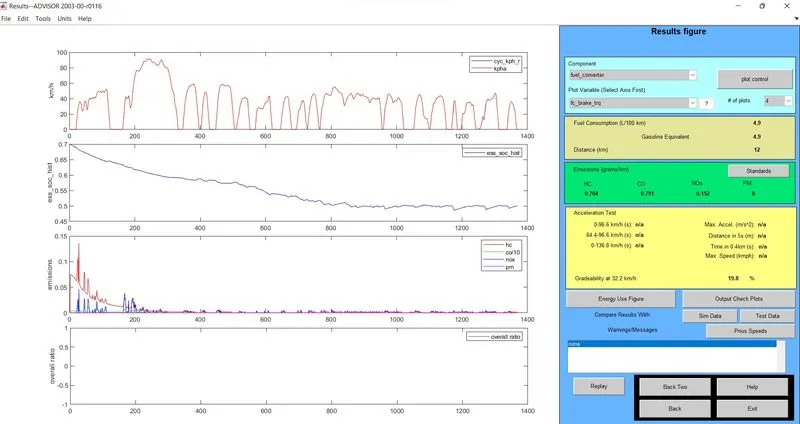

20 speed and gradeability is 19.8%
30 speed gradeability is 14.7%

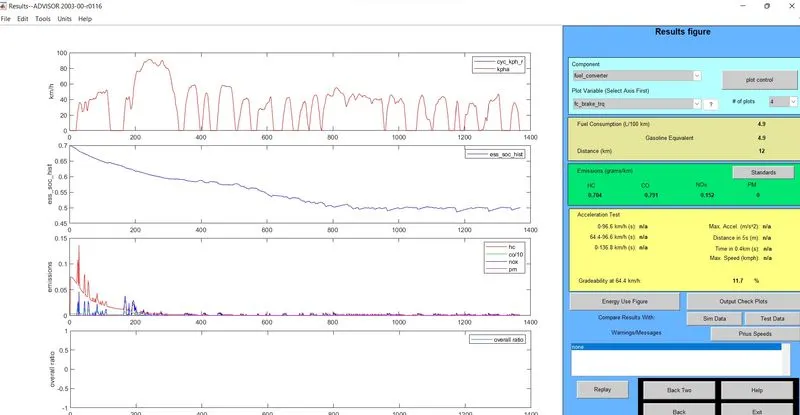

speed 40 gradeability is 11.7%
After cahnge in time in 20sec and speed is change -

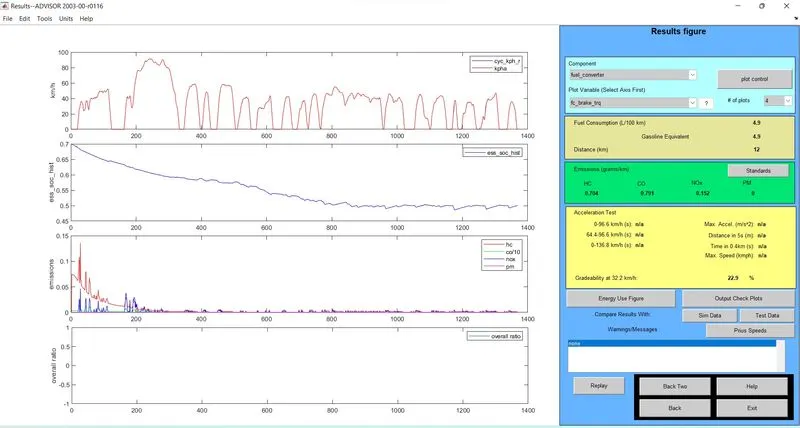

speed 20 gradeability is 22.9%

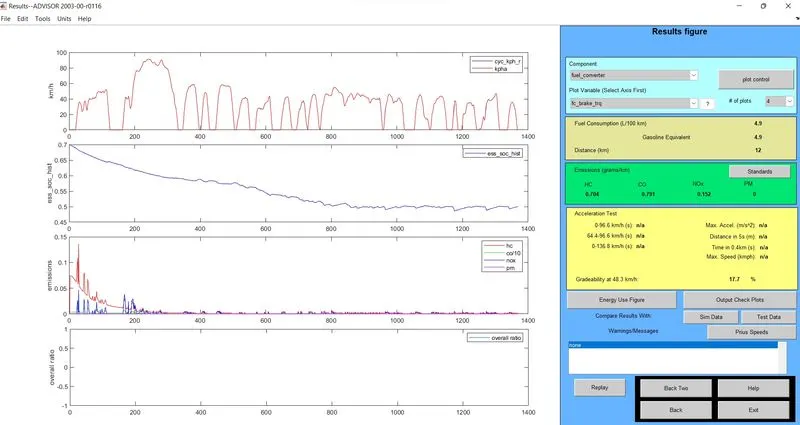

speed 30 gradeability is 17.7%
speed is 40 gradeability is 14.6%

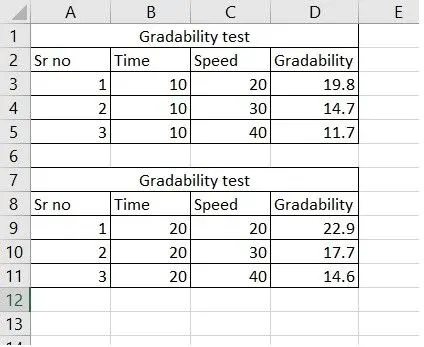

tabel gradeability test -
so performing the gradeability test find the speed is change the gradeability is decrease .
