Week-3 Challenge: ADVISOR Tool

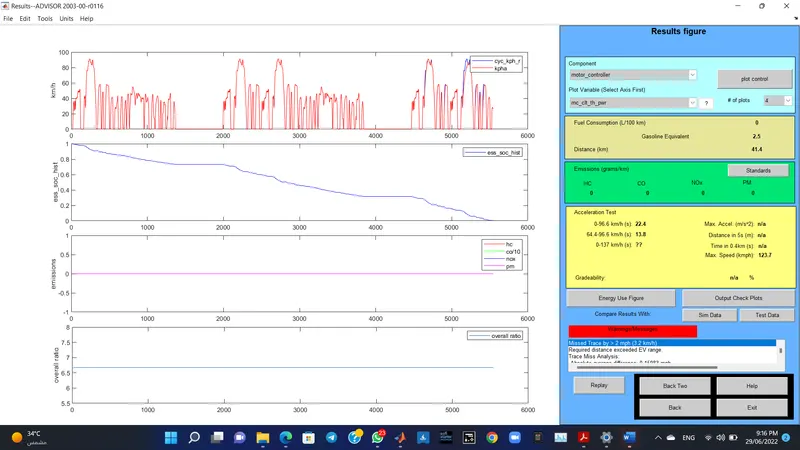

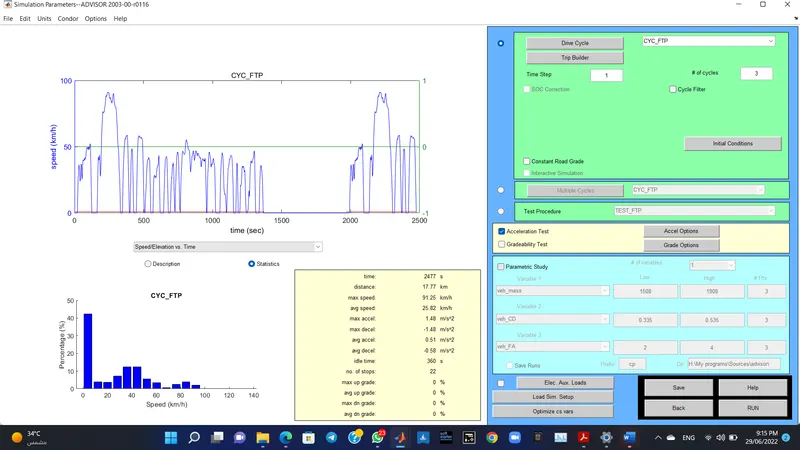

1-For the current parameters
The car will not make it to travel 45 KM, it will make just 41.4 KM and the battery will be depleted before the 3rd cycle is done.

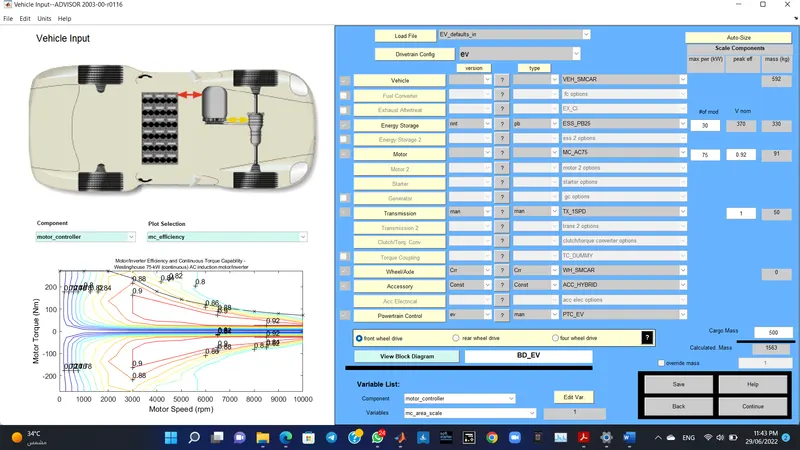

2- 2 Battery configurations are going to be discussed: -

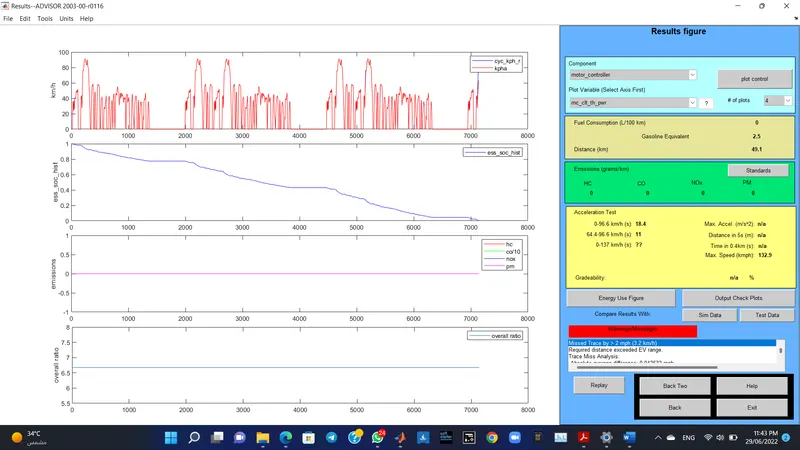

- If we increased the modules from 25 as default to 30, the range is going to be increased to 49.1 KM
- If we decreased the modules from 25 to 20, the range is going to be decreased to 33.5 KM

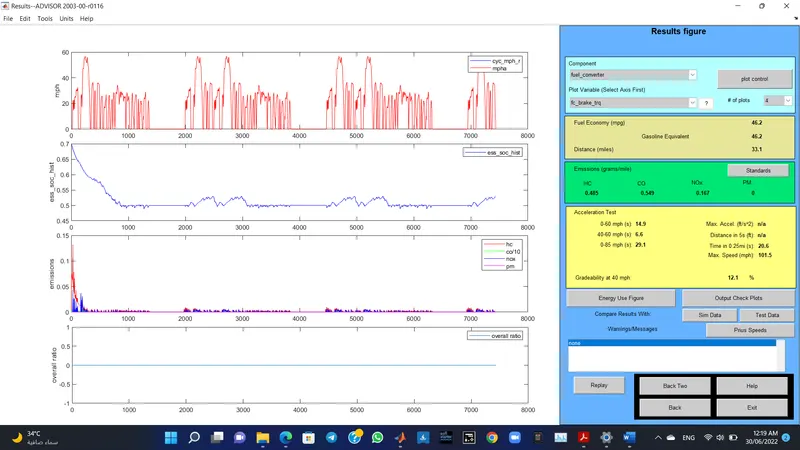

3-For the Toyota Prius gradability test.
|
Miles per hour |
Kilometer per hour |
Gradability |
|
10 mph |
16.1 KM/H |
31.2 % |
|
15 mph |
24.14 KM/H |
25.1 % |
|
20 mph |
32.18 KM/H |
20.4 % |
|
30 mph |
48.28 KM/H |
15.2 % |
|
40 mph |
64.38 KM/H |
12.1 % |
|
50 mph |
80.46 KM/H |
10 % |
|
60 mph |
96.55 KM/H |
8.4 % |
Observation:
- By increasing speed the gradability decreases at the same time.
- By decreasing speed the gradability increases at the same time.
