Week-3 Challenge: ADVISOR Tool

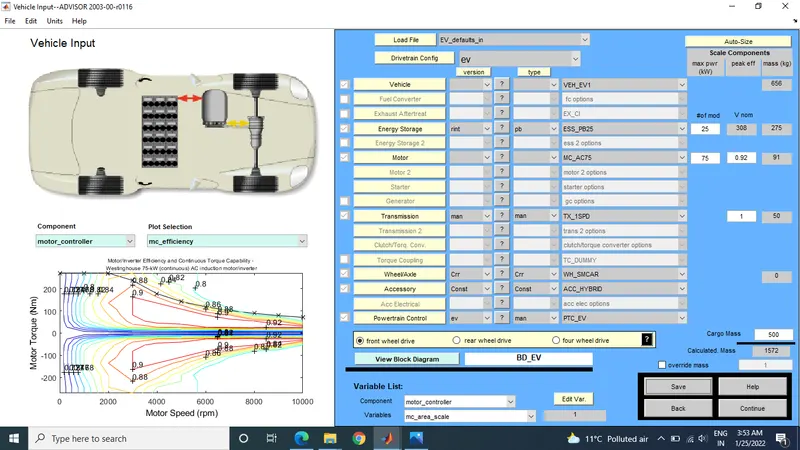

1. For EV_defaults_in file, if cargo mass is 500 kg with all other default conditions, can the vehicle travel for 45 km with FTP drive cycle? Conclude your observations.

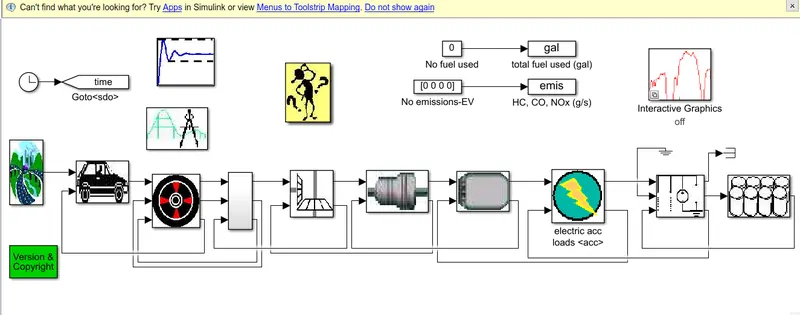

Block Diagram :

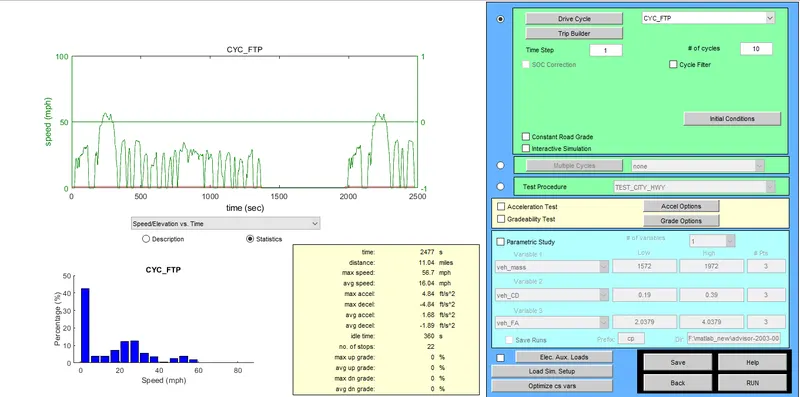

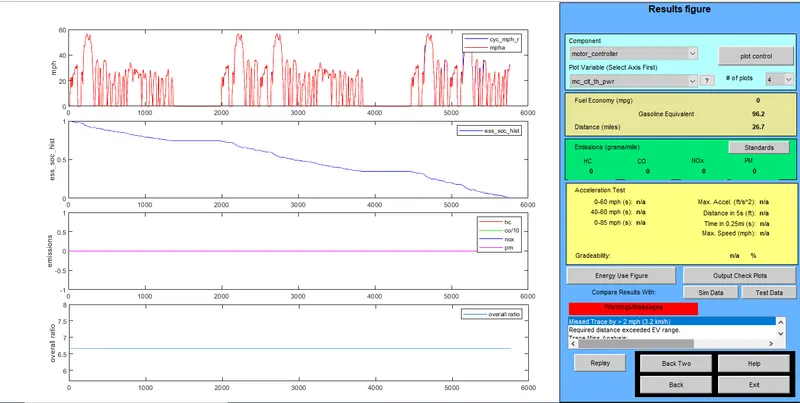

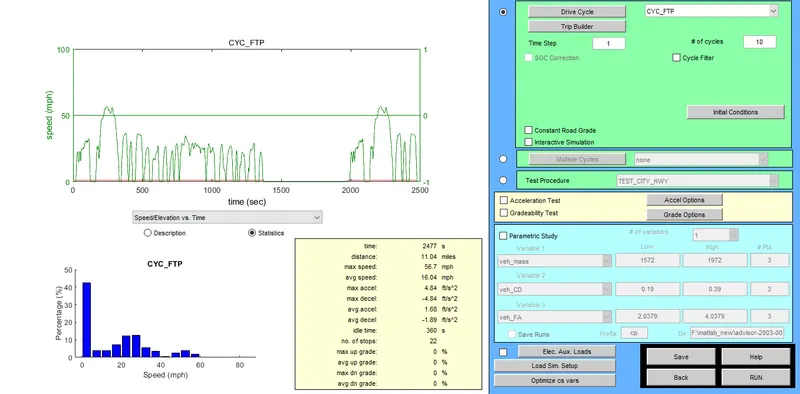

For increased the no. of Derive cycle 5 - 10, but Distance (miles) fix to 42.96 Km

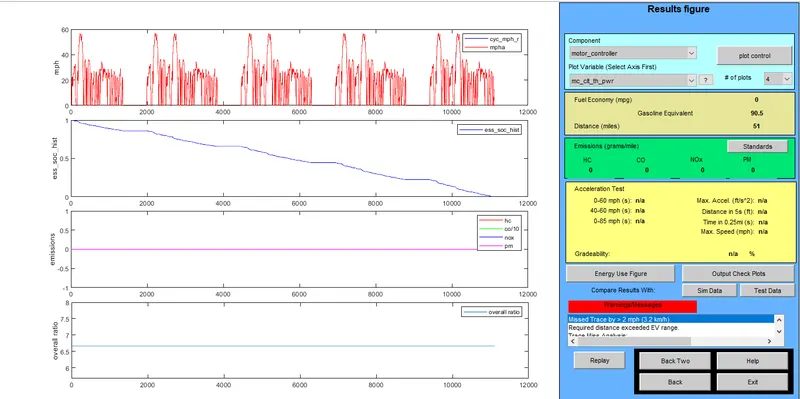

2. In the above case, try changing the battery capacity and repeat the simulation.

for changing Battery Capacity and for same number of driving cycle(10), vehicle travel 82.07Km.

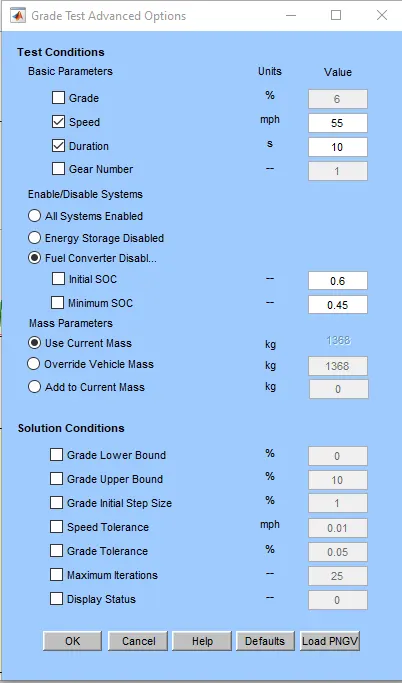

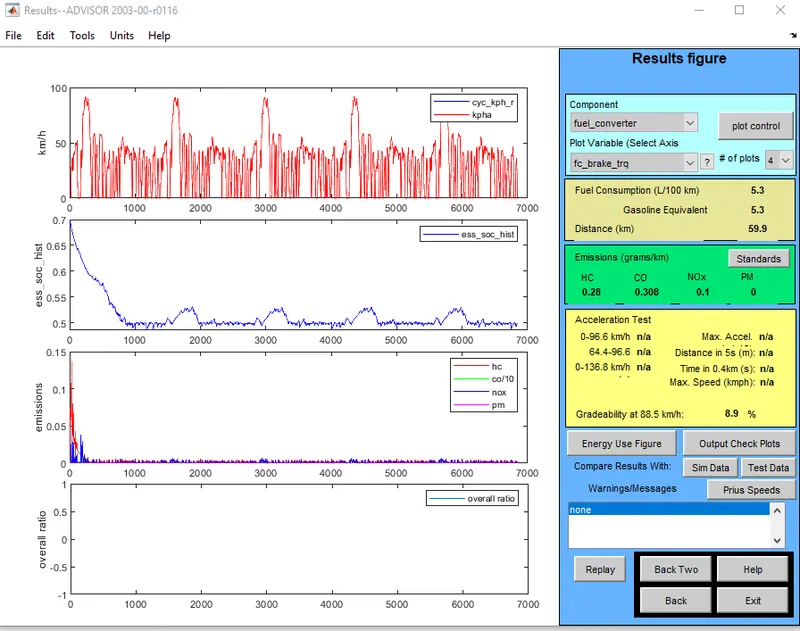

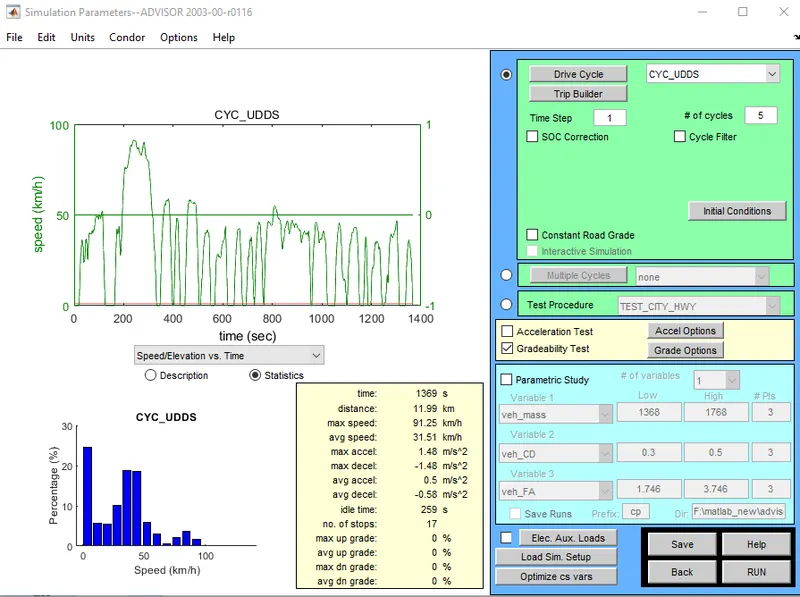

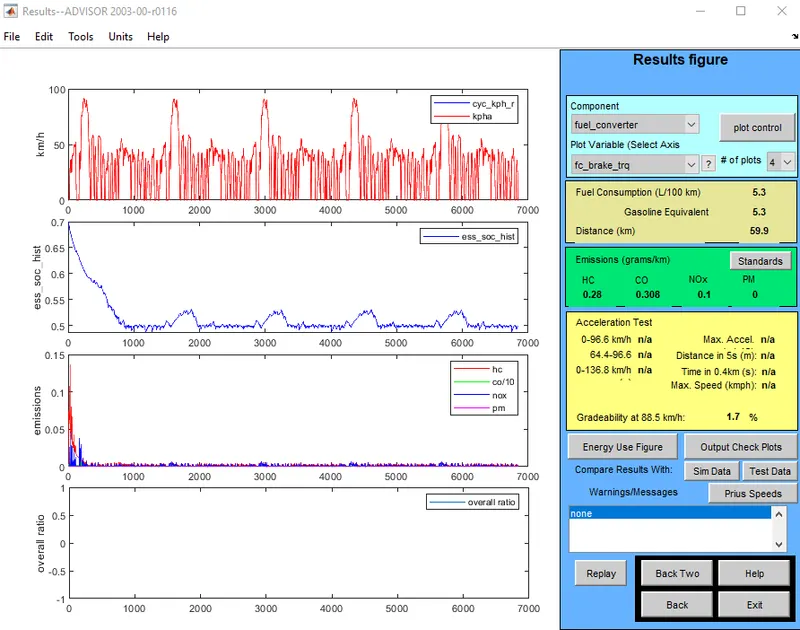

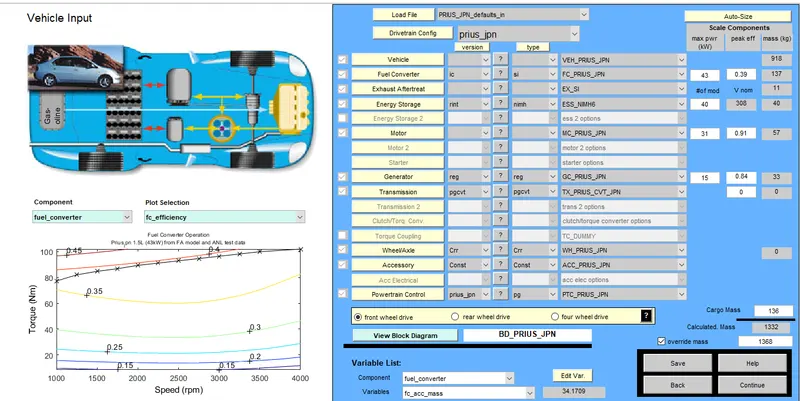

3. Perform gradeability test with PRIUS_Jpn_defaults_in file

Compare your results in table and conclude.

Sr. No	Condition	Gradeability
1	All System Enabled(Hybrid)	8.90%
2	Energy Stored Disabled(ICE)	1.70%
3	Fuel Converter Disabled(EV)	8.90%
