Week-3 Challenge: ADVISOR Tool

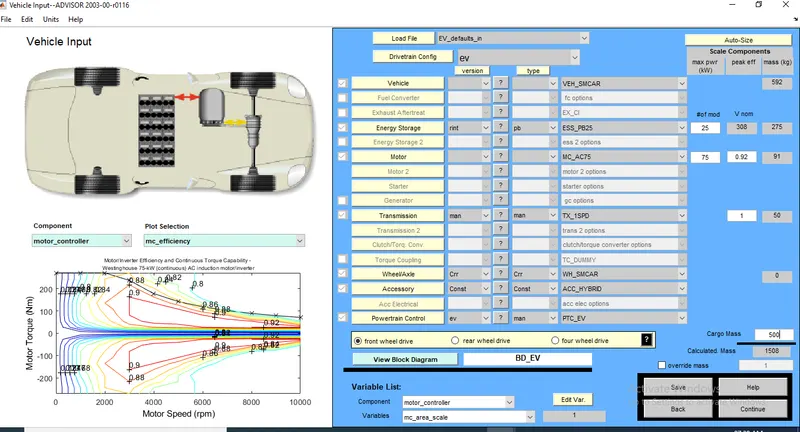

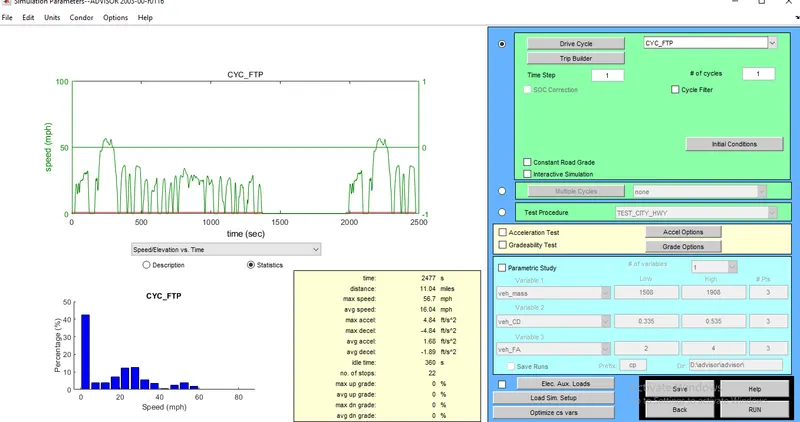

1. For EV_defaults_in file, if cargo mass is 500 kg with all other default conditions, can the vehicle travel for 45 km with FTP drive cycle? Conclude your observations.

2. In the above case, try changing the battery capacity and repeat the simulation.

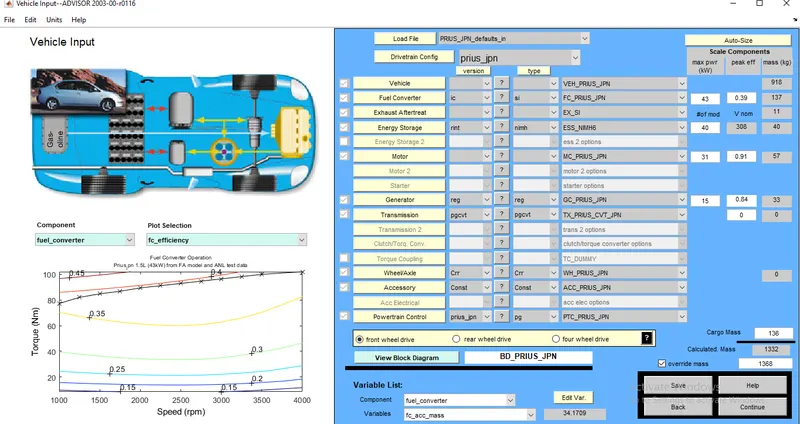

3. Perform gradeability test with PRIUS_Jpn_defaults_in file

Compare your results in table and conclude.

ans

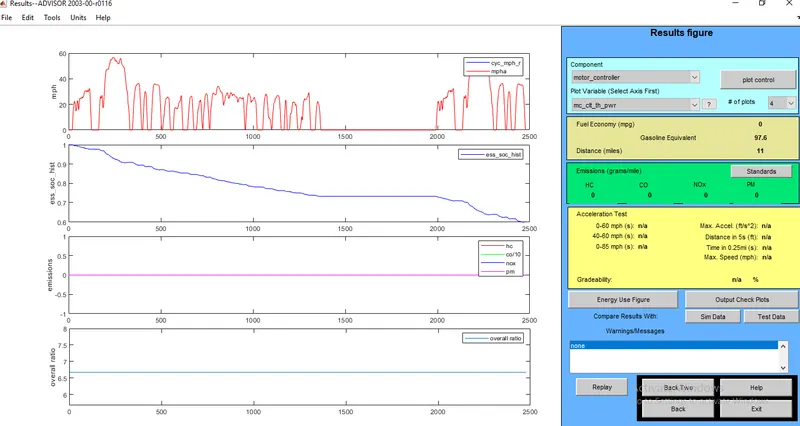

in above fig. vehicle travels 17.6 km (11miles)at 40% batterycosumption in ist drive cycle.

in above fig distance travelled is 22 miles in 2nd cycle with 70% battery consumption.

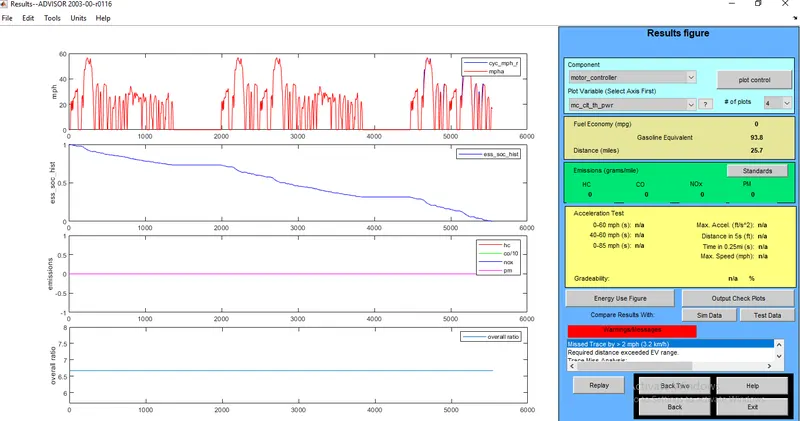

in aboce distance travelled is 25.7 miles in 3rd cycle with 100% battery consumption

toatal distance can vehicle tavel is 25.5 miles or 41.7 km ph so vehicle can not travel 45 kms.

2.

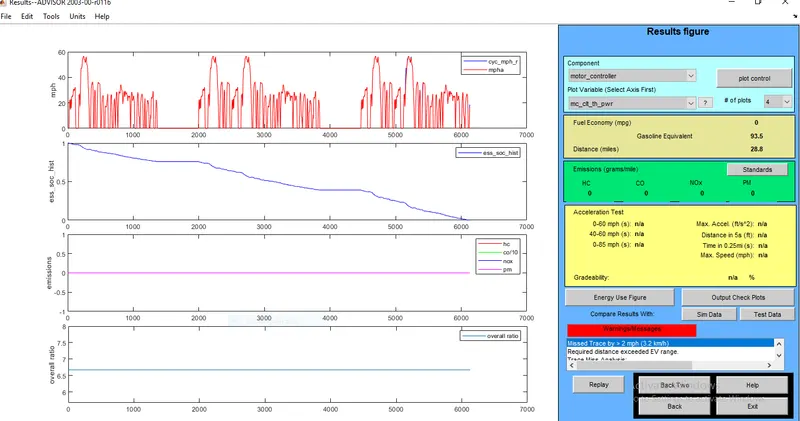

in above fig. with 28.8 modules vehicle can travel 28.8 miles 46 km in one charge.

3.

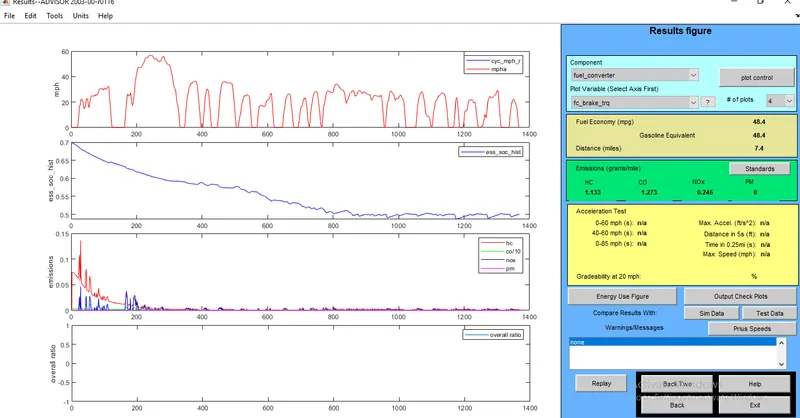

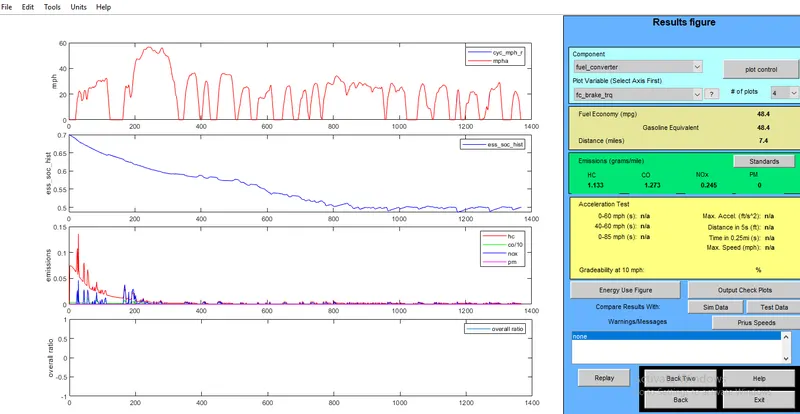

at 10 mph gradeability is 23.1%.

at 20mph gradeability is 24.8%.

max gradebility is between 15 mph to 25 mph
