ADVISOR Tool
1. For EV_defaults_in file, if cargo mass is 500 kg with all other default conditions, can the vehicle travel for 45 km with FTP drive cycle? Conclude your observations.

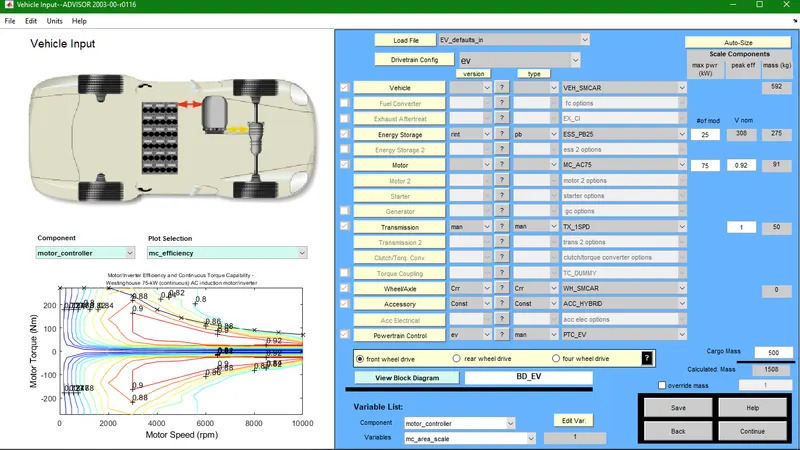

Answer 1.) This picture give information of EV_defaults_in model.
Here, cargo mass is 500 kg applyed in this model (as per given input data) with other default condition.

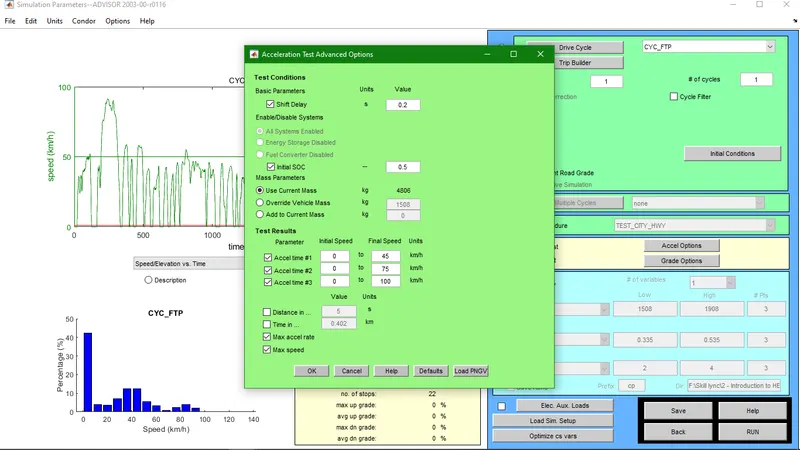

Below picture give information about acceleration test and test result (like accel. time, max accel. rate,max speed).
This picture in apply FTP drive cycle with 1 cycle and left hand side give information of selected drive cycle and below side give information about some statistical analysis or value.
Result :- Yes, the vehicle travel for 45 km with FTP drive cycle.
here, R.H.S.(top) given some input that will help us to reaching output graph as per requirement.

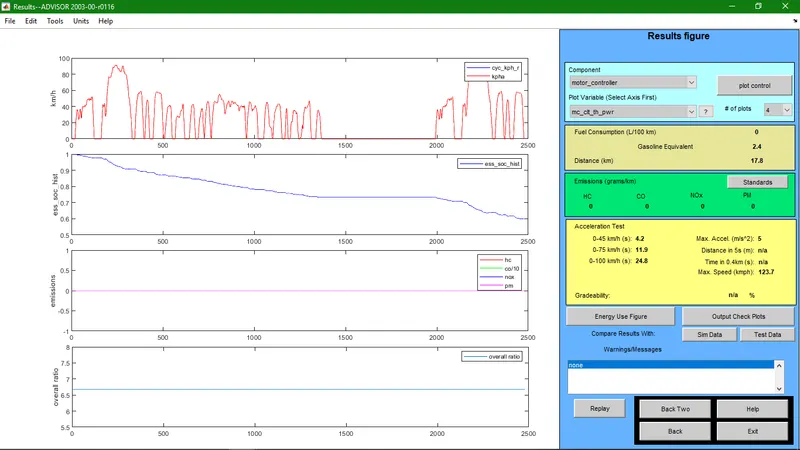

In this result give information about Acceleration test (like 0 to 45 reach in 4.2 sec. , max speed is 123.7).
Distance travel by vehicle is 17.8 km with max. acceleration is 5m/s^2 and here we consider EV so no pollution over there.
2. In the above case, try changing the battery capacity and repeat the simulation.
Answer 2.) This picture give information of EV_defaults_in model.
as per given input data with some default condition
many changes applyed in this model like cargo mass (500 kg), motor inputs, enegy storage inputs.(This all are increase with (as per given data) cargo mass).
Below picture give information about acceleration test and test result (like accel. time, max accel. rate,max speed).
This picture in apply FTP drive cycle with 1 cycle and left hand side give information of selected drive cycle and below side give information about some statistical analysis or value.
Result :- here, R.H.S.(top) given some input that will help us to reaching output graph as per requirement.
In this result give information about Acceleration test (like 0 to 45 reach in 2.5 sec. , max speed is 156.5).
Distance travel by vehicle is 17.8 km with max. acceleration is 5m/s^2 and here we consider EV so no pollution over there.
3. Perform gradeability test with PRIUS_Jpn_defaults_in file
Compare your results in table and conclude.

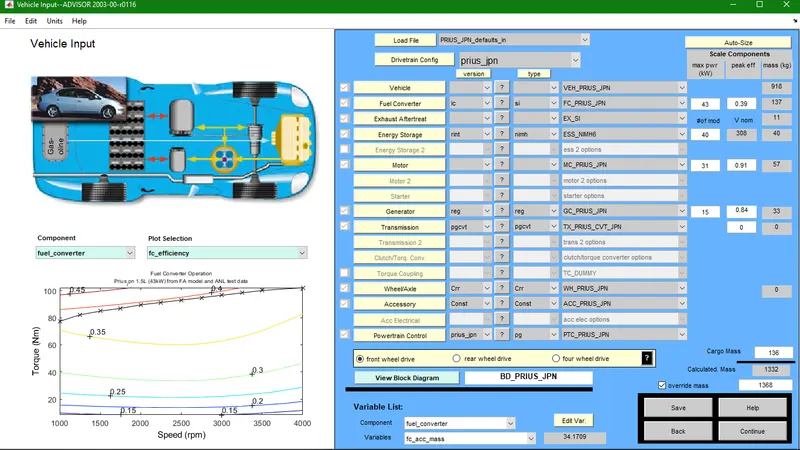

Answer 3.) This picture give information of PRIUS_Jpn_defaults_in model.
Result No. 1
Here,Input values are default value.

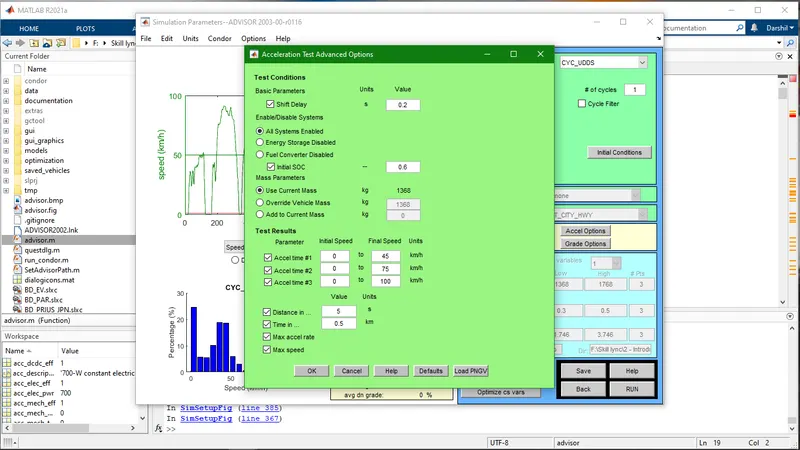

Below picture give information about acceleration test and test result (like How much distance covered by vehicle in particular time(Ex. is 5 sec.) and visa versa time to distance, accel. time, max accel. rate,max speed).

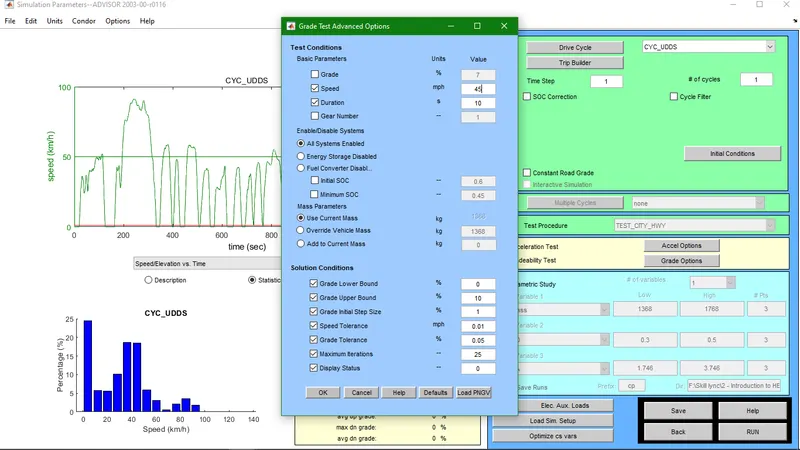

This picture give information about Grade test (some inputs are grade in personage with particular speed and duration).

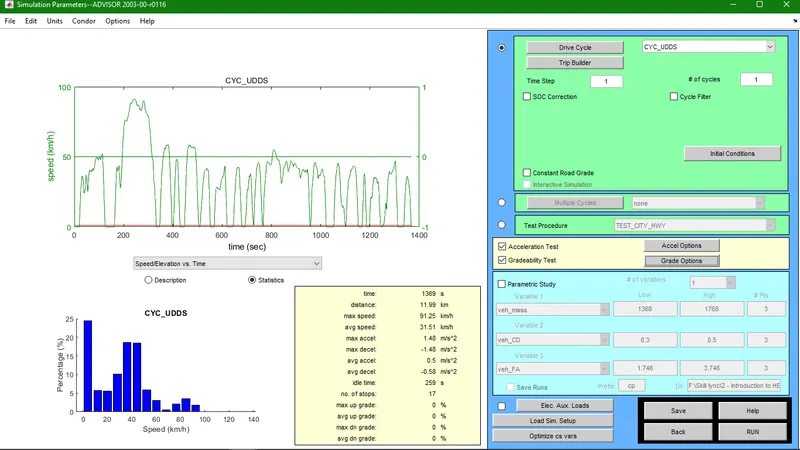

This picture in apply cyc_UDDS drive cycle with 1 cycle and left hand side give information of selected drive cycle and below side give information about some statistical analysis or value.

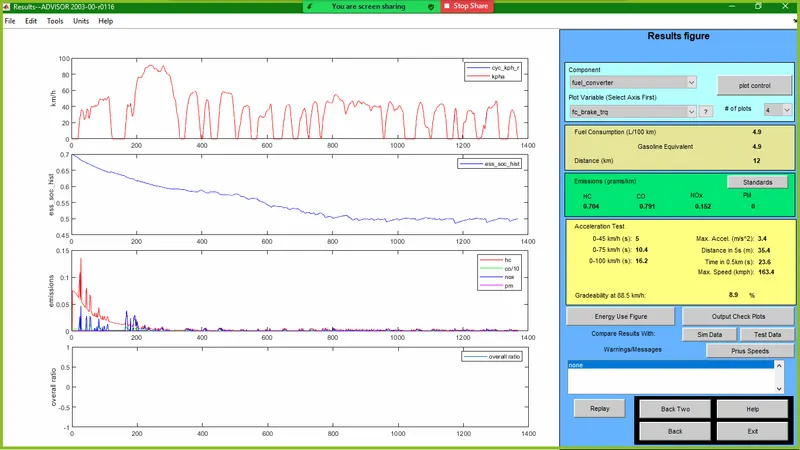

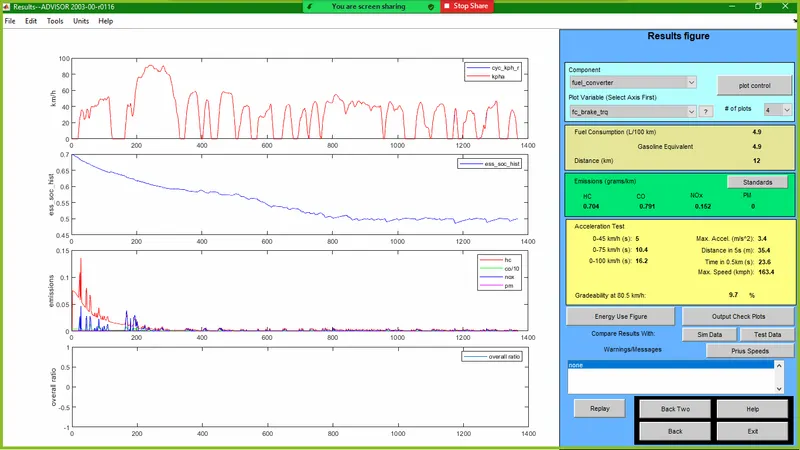

Result :- here, R.H.S.(top) given some input that will help us to reaching output graph as per requirement.
In this result give information about Acceleration test (like 0 to 45 reach in 5 sec. , max speed is 163.4).
Distance travel by vehicle is 12 km with max. acceleration is 3.4 m/s^2 and here we consider EV so no pollution over there.
Gradeability is 7% at 88.5 km/h (55 mph).
Results No. 2
Table :- Comparisonsof PRIUS_Jpn in terms of vehicle Speed on Grade
| Sr. No. | Speed of vehicle on Grade in mph | Speed of vehicle on Grade in kmph | Gradeability of grade in percentage(%) |
| 1 | 70 | 112.7 | 6.3 |
| 2 | 65 | 104.6 | 7.2 |
| 3 | 60 | 96.6 | 8.1 |
| 4 | 55 | 88.5 | 8.9 |
| 5 | 50 | 80.5 | 9.7 |
| 6 | 45 | 72.4 | 10.7 |

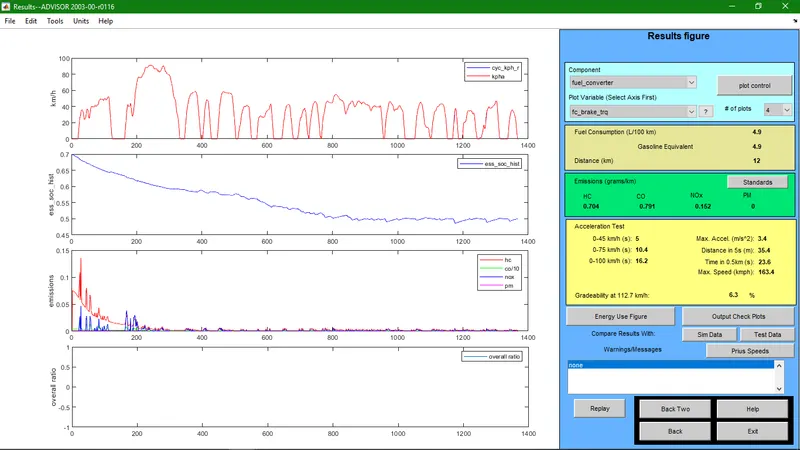

1.) Gradeability is 6.3% at 112.7 km/h (70 mph).
2.) Gradeability is 7.2% at 104.6 km/h (65 mph).
3.) Gradeability is 8.1% at 96.6 km/h (60 mph).
4.) Gradeability is 8.9% at 88.5 km/h (55 mph).
5.) Gradeability is 9.7% at 80.5 km/h (50 mph).
6.) Gradeability is 10.7% at 72.4 km/h (45 mph).
