Week-3 Challenge: ADVISOR Tool

1)

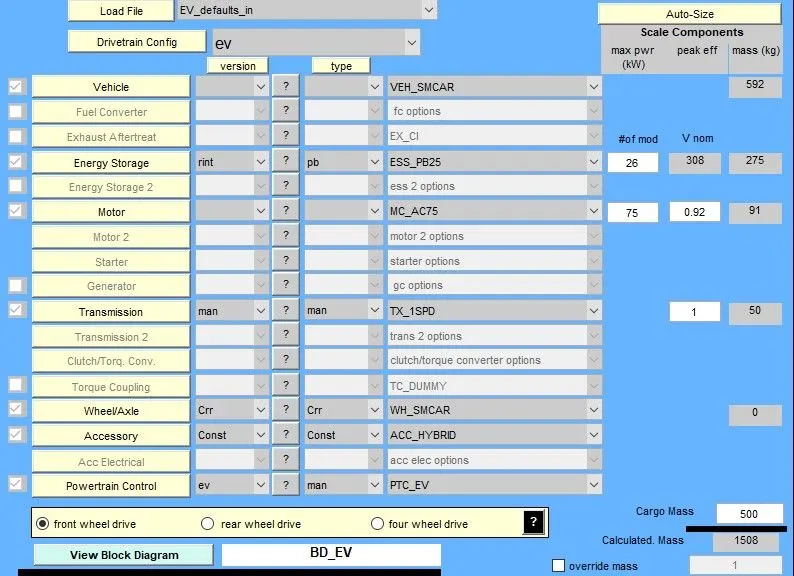

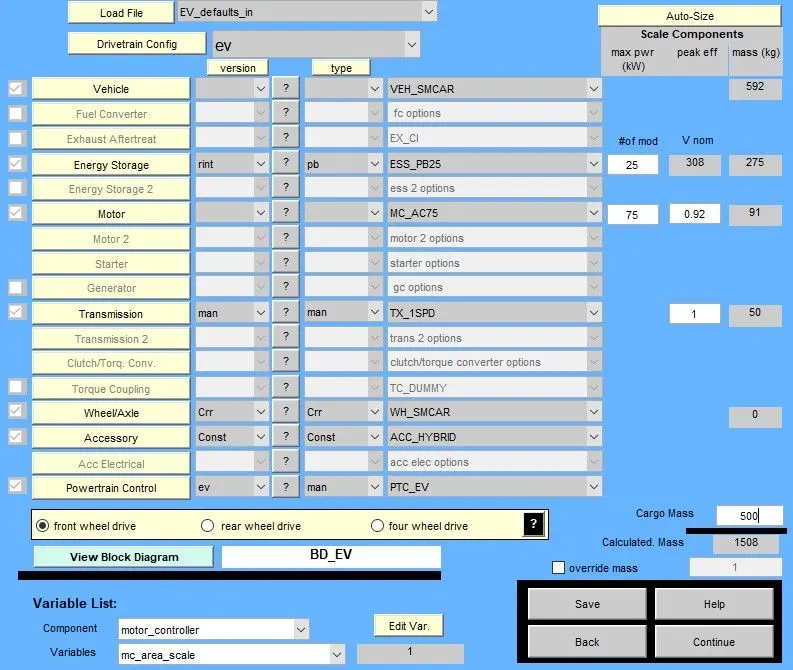

The 500 cargo mass is added

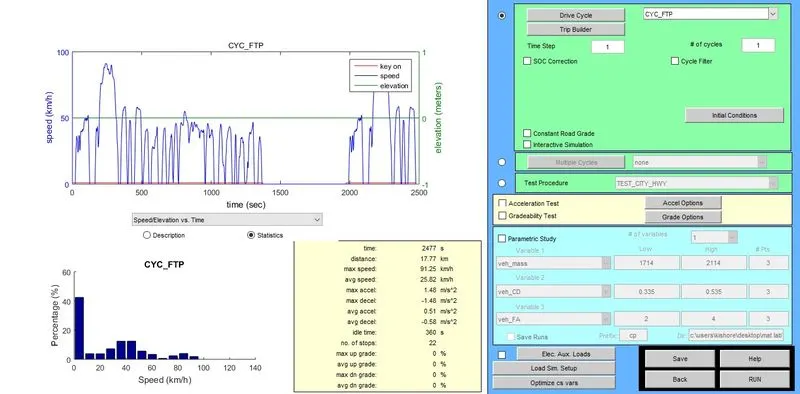

FTP drive cycle is choosed,first drive cycle is taken in account

conclusion:

FOR 500 mass in ev_default ,first drive cycle

the distance travelled is 17.77km ,it wont cover 45km

same parameter is taken for Second drive cycle the distance travelled is 35 km approx.for Third drive cycle is 41.4km .

It wont cover 45 km though the drive cycle is increased.

2. The battery capacity is increased 25-29(26,27,28) is taken .From above it shows that if drive cycle is increased the km is increased for ev_default so THIRD DRIVE CYCLE IS TAKEN

For 26.

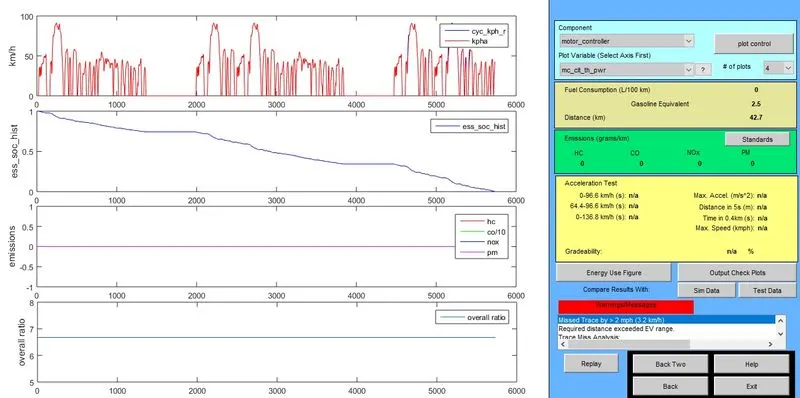

the distance travelled is 42.7km

for 27

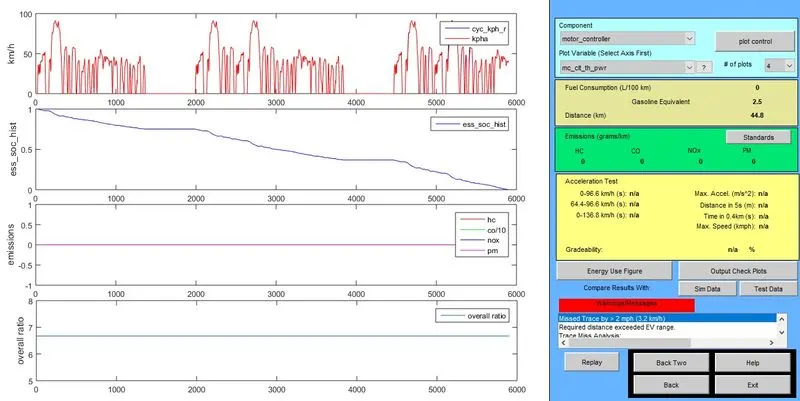

the distance covered is 44.8km

for 28

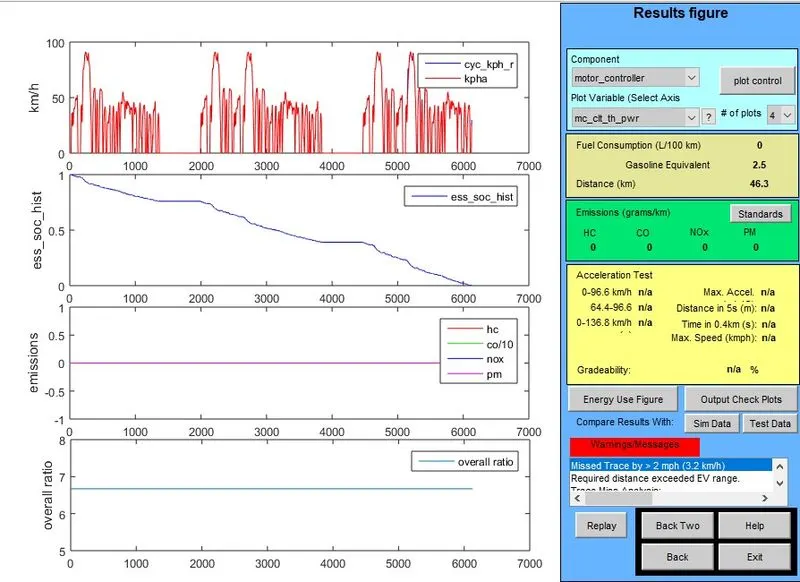

the distance is 46.3km

CONCLUSION:

Battery capacity	26	27	28
KM	42.7	44.8	46.3

for achieving 45 km battery capacity 27,28 is taken

3.

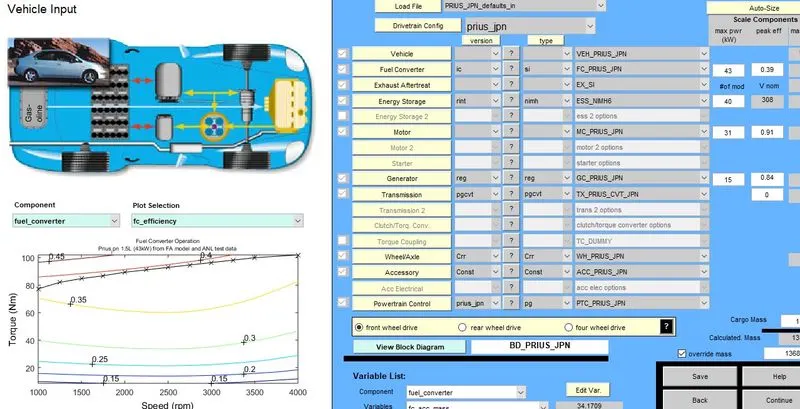

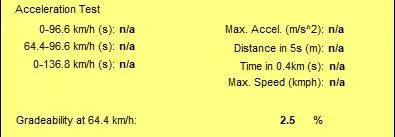

for gradeability test,PRIUS_Jpn_defaults_in is loaded

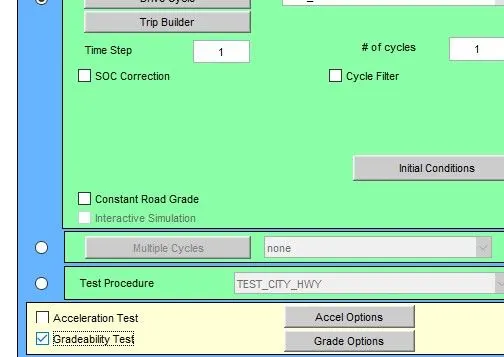

gradeabiliy test enabled

gradeability test :speed 40-50mph,duration 10 and 20 s

for 10s

40 mph

45 mph

50 mph

for 20s

40 mph

45 mph

50 mph

conclusion :

from simulation it shows that if speed is increased the gradeability percentage is decreases
