Week 2 Railwheel and Track

AIM

To simulate the Railwheel and track for their lifecycle and the stress, strain, and total deformation provided by the wheel running on the track by the given forces.

OBJECTIVE

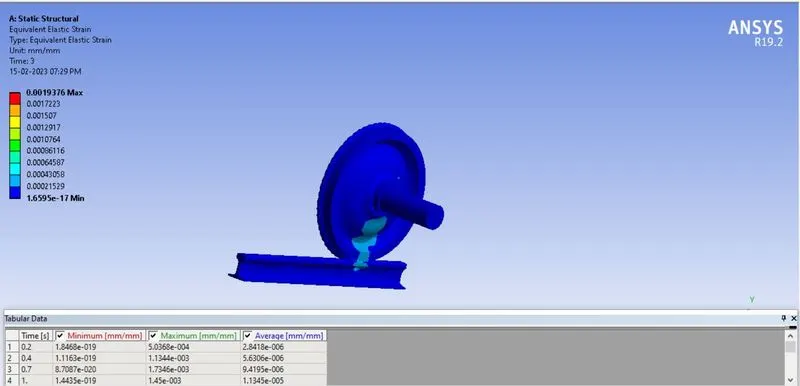

The main focus of this component is to evaluate the result of the product life cycle and the stress, strain, and total deformation in the static structural material. This component to be examined by two cases

Case 1: Load of 100000 N.

Case 2: Load of 5 times of 100000N.

And Implement user-defined results and compare both results in all aspects of the evaluation.

Observation :

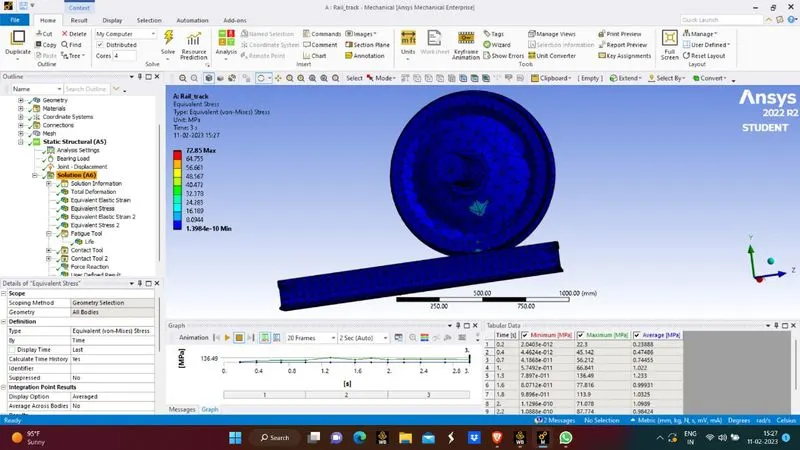

Case 1 Load with 100000N

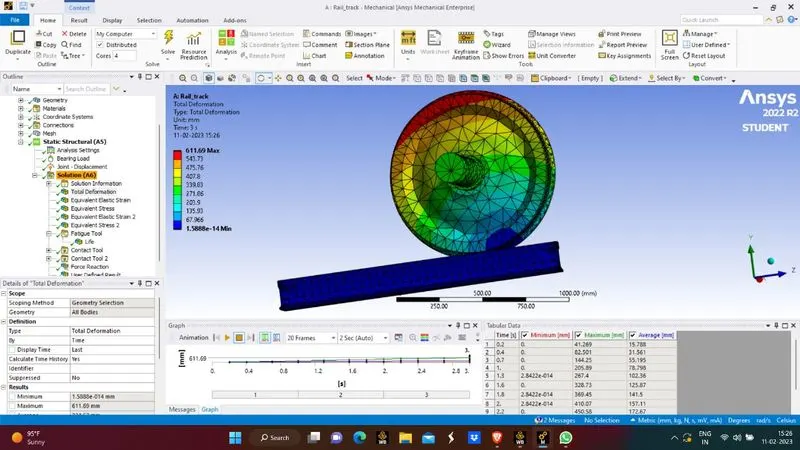

Case_2 Load with 500000N

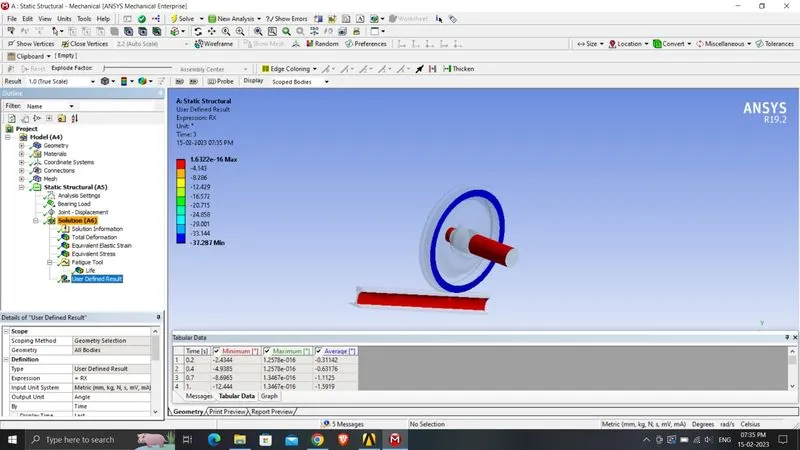

User defined Result:

Tabular Data

Case	Total Deformation(mm)	Equivalent Stress(MPa)	Fatigue
Load with 100000N	611.69	72.85	1e6
Load with 500000N	611.58	383.29	1e6

Conclusion:

• We can see that more stress is obtained in second case

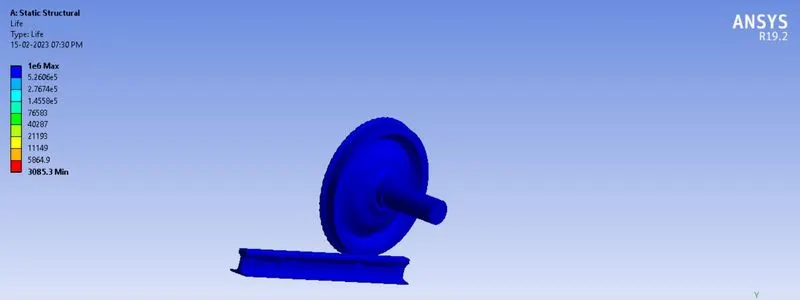

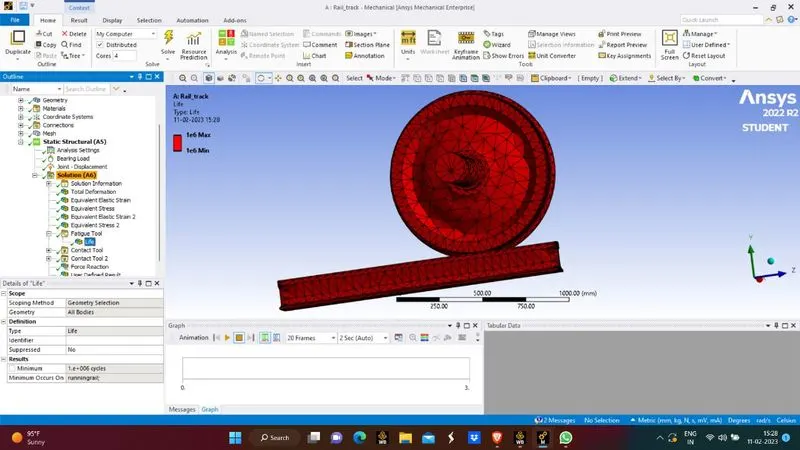

• we can see that fatigue life for both cases is almost same
