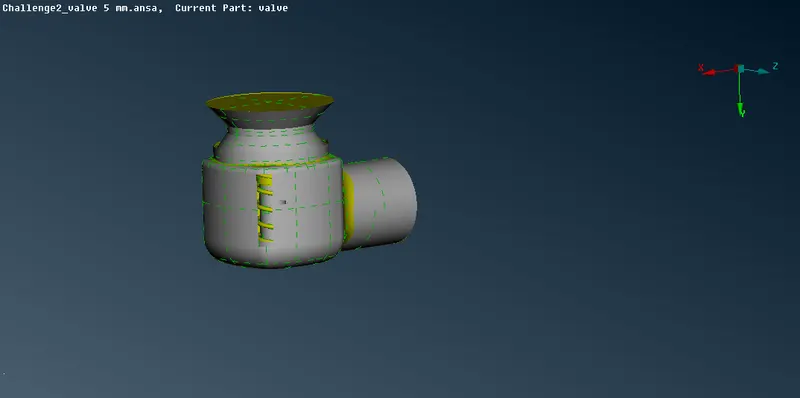

Week 2 Challenge : Surface meshing on a Pressure valve

AIM: To mesh given model. with element type : tria 1mm, 3mm & 5mm.

Procedure:

• Importing model.

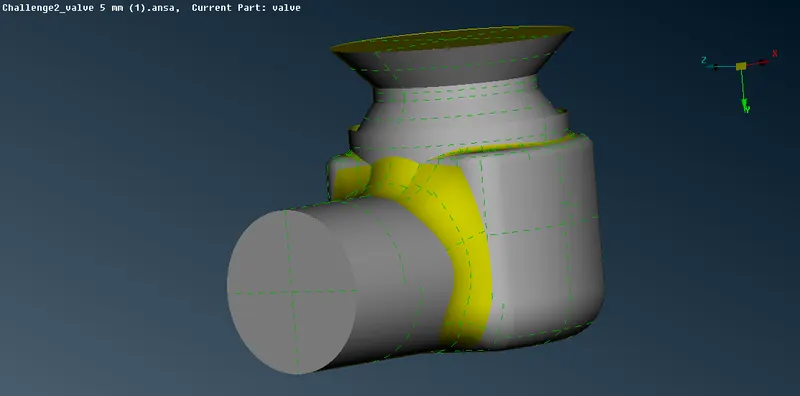

• Performing geometry checks and finding single cons, cracks etc.
• Creating new faces to clear all single cons.

• checking for geometry again. found ok.

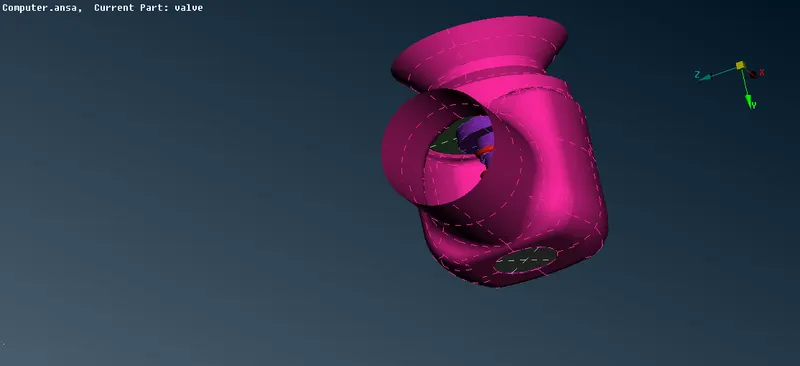

• Using cut option clearing all small segments to avoid problem during meshing.

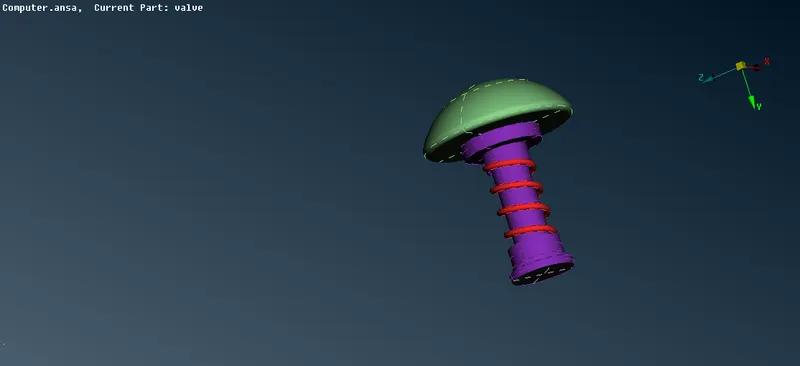

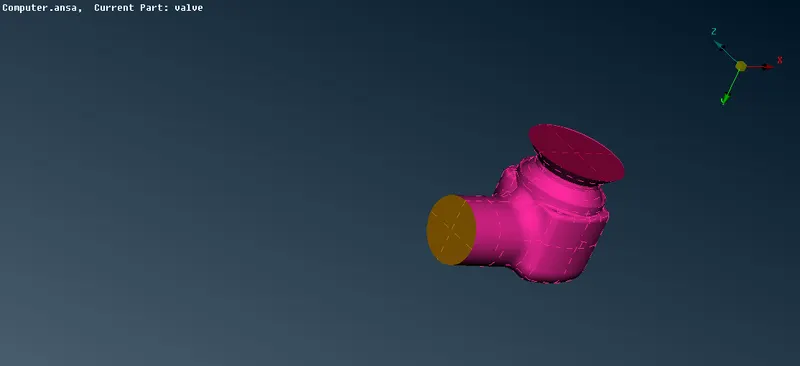

• Assigning PID for all internal parts. like body, inlet, outlet, valve head, spring, column, base.

• assigning mesh length for different mesh lenghts, like 1mm, 3mm & 5mm.
• assigning minimum lenght of 0.5-2, 1-4 & 3-7mm, respectively.

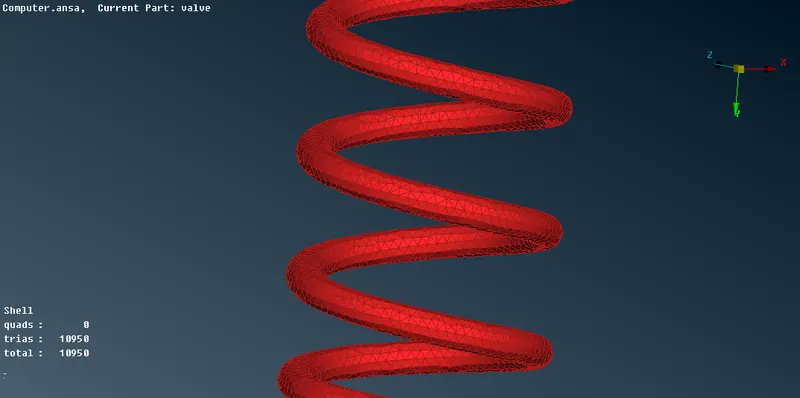

• Since spring has dia of approx 3 mm assigned 1mm as meshing length for that part.

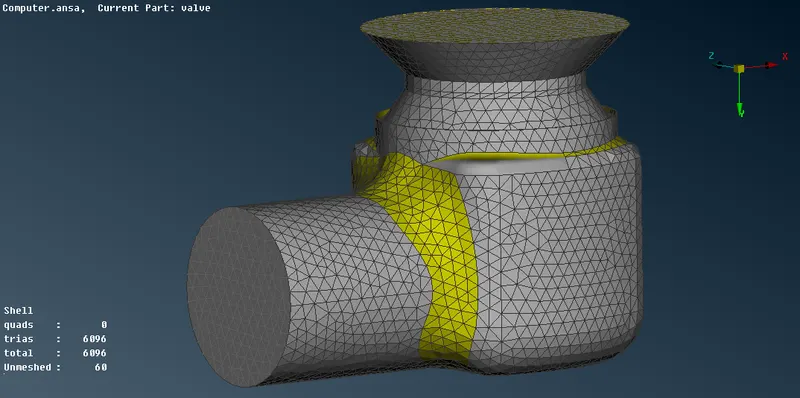

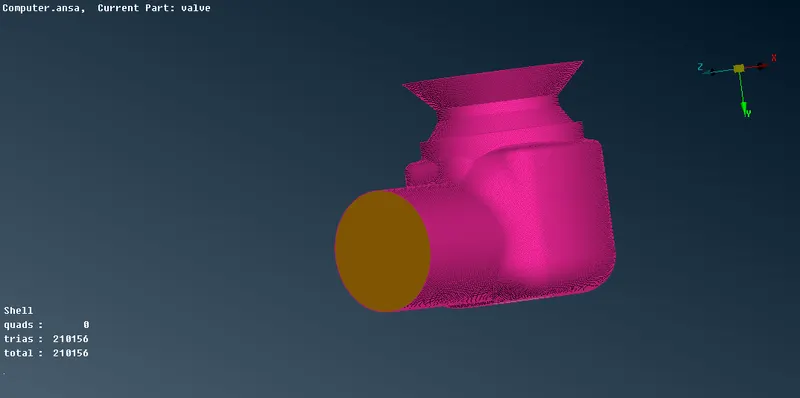

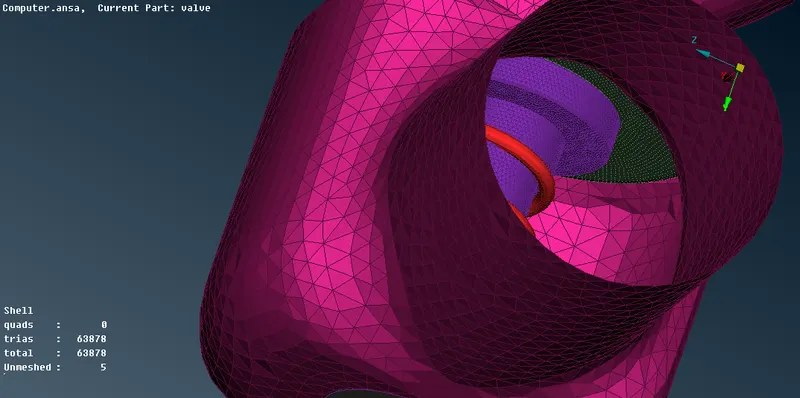

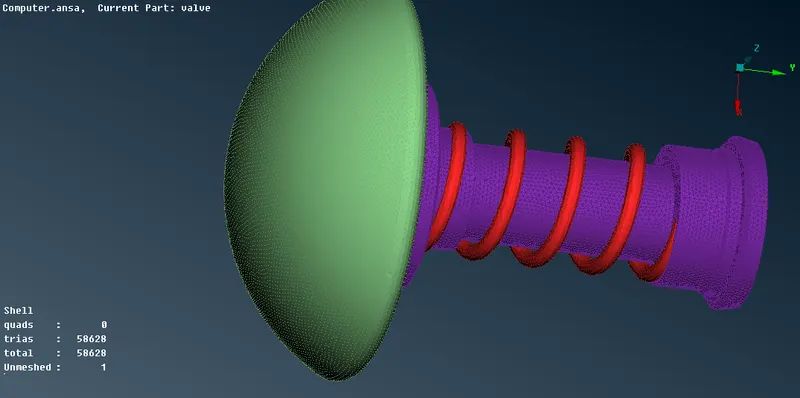

• meshing completed tried for all 3 mesh lengths given.

Learning Outcomes:

• Topology cleanup
• Creating new surfaces and types of new face creation.
• Usage of PID, ENTITY options.
• Using cut options to hide double cons
• Assigning of PID to various child parts inside the model.
• Selection of objects to complete job.
• Meshing all parts according to various mesh lenght.

Results: Meshing has been completed for given model in all mesh lenghts given.

Conclusion: Results were good when 1mm is used as mesh length (min 0.5, max 2).since all geometry properties & shapes are maintained.

Regards

Kaushik kumar.
