Week 2 Challenge : Surface meshing on a Pressure valve
Surface meshing on a Pressure valve
- Target length = 1mm, 3 mm and 5 mm (i.e. 3 cases)
- Element type = Tria

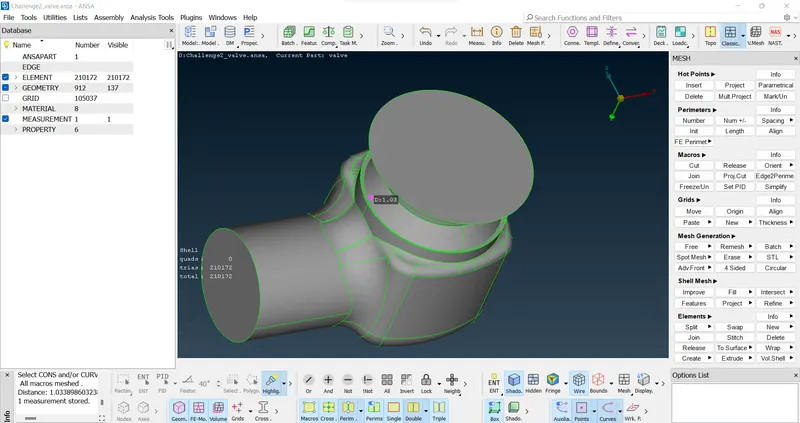

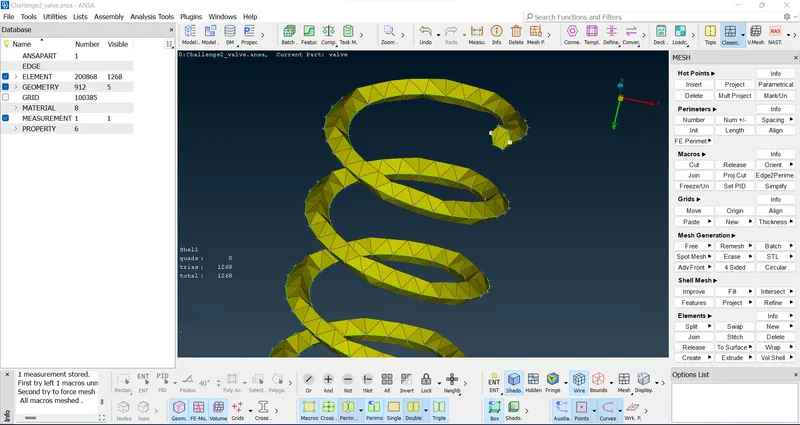

The element size is 1mm is perfect for this geometry because 5mm size is not enough for some specific parts like spring inside the geometry so simulation results would not accurate with 5mm size

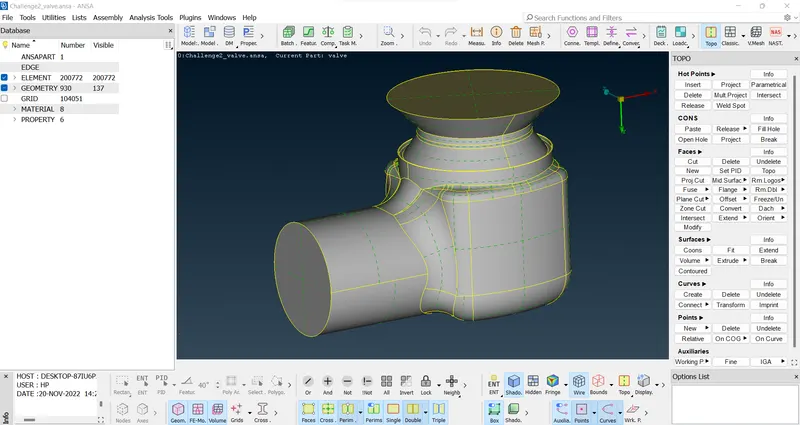

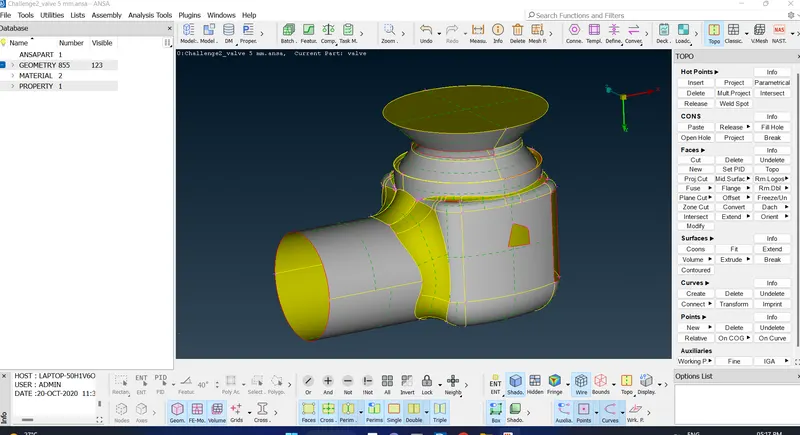

after geometry cleanup
