Week 2 Challenge : Surface meshing on a Pressure valve

Aim: Surface Meshing of Pressure Valve

Procdeure :

Step 1 : Geometry Cleanup by using TOPO

Step 2 : create new faces using coons and Fill Holes

Step3 : Create New PID for Each part and Assign it for Body,Inlet,Column, Spring,Column Head,Outlet

Step 4 : gemotery Check up

Step 5 : Geomteric Error and intersection Error.

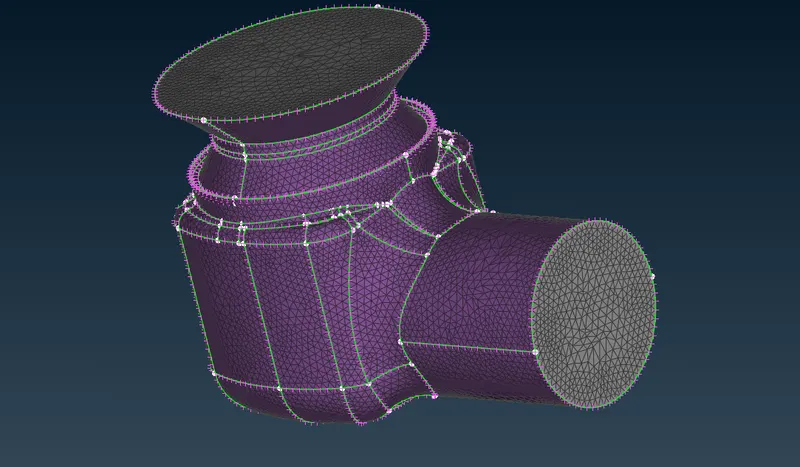

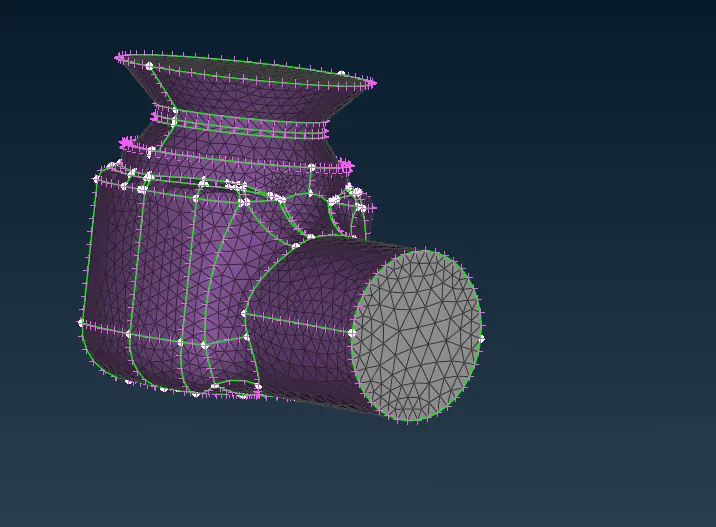

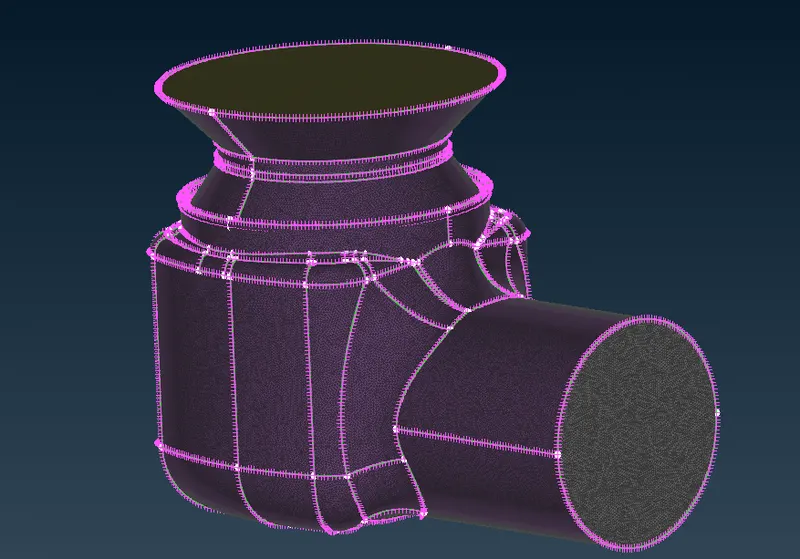

Step 6 : Classic Mesh for 5mm

Conclusion : How to remove intersection error gemoetry Cleanup, how to assign PID and Surface Meshing.
