Week -2

blocks: 1. pulse genarator.......... is used to genareate pulse at requared level

2. simulink-ps converter and ps-simulink converter are used to connect to scope vice versa(physical system to simulink model signal)

3. solenoid is used to closed the close the circuit with coil when power supply is avaliable electromagnetic force build in coil and pull the valve to circuit.

4.battary is used as power supply

5. scopes

6.macahnical reference

7.electrical reference

8.solver configraution

9.switch.

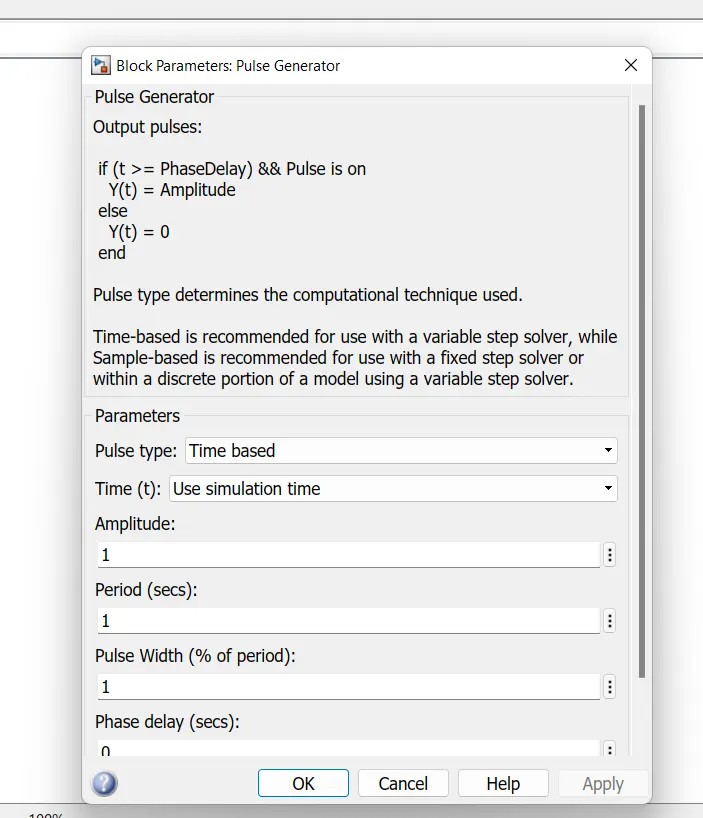

input is given as pig. i,e amplitude and time period, pulse width

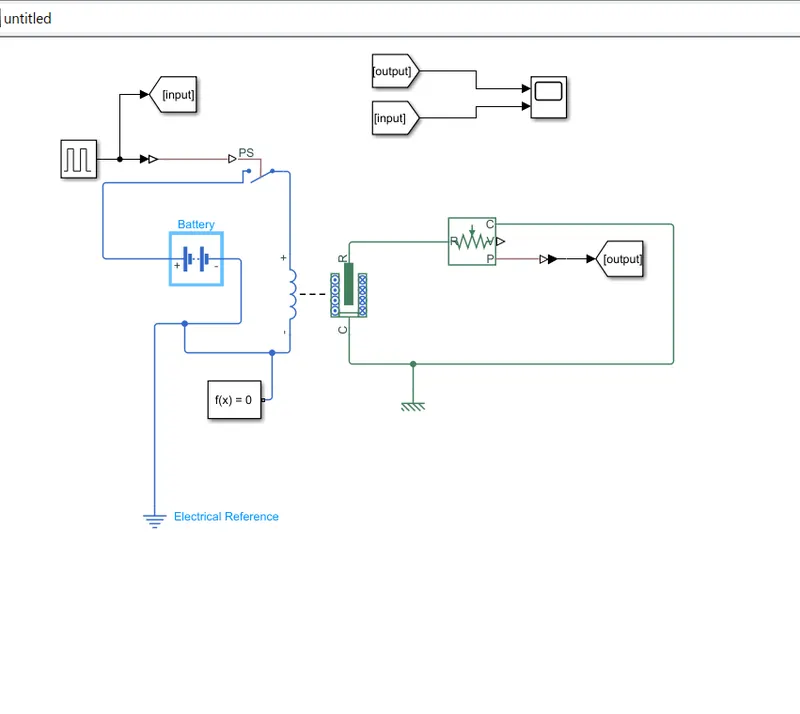

simulation is done as per above pic.

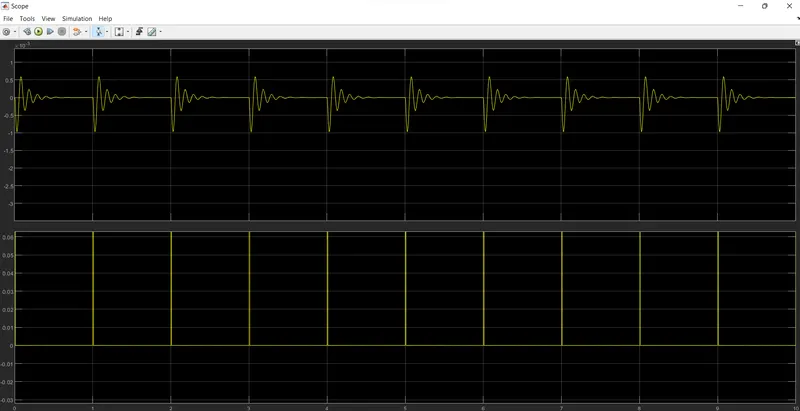

these are result as shown.

1st wavw form is output and 2nd one is for input signal

conculsion:

at each of time interval i.e given pulse time the bell is ringing.
