1 Aim: Make a Simulink model of Doorbell using solenoid block with the following details

Objective:

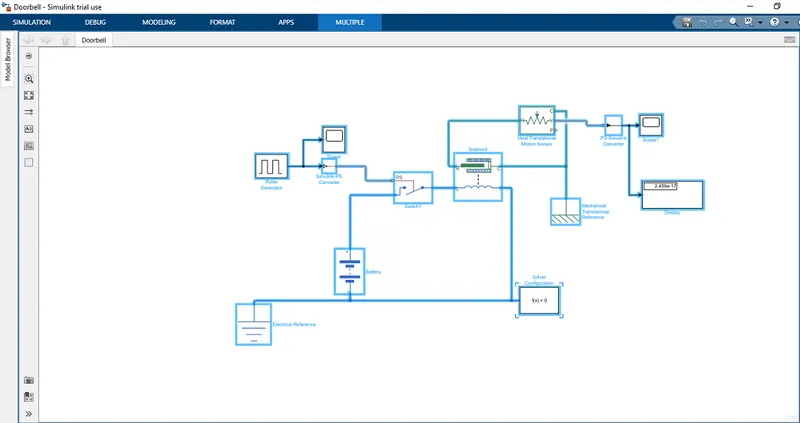

Doorbell Block Digram.

Out Put Value: 2.456e-17

Input Waveform Signal:

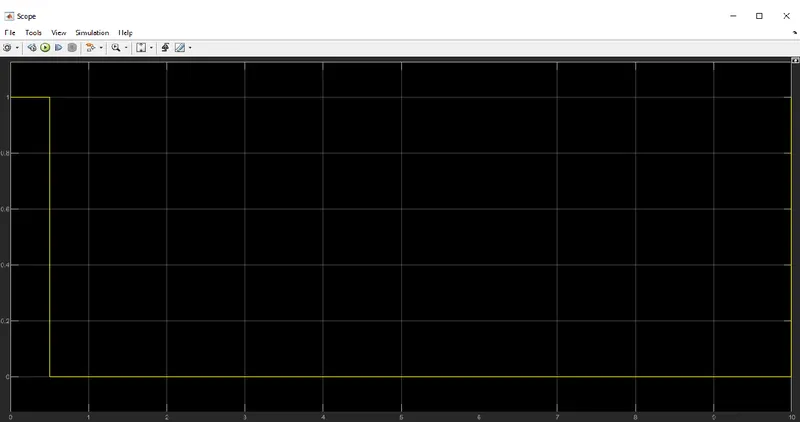

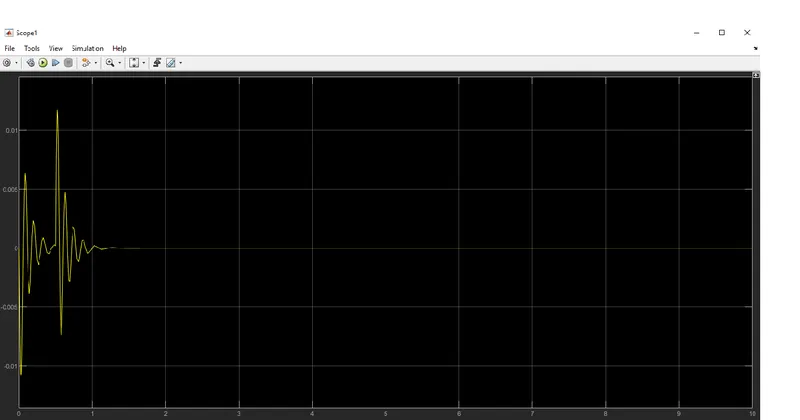

Output Waveform Signal:

2 Aim: Use a thermistor to sense the temperature of a heater & turn on or turn off the fan as per the below conditions:

Objective:

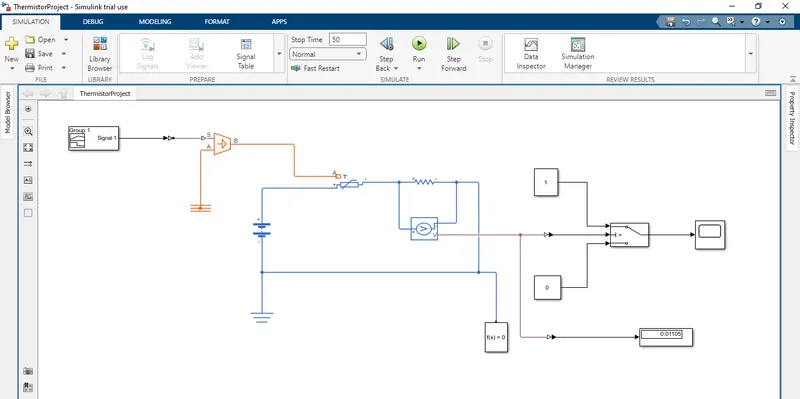

Thermistor Block Diagram.

I got Threshold Voltage Value Is 0.01196V.

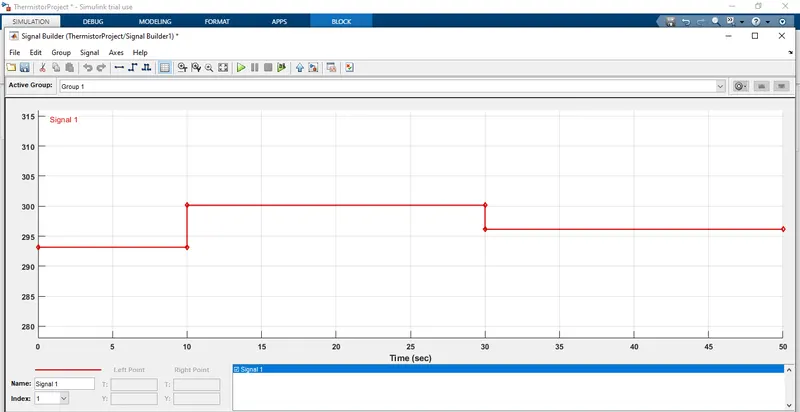

Input Conditions Signal:

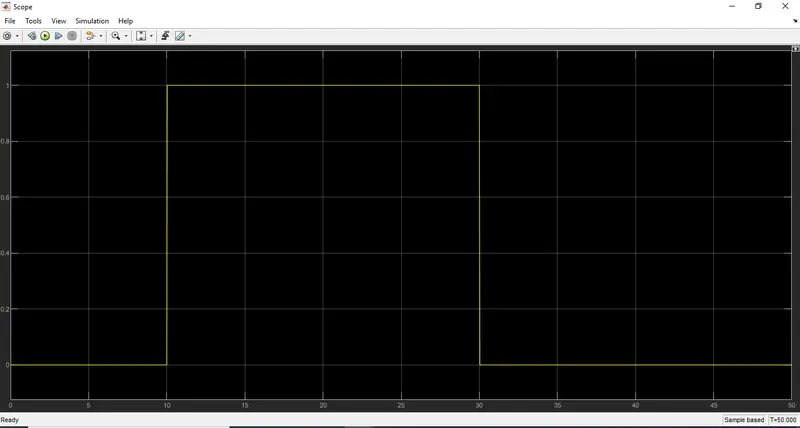

Output Signal:

Out Put Value: 0.01105
