Week -2

Project - Speed Control of a Direct Current (DC) motor   In this project, a Simulink model for the DC motor will be first developed per the schematic shown in Figure 1. Use the Proportional, Integral, and Derivative (PID) control design knowledge gained in the training to design, develop and test a controller to maintain…

1.Using MATLAB/Simulink and the drive cycle from the attached excel sheet, find- The max heat generation of the battery The SOC of the battery at 2 *104second of the battery operation   Time Time Step Battery Current 00:00.4 0.1 -0.9632 00:00.5 0.2 -0.952 00:00.6 0.3 -0.9072 00:00.7 0.4 -0.9632 00:00.8 0.5 -1.0304 00:00.9…

Design a battery pack for a car roughly 150 Kw with 120 V. Use 3500 mAh 3.6V nominal NMC chemistry cell. AIM: To Design a battery pack for a car by using NMC chemistry cell for given data and selection of BMS topology for the battery pack and to construct the Architecture of BMS topology 1.Design the battery pack configuration.…

PROJECT DATA HANDLING AND INTERPOLATION   Project : In a laboratory experiment, data of voltage and current has been recorded and the same is attached in an excel file ( Click on this link VI.xlsx ). Read the excel file in the Matlab program and perform the interpolation in the range of -17.3:0.1:0.9. Generate…

PROJECT MODELLING AN ELECTRIC CAR WITH LI-THIUM ION BATTERY Create a MATLAB model of electric car which uses lithium-ion battery and suitable motor. Choose suitable blocks from Simscape or Powertrain block set. Implement the vehicle speed control using PI controller and generate brake and accelerator commands. Avoid using…

FINAL PROJECT ELECTRIC RICKSHAW MODELLING Create a detailed MATLAB model of an electric rickshaw (three-wheel passenger vehicle) as per details below:  Rear wheels driven by PM brushed type motor Assume efficiency points of motor controller and motor Make an excel sheet of all input and assumed data  Results:…

PROJECT ELECTRICAL VEHICLE DESIGN   AIM: To create a MATLAB model of an electric car which uses a Battery and DC motor.   DESCRIPTION: BLOCK DIAGRAM:   Main blocks used to design electric vehicle are vehicle body, DC motor, H-Bridge power converter, Battery, Drive controller and Drive cycle. In this Motor…

Search and list out the total weight of various types of aircrafts   Actual Weight of Various types of aircrafts There are many factors that lead to efficient and safe operation of aircraft. Among these vital factors are proper weights and balance control. The maximum allowable weight for an aircraft is determined…

TASK-1 ENERGY REQUIRED FOR BRAKING   DESCRIPTION: So, for braking power requirement calculation. We have to identify deceleration condition. Fundamental formula for acceleration and deceleration is Energy= (1/2) *MV^2. Let Mass=1000kg Here we are calculating the deceleration energy or Braking energy. So, V=Vi-Vf For…

TASK-1 SPEED CONTROL OF A DC MOTOR   SPEED CONTROL OF A DC MOTOR USING BJT H-BRIDGE: AIM: To control the speed of a DC motor by chopping the voltage using BJT H-BRIDGE chopper.  DESCRIPTION: The Bipolar junction Transistor (BJT) when used in power applications, operates as IGBT, it is like a combination of MOSFET…

TASK-1 TYPES OF POWER CONVERTERS EMPLOYED IN EV AND HEV   TYPES OF POWER CONVERTERS USED IN EV AND HEV: Types of power electronic converters are used in electric vehicles and hybrid electric vehicles are Rectifier, Chopper, Inverter.  RECTIFIER: Rectifier is used to convert AC power to pulsating DC power. In…

TASK-1 MAPPED AND DYNAMIC MODEL   MAPPED MODEL: Mapped model is also called as the Static model. If we have data, we can map to particular block to create a mapped block. For example, if we have motors data, we can map data to particular mapped motor block. In the same way we can create the engine mapped block and…

TASK-1 EV_defaults_in Vehicle Observation using FTP drive cycle AIM: To simulate the EV_defaults_in vehicle with FTP drive cycle by using ADVISOR Tool. OBJECTIVE: To obtain the simulation results of the EV_defaults_in vehicle with FTP drive cycle by loading the EV_deafaults_in file in ADVISOR Tool. DESCRIPTION: Steps to…

SYSTEM LEVEL SIMULATION OF AN ALL-TERRAIN VEHICLE                AIM: To Run a system level simulation of an “ALL TERRAIN VEHICLE”. OBJECTIVE: To observe the speed and distance of a vehicle body by varying the throttle and brake and also…

TASK-1 IMPLEMENT CONTROL LOGIC OF WASHING MACHINE USING STATE FLOW AIM: To Create a model to implement control logic of washing machine using state flow. OBJECTIVE: To Create a model to implement control logic of washing machine using state flow with the following state conditions. If the power supply is available the…

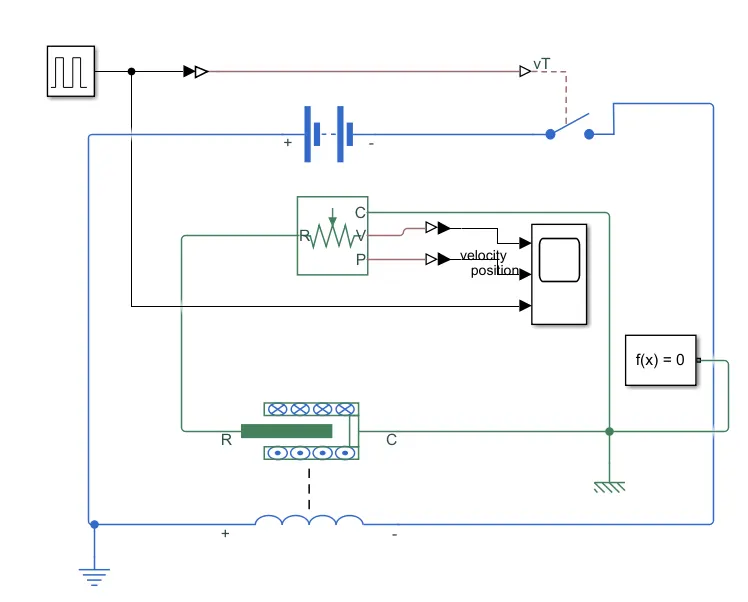

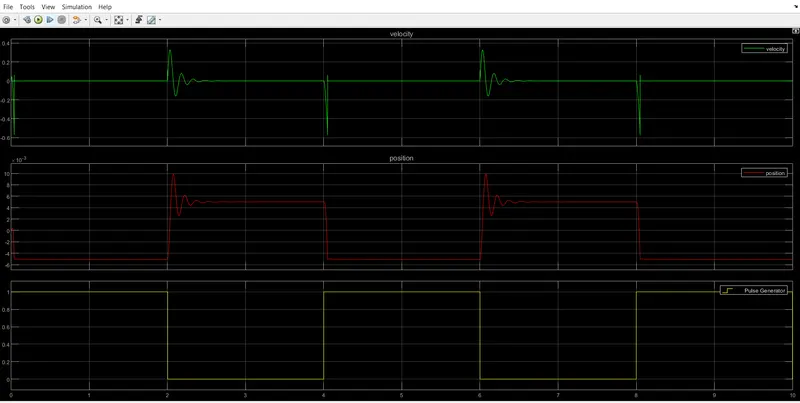

TASK-1 SIMULINK MODEL OF DOORBELL USING SOLENOID BLOCK AIM: To observe the metal arm movement to hit the “Doorbell” and is operated by “Solenoid”. Which is excited by the battery through switch control for a certain period of time OBJECTIVE: For the model of doorbell using solenoid block we have…
