Week -2

Introduction :-

1.

The Solenoid is an electromagnet withwire winding & a small metal piston inside it. When electric current flows throught the wire , an electromagnetic field is generated which pulls the metal piston towards it. The metal piston hits the tone bar located on both sides of the arrangement.

Following are the blocks :-

PS-Simulink & Simulink-PS Converter :- These blocks converts physical signals to simulink signals & vice versa.

Scope :-

Gives the plot of the output.

Pulse Generator:-

It is an analog input that has amplitude & frequency with which the input is transmitted.

Electrical & Mechanical References :-

It is a reference block with which the system has a ground source as a base.

Solenoid :-

It is an electromagnetic device which is represented as a block here.

Battery :-

It is a device that has +ve & -ve terminal for the electric circuit to be completed for an electric flow.

Switch :-

It is a device which completes the electric circuit for current to flow & can be controlled manually or automatically depending on the switch.

Ideal Translated motion sensor :-

it is a type of sensor that provides the position or velocity input for the system to generate output.

Solver Configuration :-

It is a type of block that acts a complete equation for f(x)=0 where we find the value of x & generate the output.

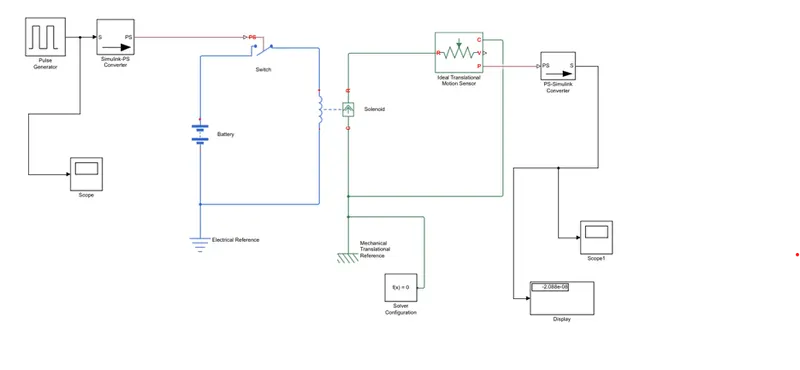

Block Diagram :-

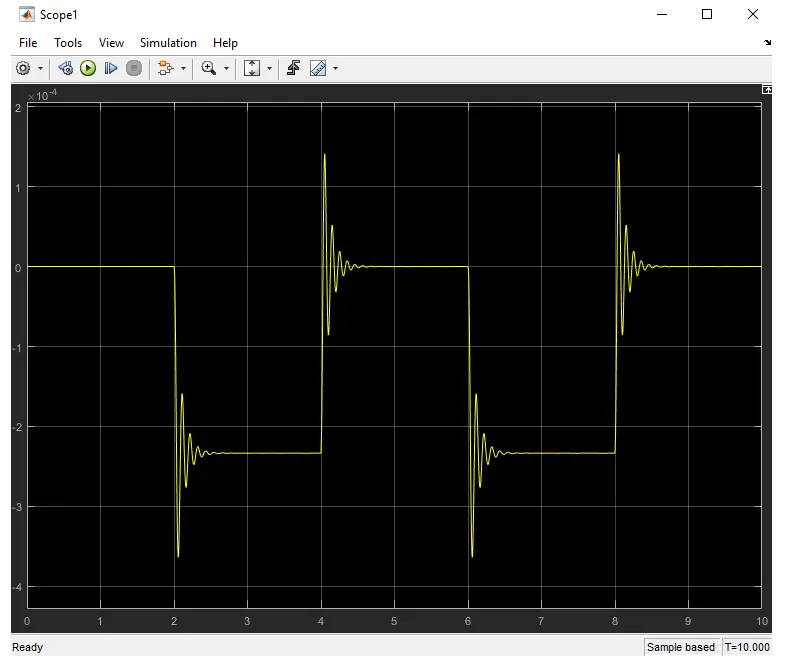

Output :-

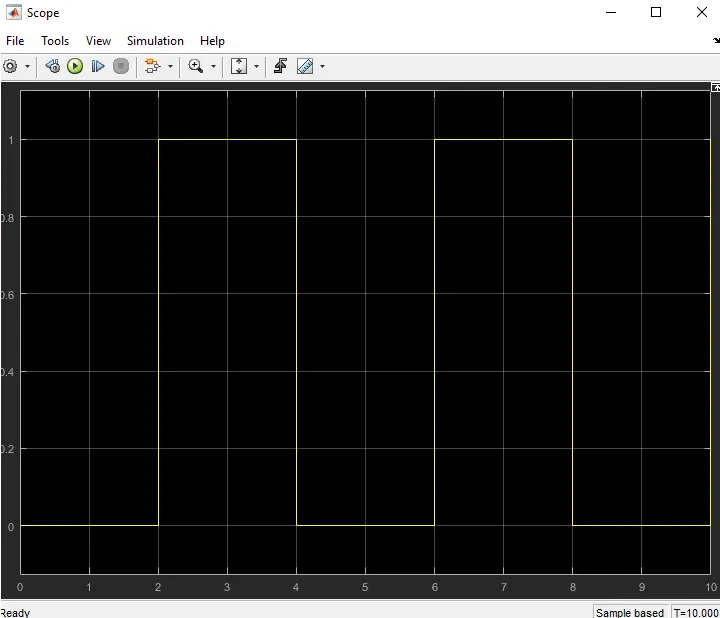

The input signal of the pulse generator :-

2.

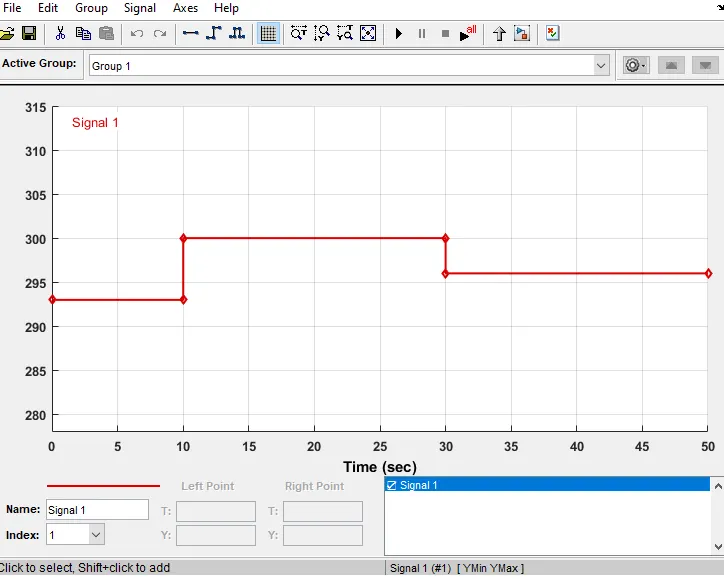

Signal Builder is used for giving the inputs

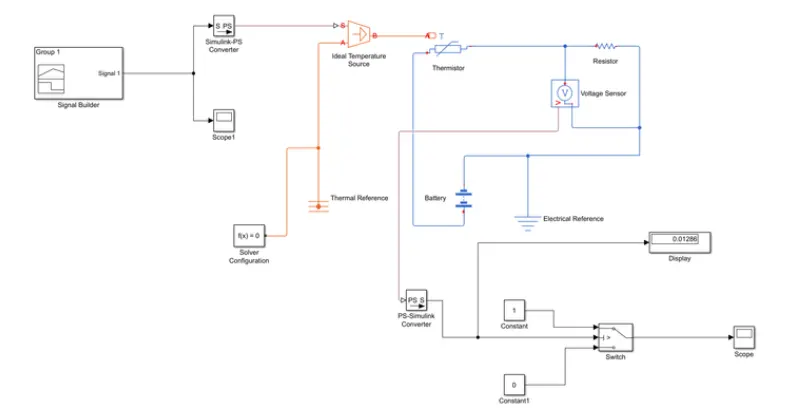

Block Design :-

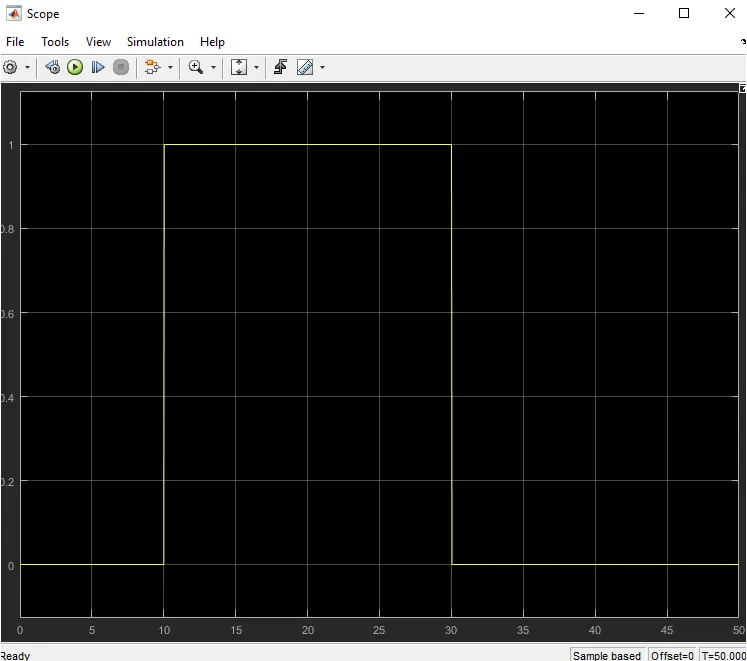

Output :-
