Week 2- 2R Robotic Arm Challenge

AIM:

To simulate the forward kinematics of a 2R Robotic Arm using Matlab

Matlab used as progamming language

Objective:

1.Read the given data and write the program to simulate forward kinematics robotic arm position of the manipulator.

2.To make simulation video

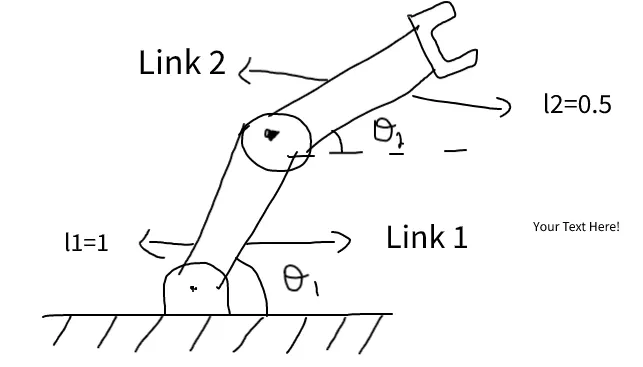

Manual Digram & Calculation of 2R robotic arm:

step 1: Calculate the Link1 position(its fixed)

x0 = 0, y0 = 0

step 2: calculate the Link2 position( its 1st link end & 2nd link start)

x1 = l1*cos(theta1) , y1 = l1*sin(theta1)

Step 3: calculate the manipulator(end link)

x2 = x1 + l2*cos (theta2), y2 = y1 + l2*sin(theta2)

Code:

% forward kinematics 2r robotic arm manipuklator

clear all %(clear all work space data)
close all %(close all plots)
clc %(clear all aommand window)

% (input data)

l1 = 1; %(length of the link 1)
l2 = 0.5; %(length of link 2)

theta1 = linspace(0,90,10);
theta2 = linspace(0,90,10);

ct = 1; %( No of frames to create movie )

for i = 1:length(theta1) %(for loop used to calculate the length of link1 value)
    THETA1 = theta1(i);

   for j = 1:length(theta2)%(for loop used to calculate the length of link2 value)
    THETA2 = theta2(j);

    % coordinates [xo yo][x1y1][x2 y2]

    x0 = 0;
    y0 = 0;

    x1 = l1*cosd(THETA1);
    y1 = l1*sind(THETA1);

    x2 = x1+l2*cosd(THETA2);
    y2 = y1+l2*sind(THETA2);

    % plotting

    plot([x0 x1],[y0 y1],[x1 x2],[y1 y2],'linewidth',3)%(used to create plot by(x,y))
    axis([-0.1 1.5 0 1.5])%(indicates the x-limit & y-limit)
    pause(0.03)%(pause 0.03sec capture of animation )
    M(ct) = getframe(gcf)%(get current figure famre)
    ct =ct+1;

   end
end

movie(M)%(create movie using the code)
Videofile = VideoWriter('Ahd.avi','Uncompressed AVI');%(movie stored in 'avi' file)
open(Videofile)%(opening the video file)
writeVideo(Videofile,M)%(writing the video file)
close(Videofile)%(closing the video file)

output:

video output

Errors

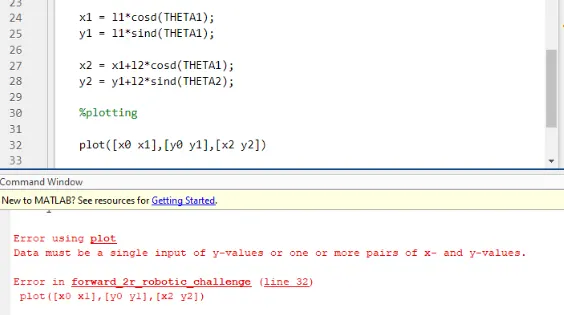

Error:1

problem plot : [x0 x1],[y0 y1],[x2 y2]

solve plot : [xo x1],[y0 y1],[x1 x2],[y1 y2]

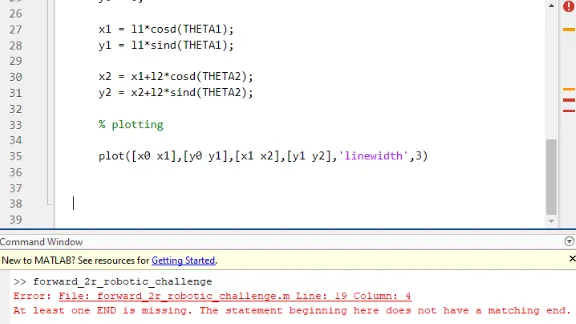

Error:2

prb: forgot the end function

sln: type the end function

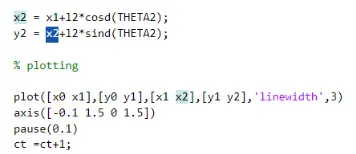

Error:3

pbm: link 2 length might longer(y2 =x2+l2*sind(THETA2)

sln: (Y2 = y1+l2sibd(THETA2)

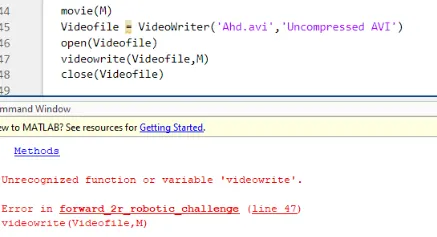

Error:4

pbm: videowrite(videofile,M)

sln: writevideo(videofile,M)

Code and output explained:

Output:

simulate the Forward kinematics of 2r robotic arm manipulator is suscessfully completed and each movement of the Link1,2 (0,90,10), each 10 degree movment obtainted check it video output

code & function:

For loop = For loop is used execute the theta1,2 value it have 10 value. Then i given to link1 and respectively j given to link2.

cosd/sind = D-denoting degree-cos -means default take randiant value

Linspace = This command used to create array/ get random number between the two values (1,5,8)

Ct = This command used to creating frames

plot = used to create plot is respected to coordinates

axis = This command is used for create x-axis limit and respected to y-axis

Pause = This command pause 0.03sec capture of animation

getframe(gcf) = This command is get current figure

ct+1 = Create advance frame

movie = This command is creating movie capture of frames

Avi = create movie saved as Avi.file
