Week 2- 2R Robotic Arm Challenge

AIM:

       To write the code for simulate the Forward kinematics 2R arm of a robotic arm in MATLAB.

OBJECTIVE:

       1. To solve and simulation the forward kinematics fo a robotic manipulator and to get the moment of manipulator.

       2. To create the animation of robotic manipulator through the axial mention.

INTRODUCTION:

        The mainlly the robotic arm are used in the mechanical emerged as a field of during the industrial revolution.To use the robotic arm for welding and assemblly parts of the product and goods.The robotic arm also similarlly to the human hand.The program the robotic manipulator to perform the required function and works.The links of the manipulator are connected with the joints are rotational joints.

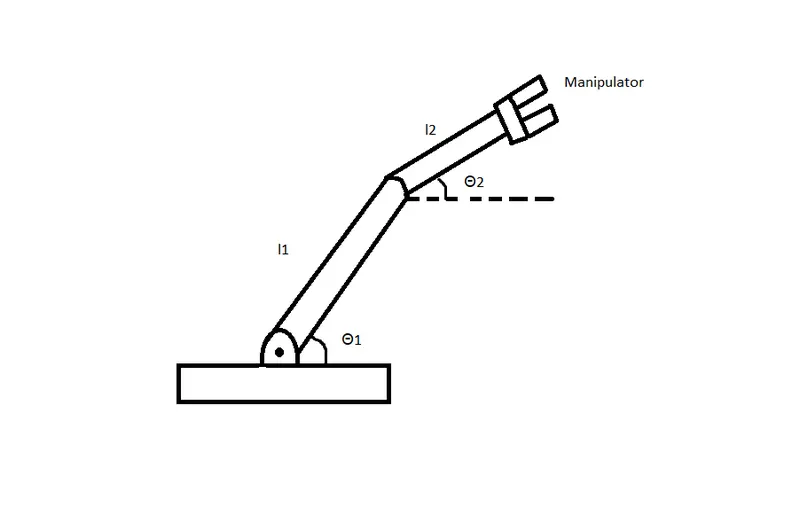

In above the image are consider the four major parts such as,

           1) The BASE ,robotic arms are mounted on the strong base for the moment and actions, the base connect with the links .

           2) The LINK are length of the arm(l1 is length of the first link) and link2 connect with along the link1.

           3) The JOINT are connect the two links are called joint.

           4) The GRIPPER are mounted the end of the manipulator, the use to hold the parts and pick and place operation.

INPUTS:

           we need the input values of the length of the two links and angles.here, we create the animation the manipulator so we use the linspace function.

                   length of the link l1=1 in meter(for example).

                   length of the link l2=0.5 .

                   Angle of the link1 from base is [array of row vector by using the linspace command]

                   theta1=linspace(0,90,15)

                   theta2=linspace(0,90,15)

                   Forward kinematics of 2R robotic arm manipulator,

                   x0=0

                   y0=0

                   x1=l1*cosθ

                   y1=l1*sinθ

                   x2=x1+l2*cosθ

                   y2=y1+l2*sinθ

MATLAB CODE:

clear all

close all

clc



%input

l1=1;                                                                %length of first link l1

l2=0.5;                                                             %length of second link l2

theta1=linspace(0,90,15);                                  % theta1 value are row vector array by(linspace function) as well as theta2

theta2=linspace(0,90,15);



ct=1;

for i=1:length(theta1)                                   %for loop with robotic manipulator the array of the theta values assign the THETA1 and THETA2 variables.

THETA1=theta1(i);

for j=1:length(theta2)

THETA2=theta2(j);



x0=0;                                                                % Forward kinematics of coordinate determination

y0=0;

x1=l1*cosd(THETA1);

y1=l1*sind(THETA1);

x2=x1+l2*cosd(THETA2);

y2=y1+l2*sind(THETA2);



%plotting

plot([x0 x1],[y0 y1],[x1 x2],[y1 y2],'linewidth',3);             % plotting the coordinates for the animation

axis([-0.1,1.5,0,1.5])                                                       % axis for fixed or limits

pause(0.003)

M(ct)=getframe(gcf);

ct=ct+1;

end

end



% avi saving command

movie(M)

videofile=VideoWriter('forward_kinematics_2r_arm.avi','Uncompressed AVI');

open(videofile)

writeVideo(videofile,M)

close(videofile)



OUTPUT VIDEO LINKS:



   YOUTUBE LINK: https://youtu.be/GhcIieBbhy4
   DRIVE LINK: https://drive.google.com/file/d/165Qj1m6dw96G6reQJrweP1R4bCJbOoyF/view?usp=sharing

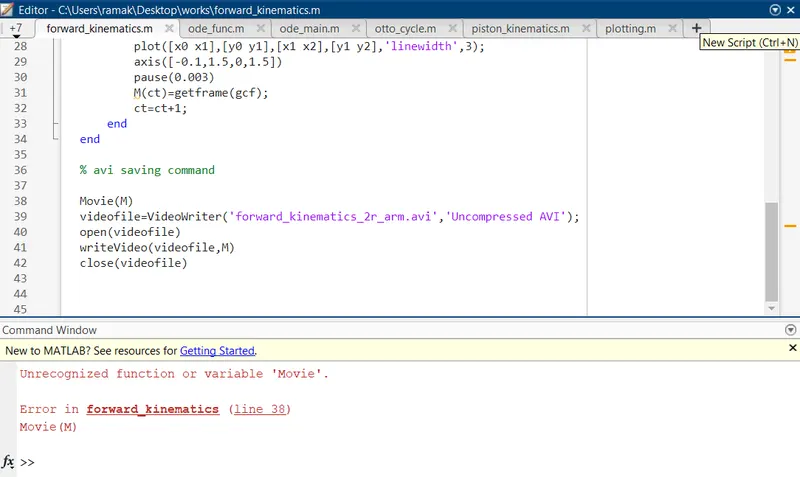

ERROR CORRECTION:



               Error occures when the case sensitive. Unrecognized function or variable error.





               To change the [Movie(M) to movie(M)] the error are rectified.

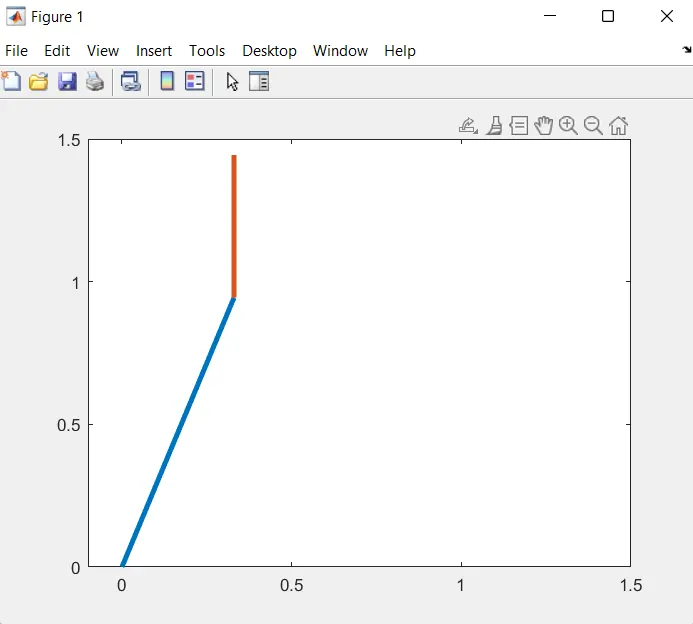

RESULT:



             The output of the Forward kinematics of the 2R Robotic arm manipulator is run successfully.
