Week 2- 2R Robotic Arm Challenge

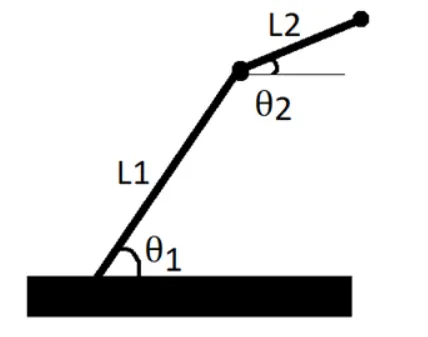

FORWARD KINEMATICS OF A 2R ROBOTIC ARM MANIPULATOR

link1 = l1

link2 = l2

starting point =(0,0)

ending point = (lcostheta,lsintheta)

if theta and theta 2 are given,

what is the final position of theb manipulator

solution=step-1-calculate position of link 1

step-2-calculate position of link 2

for link 1

starting point = (x1,y1)

ending point = (x2,y2)

length of the link2 is =l2

x2 = x1+l2costheta2

y2 = y2+l2sintheta2

solution set = [x0,y0] [x1,y1] [x2,y2]

%forward kinematics of 2r robotic arm manipluator

clear all
close all
clc

%inputs
l1 = 1;
l2 = 0.5;

theta1 = 45;
theta2 = 30;

%coordinates

x0 = 0;
y0 = 0;

x1 = l1*cosd(theta1);
y1 = l1*sin(theta1);

x2 = x1+l2*cosd(theta2);
y2 = y1+l2*sind(theta2);

%plotting

line([x0 x1],[y0 y1],'linewidth',3,'color','b')
line([x1 x2],[y1 y2],'linewidth',3,'color','r')

creating another file

forward_kinematics_with_for_loop

clear all
close all
clc


%inputs
l1 = 1;
l2 = 0.5;
theta1 = linspace(0,90,10)
theta2 = linspace(0,90,10)

ct = 1;
for i = 1:length(theta1)
    THETA1 = theta1(i);
     for j = 1:length(theta2)
        THETA2 = theta2(j);
        x0 = 0;
        y0 = 0;

        x1 = l1*cosd(THETA1);
        y1 = l1*sind(THETA1);

        x2 = x1+l2*cosd(THETA2);
        y2 = y1+l2*sind(THETA2);

        %plotting

        plot([x0 x1],[y0 y1],[x1 x2],[y1 y2],'linewidth',3)
        axis([-0.1 1.5 0 1.5])
        pause(0.1)
        M(ct) = getframe(gcf);
        ct = ct+1;

    end
end
movie(M)
videofile = Videowriter('forward_kinematics.avi','uncompressed AVI');
open(videofile)
writevideo(videofile,M)
close(videofile)

REPORT:-

AIM-writing a program to solve forward kinematics of a 2r robotic arm.

OBJECTIVE-plot the forward kinematics of a 2r robotic arm.

- making an animation of two robotic arm.

- using for loop to perform the operation.

- finally creating the movie of a 2R robotic arm.

getting started,

writing a program in matlab,

%forward kinematics of a 2R robotic arm

clear all

close all

clc

%inputs

l1 = 1;

l2 = 0.5;

theta1 = 45;

theta2 = 30;

%coordinates

x0 = 0;

y0 = 0;

x1 = l1cosd(theta1);

y1 = l1sind(theta1);

x2 = x1+l2*cosd(theta2);

y2 = y1+l2*sind(theta2);

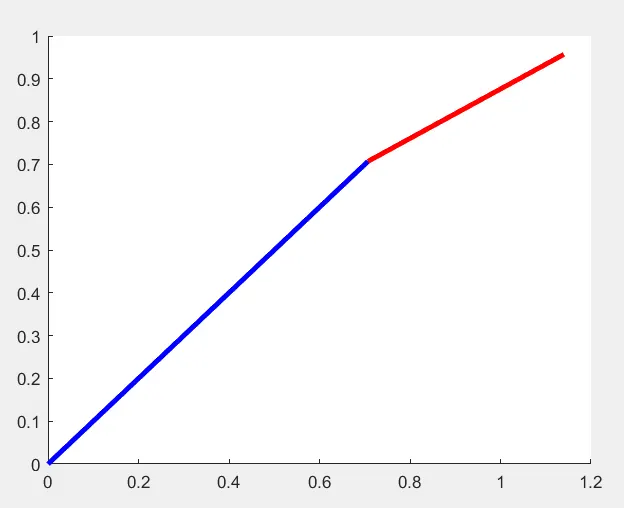

%plotting

line([x0 x1],[y0 y1],'linewidth',3,'color','r')

line([x1 x2],[y1 y2],'linewidth',3,'color','r')

now creating the another file with for loop.

OBJECTIVE-the objective here is to have multiples values of theta1 and theta2 and for each value of theta 1 and theta2 we are going to create a plot and stitching all the plots togeother to make an animation,

clear all

close all

clc

%inputs

l1 = 1;

l2 = 0.5;

theta1 = linspace(0,90,10)

theta2 = linspace(0,90,10)

ct=1

for i = 1:length(theta1)

THETA1 = theta1(i);

for j = 1:length(theta2)

THETA2 = theta2(j);

ct = 1

x0 = 0;

y0 = 0;

x1 = l1cosd(theta1);

y1 = l1sind(theta1);

x2 = x1+l2*cosd(theta2);

y2 = y1+l2*sind(theta2);

%plotting

line([x0 x1],[y0 y1],'linewidth',3,'color','r')

line([x1 x2],[y1 y2],'linewidth',3,'color','r')

end

end

%plotting

plot([x0 x1],[y0 y1],[x1 x2],[y1 y2],'linewidth',3)

axis([-0.1 1.5 0 1.5])

pause(0.1)

M(ct) = getframe(gcf);

ct = ct+1;

end

end

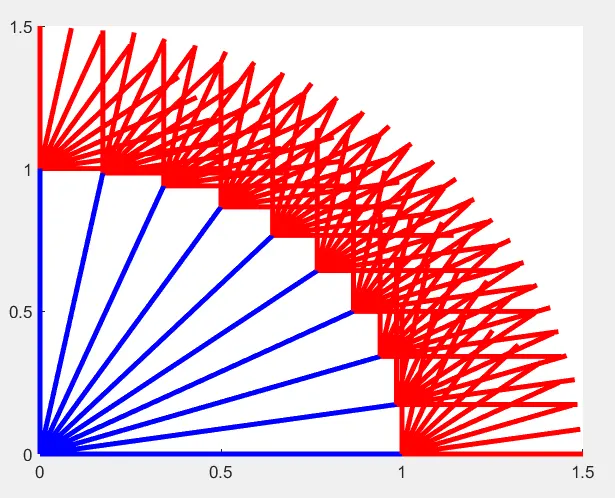

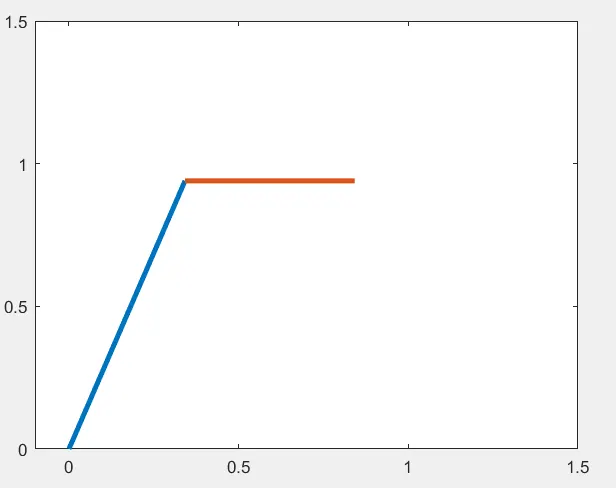

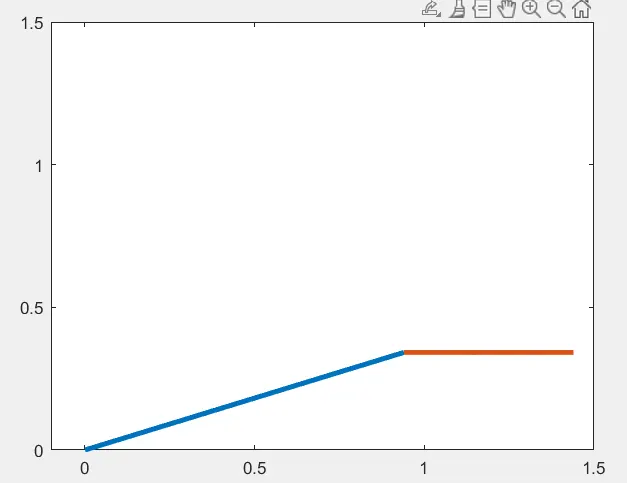

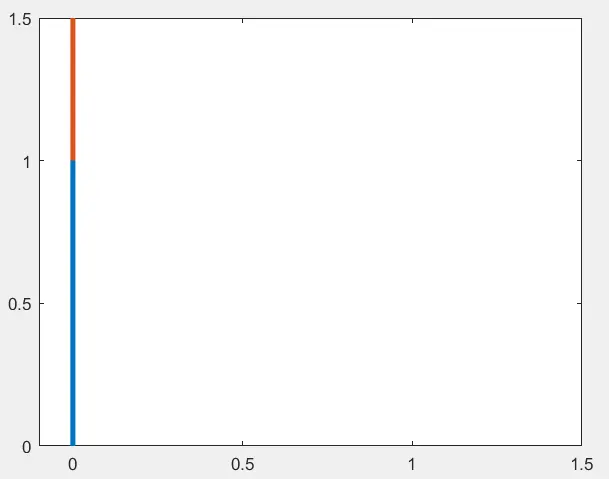

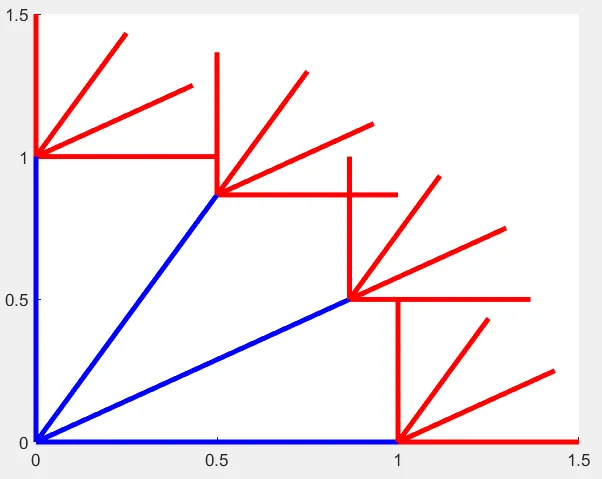

hence,the plot are created at different values, all the plots are stitched and the animation is created for kinematics of a 2R robotic arm.

link of google drive

https://drive.google.com/file/d/1CSxriC0ShzyquE7UEJ00MGmHJJME17cz/view?usp=sharing
