Week 2- 2R Robotic Arm Challenge

Aim:

To program and simulate Forward Kinematics of a 2R Robotic Arm using Matlab Software.

Procedure:

To calculate the Forward Kinematics of a 2R Robotic Arm we use the below formula

Formula for 1st Arm:

x1=l1*cosθ

y1=l1*sinθ

Formula for 2nd arm:

x2=x1+l2*cosθ

y2=y1+l2*sinθ

where,

l = Length of the Arm.

θ = degree of the arm

x = value of arm in x-axis

y = value of arm in y-axis

Coding:

% use input commands

theta is valued from 0° to 90° with interval of 5 for 0° to 90°.

'for' loop is used to calculate the values of intervals of a with respect to theta.

Animation is played with 0.03 seconds of time interval

Movie file has been created as below,

% Forward Kinematic of a 2R Robotic Arm
clear all
close all
clc

% inputs
l1=2;
l2=0.8;
theta1=[1:5:90];
theta2=[1:5:90]

ct=1
for a = 1:length(theta1);
    THETA1= theta1(a);
    for b = 1:length(theta2);
        THETA2= theta2(b);

        x0=0;
        y0=0

        x1=l1*cosd(THETA1);
        y1=l1*sind(THETA1);

        x2=x1+l2*cosd(THETA2);
        y2=y1+l2*sind(THETA2);

        % plotting
        plot([x0 x1], [y0 y1], [x1 x2], [y1 y2], 'linewidth',3);
        xlabel('X-Axis');
        ylabel('Y-Axis');
        axis([0 3 0 3]);
        pause(0.03);
        M(ct) = getframe(gcf);
        ct=ct+1
    end
end

movie(M)
videofile = VideoWriter('Forward Kinematic of a 2R Robotic Arm.avi', 'Uncompressed AVI')
open(videofile)
writeVideo(videofile,M)
close(videofile)

Once the above codings are given, click on 'Run' button to get the results.

Output Result File:

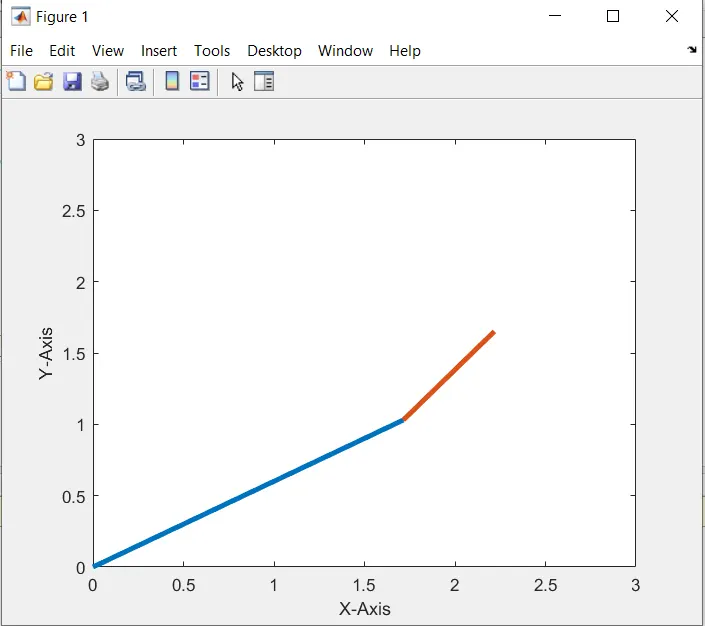

The Output result file animation is attached in below Youtube Link and sample image is attached

https://youtu.be/2xY6o8vdIe0

Conclusion:

The above coding and simulation attached shows the 2R Robotic Arm using Forward Kinematics and the errors occured is also attached.
