1.DOOR BELL

AIM: To Simulate the physical model of door bell. Observe the movement of the plunger when switch is closed for 2 sec.

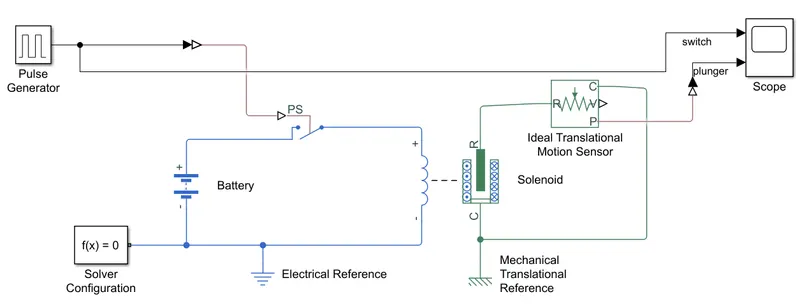

SIMULATION MODEL:

To sensce the movement of plunger IDEAL TRANSLATION MOTION SENSOR were used

OBSERVATION:

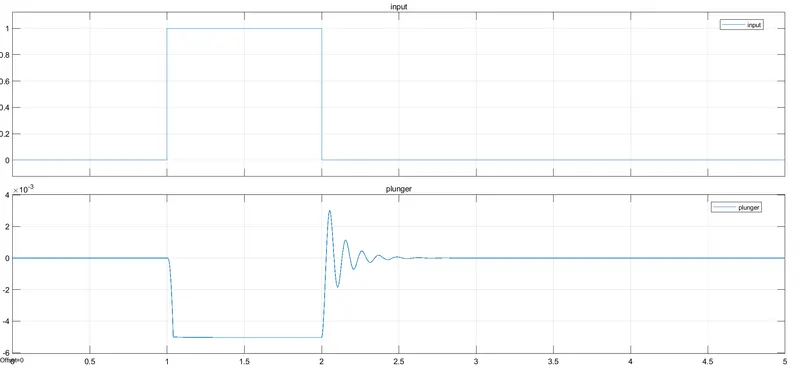

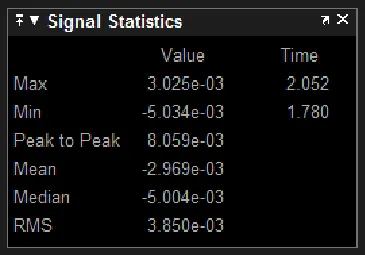

As observed when the switch is closed for 2 sec, the plunger movement were moving from -5.034e-03 to 3.025e-03 as max value.

RESULT:

2.Fan operating with temperature condition

AIM: To switch ON/OFF the fan as below condition.

>20 degree from 0-10 sec

>27 degree from 10-30 sec

>23 degree from 30-50 sec

SIMULATION MODEL:
