Week -2
1:simulation model of door bell:
the physical movement of the plunger and switch closing time is shown in below images.
2:Simulation for On the fan when the temparature is above 25c's given below:

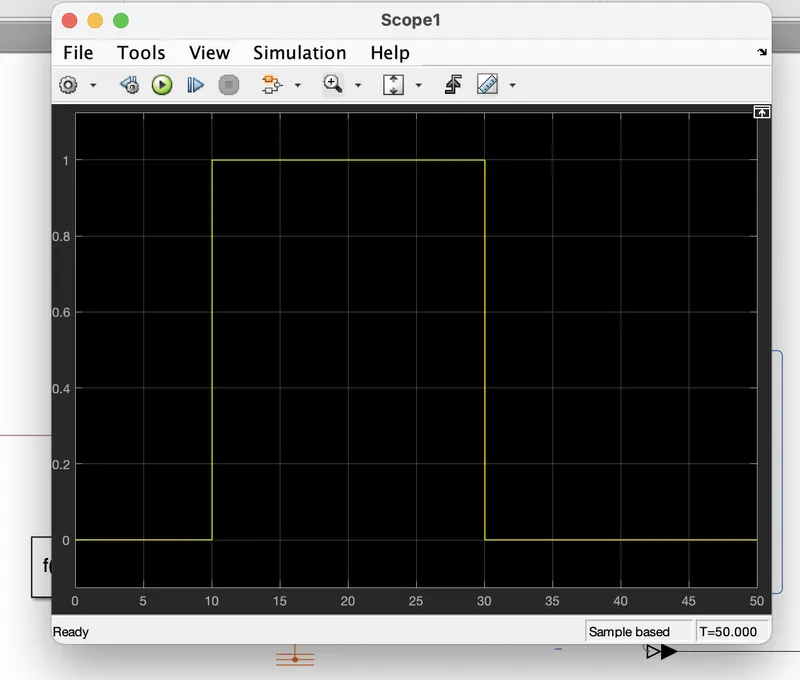

the signal is showing that for 10 to 30sec the fan will run accorrding to the given condition.
