Week -2

Door bell simulink model explanation:

• pulse generator is used to create square wave pulse at regular intervals.
• pulse generator is connected to the switch block, switch block is used to controlled by external physical signal.
• battery block is connteced, the positive terminal of the switch is connected to positive side of battery and negative terminal of switch is connected to negative side of battery.
• the solenoid bloack is connected with switch and battery and get's complete circuit. the port c is connected to the mechanical resistance.
• the ideal translation sensor is connected with the soleniod block to observe the movement of plunger.

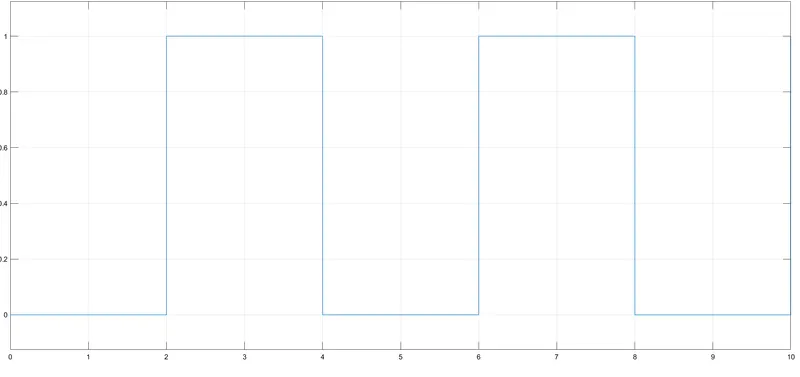

 scope block is connected to get output

Thermistro model explaination:

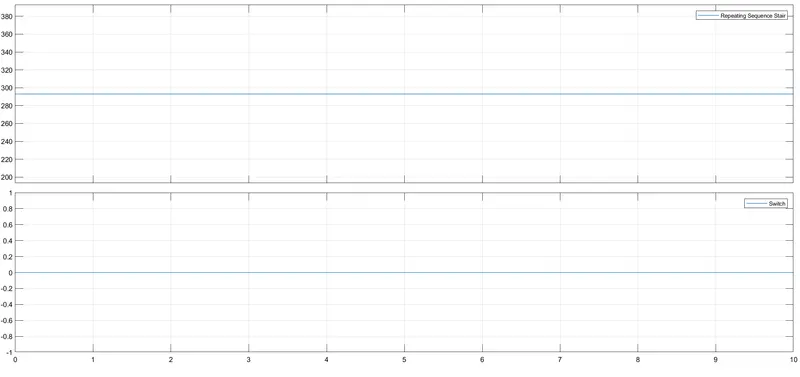

• repeating sequence stair is used to give the input to the thermistor, A controlled temperature source block is connected through which input values are given to thermistor.
• battery block, resistor block and voltage sensor block is connected to the thermistor. the voltage sensor is to measure the voltage change during different temperature inputs.
