Week 14 challenge

Objective :

1. To asselmble the butterfly valve

2. To apply GD and T to the assembly

Answers :

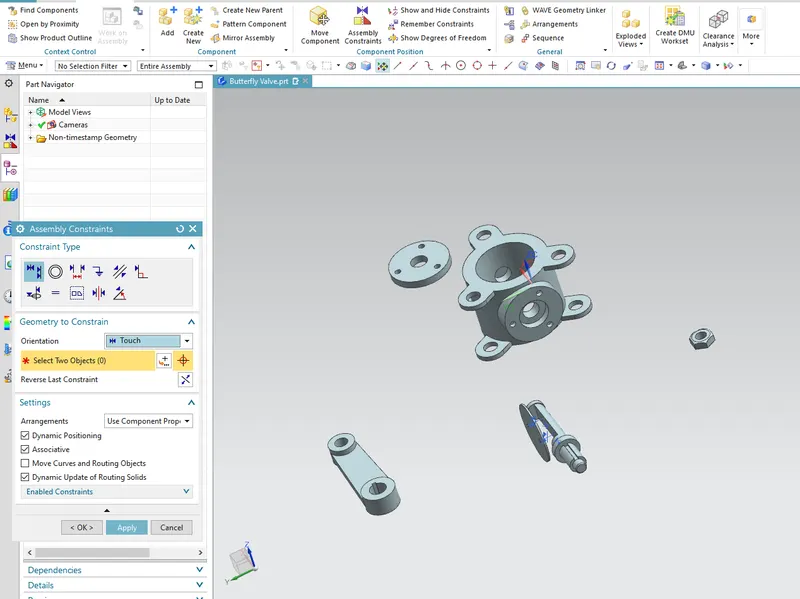

1. Imported all the part files to assembly workbench .

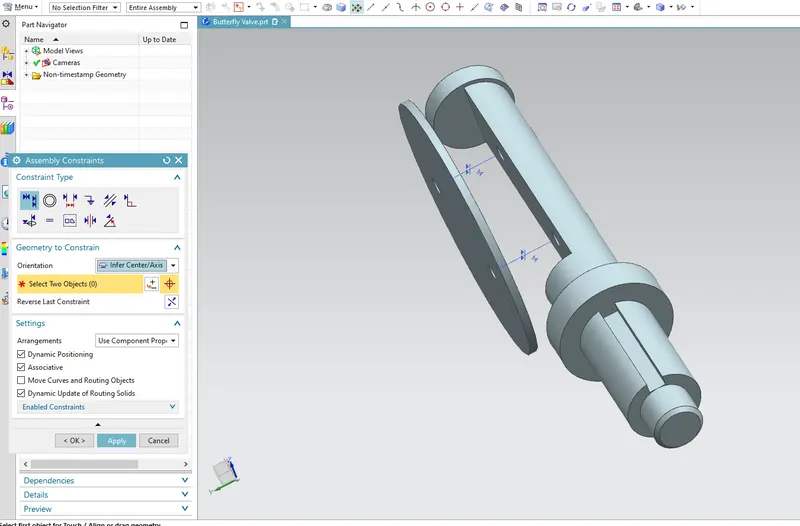

2. Alligned the disc scre holes with shaft screw holes

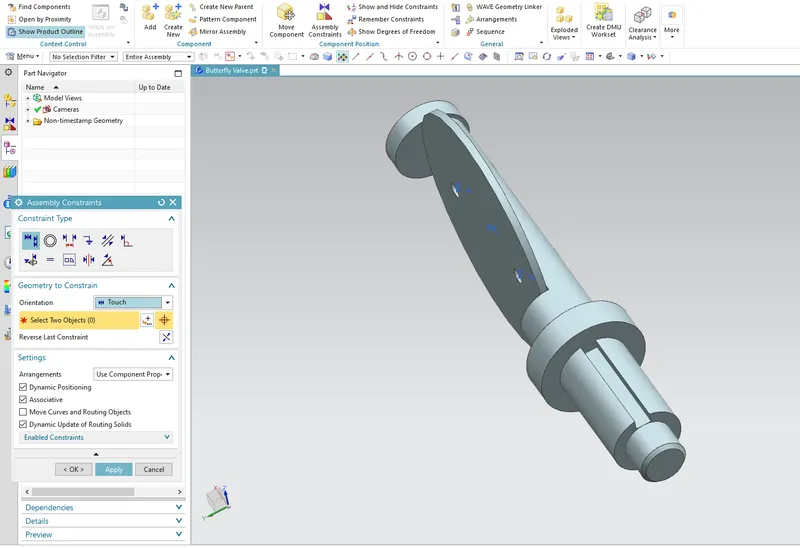

3. Constrained the disc and shaft using surface to surface touch

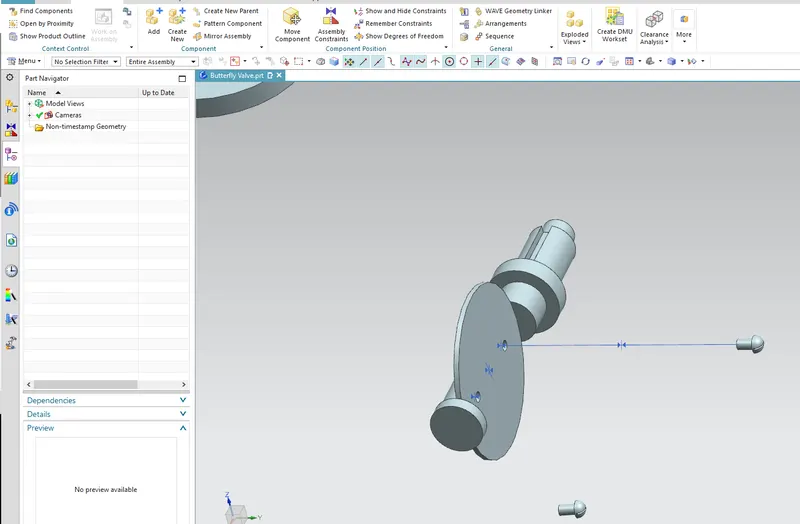

4. Alligned the screw axis to disc hole axis .

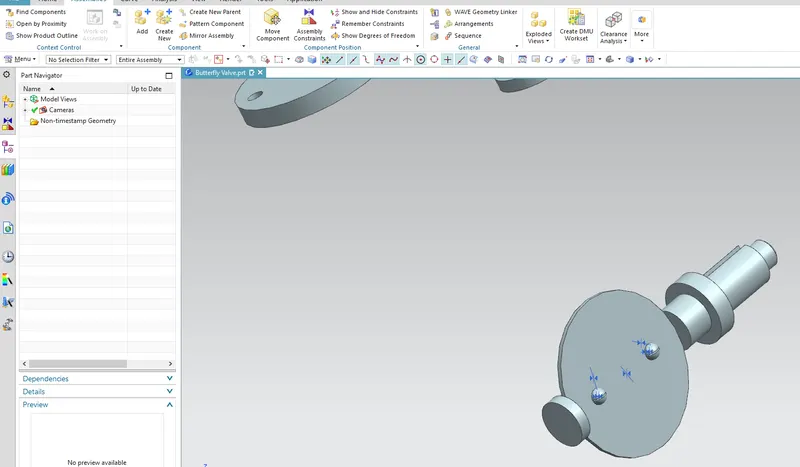

5. Constrained 2 screws using surface to surface mating

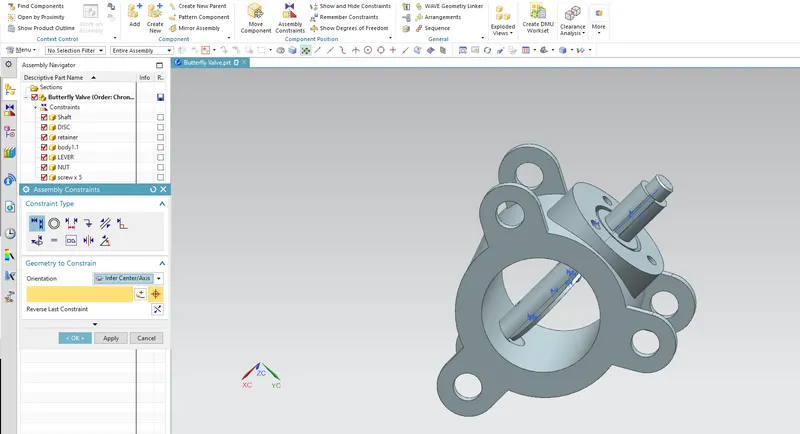

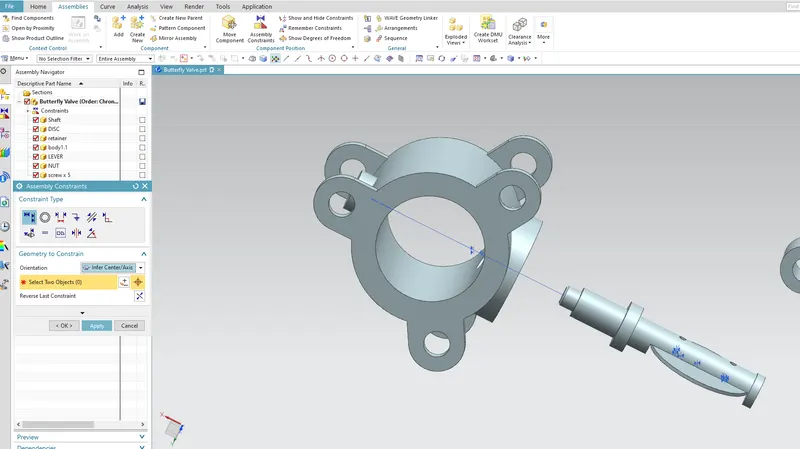

6. Alligned the Shaft axis with body hole axis

7. Positioned the shaft and made surface to surface mating

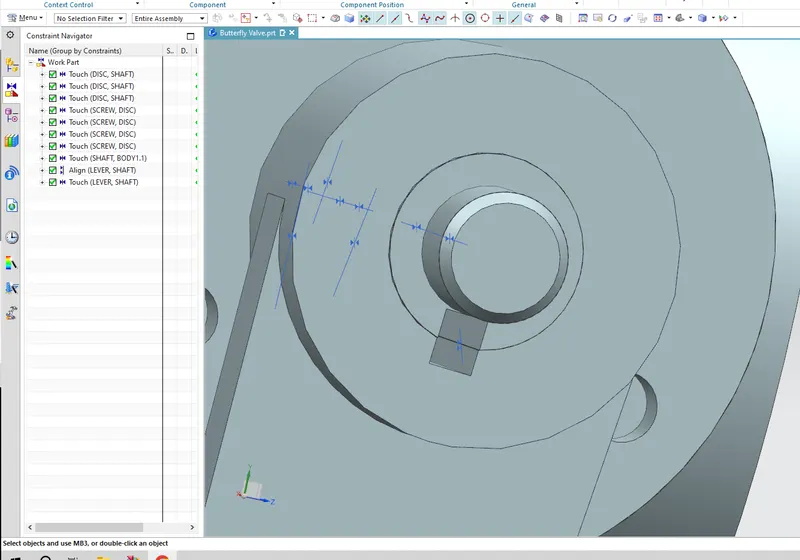

8. Alligned the key slot in shaft and lever

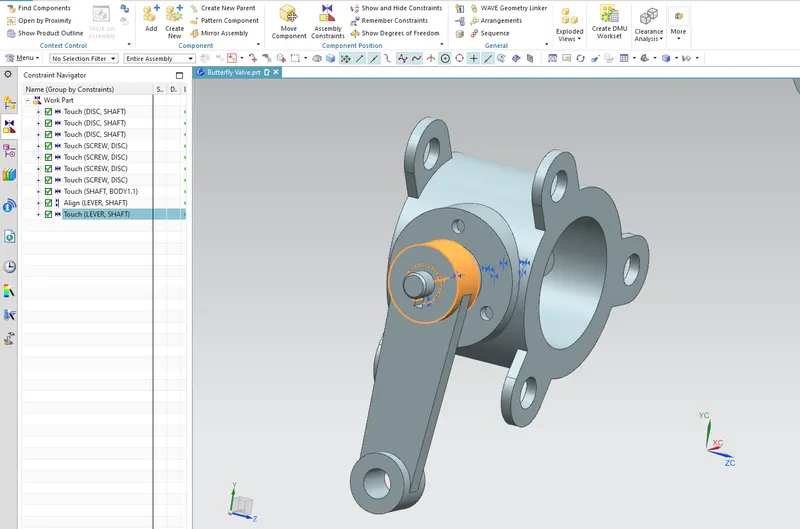

9. Alligned the axis of lever hole and shaft axis

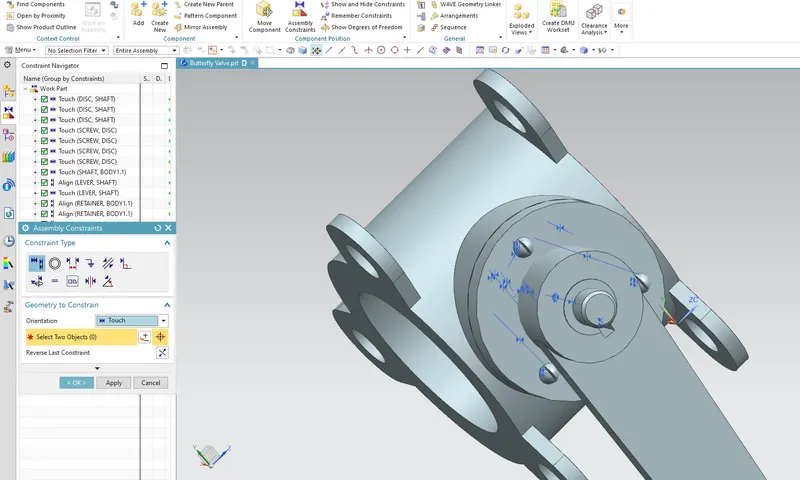

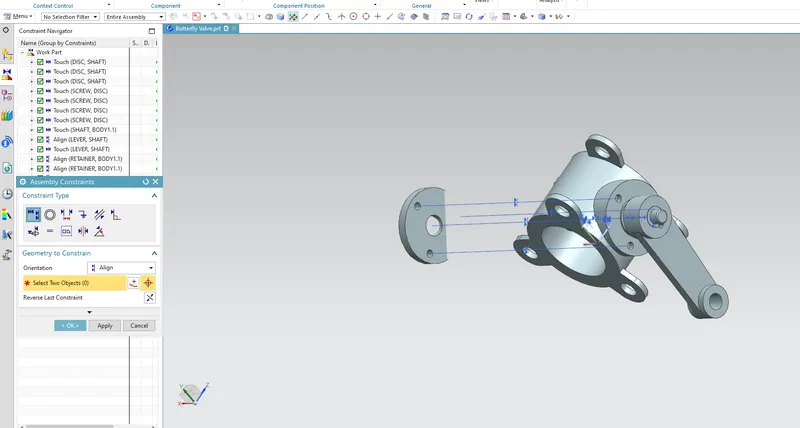

10. Axially Alligned the retainer holes with holes in body and made surface to surface constrain

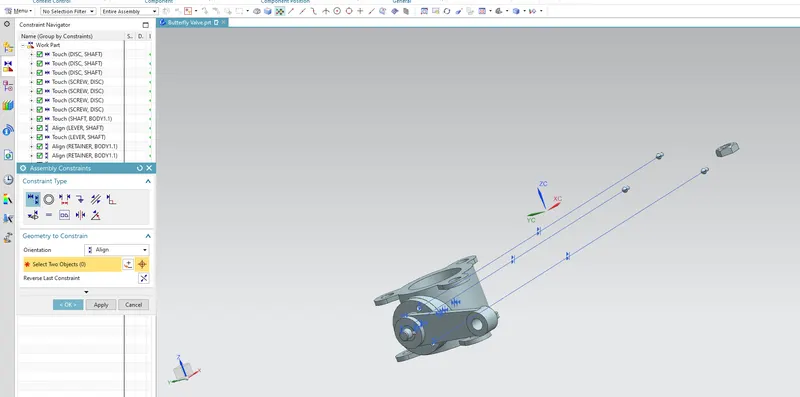

11. Axially alligned the 3 screws with retainer holes

12. Made surface to surface constrain

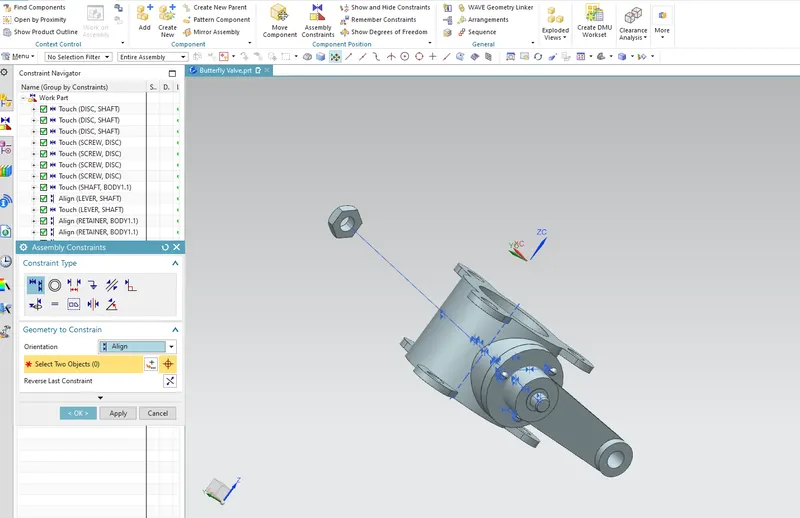

13. Alligned and  surface constrained the nut

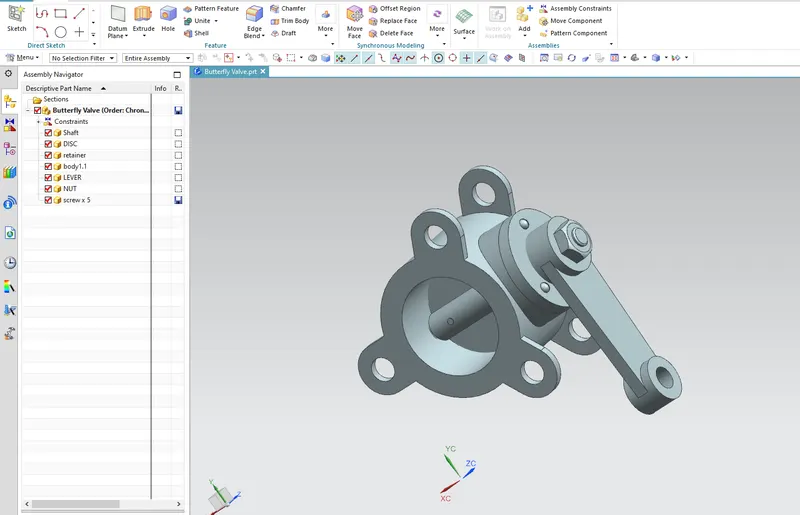

Hence the butterfly valve was assembled
