Challenge

Week 14 challenge

Aim -

Procedure -

1. I am go to the assembly work bench.

2. Then in assembly By using add option, i added all the parts in workbench which require for butterfly valve assembly.

3. Then arrange all the parts on proper location by using move component command.

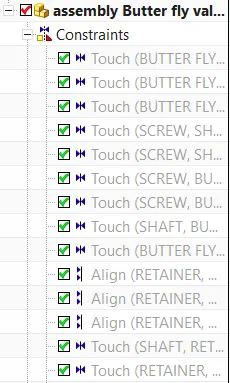

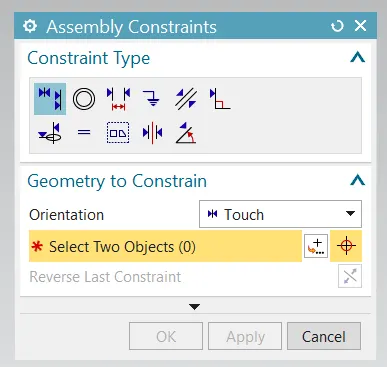

4. Then apply assembly constraints to assemble all the parts.

5. Then in Drafting workbench create a 2D model of assembly and Apply GD & T.

Different Views of final assembly

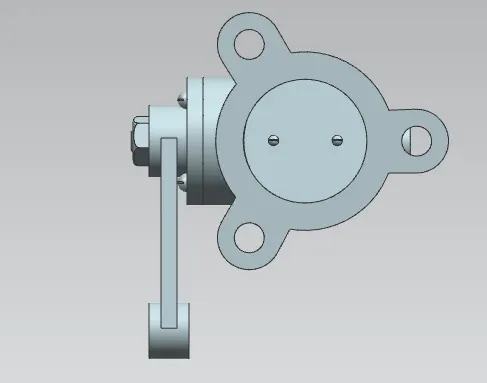

Front

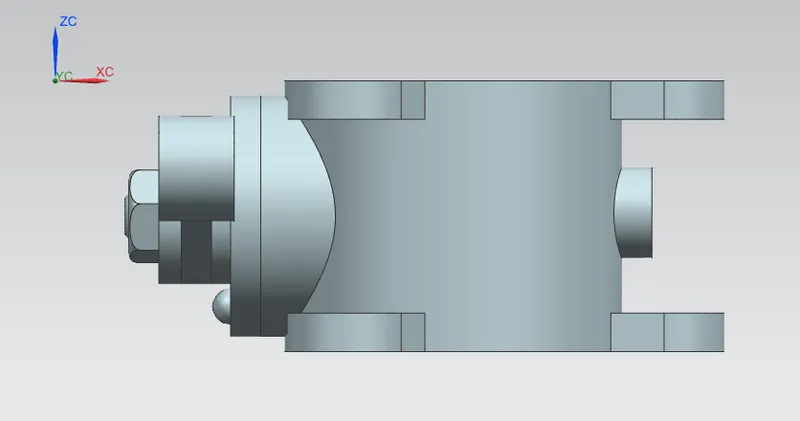

Side View

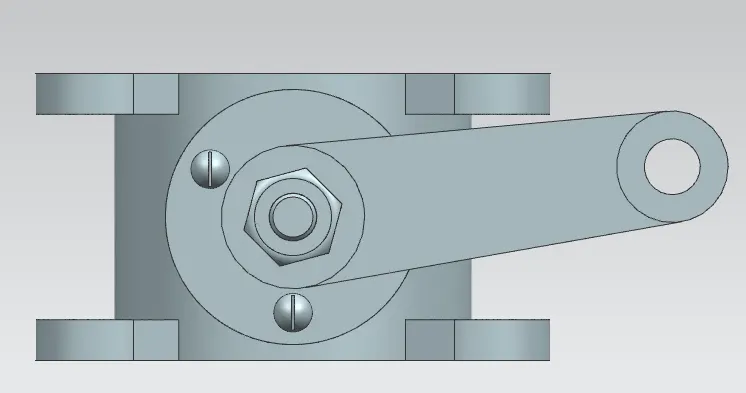

Top View-

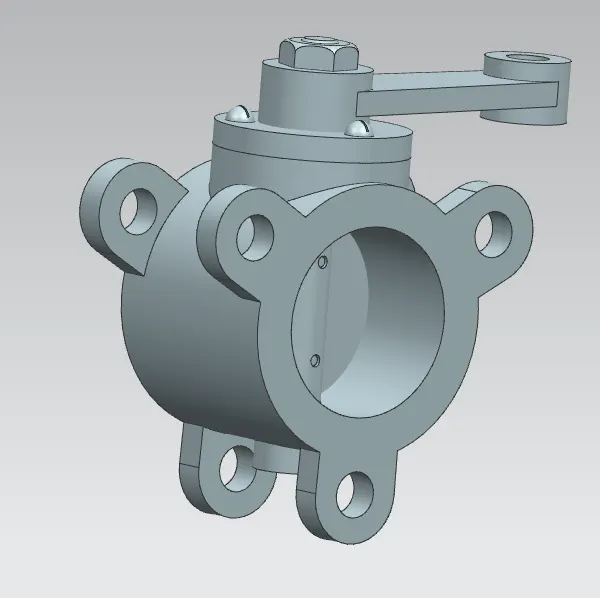

Isometric View -
