Week 14 challenge

Final Project on Geometric Dimensioning & Tolerance

Objective:

To Assemble and apply GD&T to the butterfly valve assembly drawing using the parts designed in the previous challenges

Introduction:

Butterfly Valve:

A butterfly valve is from a family of valves called quarter-turn valves. In operation, the valve is fully open or closed when the disc is rotated a quarter turn. The "butterfly" is a metal disc mounted on a rod. When the valve is closed, the disc is turned so that it completely blocks off the passageway. When the valve is fully open, the disc is rotated a quarter turn so that it allows an almost unrestricted passage of the fluid. The valve may also be opened incrementally to throttle flow.

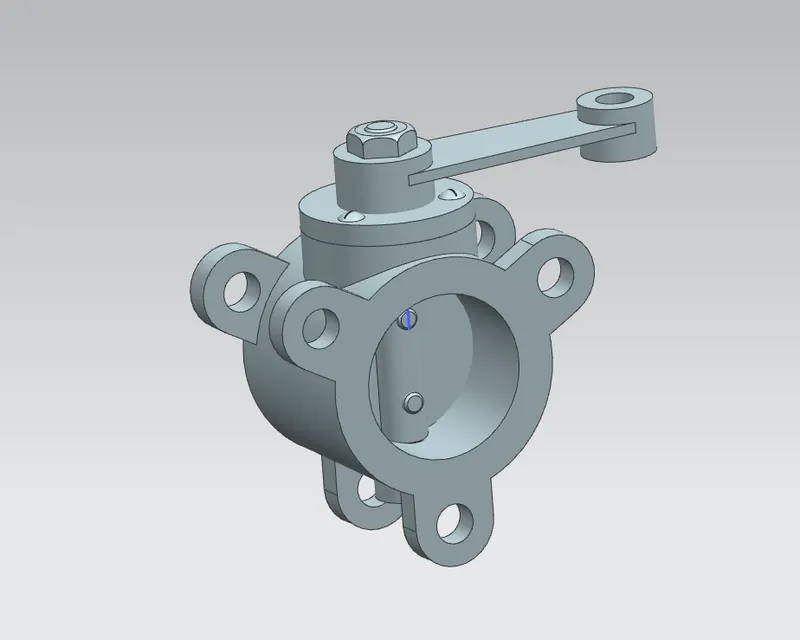

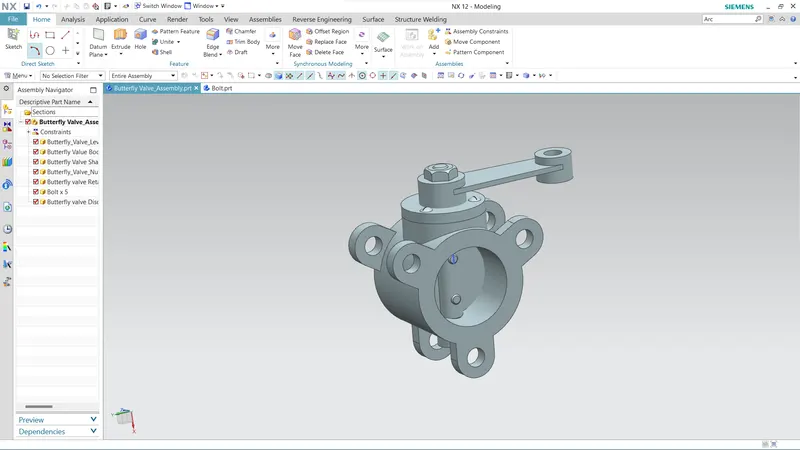

Assembly view:

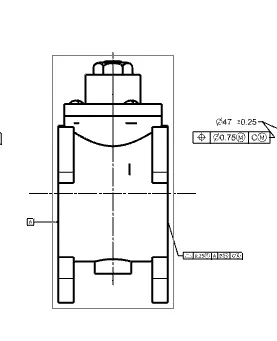

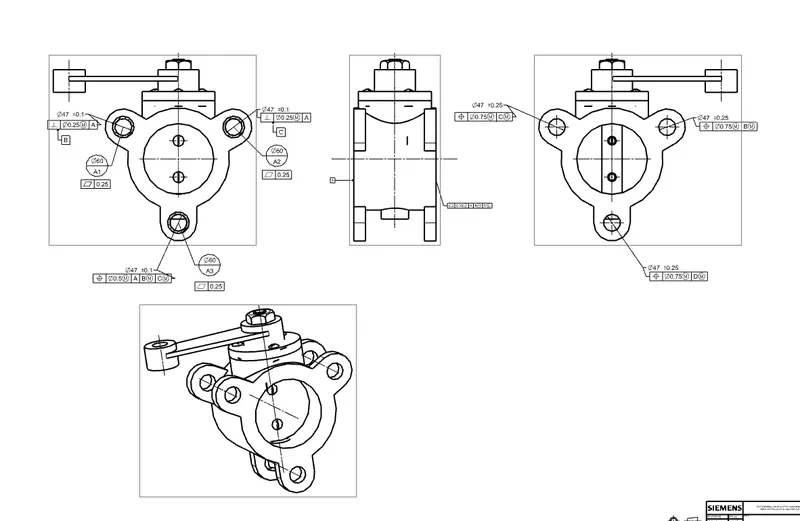

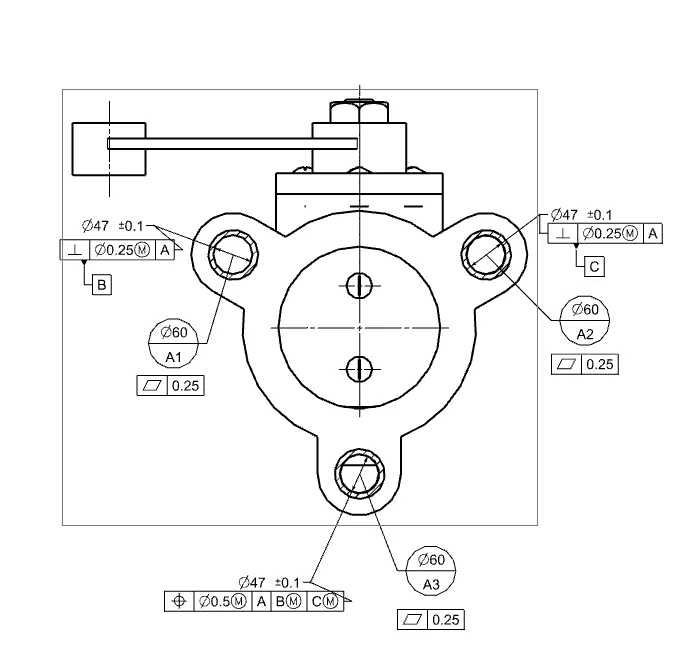

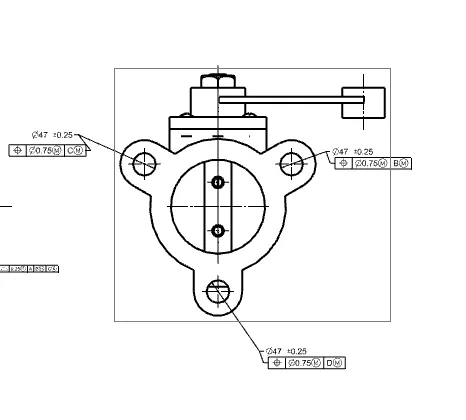

Drafting Views:
