Week 14 challenge

Assembly Of Butterfly Valve

Steps followed

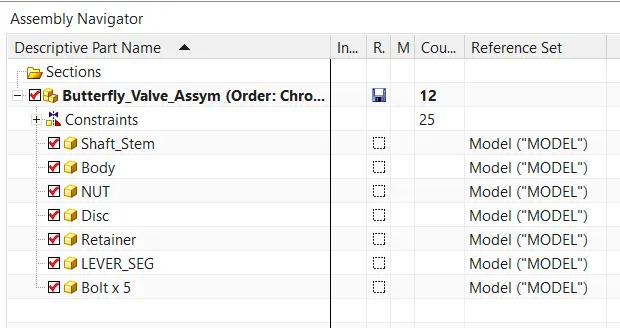

1. First Insert all the MODEL files into the assembly workbench using ADD command

The model required to make a complete assembly of the butterfly valve is mentioned below:

* Shaft -

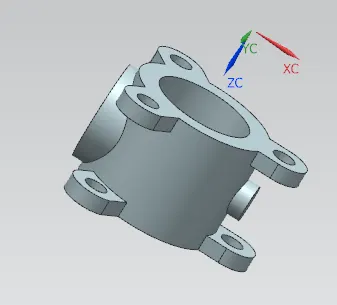

* Body -

* Nut-

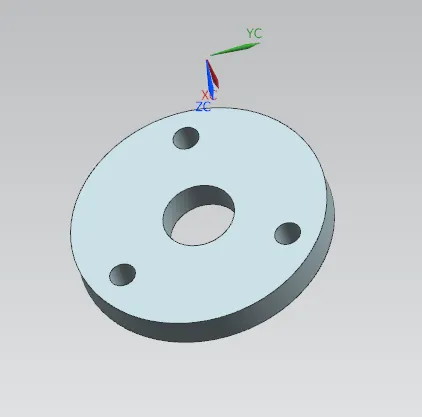

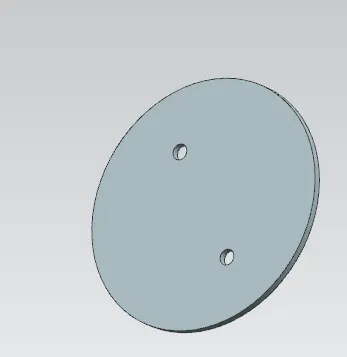

* Disc -

* Retainer -

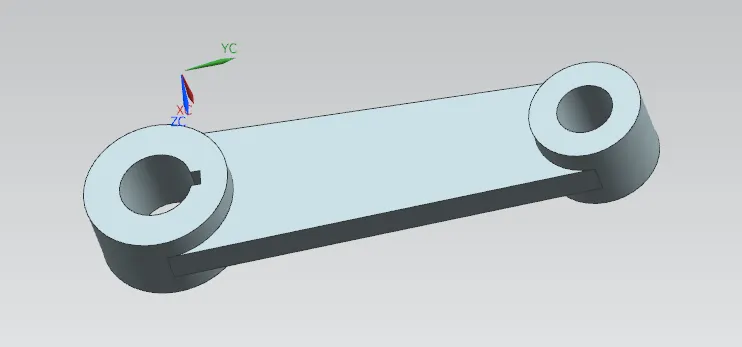

* Lever

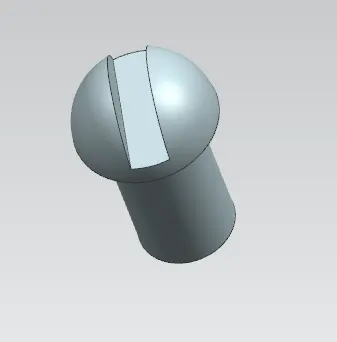

* Screw -

2. Then Use the Move Component Command to Move each Model of Butterfly Valve

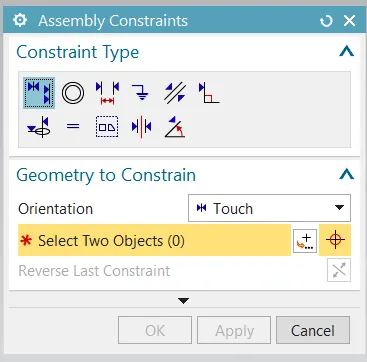

3. Then use the Assembly Constraint Command to constrain each model to each other

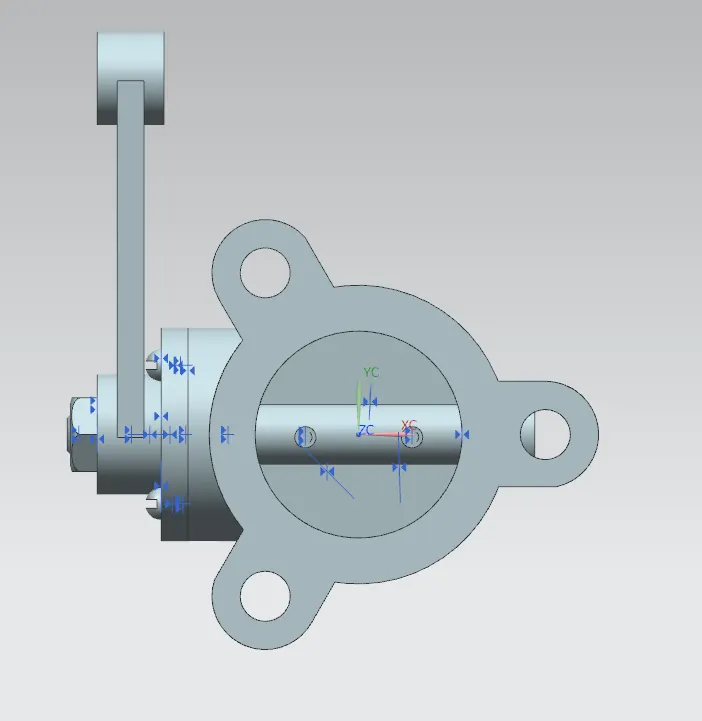

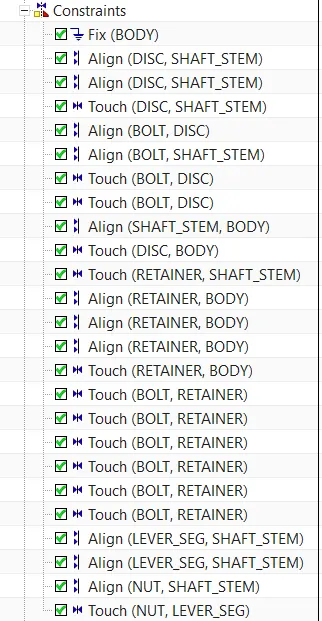

4. The Constraints used are mentioned in the below figure:

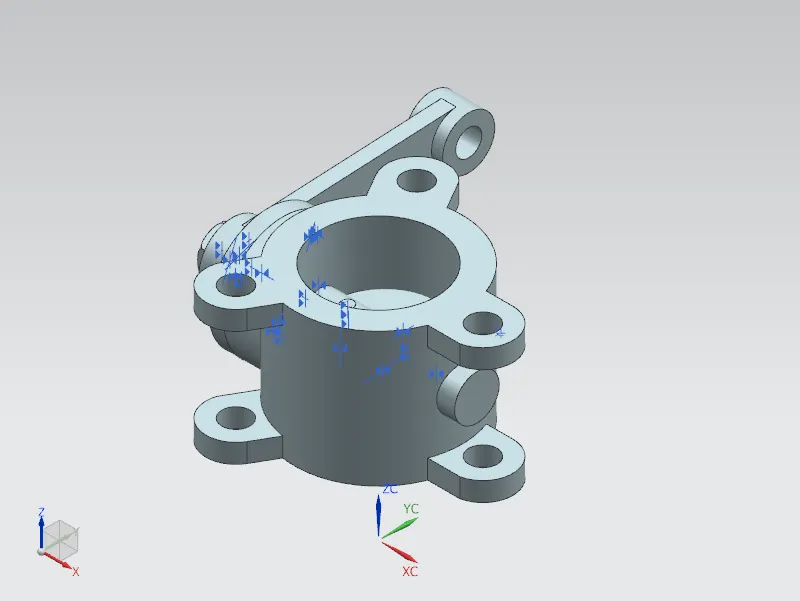

Isometric View of Assembled Butterfly Valve:

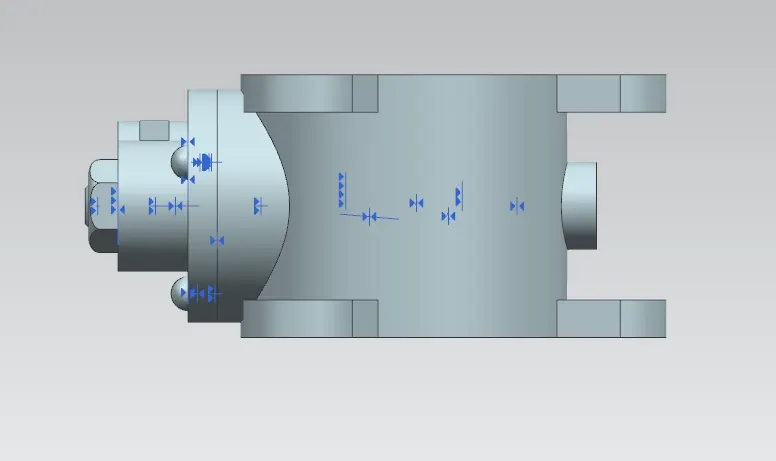

Front View

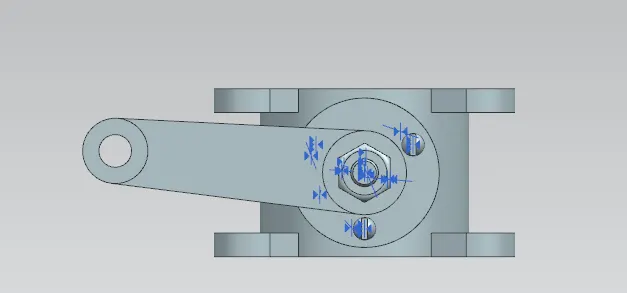

Top View

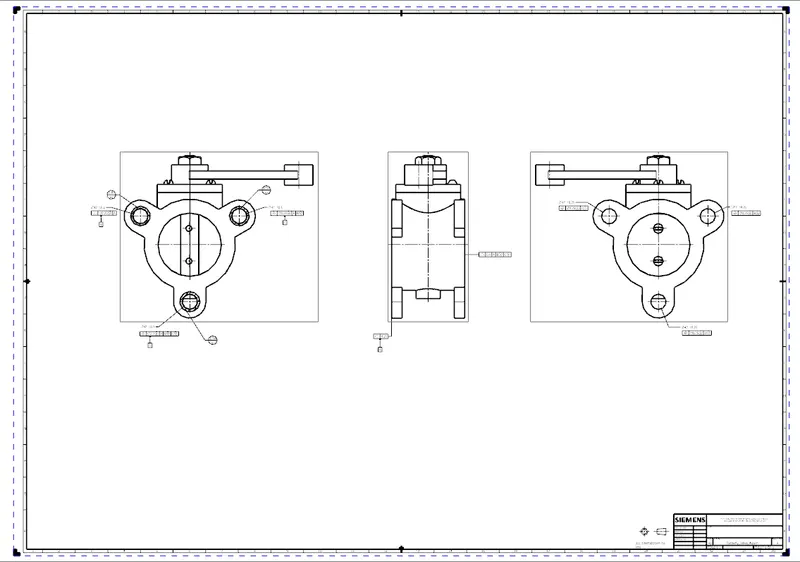

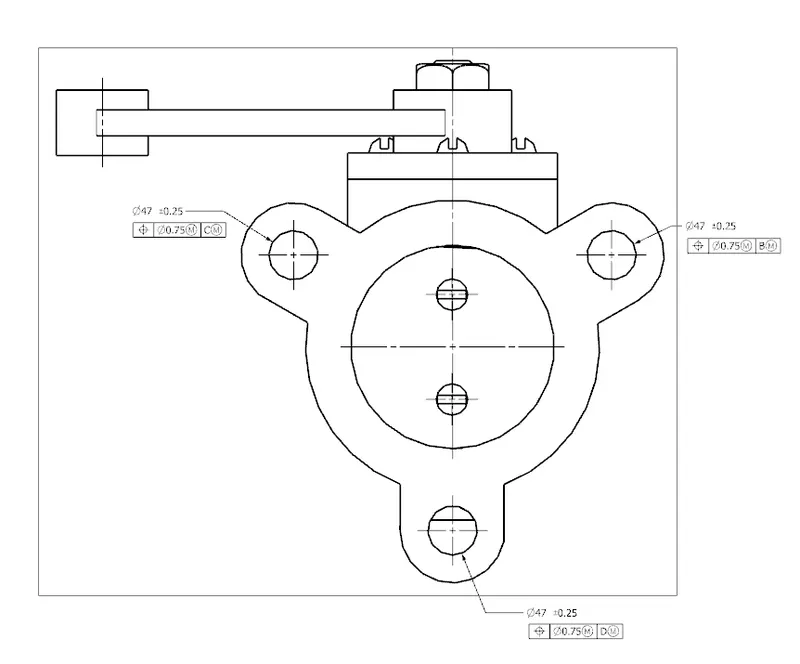

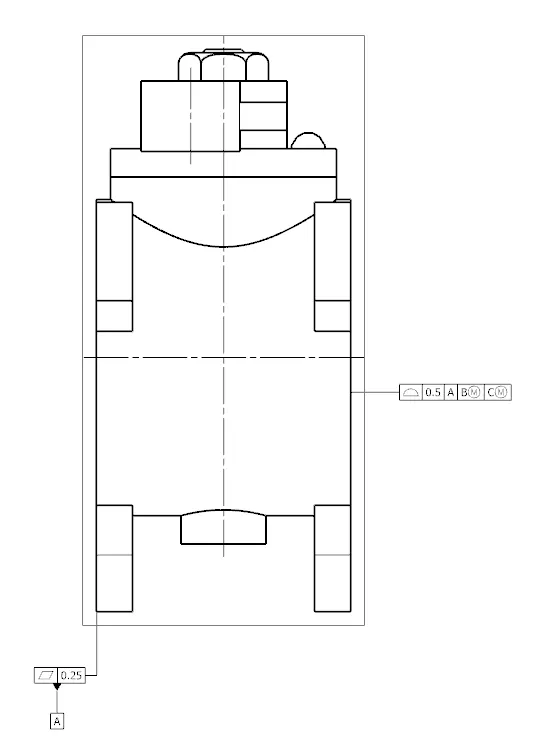

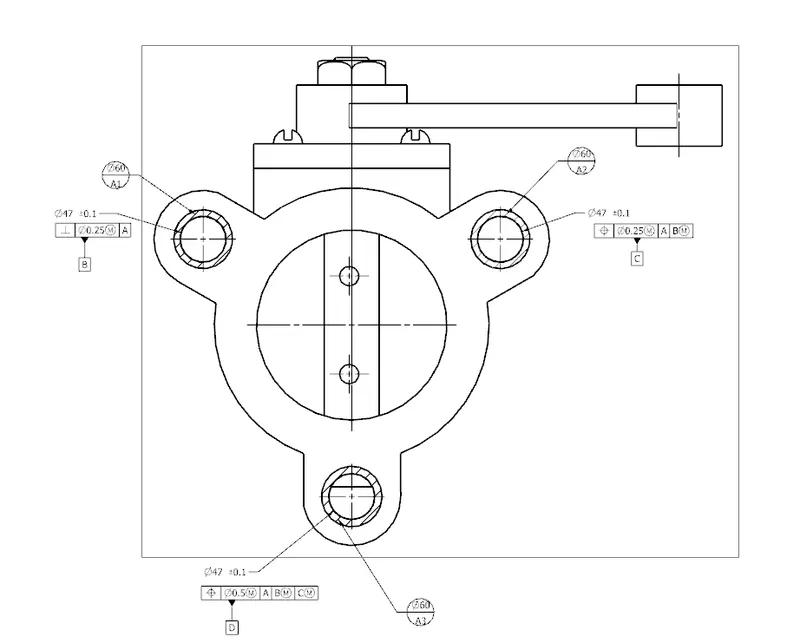

Apply GD&T to the butterfly valve assembly drawing
