Week 14 challenge
Answer:
Objective:-
The objective of this project is to design the assembly of the Butterfly valve and apply the GD&T concepts to the various parts of the Butterfly Valve.
Software used:-
NX cad
INTRODUCTION:-
A butterfly valve is from a family of valves called quarter-turn valves. In operation, the valve is fully open or closed when the disc is rotated a quarter turn. The "butterfly" is a metal disc mounted on a rod. When the valve is closed, the disc is turned so that it completely blocks off the passageway.Butterfly valves are used where space is limited. Unlike gate valves, butterfly valves can be used for throttling or regulating flow as well as in the full open and fully closed position. The pressure loss through a butterfly valve is small in comparison with the gate valve.Butterfly valves are often distinguished by the three main types: zero, double, or triple offset.There are several standards available worldwide that describe the symbols and define the rules used in GD&T. One such standard is American Society of Mechanical Engineers (ASME) Y14.5. This article is based on that standard, but other standards, such as those from the International Organization for Standardization (ISO), may vary slightly. The Y14.5 standard has the advantage of providing a fairly complete set of standards for GD&T in one document. The ISO standards, in comparison, typically only address a single topic at a time.
Name of Parts:-
- Main Body
- Shaft
- Retainer
- Disc Plate
- Lever
- Nut
- Screw

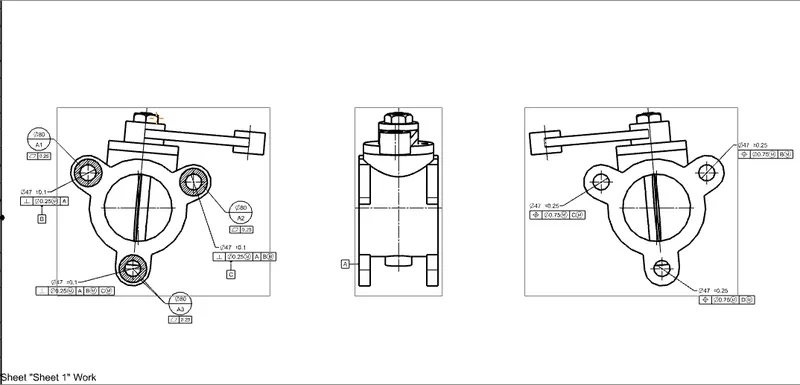

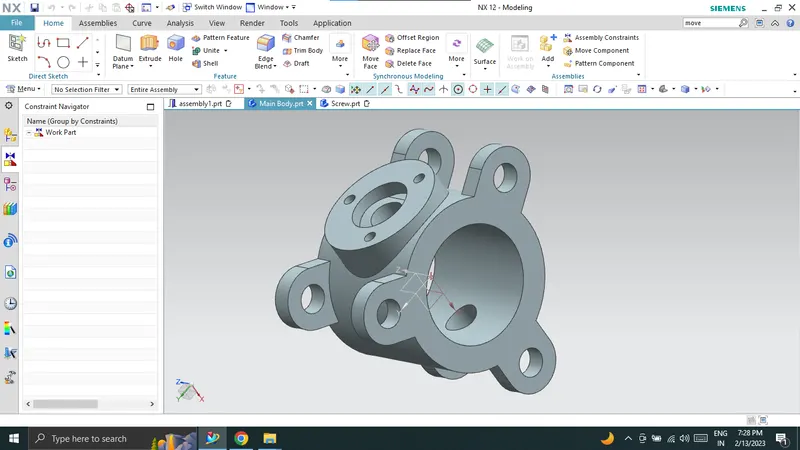

- Body:-

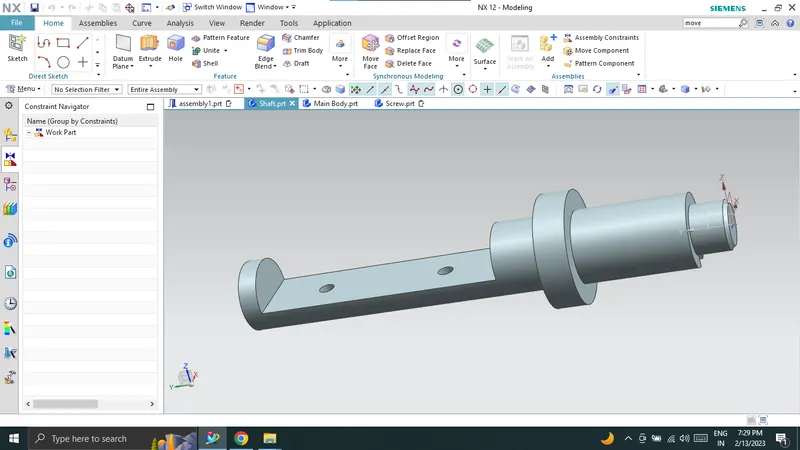

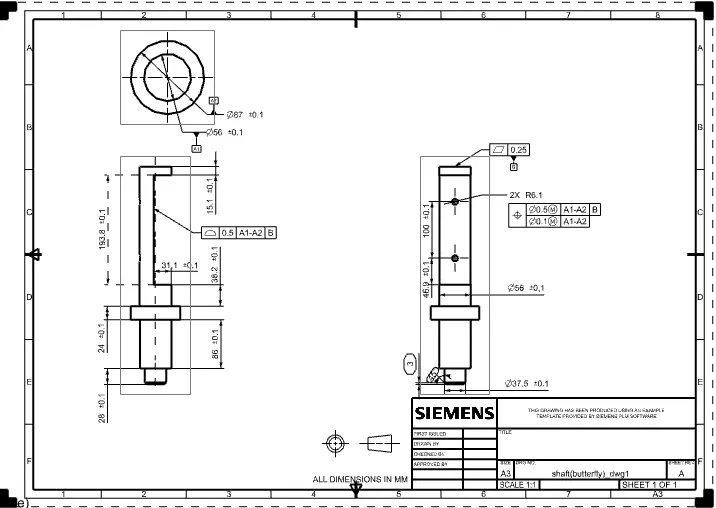

Shaft:-

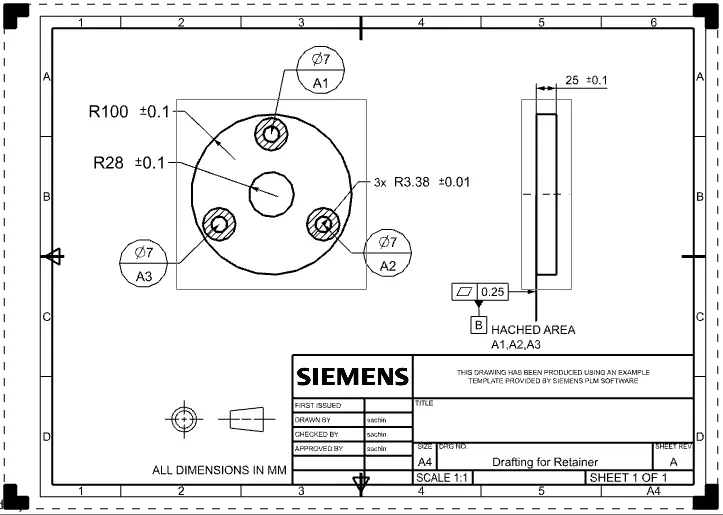

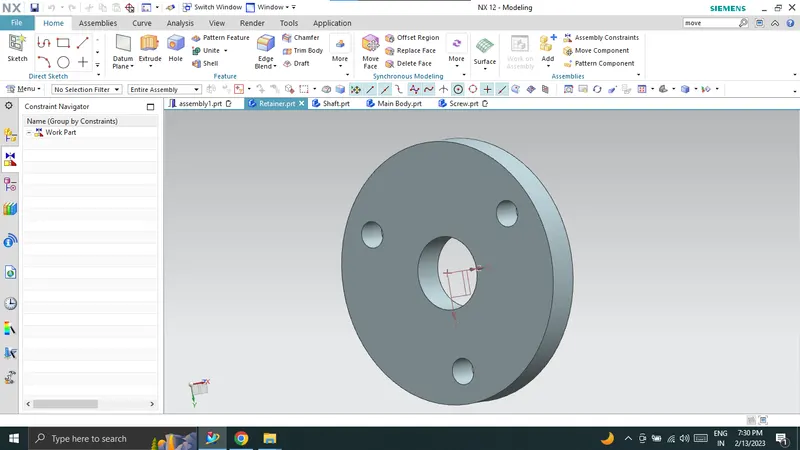

Retainer:-

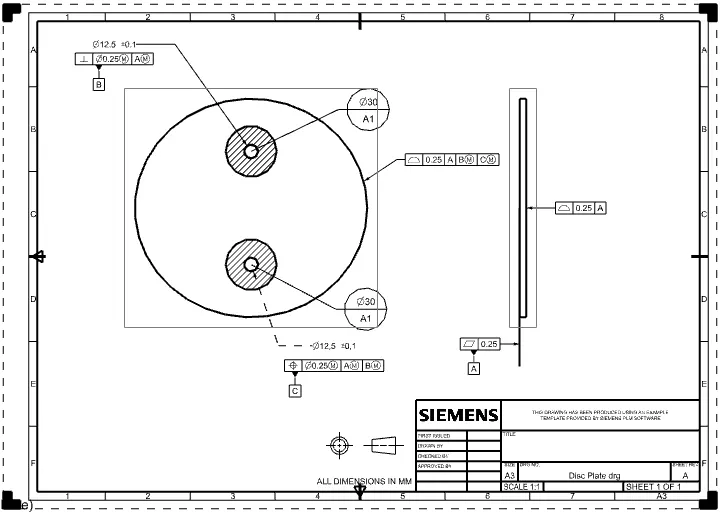

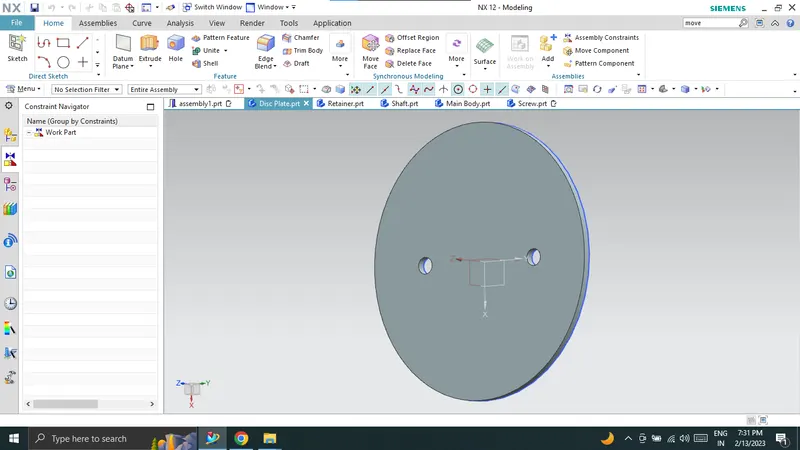

Disc Plate:-

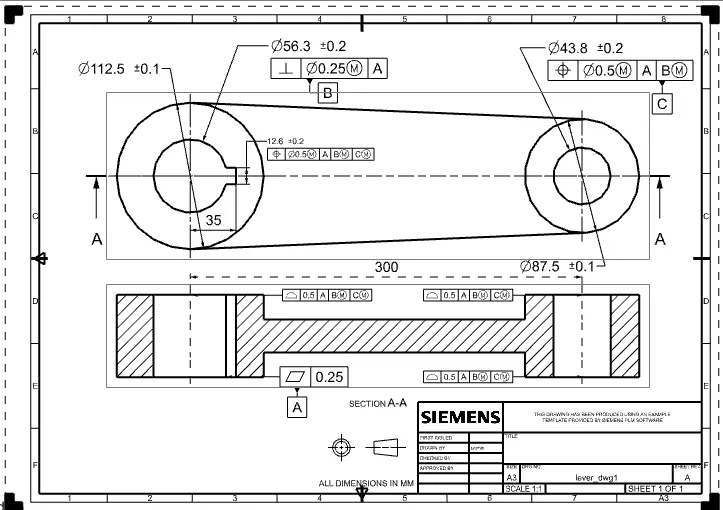

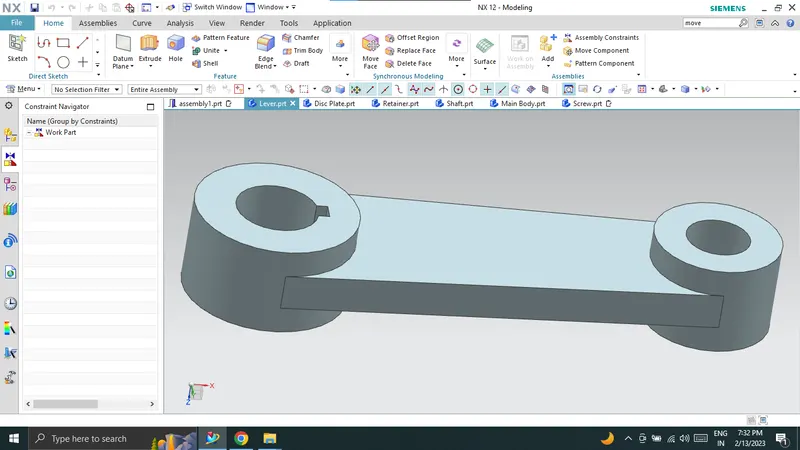

Leaver:-

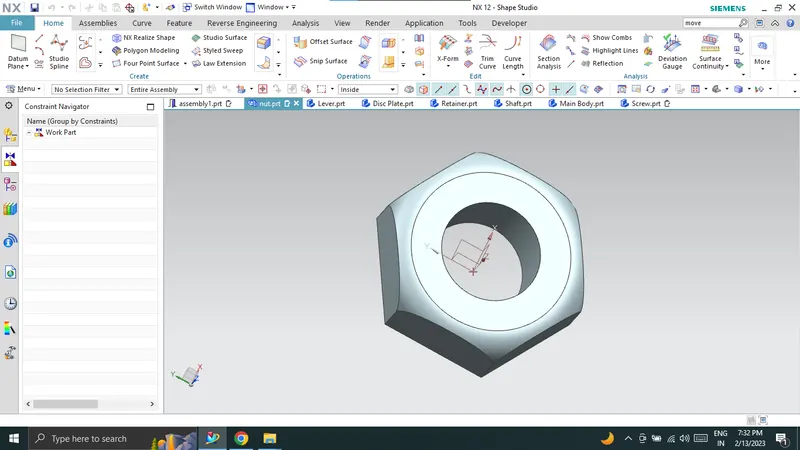

Nut:-

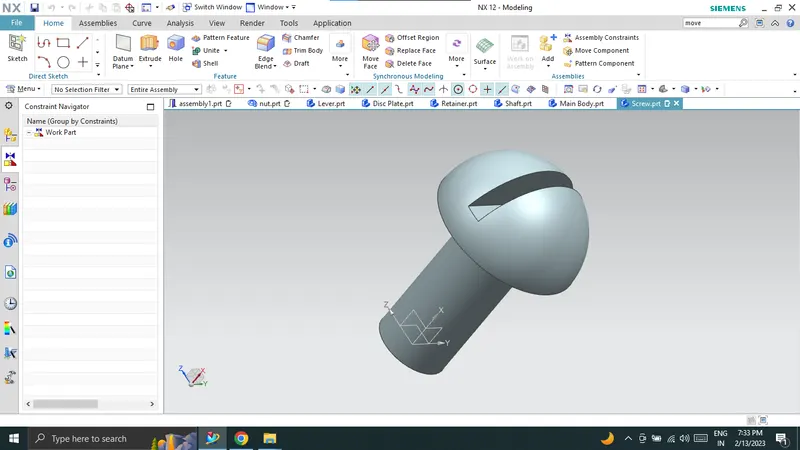

Screw:-

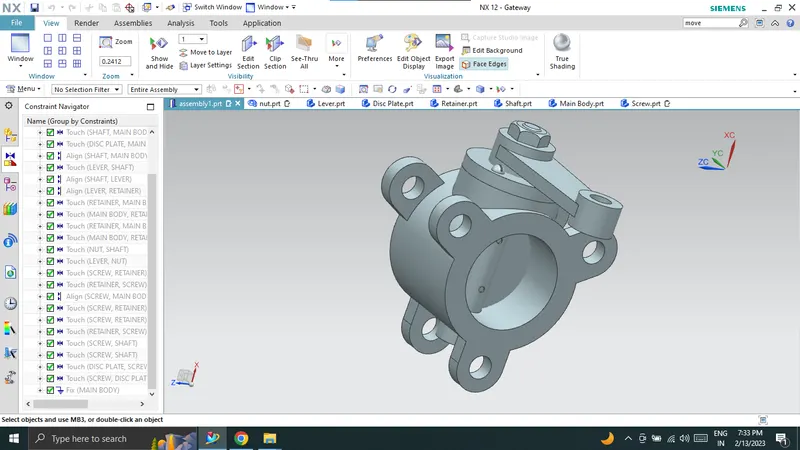

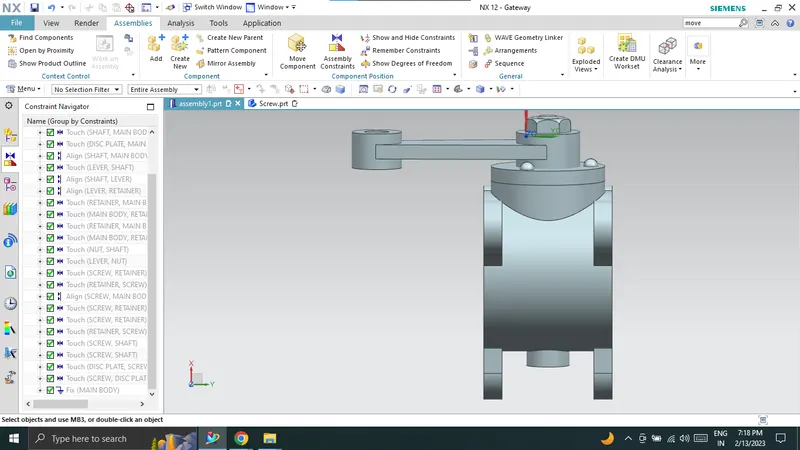

Assembly:-
CONCLUSION:-
To design a butterfly valve and to apply the GD&T to the drawing and assemble all the parts by using Siemens NX cad 12.0.1 is successfully completed.
